Silicon Transmission Series Detection Module
Photoluminescence (PL) testing is a non-contact inspection method based on optical excitation and high-sensitivity camera imaging, widely used for quality inspection of silicon wafers, solar cells, and other semiconductor materials.
-
10WOutput Power
-
1064±5nmCentral Emission Wavelength
-
10nmSpectral Width
-
Product Advantages
-
Applications
-
Specification
-
Related Products
Product Advantages
-
Non-Contact Inspection
PL testing employs a non-destructive approach, ensuring zero physical damage or contamination to silicon wafers while maintaining sample integrity during inspection.
-
High Sensitivity
Capable of detecting defects and impurities at micron- and even nano-scale levels, PL testing offers significantly higher sensitivity than conventional methods.
-
Rapid and Efficient
PL testing enables high-throughput sample processing, dramatically improving production efficiency and quality control effectiveness.
Applications
-

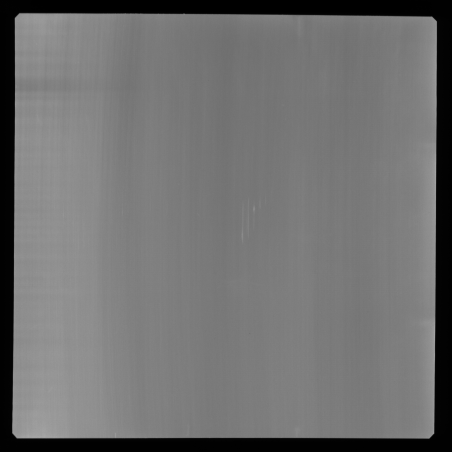

Inspection Module Camera Capture Diagram
-

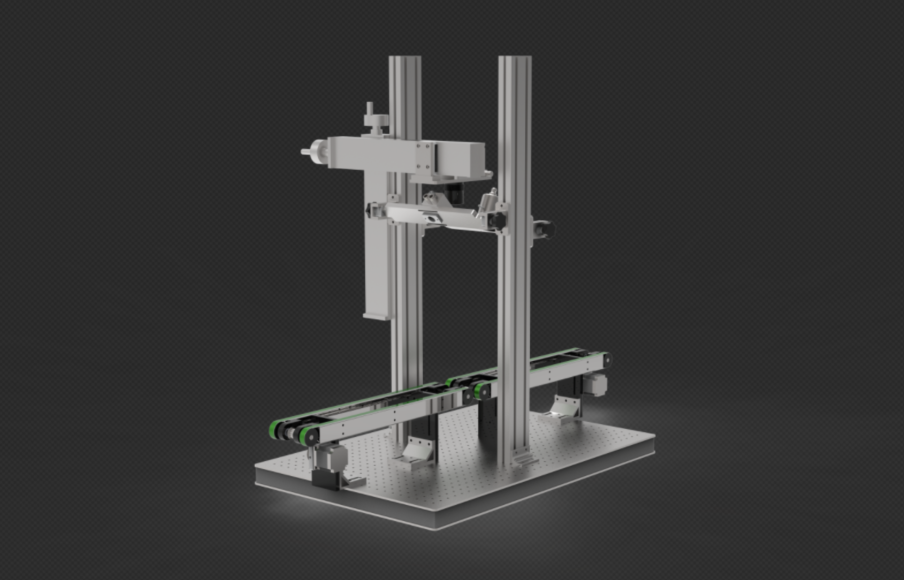

PV Inspection Module
-

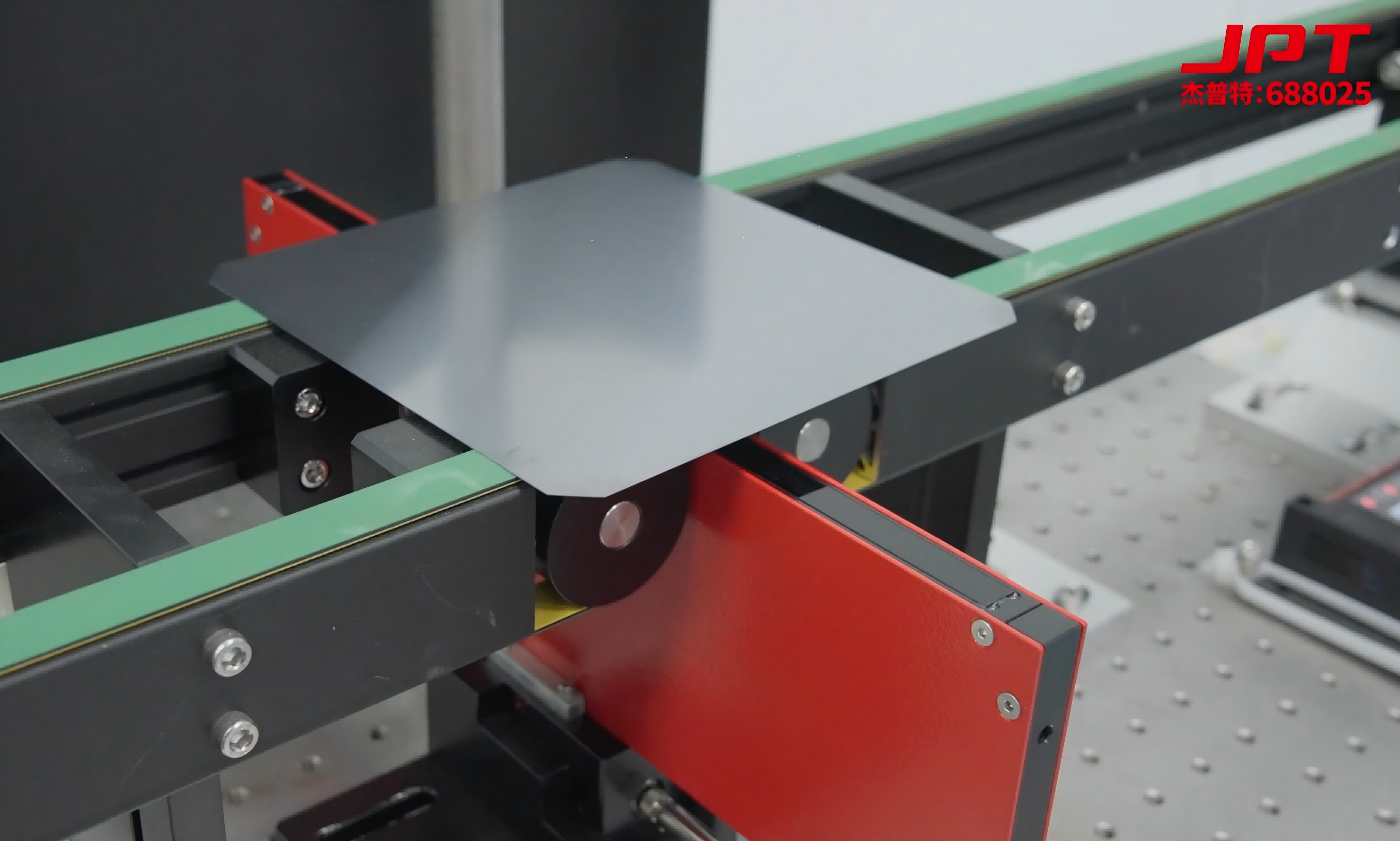

PV Inspection
Specification
-
450nm—100W
-
Model Number(W)
-
Wavelength(nm)
-
Center Wavelength Deviation
-
Average Power(W)
-
Typical Working Distance(mm)
-
Dimensions of the Optical Outlet(mm)
-
Detectable Wafer Size(mm)
-
Power Requirements(V)
-
IO Interface
-
Average Power Consumption(W)
-
Outgoing Light Control Mode
-
Power Regulation Mode
-
Operating Temp.&Rh(℃)
-
Controller Size(mm)
-
Optical Module Size(mm)
-
Weight(kg)
-
Applicable Technology
-
450nm—100W
-
Model Number(W)15
-
Wavelength(nm)1064
-
Center Wavelength Deviation±5
-
Average Power(W)15
-
Typical Working Distance(mm)10~25
-
Dimensions of the Optical Outlet(mm)280×10
-
Detectable Wafer Size(mm)≤230
-
Power Requirements(V)220
-
IO InterfaceWhite 0~24V+/ Black 0~0.5V-
-
Average Power Consumption(W)150
-
Outgoing Light Control ModeCode SwitchIO Interface
-
Power Regulation ModeCode Switch
-
Operating Temp.&Rh(℃)20~30;<80%
-

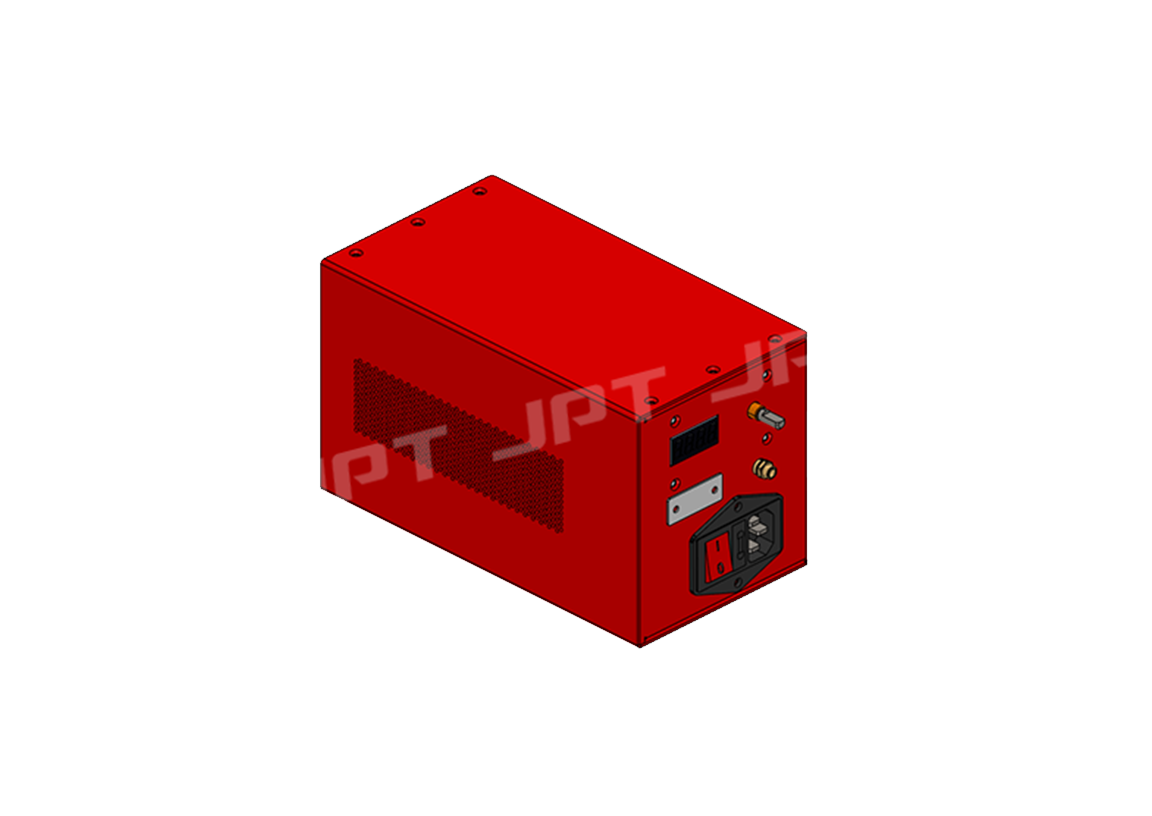

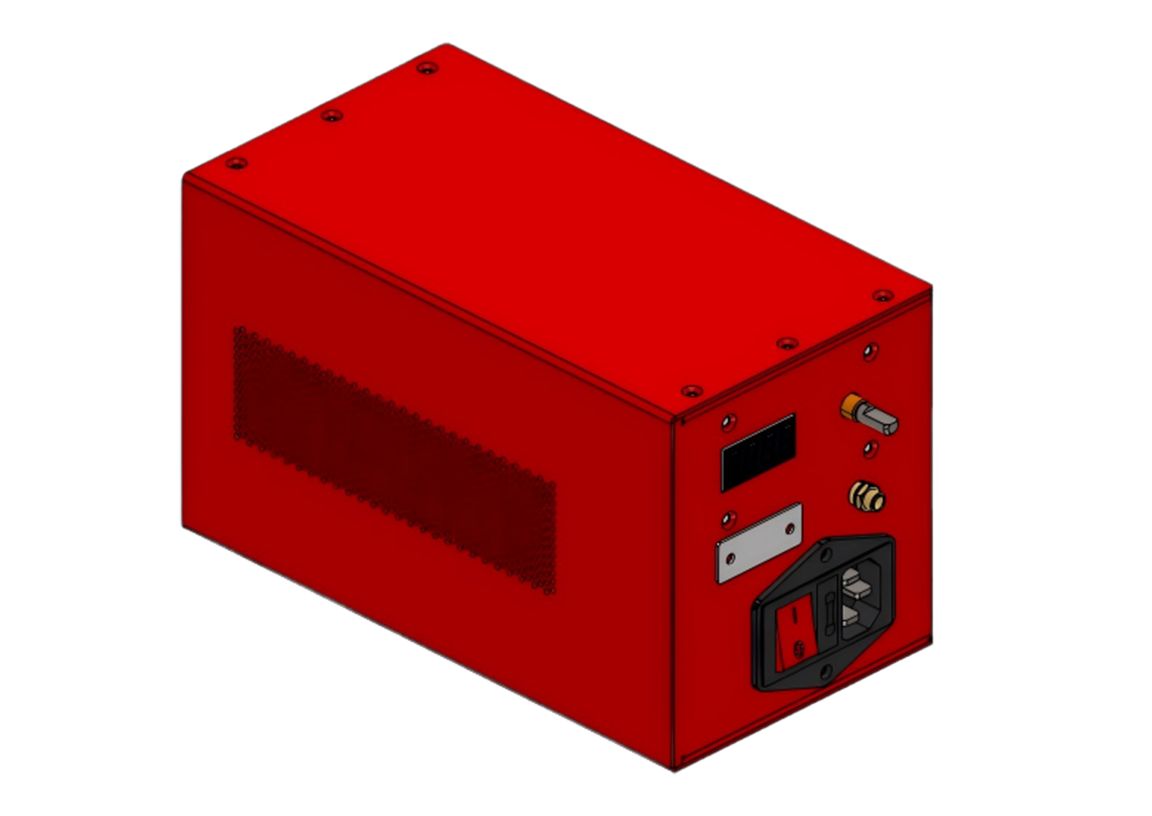

Controller Size(mm)218×122×111
-

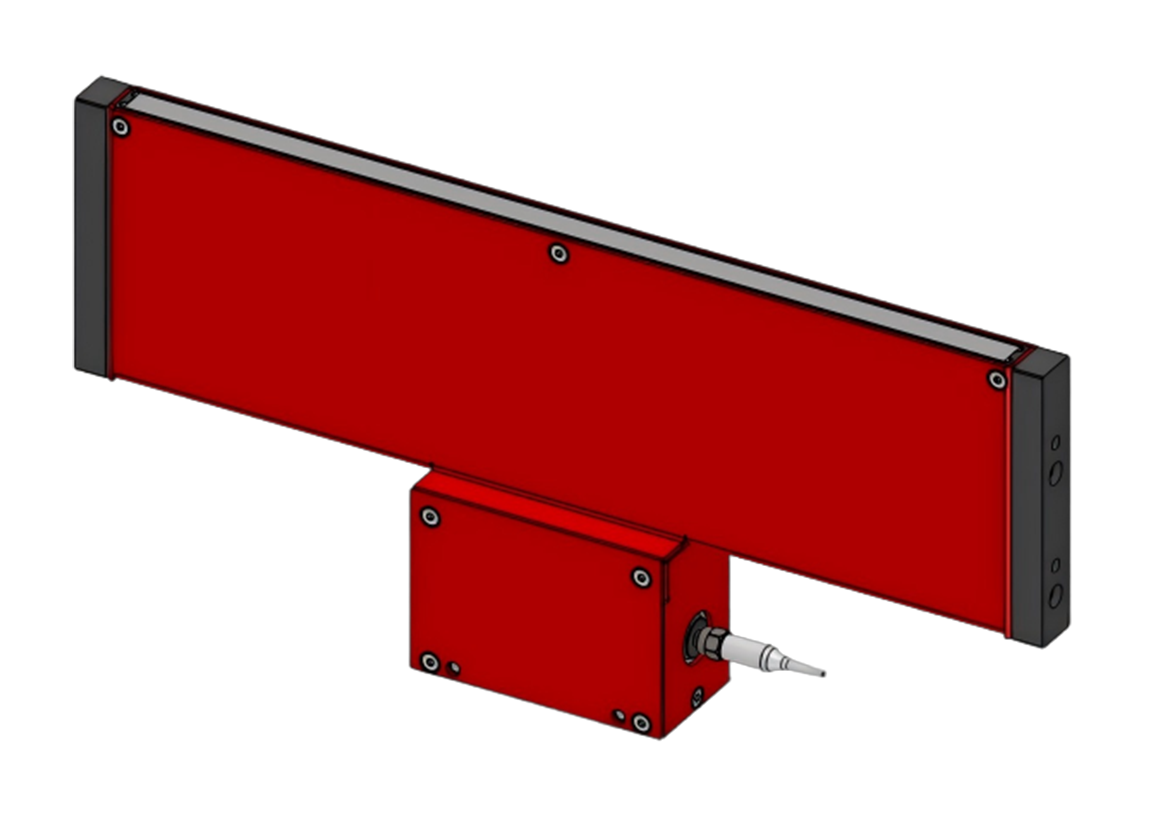

Optical Module Size(mm)316×33×138
-
Weight(kg)≈4
-
Applicable TechnologyRaw Silicon Wafers and Tufting Wafers
-
