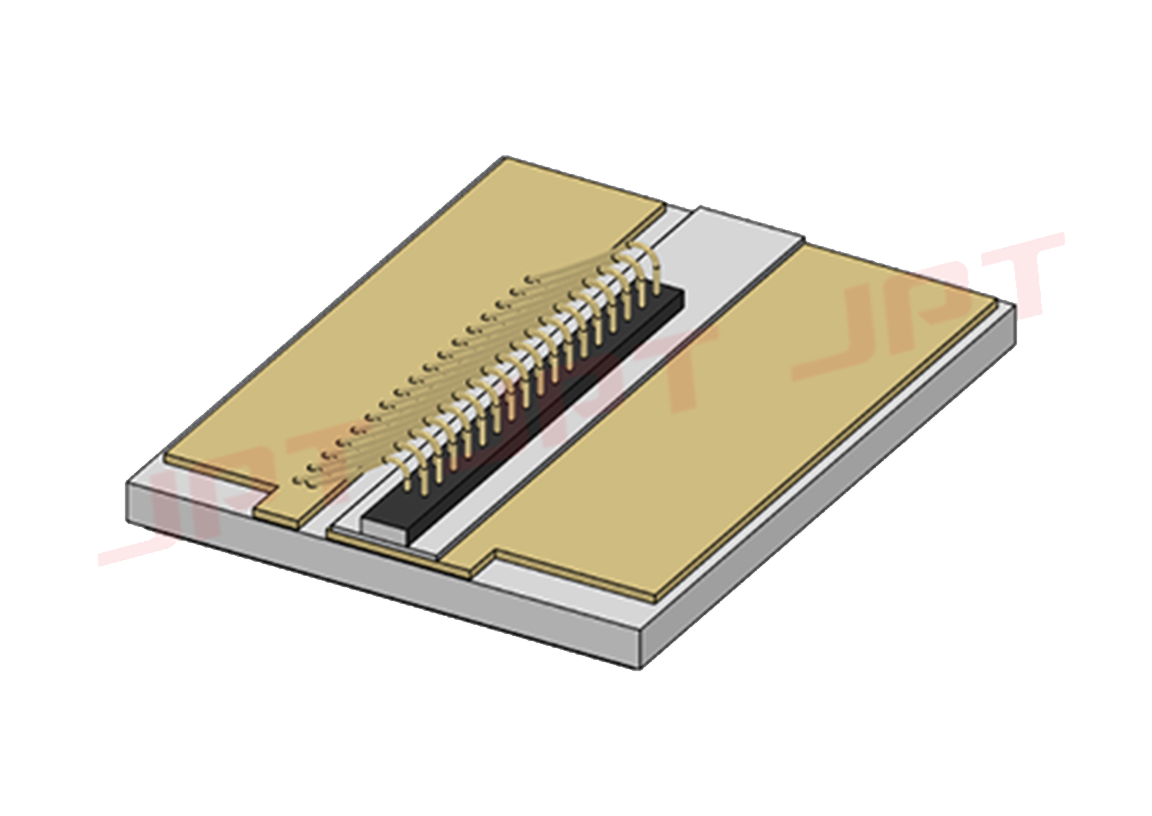

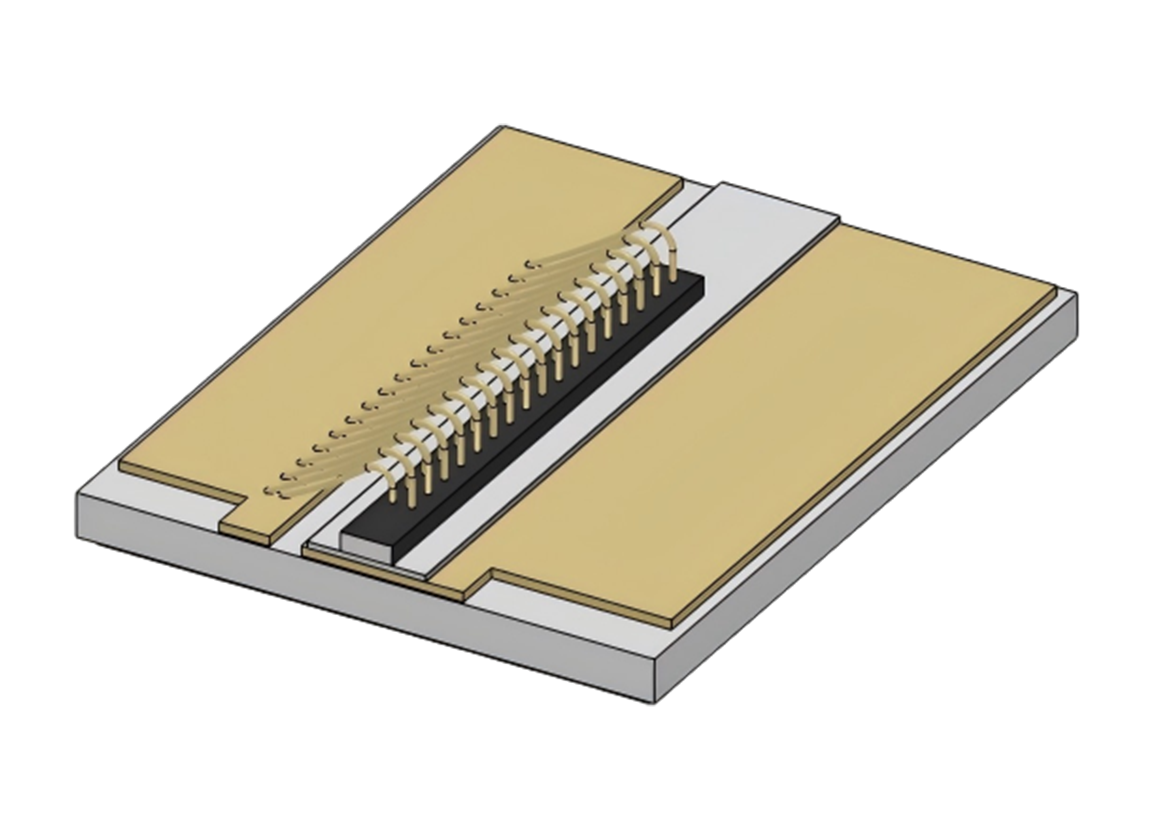

COS Encapsulated Semiconductor Laser
COS (Chip On Submount) packaging is an efficient and advanced semiconductor laser packaging technology that directly mounts laser chips onto a submount. With advantages such as high efficiency, low thermal resistance, and strong reliability, COS packaging technology has been widely adopted in industrial processing, medical equipment, telecommunications, and other fields.
-
10W~45WOutput Power
-
808~1064nmCentral Emission Wavelength
-
6nmSpectral Width
-
Product Advantages
-
Specifications
-
Related Products
Product Advantages
-
Low Thermal Resistance
COS packaging significantly reduces thermal resistance through optimized thermal management design, improving the heat dissipation efficiency of laser chips.
-
Stability
COS packaging delivers outstanding mechanical stability, enabling resistance to vibration and shock, ensuring reliable operation even in harsh environments.
-
Power and Wavelength Versatility
COS offers customizable power and wavelength options to meet diverse application requirements.
Specifications
-
808
-
880
-
915
-
976
-
Output Power(W)
-
Central Emission Wavelength(nm)
-
Threshold Current(A)
-
Operating Current(A)
-
Operating Voltage(V)
-
Vertical Far Field 95% PlB [Deg](°)
-
Lateral Far Field 95% PlB [Deg](°)
-
Slope Efficiency
-
Conversion Efficiency(%)
-
Wavelength Center (l=2A)
-
Spectral Width (FWHM)(nm)
-
Polarisation Ratio TE / (TM+TE)(%)
-
Emitter Width(μm)
-
Welding Temperature(℃)
-
Operating Temp.(℃)
-
Storage Temp.(℃)
-
Wavelength Temperature Coefficient(nm/°C)
-
Dimension(mm)
-
Weight(g)
-
808
-
Output Power(W)8~10
-
Central Emission Wavelength(nm)808
-
Threshold Current(A)1~1.8
-
Operating Current(A)8.5~11
-
Operating Voltage(V)1.75
-
Vertical Far Field 95% PlB [Deg](°)58
-
Lateral Far Field 95% PlB [Deg](°)11
-
Slope Efficiency1.1
-
Conversion Efficiency(%)52~54
-
Wavelength Center (l=2A)800~804
-
Spectral Width (FWHM)(nm)6
-
Polarisation Ratio TE / (TM+TE)(%)80
-
Emitter Width(μm)200~400
-
Welding Temperature(℃)≤260
-
Operating Temp.(℃)15~40
-
Storage Temp.(℃)0~70
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)4.8×4.05×0.456 / 4.5×5.7×0.5
-
Weight(g)<1
-
-
880
-
Output Power(W)10~15
-
Central Emission Wavelength(nm)878
-
Threshold Current(A)1.5
-
Operating Current(A)11~15
-
Operating Voltage(V)1.75
-
Vertical Far Field 95% PlB [Deg](°)58
-
Lateral Far Field 95% PlB [Deg](°)11
-
Slope Efficiency1.1
-
Conversion Efficiency(%)52~57
-
Wavelength Center (l=2A)874~877
-
Spectral Width (FWHM)(nm)6
-
Polarisation Ratio TE / (TM+TE)(%)80
-
Emitter Width(μm)200~400
-
Welding Temperature(℃)≤260
-
Operating Temp.(℃)15~40
-
Storage Temp.(℃)0~70
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)4.8×4.05×0.456 / 4.5×5.7×0.5
-
Weight(g)<1
-
-
915
-
Output Power(W)12~35
-
Central Emission Wavelength(nm)915
-
Threshold Current(A)0.6~1.8
-
Operating Current(A)12~35
-
Operating Voltage(V)1.75
-
Vertical Far Field 95% PlB [Deg](°)58
-
Lateral Far Field 95% PlB [Deg](°)11
-
Slope Efficiency1.03
-
Conversion Efficiency(%)55~57
-
Wavelength Center (l=2A)903~915
-
Spectral Width (FWHM)(nm)6
-
Polarisation Ratio TE / (TM+TE)(%)95
-
Emitter Width(μm)96~230
-
Welding Temperature(℃)≤260
-
Operating Temp.(℃)15~40
-
Storage Temp.(℃)0~70
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)4.8×4.05×0.456 / 4.5×5.7×0.5
-
Weight(g)<1
-
-
976
-
Output Power(W)12~35
-
Central Emission Wavelength(nm)976
-
Threshold Current(A)0.6~1.8
-
Operating Current(A)12~35
-
Operating Voltage(V)1.75
-
Vertical Far Field 95% PlB [Deg](°)58
-
Lateral Far Field 95% PlB [Deg](°)11
-
Slope Efficiency1.03
-
Conversion Efficiency(%)55~57
-
Wavelength Center (l=2A)960~970
-
Spectral Width (FWHM)(nm)6
-
Polarisation Ratio TE / (TM+TE)(%)95
-
Emitter Width(μm)100~230
-
Welding Temperature(℃)≤260
-
Operating Temp.(℃)15~40
-
Storage Temp.(℃)0~70
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)4.8×4.05×0.456 / 4.5×5.7×0.5
-
Weight(g)<1
-
