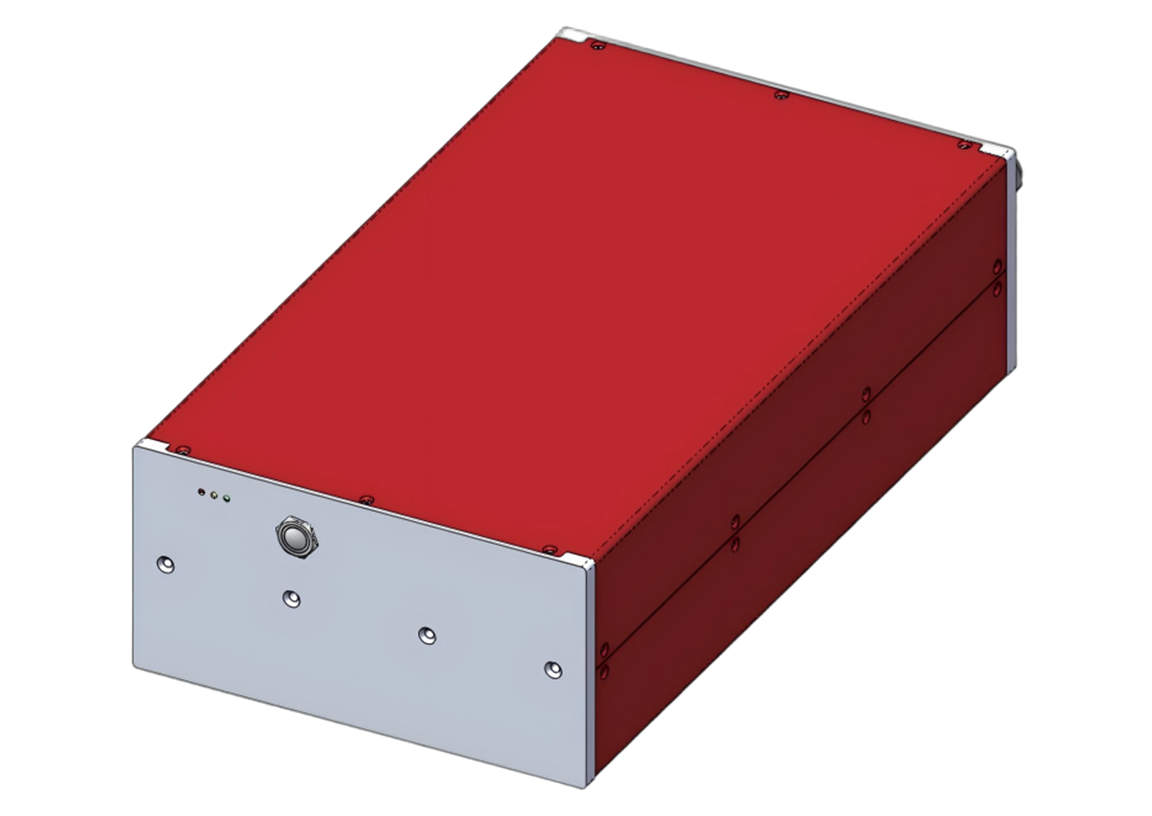

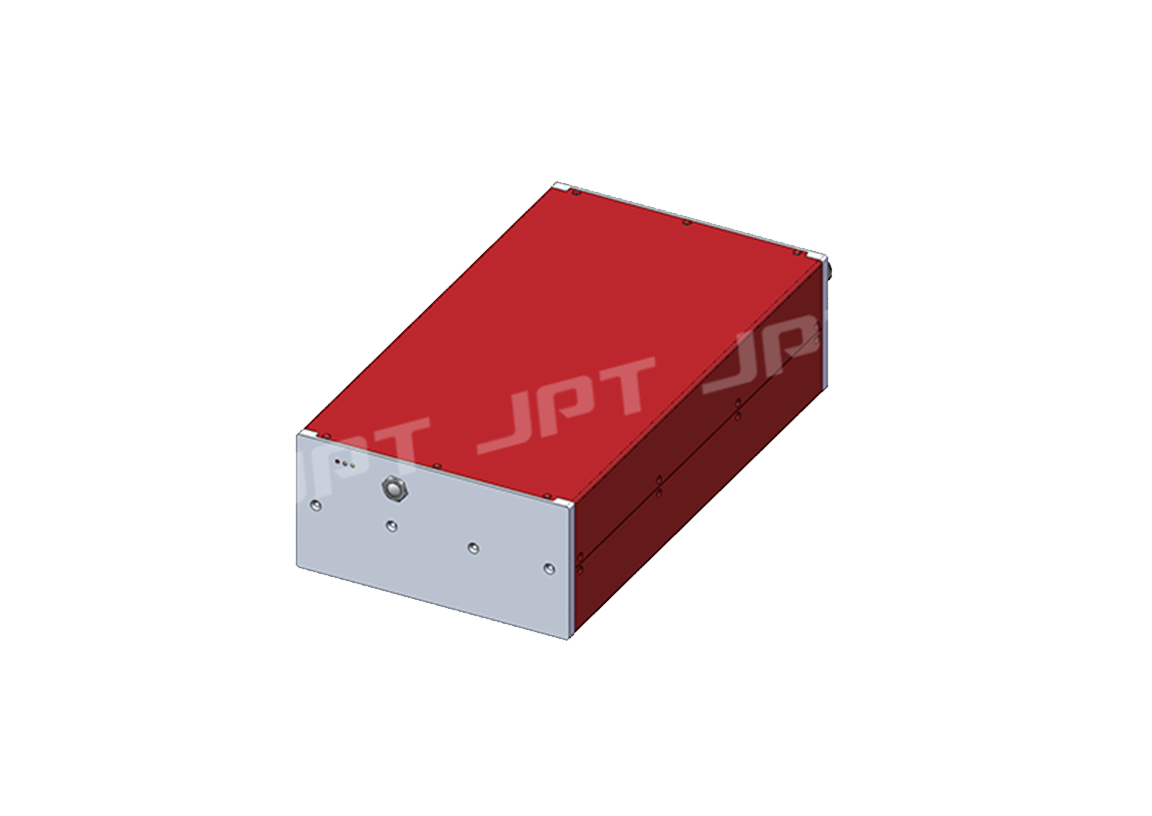

200W Red Light Series Semiconductor Laser
The 200W semiconductor laser with integrated red marker is a high-power laser system featuring visible beam guidance, widely used in material processing, medical equipment, and scientific research applications. The red pilot laser provides exceptional operational convenience and precision across various application scenarios.
-
200WOutput Power
-
915±10nmCentral Emission Wavelength
-
10nmSpectral Width
-
Product Advantages
-
Specification
-
Related Products
Product Advantages
-
High Power Output
Delivers up to 200W output power, enabling high-intensity applications including cutting, welding, and surface treatment.
-
Red Pilot Laser Guidance
The integrated 650nm red pilot laser ensures precise beam positioning and alignment, significantly reducing operational errors.
-
Stability and Reliability
Manufactured with premium components and advanced processes, the system offers over 10,000 hours service life with optimized uptime efficiency.
Specification
-
200W Laser Light Source
-
Model Number
-
Wavelength（nm）
-
Center Wavelength Deviation
-
Indicator Light
-
Average Power（W）
-
Power Requirements（V）
-
Average Power Consumption（W）
-
Power Regulation Mode
-
Operating Temp.&Rh（℃）
-
Dimension（mm）
-
Weight（kg）
-
Cooling
-
200W Laser Light Source
-
Model NumberS0915200YF
-
Wavelength（nm）915
-
Center Wavelength Deviation±10
-
Indicator LightRed Light
-
Average Power（W）200
-
Power Requirements（V）220
-
Average Power Consumption（W）560
-
Power Regulation ModeInternal / External Control Analog Quantity
-
Operating Temp.&Rh（℃）20~30；＜80%
-
Dimension（mm）420×234×118
-
Weight（kg）≈10
-
CoolingWater-Cooled
-
