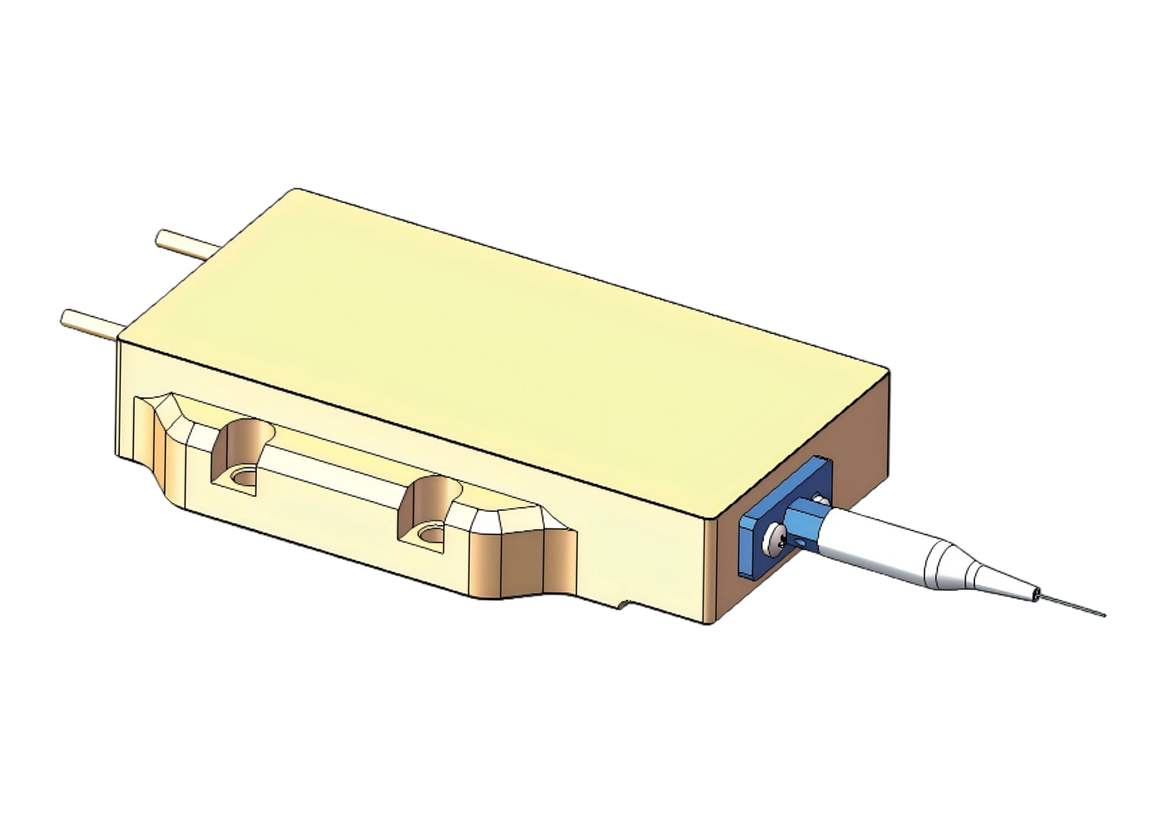

1470nm Semiconductor Laser
The 1470nm semiconductor laser series features high efficiency, excellent stability, and broad applicability. Due to its distinctive optical characteristics, the 1470nm wavelength is widely employed in medical treatments, aesthetic procedures, and scientific research applications.
-
10WOutput Power
-
1470±20nmCentral Emission Wavelength
-
10nmSpectral Width
-
Product Advantages
-
Specification
-
Related Products
Product Advantages
-
High Conversion Efficiency
Utilizing advanced semiconductor fabrication processes to achieve superior electro-optic conversion efficiency, reducing power consumption while delivering high output power.
-
Outstanding Wavelength Characteristics
The 1470nm wavelength offers excellent tissue penetration capability, making it ideal for various medical and aesthetic applications.
-
High Power Output
Delivering power output ranging from several watts to tens of watts, with customizable options for different application requirements.
Specification
-
1470-10W
-
Output Power(W)
-
Central Emission Wavelength(nm)
-
Spectral Width (Fwhm)(nm)
-
95% Power Within NA(NA)
-
Conversion Efficiency(%)
-
Threshold Current(A)
-
Operating Current(A)
-
Operating Voltage(V)
-
Core Diameter(μm)
-
Fiber Clad Diameter(μm)
-
Operating Temp.(°C)
-
Storage Temp.(°C)
-
Dimension(mm)
-
Weight(g)
-
1470-10W
-
Output Power(W)10
-
Central Emission Wavelength(nm)1470±20
-
Spectral Width (Fwhm)(nm)10
-
95% Power Within NA(NA)0.2
-
Conversion Efficiency(%)23
-
Threshold Current(A)1.2
-
Operating Current(A)9
-
Operating Voltage(V)6.4
-
Core Diameter(μm)400
-
Fiber Clad Diameter(μm)440
-
Operating Temp.(°C)15~40
-
Storage Temp.(°C)-20~85
-
Dimension(mm)67×48×18.47
-
Weight(g)≈80
-
