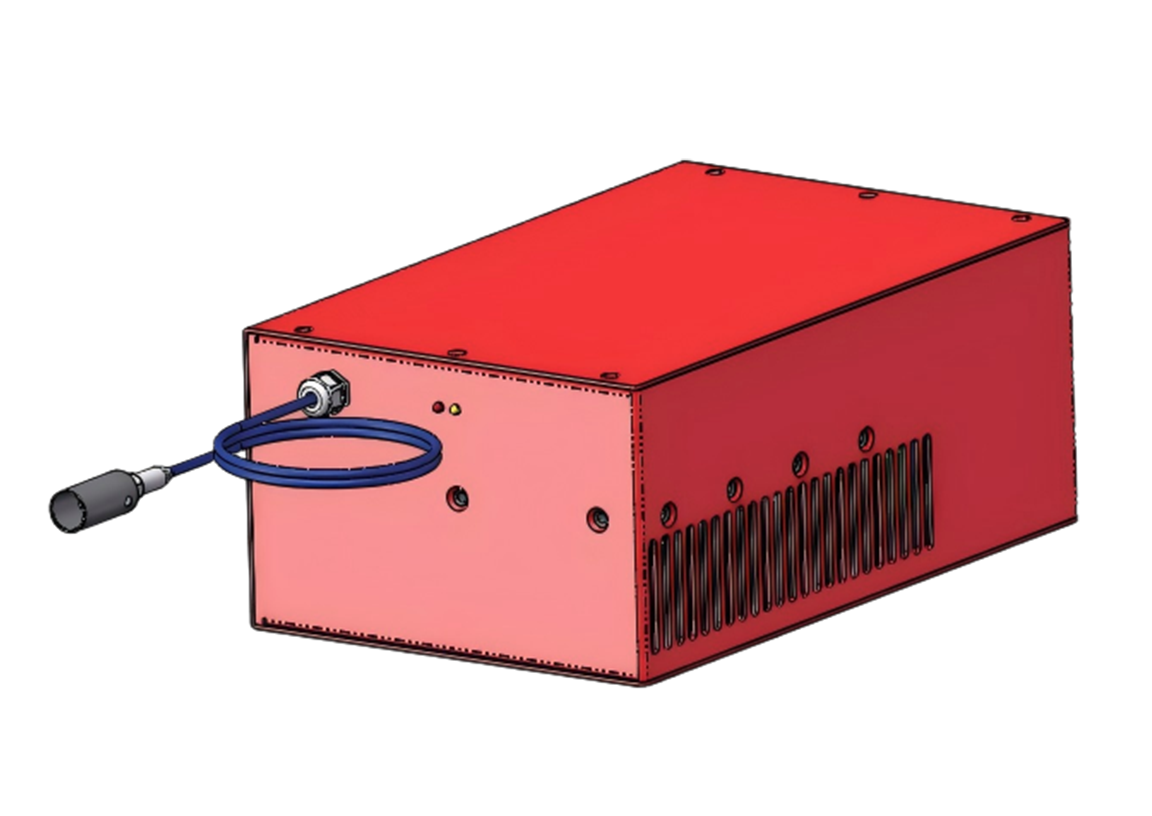

30W Fiber Coupled High Power Laser
The 30W 450nm fiber-coupled high-power semiconductor laser is an advanced system utilizing blue laser wavelength (450nm). Combining high output power, excellent beam quality, and superior efficiency, this laser finds extensive applications in material processing, display technology, laser imaging, and scientific research.
-
30WOutput Power
-
450±10nmCentral Emission Wavelength
-
10nmSpectral Width
-
Product Advantages
-
Applications
-
Specification
-
Related Products
Product Advantages
-
High Power Output
Delivers 30W optical output power, making it ideal for demanding industrial processing and scientific research applications.
-
Superior Wavelength Characteristics
The short blue wavelength enables micron-level precision processing and high-resolution imaging capabilities.
-
Stability and Reliability
Engineered with durable components and optimized thermal design, the system offers over 8,000 hours MTBF (Mean Time Between Failures).
Applications
-
Wood Marking and Cutting
-
Blue Laser Results, Marking, and Welding
-
Tin solder filling
Specification
-
Fiber Coupled High Power Laser 30W
-
Laser Type
-
Model Number
-
Wavelength(nm)
-
Center Wavelength Deviation
-
Average Power(W)
-
Distribution Demand(V)
-
Average Power Consumption(W)
-
Beam Emission Control
-
Power Regulation Mode
-
Operating Temp.&Rh(℃)
-
Dimension(mm)
-
Weight(kg)
-
Cooling
-
Fiber Coupled High Power Laser 30W
-
Laser Type30W Laser Source
-
Model NumberL0450030YD
-
Wavelength(nm)450
-
Center Wavelength Deviation±10
-
Average Power(W)30
-
Distribution Demand(V)48
-
Average Power Consumption(W)100
-
Beam Emission ControlInternal / External Control Analog Quantity
-
Power Regulation ModeGUI
-
Operating Temp.&Rh(℃)20~30;<80%
-
Dimension(mm)245×100×154
-
Weight(kg)≈3.4
-
CoolingAir Cooled
-
Related Products
-
COS Encapsulated Semiconductor Laser
COS Encapsulatedtechnology offers high efficiency, low thermal resistance, and enhanced reliability, applicable in industrial processing, medical equipment, and communications fields
-
915nm Semiconductor Laser
Suitable for fiber laser pumping applications across industrial processing, medical, cosmetic, and scientific research sectors
-
976nm Semiconductor Laser
Near-infrared laser equipment, used as a pump source for fiber lasers
-
808nm Semiconductor Laser
Near-infrared lasers serving as solid-state laser pumping sources
-
880nm Semiconductor Laser
High-efficiency laser equipment in the near-infrared band, also serving as a pump source for solid-state lasers
-
1060nm Semiconductor Laser
Used for quality inspection of silicon wafers, solar cells, and other semiconductor materials
-
1470nm Semiconductor Laser
High efficiency and excellent stability, 1470nm widely used in medical, cosmetic, and scientific research fields
-
1550nm Red Light Semiconductor Laser
High-power, visible light marking, widely used in material processing, medical equipment, and scientific research experiments
-
450nm - 100W High Power Diode Laser
Utilizing blue laser wavelengths, it features high output power, excellent stability, and high efficiency
-
Silicon Transmission Series Detection Module
Widely used for quality inspection of silicon wafers, solar cells, and other semiconductor materials
-

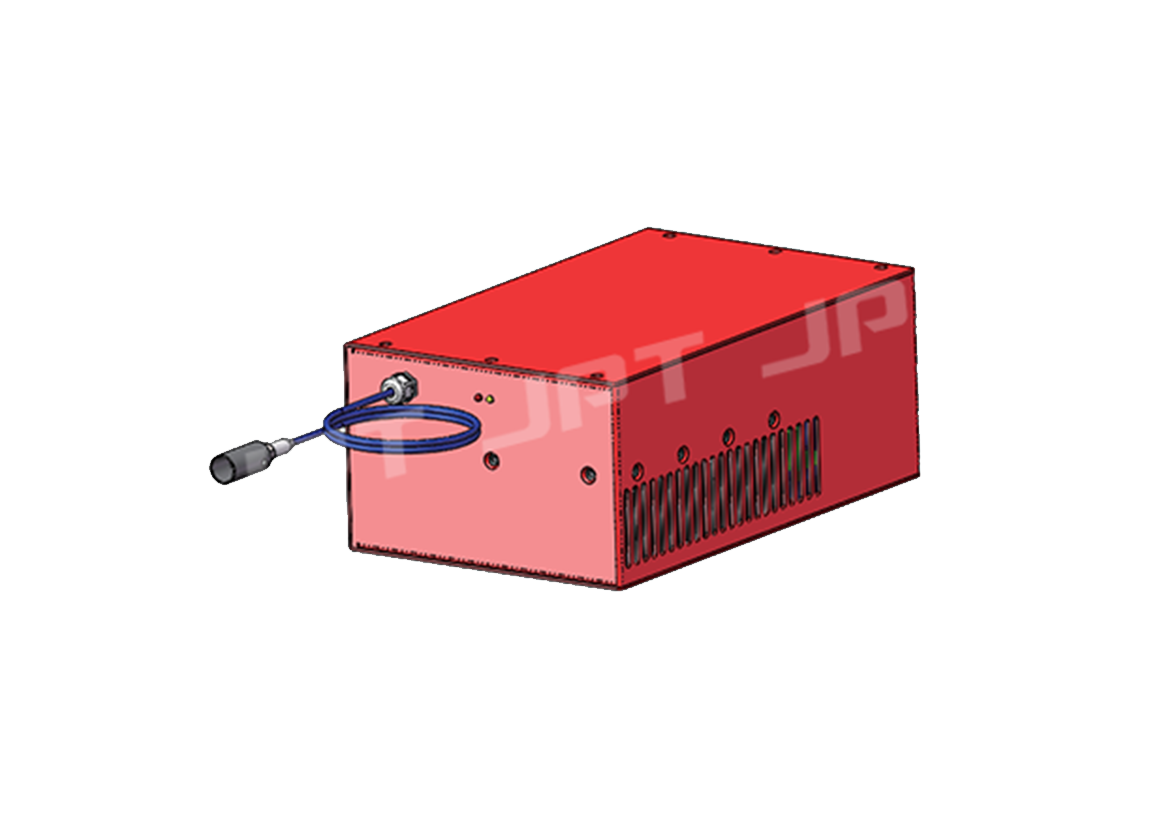

200W Red Light Series Semiconductor Laser
