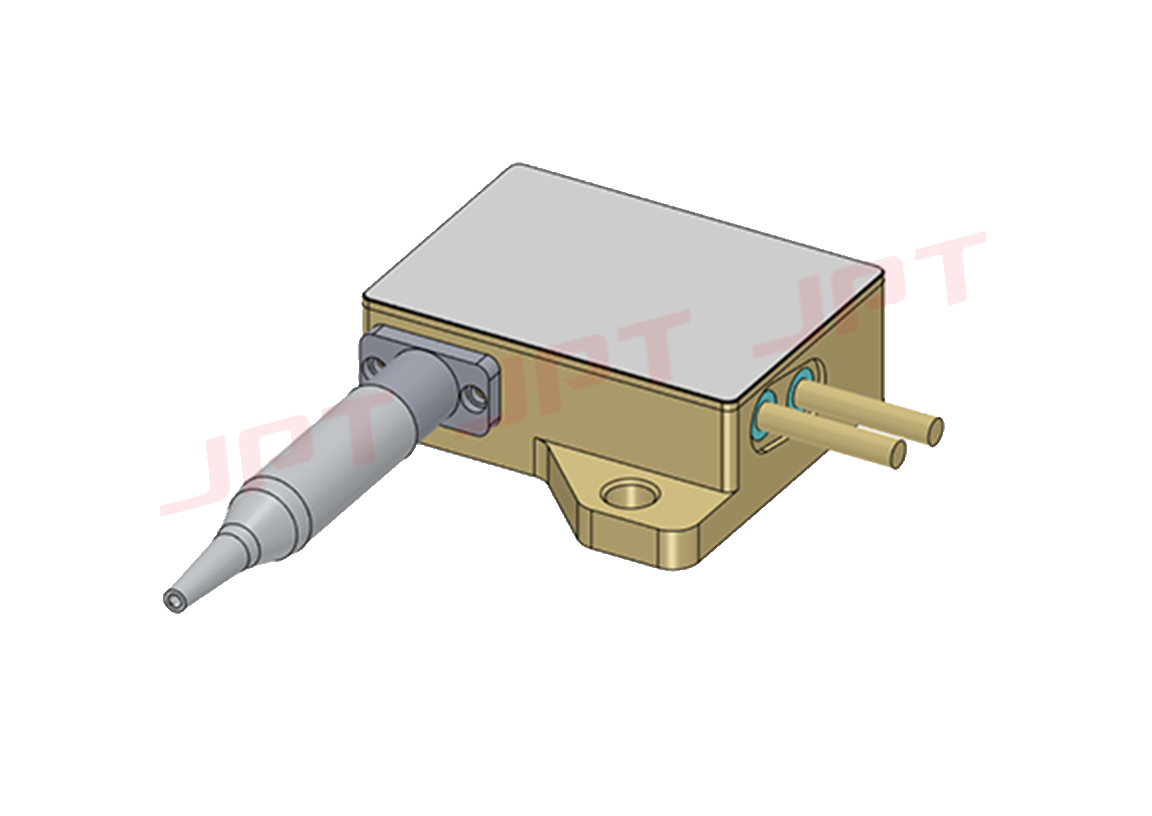

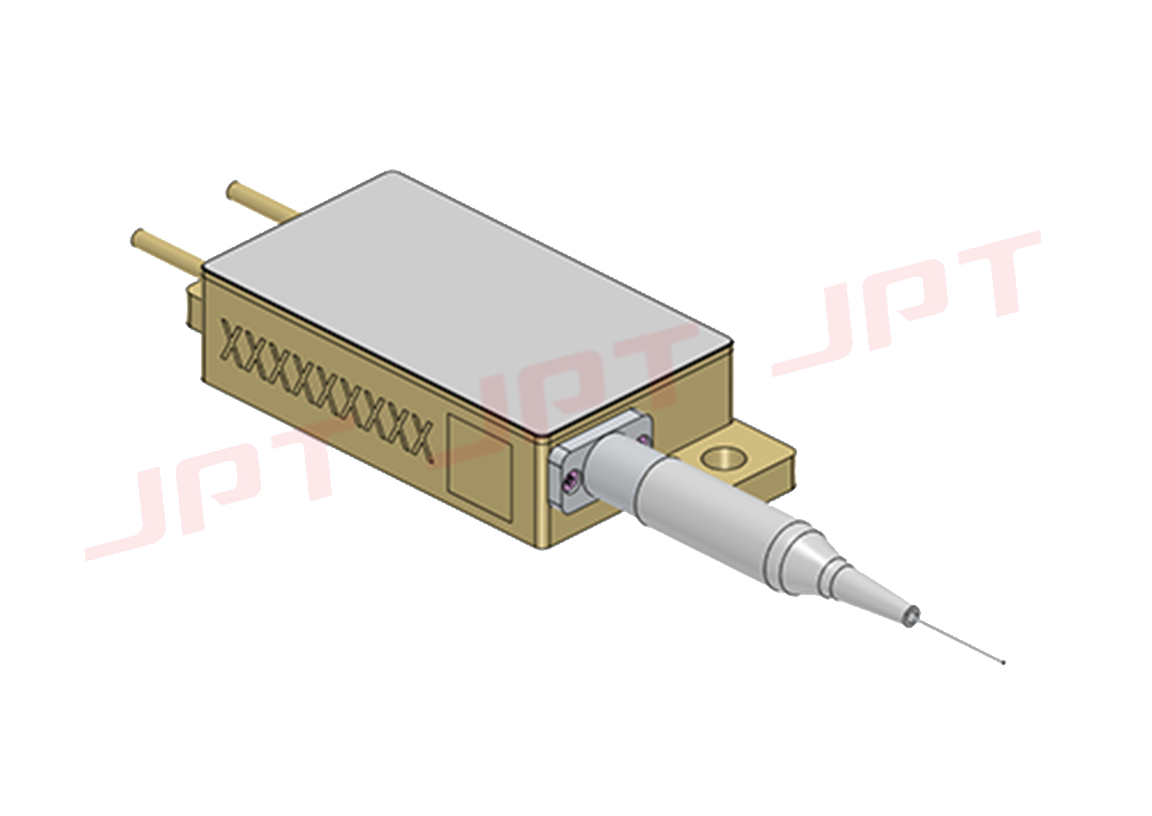

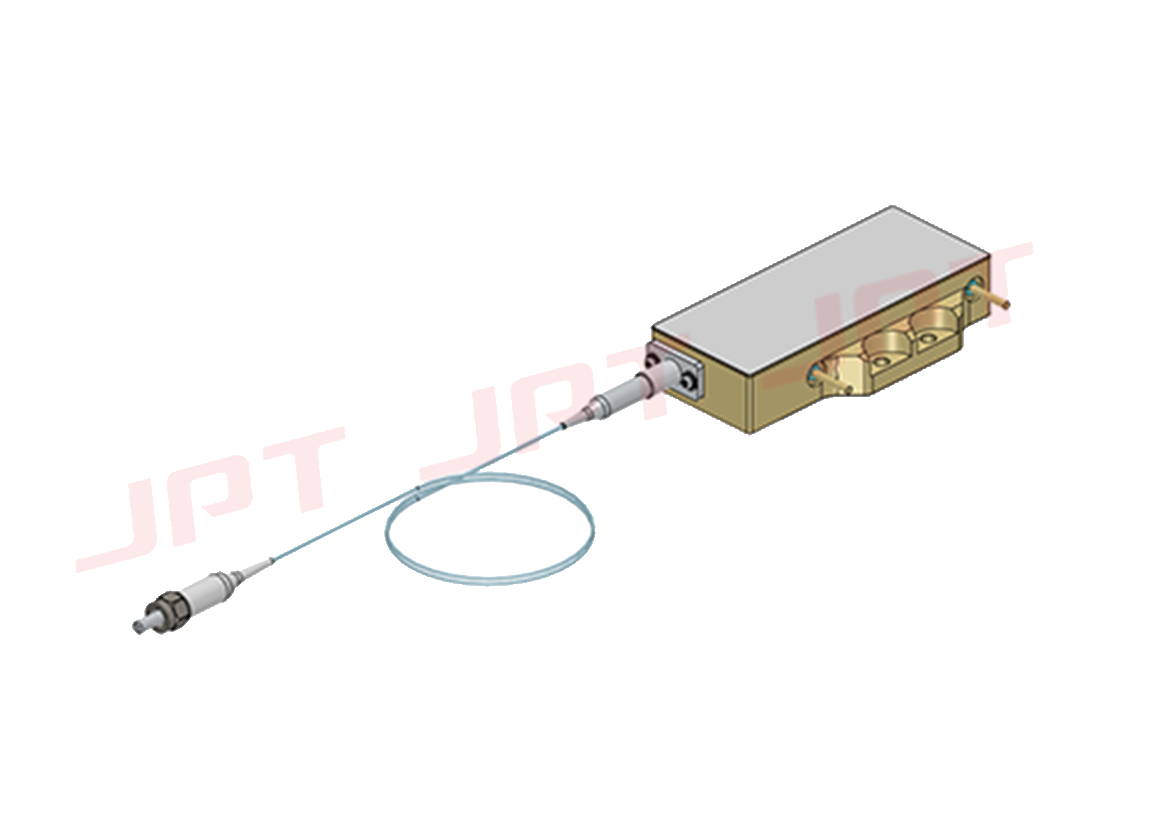

808nm Semiconductor Laser
The 808nm series semiconductor laser is a high-efficiency, high-stability laser device operating in the near-infrared (NIR) spectrum. Due to its unique optical characteristics, the 808nm wavelength is widely used in medical treatments, aesthetic procedures, industrial processing, and scientific research applications.
-
8W~50WOutput Power
-
808±5nmCentral Emission Wavelength
-
6nmSpectral Width
-
Product Advantages
-
Applications
-
Specification
-
Related Products
Product Advantages
-
High Conversion Efficiency
The advanced semiconductor technology enables the 808nm laser to achieve exceptional electro-optic conversion efficiency, significantly reducing energy loss.
-
Superior Wavelength Characteristics
The 808nm wavelength demonstrates excellent transmittance in biological tissues, making it particularly suitable for medical and aesthetic applications.
-
High Output Power
Capable of delivering output power ranging up to several watts or even tens of watts to meet various high-intensity application requirements.
Applications
-

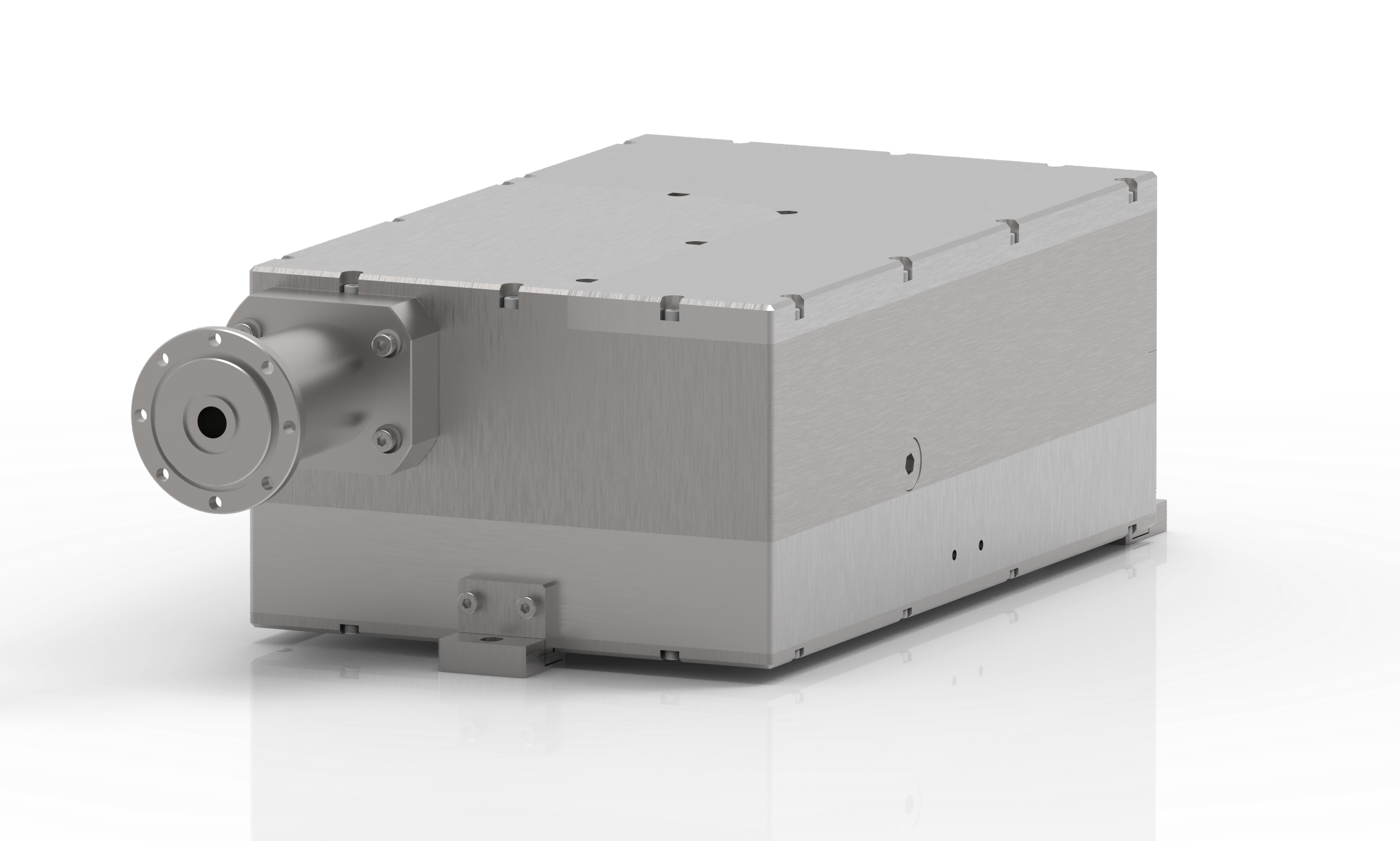

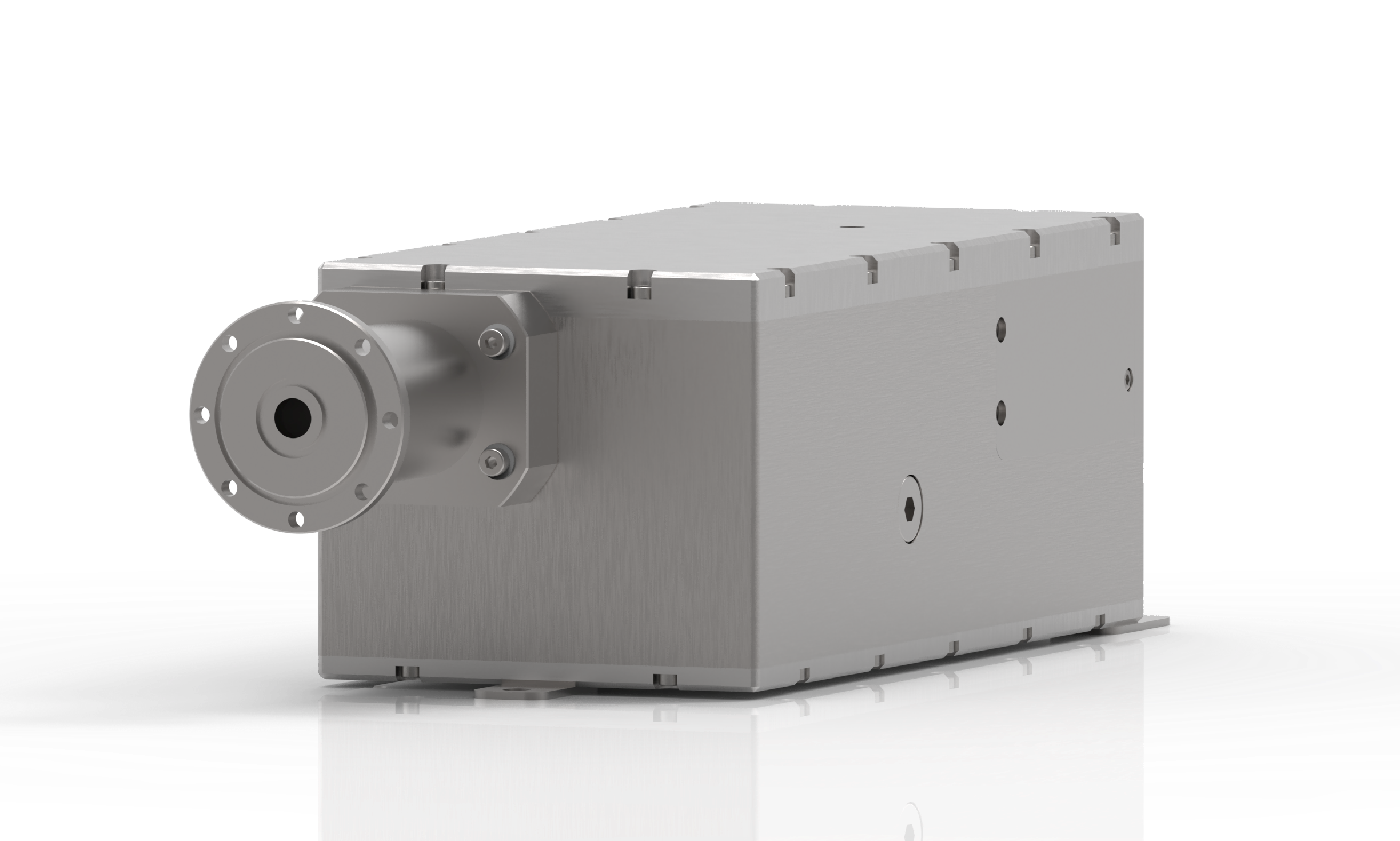

Solid-State Laser Pump Source
-
Solid-State Laser Pump Source
-
Solid-State Laser Pump Source
Specification
-
808-8W
-
808-16W
-
808-25W
-
808-50W
-
Output Power(W)
-
Central Emission Wavelength(nm)
-
Spectral Width (Fwhm)(nm)
-
95% Power Within NA(NA)
-
Anti-reflection Range(nm)
-
Conversion Efficiency(%)
-
Threshold Current(A)
-
Operating Current(A)
-
Operating Voltage(V)
-
Core Diameter(μm)
-
Fiber Clad Diameter(μm)
-
Operating Temp.(°C)
-
Storage Temp.(°C)
-
Wavelength Temperature Coefficient(nm/°C)
-
Dimension(mm)
-
Weight(g)
-
808-8W
-
Output Power(W)8
-
Central Emission Wavelength(nm)808
-
Spectral Width (Fwhm)(nm)6
-
95% Power Within NA(NA)0.2
-
Anti-reflection Range(nm)1040~1200
-
Conversion Efficiency(%)50
-
Threshold Current(A)1.8
-
Operating Current(A)12
-
Operating Voltage(V)1.8
-
Core Diameter(μm)400
-
Fiber Clad Diameter(μm)440
-
Operating Temp.(°C)15~40
-
Storage Temp.(°C)-20~85
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)62.5×29×10.02
-
Weight(g)≈40
-
-
808-16W
-
Output Power(W)16
-
Central Emission Wavelength(nm)808
-
Spectral Width (Fwhm)(nm)6
-
95% Power Within NA(NA)0.2
-
Anti-reflection Range(nm)1040~1200
-
Conversion Efficiency(%)50
-
Threshold Current(A)1.8
-
Operating Current(A)12
-
Operating Voltage(V)3.6
-
Core Diameter(μm)400
-
Fiber Clad Diameter(μm)440
-
Operating Temp.(°C)15~40
-
Storage Temp.(°C)-20~85
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)71×42×11.02
-
Weight(g)≈87.8
-
-
808-25W
-
Output Power(W)25
-
Central Emission Wavelength(nm)808
-
Spectral Width (Fwhm)(nm)6
-
95% Power Within NA(NA)0.2
-
Anti-reflection Range(nm)1040~1200
-
Conversion Efficiency(%)50
-
Threshold Current(A)1.8
-
Operating Current(A)12
-
Operating Voltage(V)5.4
-
Core Diameter(μm)400
-
Fiber Clad Diameter(μm)440
-
Operating Temp.(°C)15~40
-
Storage Temp.(°C)-20~85
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)77×38.5×10.95
-
Weight(g)≈92
-
-
808-50W
-
Output Power(W)50
-
Central Emission Wavelength(nm)808
-
Spectral Width (Fwhm)(nm)6
-
95% Power Within NA(NA)0.2
-
Anti-reflection Range(nm)1040~1200
-
Conversion Efficiency(%)50
-
Threshold Current(A)1.8
-
Operating Current(A)12
-
Operating Voltage(V)14.5
-
Core Diameter(μm)400
-
Fiber Clad Diameter(μm)440
-
Operating Temp.(°C)15~40
-
Storage Temp.(°C)-20~85
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)122.5×48×17
-
Weight(g)≈310
-
