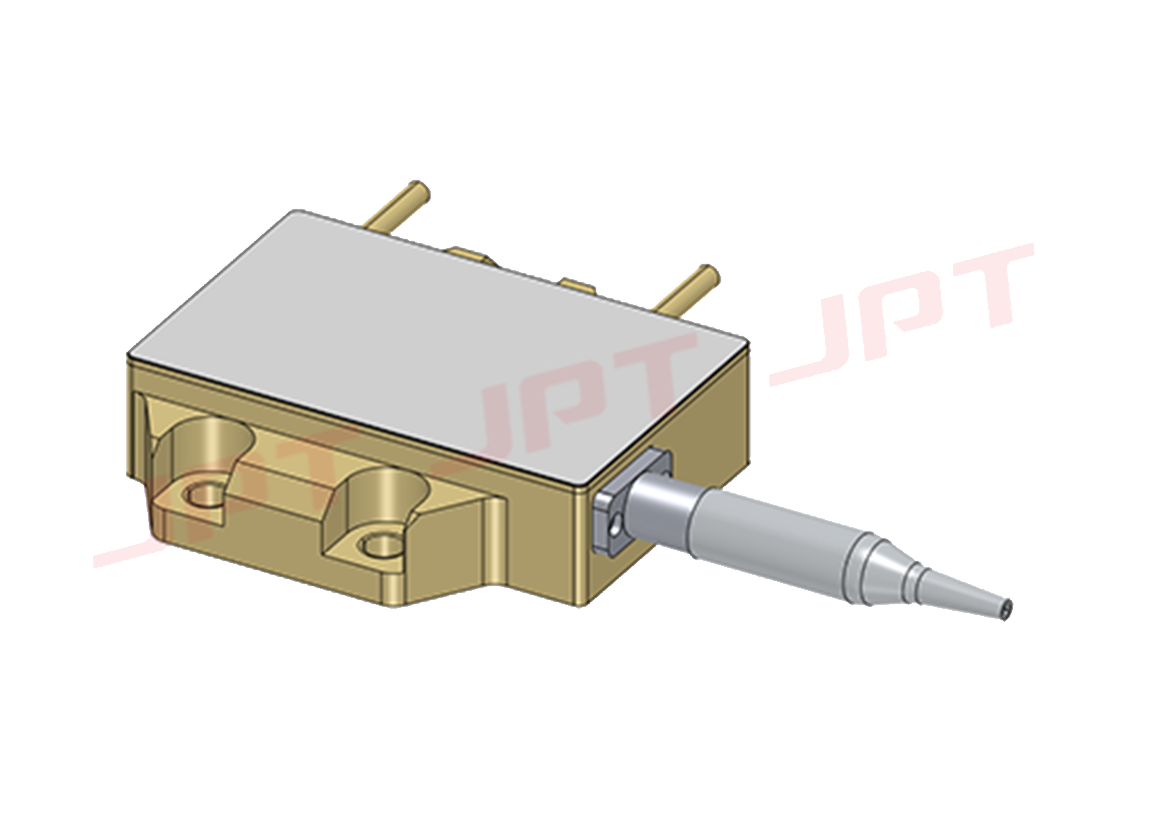

915nm Semiconductor Laser
The 915nm semiconductor laser series is a high-efficiency laser device operating in the near-infrared (NIR) band. Due to its distinctive wavelength characteristics and outstanding performance, it finds extensive applications in industrial processing, medical treatments, aesthetic/cosmetic procedures, and scientific research. The 915nm wavelength demonstrates significant advantages in numerous applications, making it an optimal choice for various implementations.
-
15W~480WOutput Power
-
915±5nmCentral Emission Wavelength
-
6nmSpectral Width
-
Product Advantages
-
Applications
-
Specification
-
Related Products
Product Advantages
-
High Conversion Efficiency
Utilizing advanced semiconductor materials and manufacturing processes to ensure high electro-optical conversion efficiency, minimizing energy loss.
-
Superior Wavelength Characteristics
The 915nm wavelength exhibits excellent absorption properties for various materials, making it ideal for precision cutting and welding of metals, plastics, and other materials
-
High Output Power
Delivers a wide power range from a few watts to several hundred watts, meeting diverse application requirements.
Applications
-
Continuous Fiber Laser Pump Source
-
Pulsed Fiber Laser Pump Source
-
Pulsed Fiber Laser Pump Source
Specification
-
915-15
-
915-45
-
915-150
-
915-480
-
Output Power(W)
-
Central Emission Wavelength(nm)
-
Spectral Width (Fwhm)(nm)
-
95% Power Within NA(NA)
-
Anti-reflection Range(nm)
-
Conversion Efficiency(%)
-
Threshold Current(A)
-
Operating Current(A)
-
Operating Voltage(V)
-
Core Diameter(μm)
-
Fiber Clad Diameter(μm)
-
Operating Temp.(°C)
-
Storage Temp.(°C)
-
Wavelength Temperature Coefficient(nm/°C)
-
Dimension(mm)
-
Weight(g)
-
915-15
-
Output Power(W)15
-
Central Emission Wavelength(nm)915
-
Spectral Width (Fwhm)(nm)6
-
95% Power Within NA(NA)0.18
-
Anti-reflection Range(nm)1040~1200
-
Conversion Efficiency(%)50
-
Threshold Current(A)1.3
-
Operating Current(A)18
-
Operating Voltage(V)1.75
-
Core Diameter(μm)105
-
Fiber Clad Diameter(μm)125
-
Operating Temp.(°C)15~40
-
Storage Temp.(°C)-20~85
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)62.5×29×10.02
-
Weight(g)≈40
-
-
915-45
-
Output Power(W)45
-
Central Emission Wavelength(nm)915
-
Spectral Width (Fwhm)(nm)6
-
95% Power Within NA(NA)0.18
-
Anti-reflection Range(nm)1040~1200
-
Conversion Efficiency(%)50
-
Threshold Current(A)1.3
-
Operating Current(A)18
-
Operating Voltage(V)5.5
-
Core Diameter(μm)105
-
Fiber Clad Diameter(μm)125
-
Operating Temp.(°C)15~40
-
Storage Temp.(°C)-20~85
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)71×42×11.02
-
Weight(g)≈87.8
-
-
915-150
-
Output Power(W)150
-
Central Emission Wavelength(nm)915
-
Spectral Width (Fwhm)(nm)6
-
95% Power Within NA(NA)0.2
-
Anti-reflection Range(nm)1040~1200
-
Conversion Efficiency(%)50
-
Threshold Current(A)1.3
-
Operating Current(A)30
-
Operating Voltage(V)10.5
-
Core Diameter(μm)135
-
Fiber Clad Diameter(μm)155
-
Operating Temp.(°C)15~40
-
Storage Temp.(°C)-20~85
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)122.5×48×17
-
Weight(g)≈360
-
-
915-480
-
Output Power(W)480
-
Central Emission Wavelength(nm)915
-
Spectral Width (Fwhm)(nm)6
-
95% Power Within NA(NA)0.2
-
Anti-reflection Range(nm)1040~1200
-
Conversion Efficiency(%)50
-
Threshold Current(A)1.3
-
Operating Current(A)30
-
Operating Voltage(V)33
-
Core Diameter(μm)200
-
Fiber Clad Diameter(μm)220
-
Operating Temp.(°C)15~40
-
Storage Temp.(°C)-20~85
-
Wavelength Temperature Coefficient(nm/°C)0.3
-
Dimension(mm)213.5×72×21.65
-
Weight(g)≈1300
-
Related Products
-
COS Encapsulated Semiconductor Laser
COS Encapsulatedtechnology offers high efficiency, low thermal resistance, and enhanced reliability, applicable in industrial processing, medical equipment, and communications fields
-

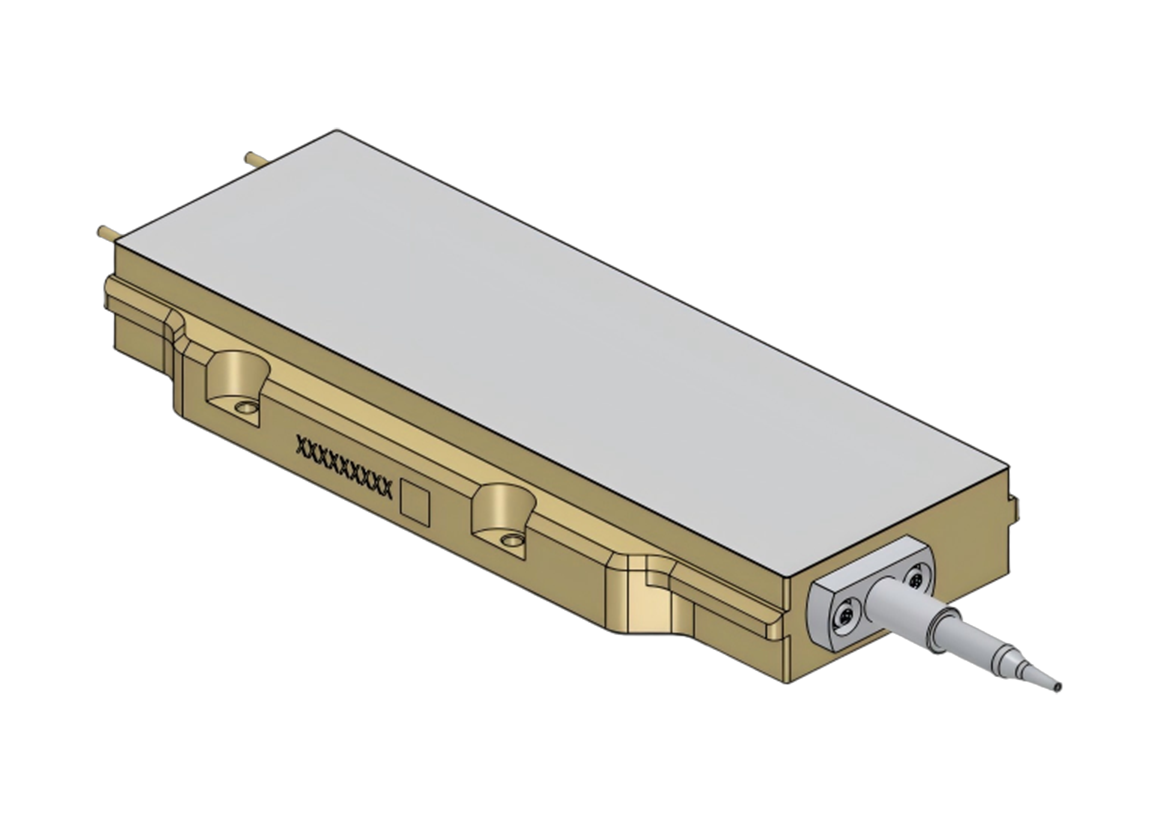

915nm Semiconductor Laser
