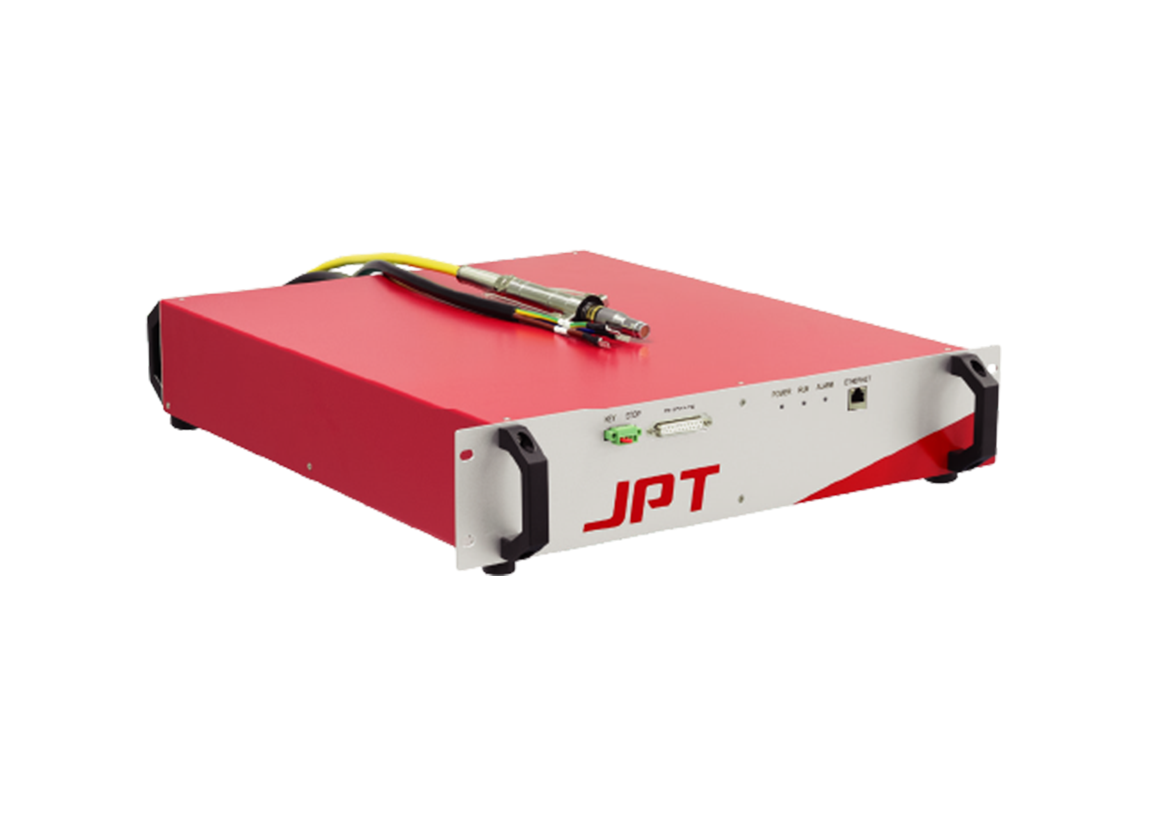

Thulium-Doped Fiber Laser

20-200W

Thulium-Doped Fiber Lasers represent a class of 2μm wavelength laser systems utilizing advanced thulium-doped fiber technology. These lasers deliver unique wavelength advantages, high efficiency, and multi-functional capabilities, making them essential tools for medical, industrial, and scientific applications requiring high precision and reliability.

  • 1940nm
    Central Wavelength
  • 20kHz
    Modulation Frequency
  • Air-Cooled
    Cooling Method
Download
  • Product Advantages

  • Applications

  • Specifications

  • Related Products

  • Application Solutions

Product Advantages

  • Near-Single-Mode Output

    Delivers near-diffraction-limited beam characteristics for ultra-fine focusing spots and high-precision processing

  • Wide Application Range

    Extensively applicable across multiple fields including laser medicine, atmospheric detection, LiDAR, material processing, and scientific research

  • Stable & Reliable Performance

    Ensures consistent operation with minimal maintenance requirements

Applications

  • underlay image Biomedicine / Biomedical Applications.png
    Biomedicine / Biomedical Applications
  • underlay image Plastic Welding.jpg

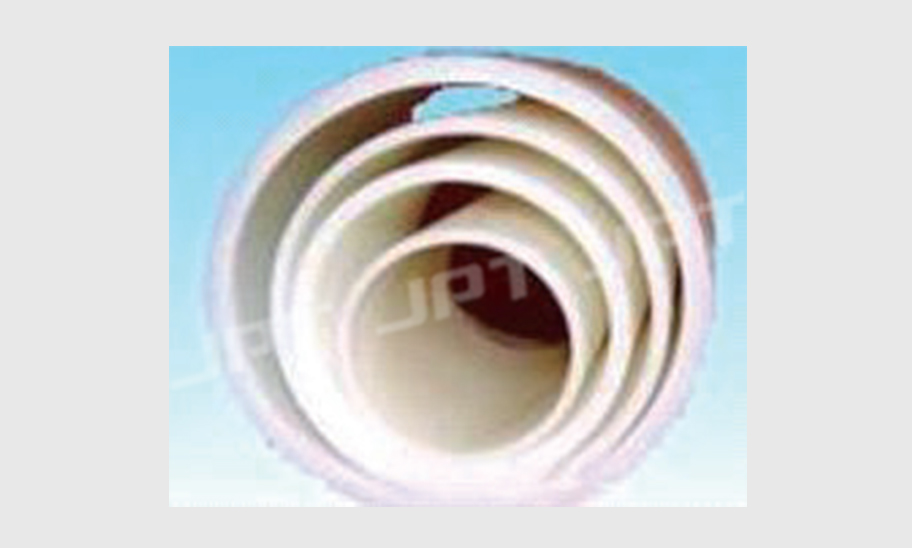

    Plastic Welding
  • underlay image Optical Resin Cutting.jpg

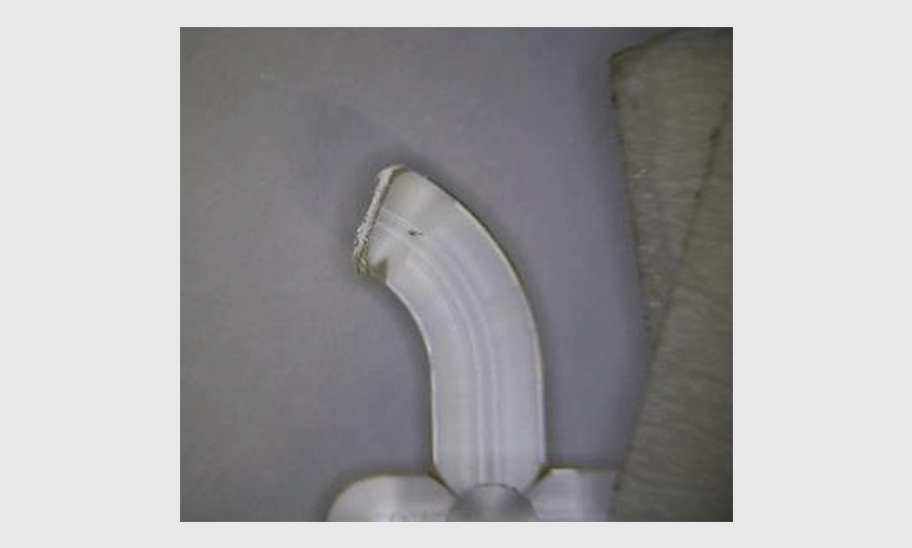

    Optical Resin Cutting

Specifications

Product Model
  • TDFLC-20-L-A
  • TDFLC-50-L-W
  • TDFLC-100-L-W
  • TDFLC-200-L-W
  • Beam Parameter Product (mm×mrad)
  • Armored Cable Length (m)
  • Average output power (W)
  • Maximum Modulation Frequency (kHz)
  • Cooling Method
  • Operating Voltage (V)
  • Maximum Power Consumption (W)
  • Central Emission Wavelength (nm)
  • Spectral Width@3dB (nm)
  • Operating Temperature (℃)
  • Laser Weight (kg)
  • Dimensions (L×W×H) (mm)
  • TDFLC-20-L-A

    • Beam Parameter Product (mm×mrad)
      ≤ 4 @ 50 μm
    • Armored Cable Length (m)
      5
    • Average output power (W)
      20
    • Maximum Modulation Frequency (kHz)
      20
    • Cooling Method
      Air Cooled
    • Operating Voltage (V)
      25 (DC)
    • Maximum Power Consumption (W)
      150
    • Central Emission Wavelength (nm)
      1940
    • Spectral Width@3dB (nm)
      <6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      5
    • Dimensions (L×W×H) (mm)
      253 × 205 × 75
  • TDFLC-50-L-W

    • Beam Parameter Product (mm×mrad)
      ≤ 4 @ 50 μm
    • Armored Cable Length (m)
      5
    • Average output power (W)
      50
    • Maximum Modulation Frequency (kHz)
      20
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      220 (AC)
    • Maximum Power Consumption (W)
      300
    • Central Emission Wavelength (nm)
      1940
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10 ~ 40
    • Laser Weight (kg)
      20.5
    • Dimensions (L×W×H) (mm)
      575 × 482 × 105
  • TDFLC-100-L-W

    • Beam Parameter Product (mm×mrad)
      ≤ 4 @ 50 μm
    • Armored Cable Length (m)
      5
    • Average output power (W)
      100
    • Maximum Modulation Frequency (kHz)
      20
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      220 (AC)
    • Maximum Power Consumption (W)
      600
    • Central Emission Wavelength (nm)
      1940
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10 ~ 40
    • Laser Weight (kg)
      21
    • Dimensions (L×W×H) (mm)
      575 × 482 × 105
  • TDFLC-200-L-W

    • Beam Parameter Product (mm×mrad)
      ≤ 4 @ 50 μm
    • Armored Cable Length (m)
      5
    • Average output power (W)
      200
    • Maximum Modulation Frequency (kHz)
      20
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      220 (AC)
    • Maximum Power Consumption (W)
      1200
    • Central Emission Wavelength (nm)
      1940
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      22
    • Dimensions (L×W×H) (mm)
      575 × 482 × 105
