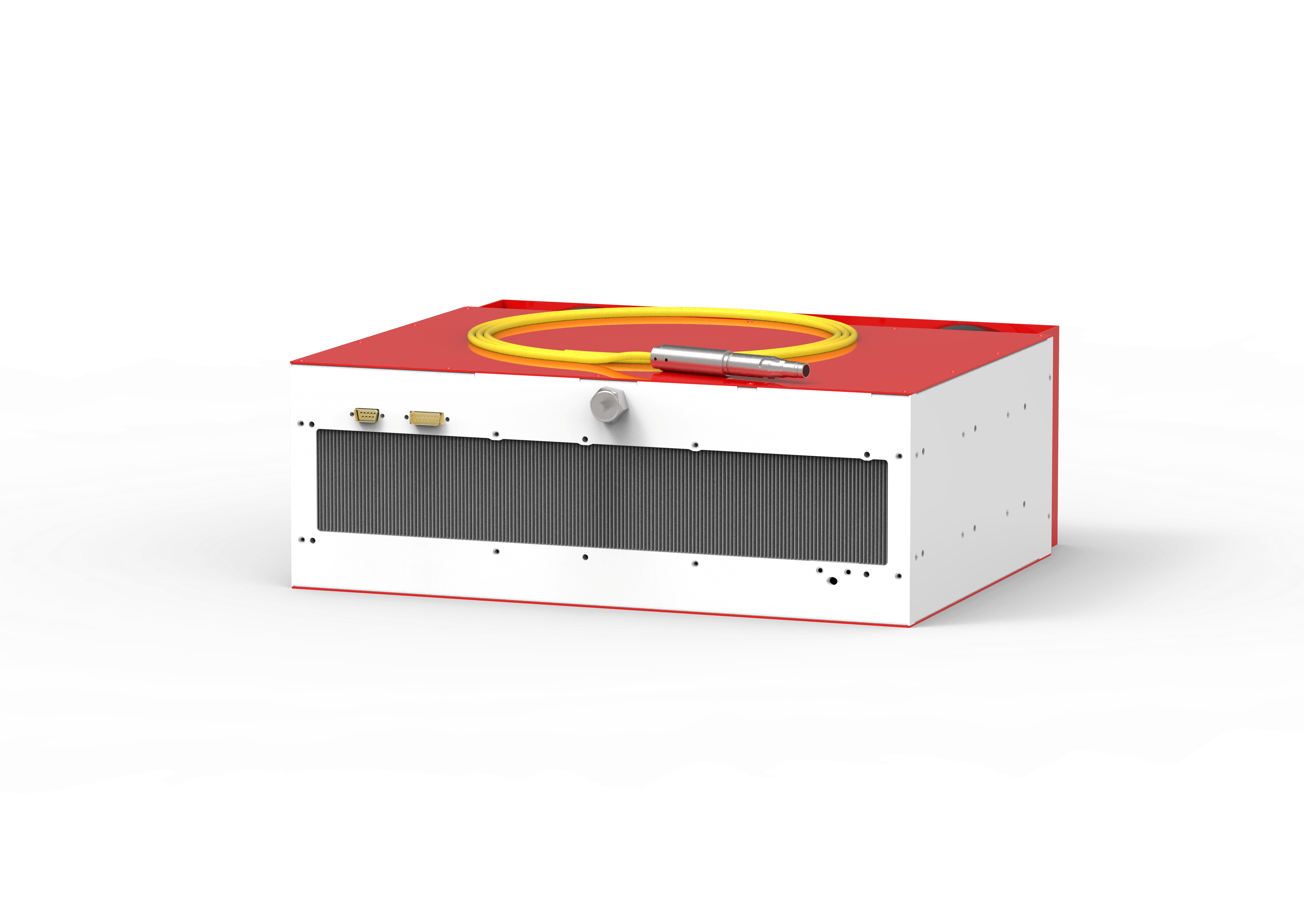

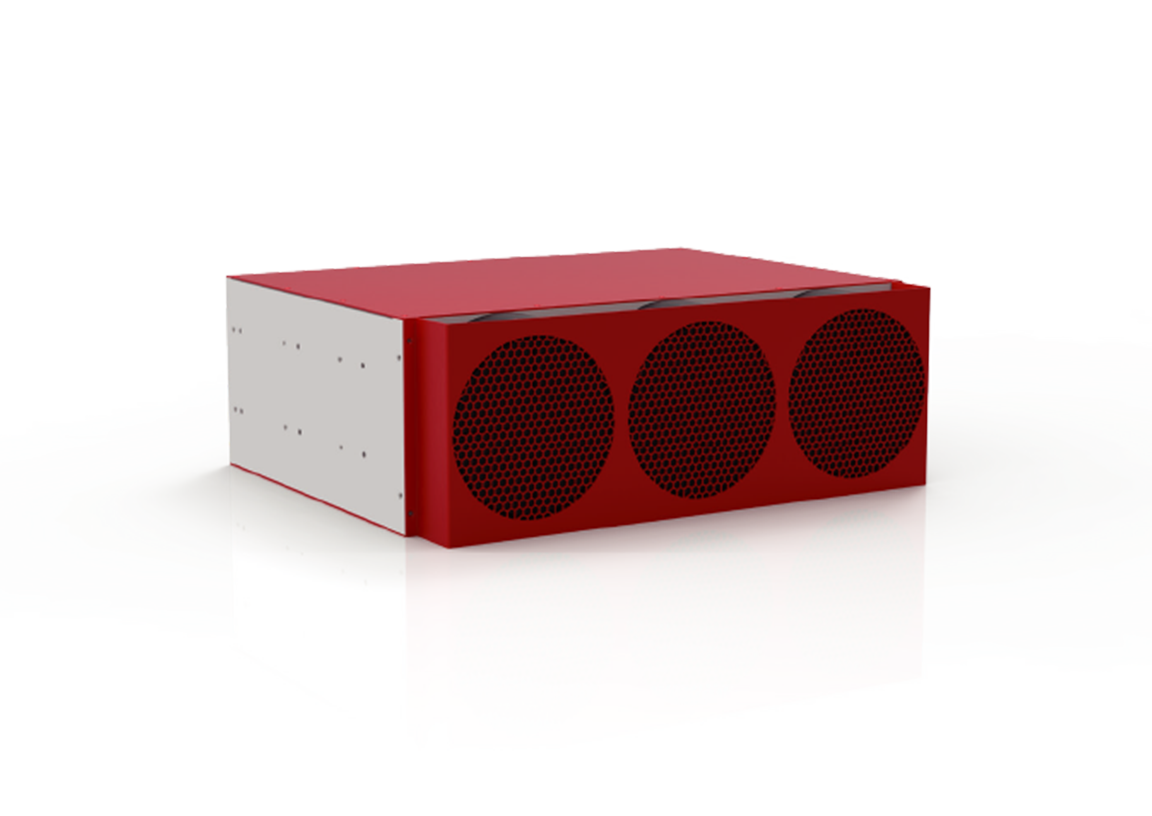

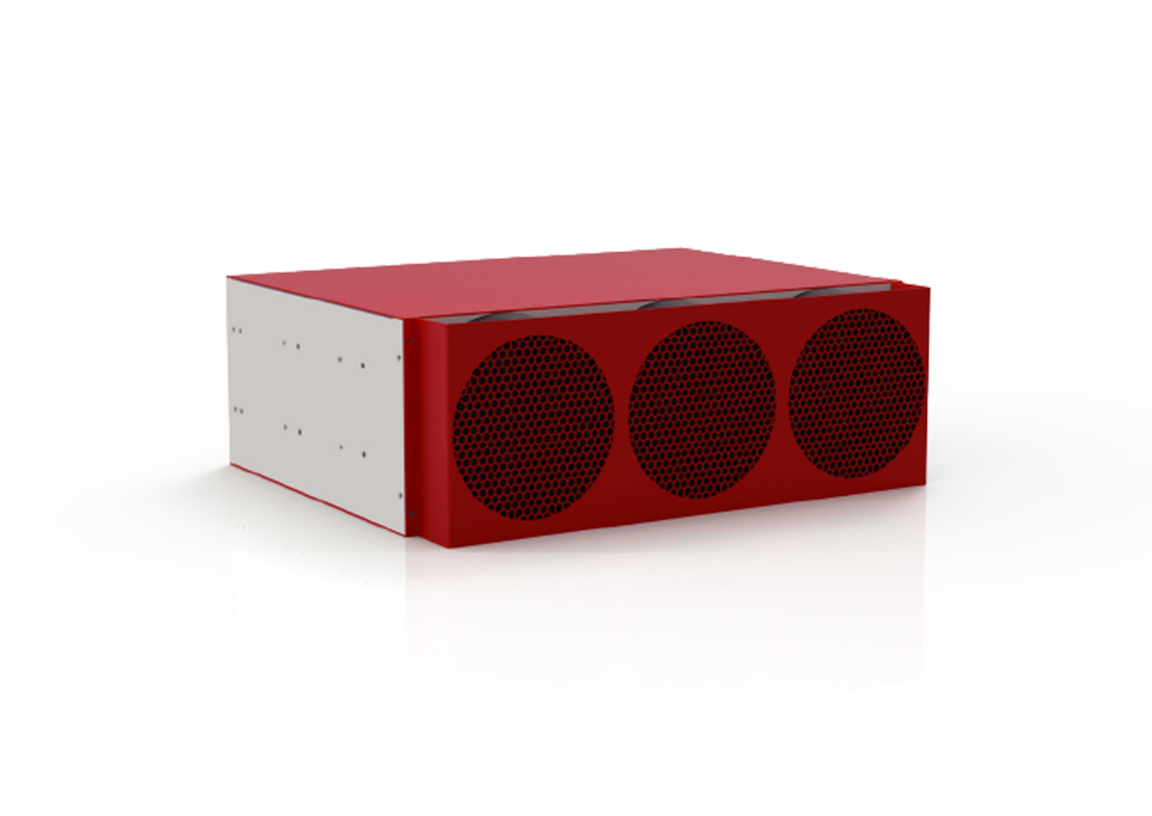

CW Air Cooled 800-2000W

800-2000W

Continuous Wave Single-Mode Air-Cooled Laser integrates advanced air-cooling technology to deliver highly efficient and stable continuous laser output. With superior beam quality, portability and low maintenance requirements, it is the ideal solution for handheld laser welding applications, particularly suited for small workshops, field operations and precision welding scenarios.

  • 2000W
    Peak Power (Max)
  • <1.5
    Beam Quality (M²)
  • Air Cooled
    Cooling Method
Download
  • Product Advantages

  • Applications

  • Specifications

  • Related Products

  • Application Solutions

Product Advantages

  • Compact Structure

    Lightweight design for easy portability and mobility

  • High Reliability

    Ensures stable long-term operation with reduced maintenance costs

  • Superior Beam Quality

    Delivers higher processing efficiency and excellent machining quality for precision manufacturing applications

Applications

  • underlay image Metal Cleaning.png
    Metal Cleaning
  • underlay image Metal Welding.png

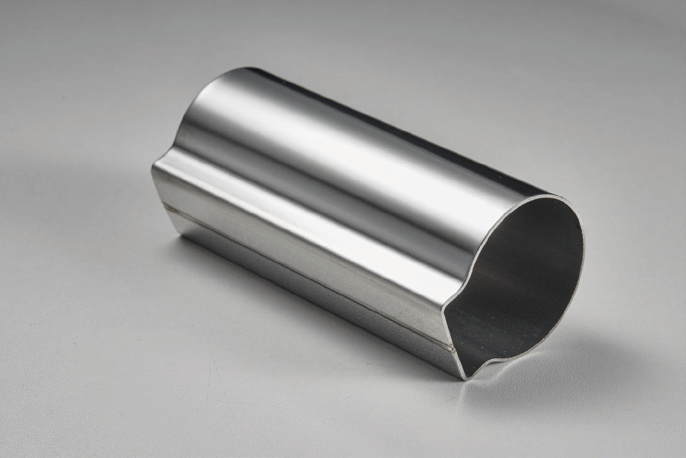

    Metal Welding
  • underlay image Metal Welding.png
    Metal Welding

Specifications

Product Model
  • YDFLC-800-L-A
  • YDFLC-1500-L-A
  • YDFLC-2000-L-A
  • Armored Cable Length (m)
  • Average output power (W)
  • Maximum Modulation Frequency (kHz)
  • Cooling Method
  • Operating Voltage (V)
  • Maximum Power Consumption (kW)
  • Central Emission Wavelength (nm)
  • Spectral Width@3dB (nm)
  • Operating Temperature (℃)
  • Laser Weight (kg)
  • Dimensions (L×W×H) (mm)
  • YDFLC-800-L-A

    • <1.3
    • Armored Cable Length (m)
      5
    • Average output power (W)
      800
    • Maximum Modulation Frequency (kHz)
      10
    • Cooling Method
      Air Cooled
    • Operating Voltage (V)
      60 (DC)
    • Maximum Power Consumption (kW)
      2.7
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      <5
    • Operating Temperature (℃)
      -10~40
    • Laser Weight (kg)
      15
    • Dimensions (L×W×H) (mm)
      257×288×129.5
  • YDFLC-1500-L-A

    • <1.4
    • Armored Cable Length (m)
      5
    • Average output power (W)
      1500
    • Maximum Modulation Frequency (kHz)
      10
    • Cooling Method
      Air Cooled
    • Operating Voltage (V)
      118 (DC)
    • Maximum Power Consumption (kW)
      5
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      <5
    • Operating Temperature (℃)
      -10~40
    • Laser Weight (kg)
      17
    • Dimensions (L×W×H) (mm)
      405.5×397.8×154
  • YDFLC-2000-L-A

    • <1.5
    • Armored Cable Length (m)
      5
    • Average output power (W)
      2000
    • Maximum Modulation Frequency (kHz)
      10
    • Cooling Method
      Air Cooled
    • Operating Voltage (V)
      88 (DC)
    • Maximum Power Consumption (kW)
      7
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      <5
    • Operating Temperature (℃)
      -10~40
    • Laser Weight (kg)
      25
    • Dimensions (L×W×H) (mm)
      405.5×497.8×175
