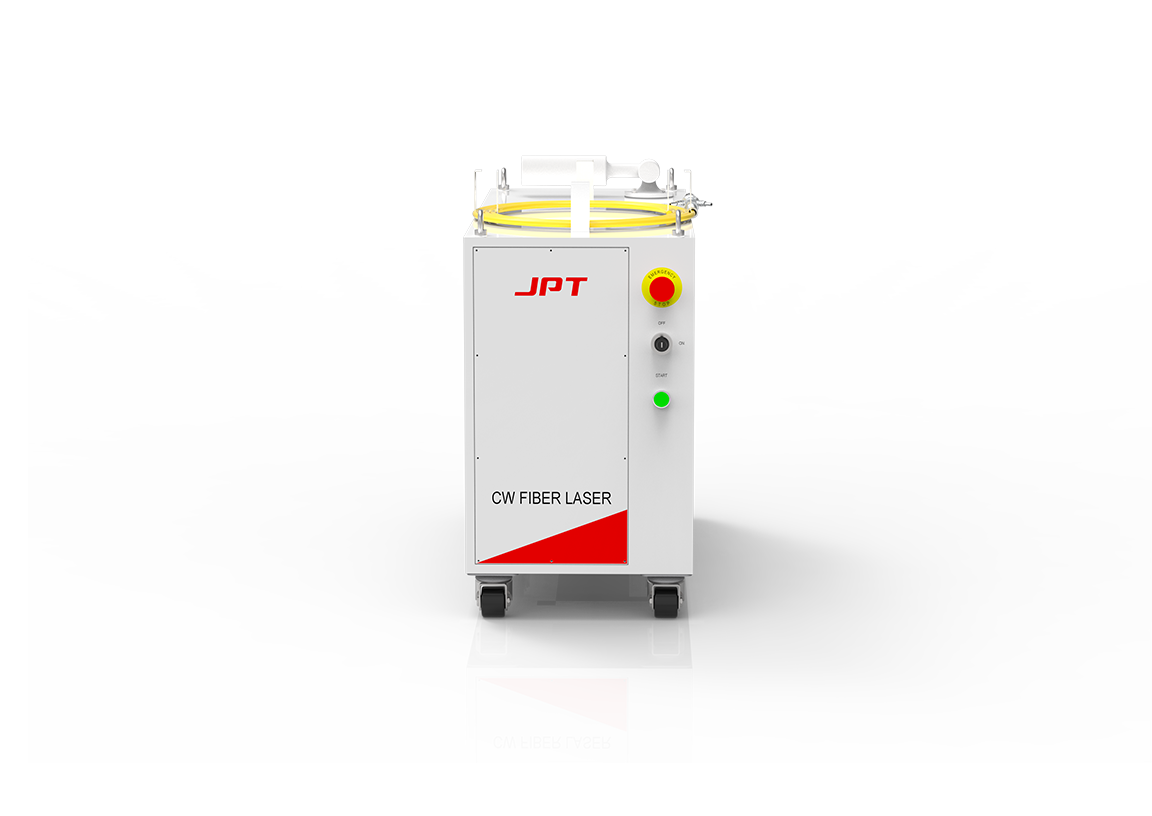

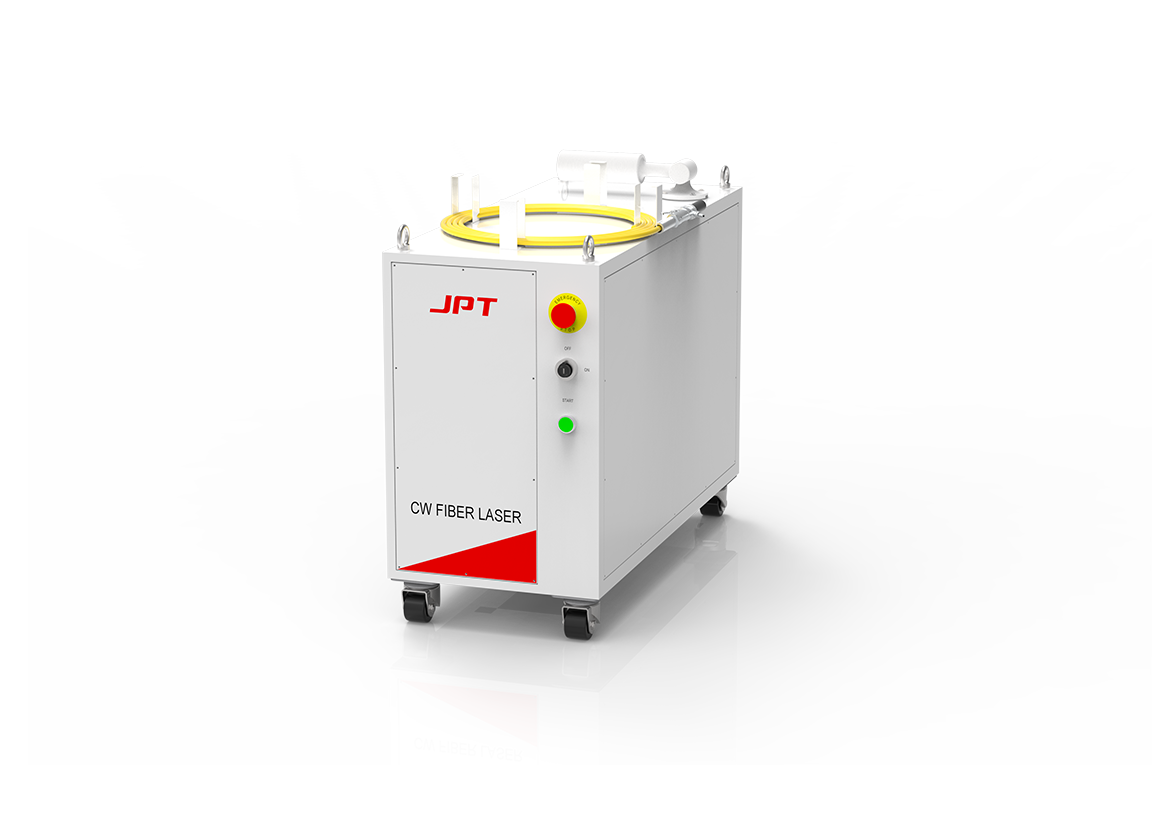

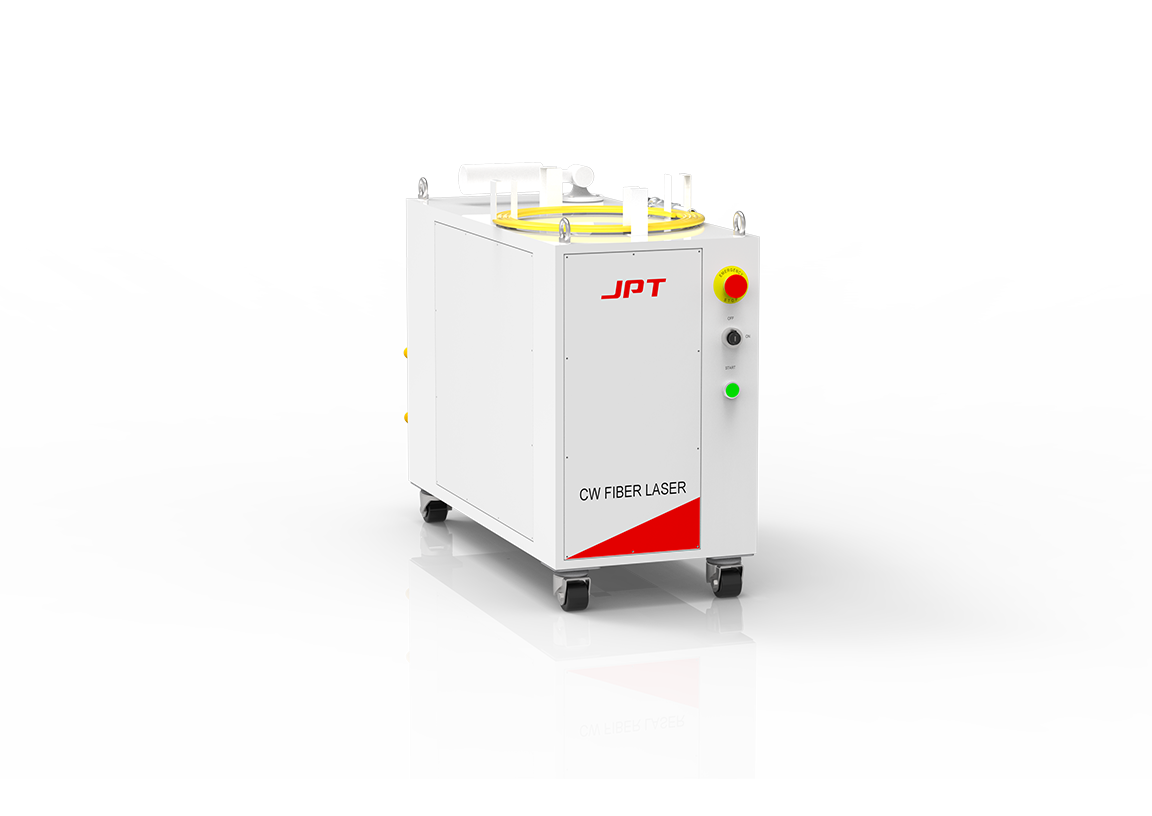

• 6000W Continuous Wave Multimode Lasers.png
    6000W

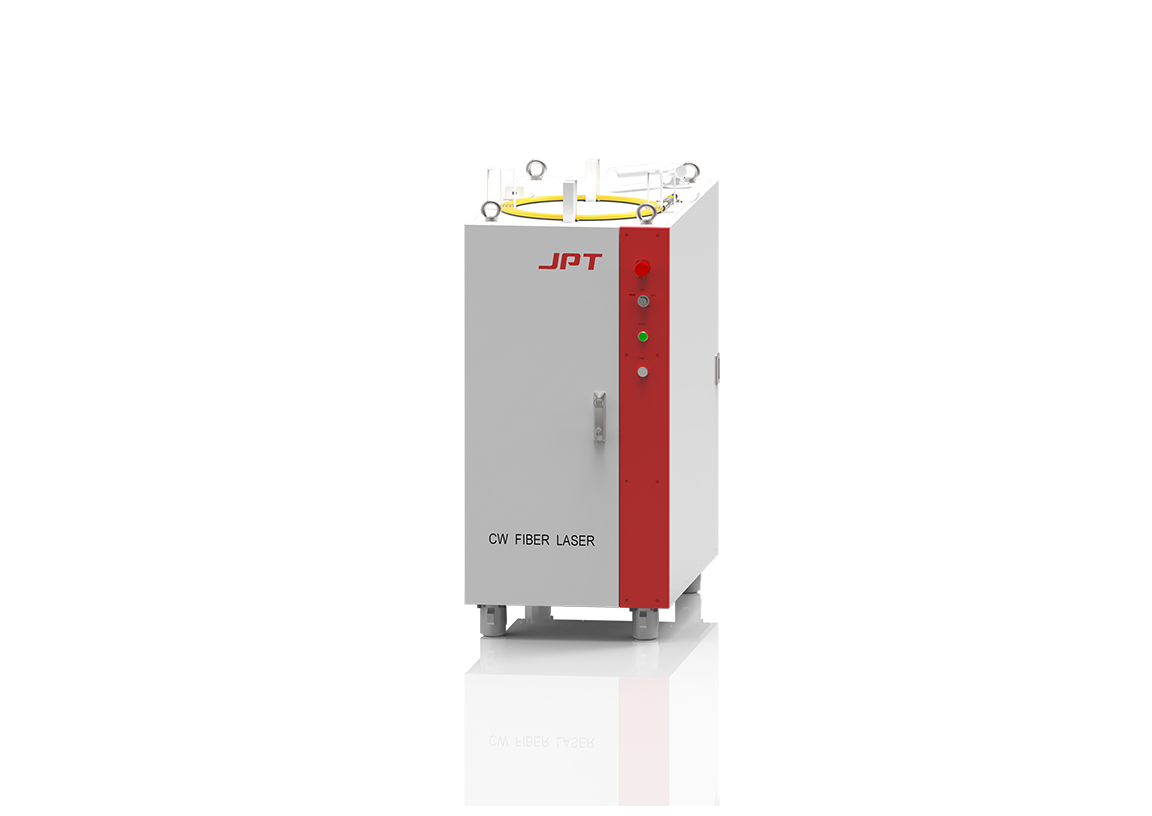

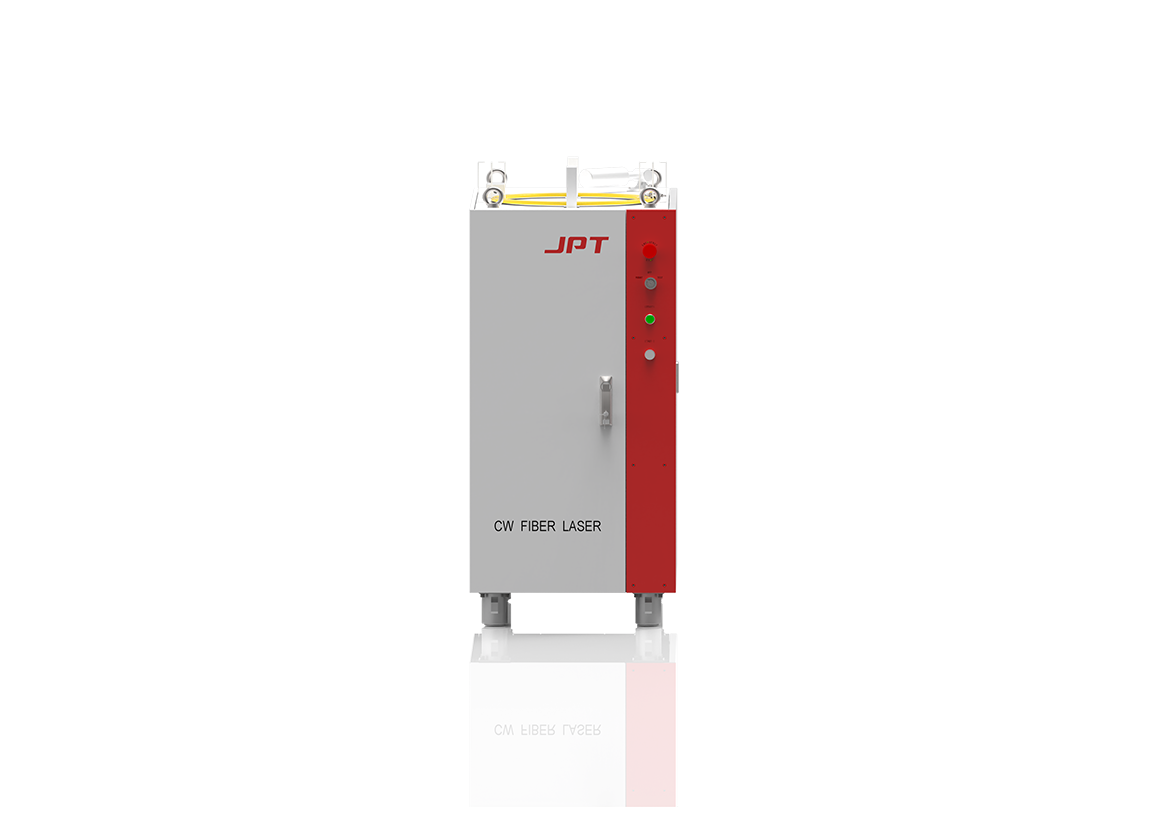

  • 12000W Continuous Wave Multimode Lasers.png
    12000W

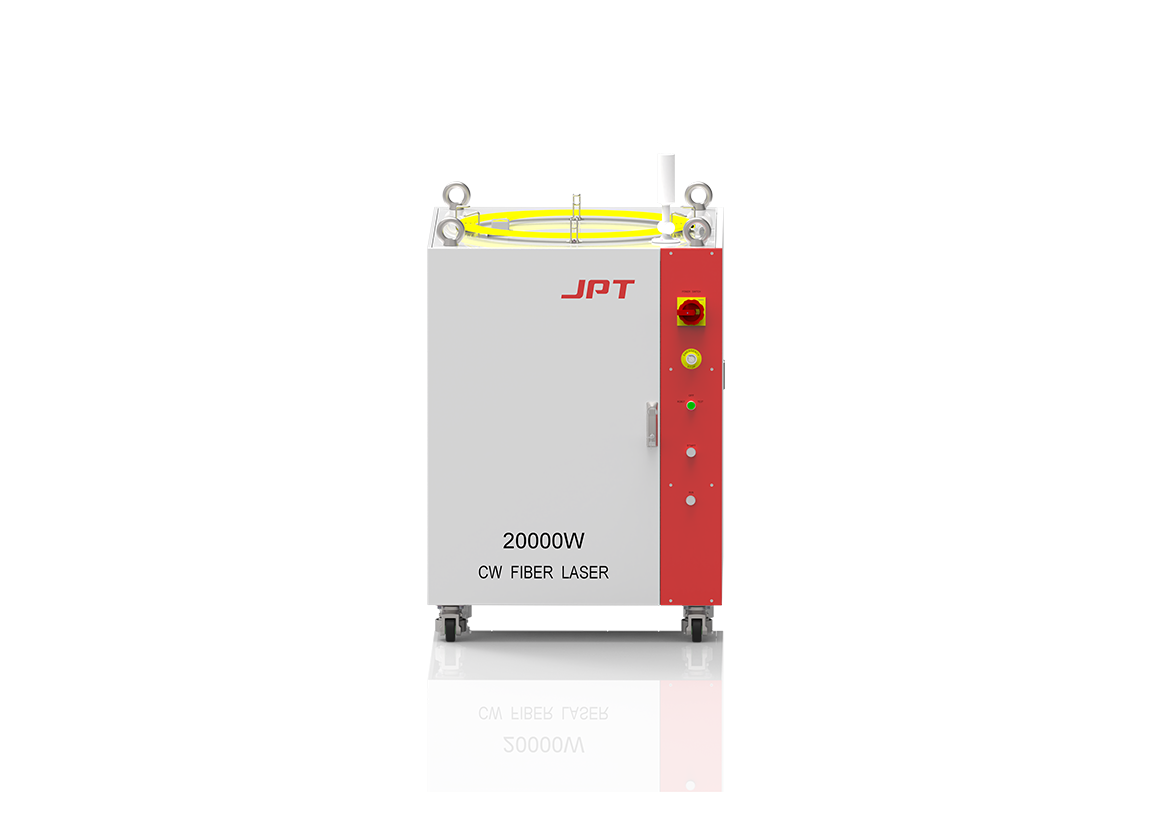

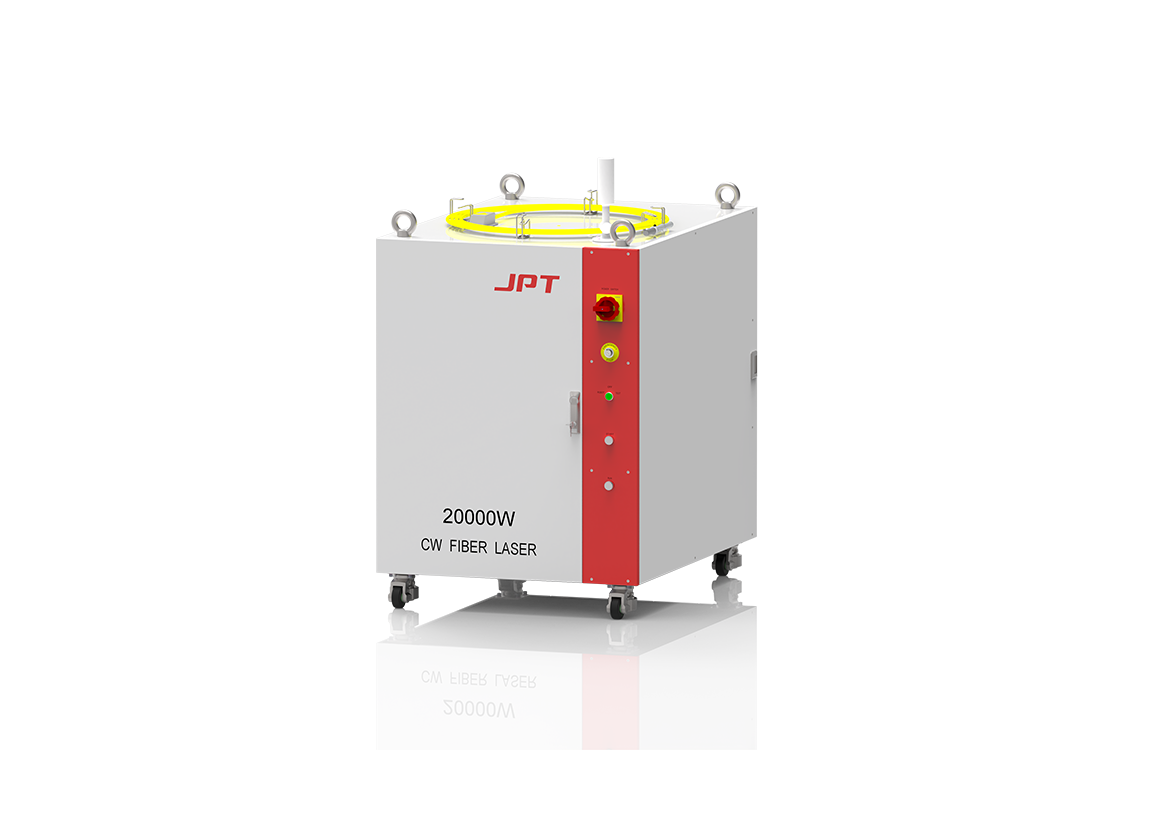

  • 20000W Continuous Wave Multimode Lasers.png
    20000W
  • 6000W Continuous Wave Multimode Lasers.png
  • 12000W Continuous Wave Multimode Lasers.png
  • 20000W Continuous Wave Multimode Lasers.png

CW Cabinet 6-20kW

6000-20000W

Continuous Wave Multimode Lasers have become essential tools for industrial processing and additive manufacturing applications, offering high peak power, superior efficiency, and exceptional reliability - making them ideally suited for various high-power processing scenarios.

  • ±2%
    Power Stability
  • 20000W
    Power Output
  • 1080nm
    Central Wavelength
Download
  • Product Advantages

  • Applications

  • Specifications

  • Related Products

  • Application Solutions

Product Advantages

  • High-Reflective Material Resistance

    Effectively suppresses back-reflected light damage, suitable for processing various highly reflective materials

  • Modular Design for Easy Maintenance

    Modular components enable quick troubleshooting and replacement

  • High Power Stability

    Minimal output power fluctuation ensures consistent and repeatable processing performance

Applications

  • underlay image Thick Stainless Steel Cutting.jpg

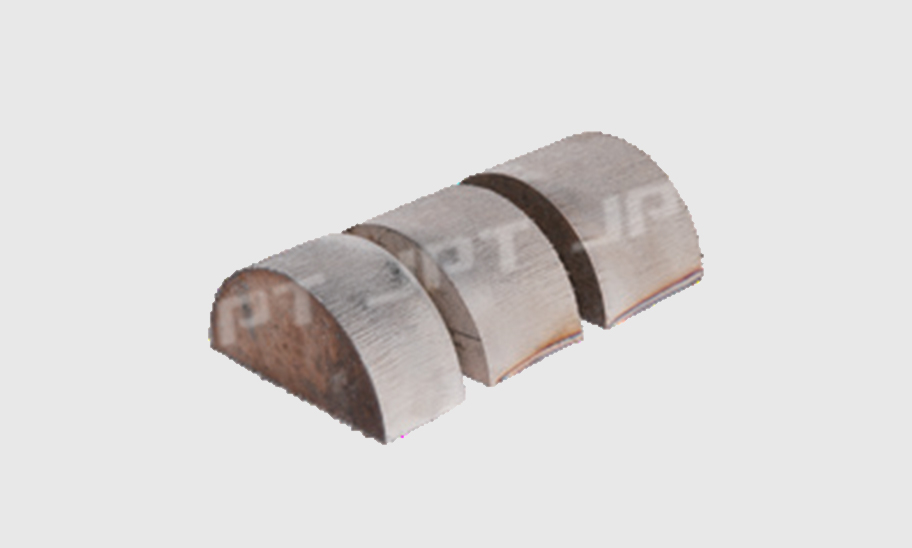

    Thick Stainless Steel Cutting
  • underlay image Bright Surface Carbon Steel Cutting.jpg
    Bright Surface Carbon Steel Cutting
  • underlay image High-Reflectivity Material Cutting.jpg
    High-Reflectivity Material Cutting
  • underlay image Metal Cutting.jpg
    Metal Cutting

Specifications

Product Model
  • YDFLC-6000-X-W
  • YDFLC-8000-L-W
  • YDFLC-12000-L-W
  • YDFLC-20000-L-W
  • Beam Parameter Product (mm×mrad)
  • Armored Cable Length (m)
  • Average output power (W)
  • Maximum Modulation Frequency (kHz)
  • Cooling Method
  • Operating Voltage (V)
  • Maximum Power Consumption (kW)
  • Central Emission Wavelength (nm)
  • Spectral Width@3dB (nm)
  • Operating Temperature (℃)
  • Laser Weight (kg)
  • Dimensions (L×W×H) (mm)
  • YDFLC-6000-X-W

    • Beam Parameter Product (mm×mrad)
      ≤ 4 @ 100 μm
    • Armored Cable Length (m)
      15
    • Average output power (W)
      6000
    • Maximum Modulation Frequency (kHz)
      5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      20
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10 ~ 40
    • Laser Weight (kg)
      123
    • Dimensions (L×W×H) (mm)
      999 × 370 × 709
  • YDFLC-8000-L-W

    • Beam Parameter Product (mm×mrad)
      ≤ 4 @ 100 μm
    • Armored Cable Length (m)
      15
    • Average output power (W)
      8000
    • Maximum Modulation Frequency (kHz)
      5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      27
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10 ~ 40
    • Laser Weight (kg)
      250
    • Dimensions (L×W×H) (mm)
      1120 × 674 × 797
  • YDFLC-12000-L-W

    • Beam Parameter Product (mm×mrad)
      ≤ 4 @ 100 μm
    • Armored Cable Length (m)
      20
    • Average output power (W)
      12000
    • Maximum Modulation Frequency (kHz)
      5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      40
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10 ~ 40
    • Laser Weight (kg)
      350
    • Dimensions (L×W×H) (mm)
      1253 × 600 × 1337
  • YDFLC-20000-L-W

    • Beam Parameter Product (mm×mrad)
      ≤ 7 @ 150 μm
    • Armored Cable Length (m)
      20
    • Average output power (W)
      20000
    • Maximum Modulation Frequency (kHz)
      5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      66
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10 ~ 40
    • Laser Weight (kg)
      600
    • Dimensions (L×W×H) (mm)
      1250 × 935 × 1140
