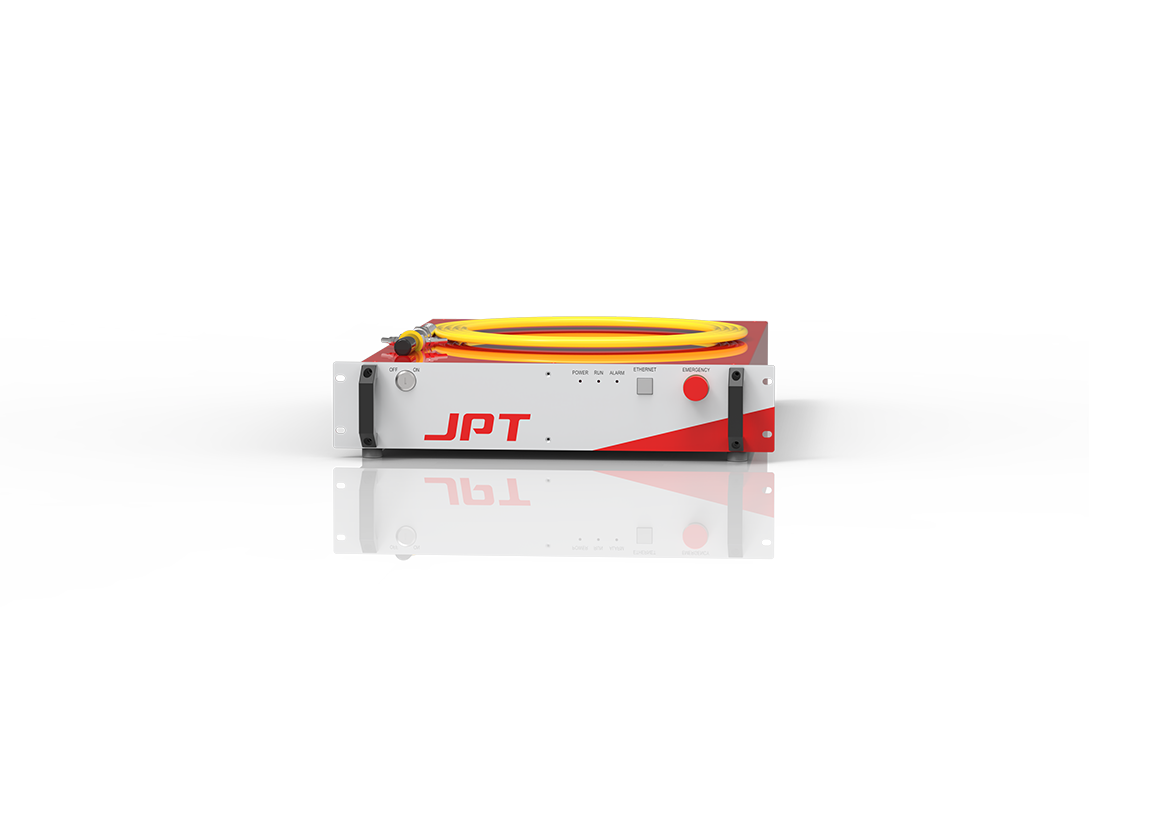

• AOB (Adjustable Output  Beam) Laser.png
    1000/1000W-2000/2000W

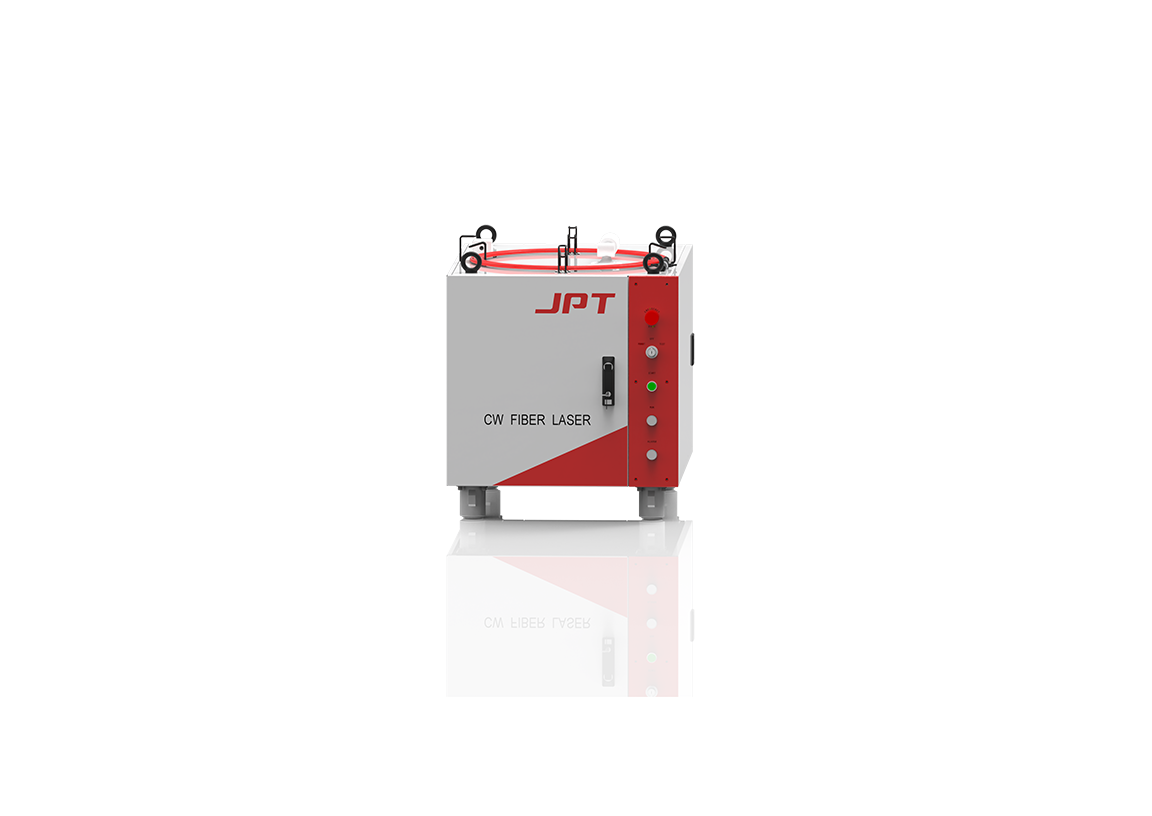

  • AOB (Adjustable Output  Beam) Laser.png
    2000/2000W-4000/4000W
  • AOB (Adjustable Output  Beam) Laser.png
  • AOB (Adjustable Output  Beam) Laser.png

Adjustable Output Beam Laser

1000/1000-6000/6000W

AOB Adjustable Composite Spot Laser features independently controllable dual-spot (inner/outer ring) operation, delivering high flexibility, precision, and intelligent operation to meet complex and demanding application requirements.

  • 2000/2000W
    Single-Mode Model
  • 6000/6000W
    Multimode Model
  • 1000-6000W
    Dual-Range Power Options
Download
  • Product Advantages

  • Applications

  • Specifications

  • Related Products

  • Application Solutions

Product Advantages

  • Independent Inner/Outer Spot Adjustment

    Minimized power fluctuation ensures consistent and repeatable processing performance

  • High-Reflective Material Resistance

    Effectively suppresses back-reflected light damage for processing various highly reflective materials

  • Customizable Power & Core Diameter

    Multiple power levels and fiber core diameter options available to meet customized application requirements

Applications

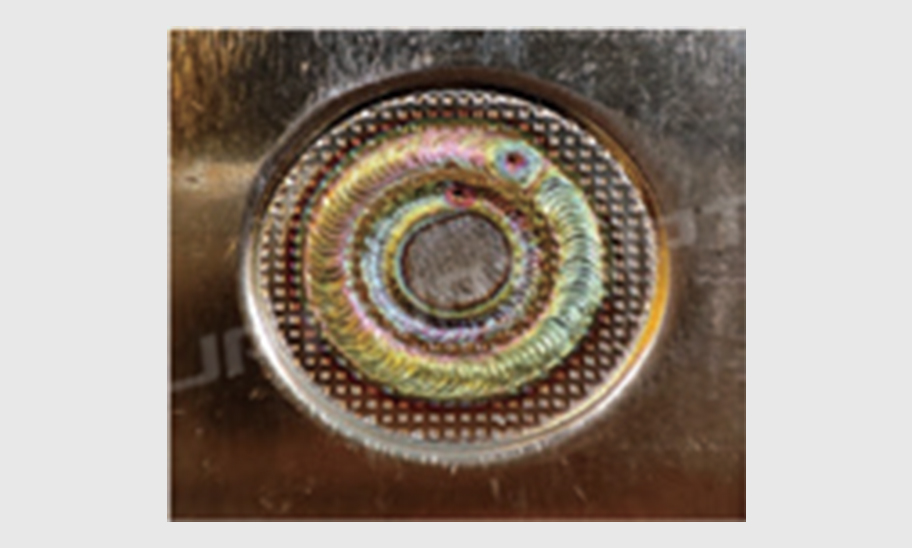

  • underlay image Tab Welding.jpg
    Tab Welding

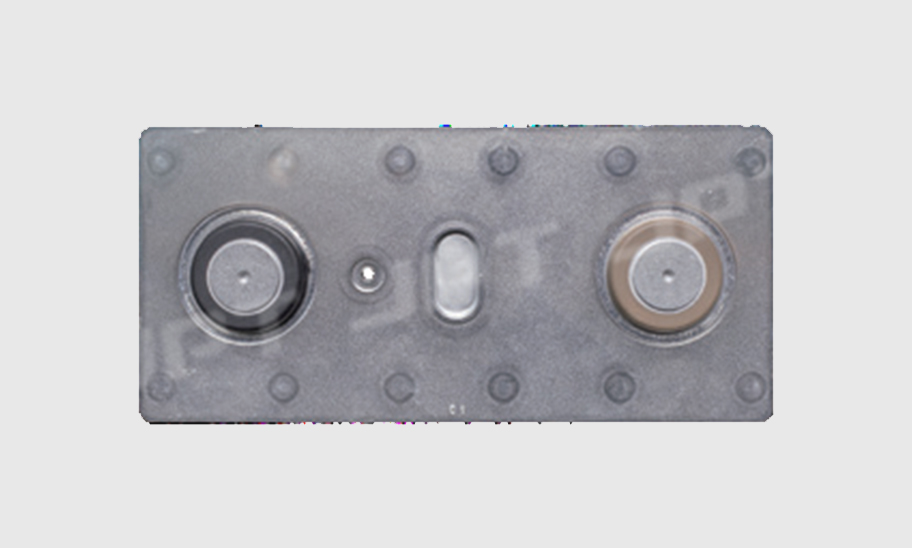

  • underlay image Cover Plate Welding.jpg
    Cover Plate Welding
  • underlay image Busbar Welding.jpg
    Busbar Welding
  • underlay image Copper Welding.jpg
    Copper Welding

Specifications

Product Model

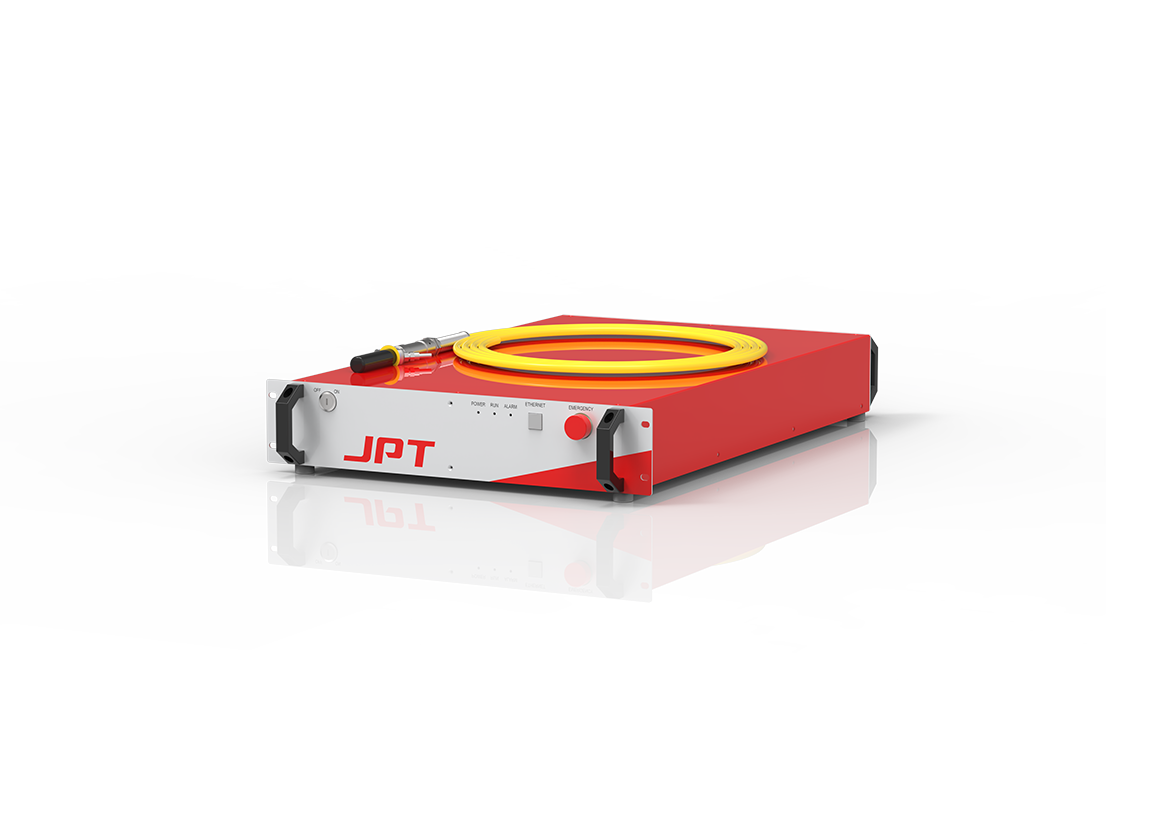

  • AOB-1000/1000-L2-W
    AOB-1000/1000-L2-W.png
  • AOB-2000/2000-L2-W
    AOB-2000/2000-L2-W.png

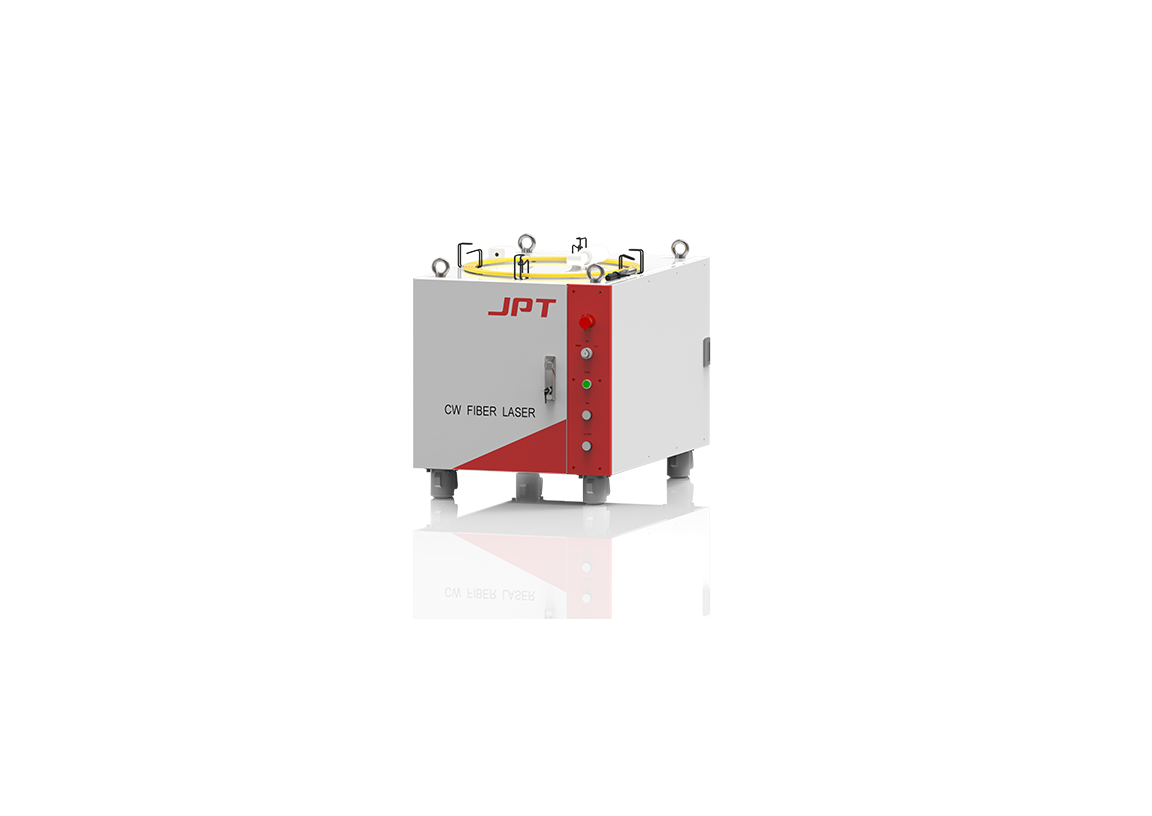

  • AOB-3000/3000-L-W
    AOB-3000/3000-L-W.png

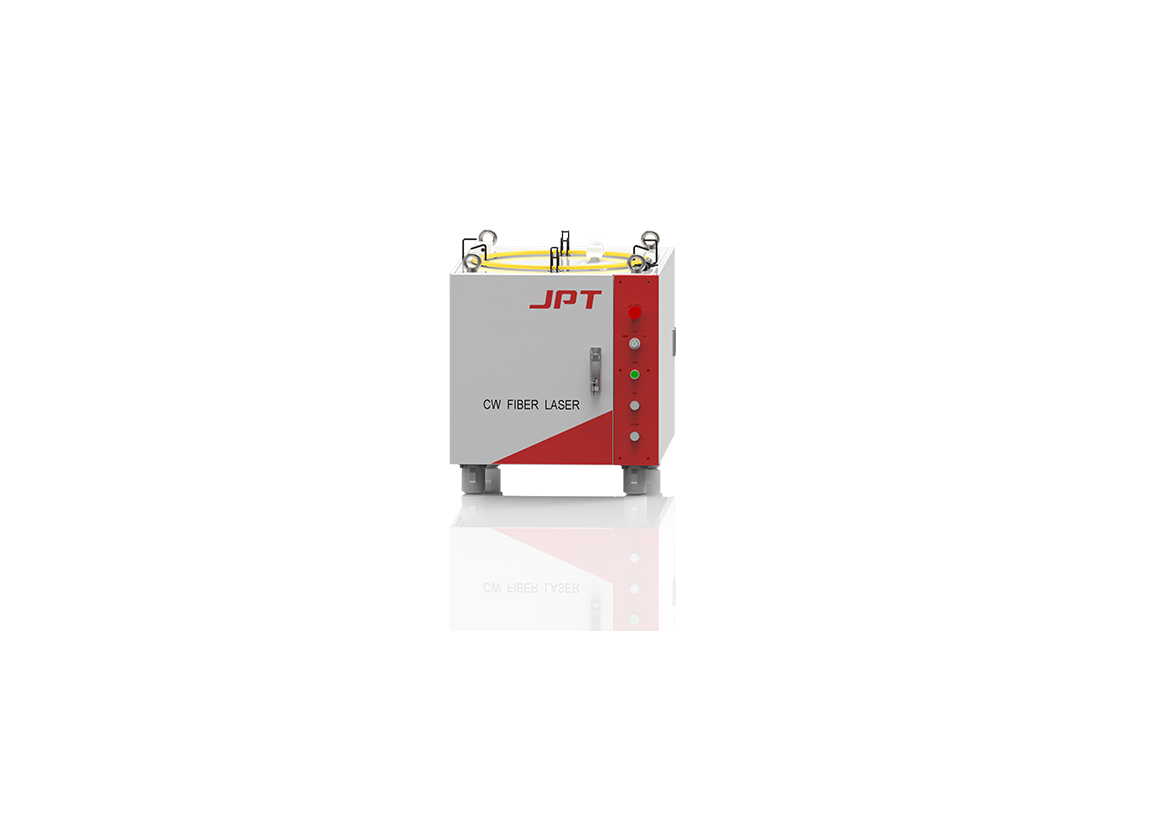

  • AOB-4000/2000-L-W
    AOB-4000/2000-L-W.png

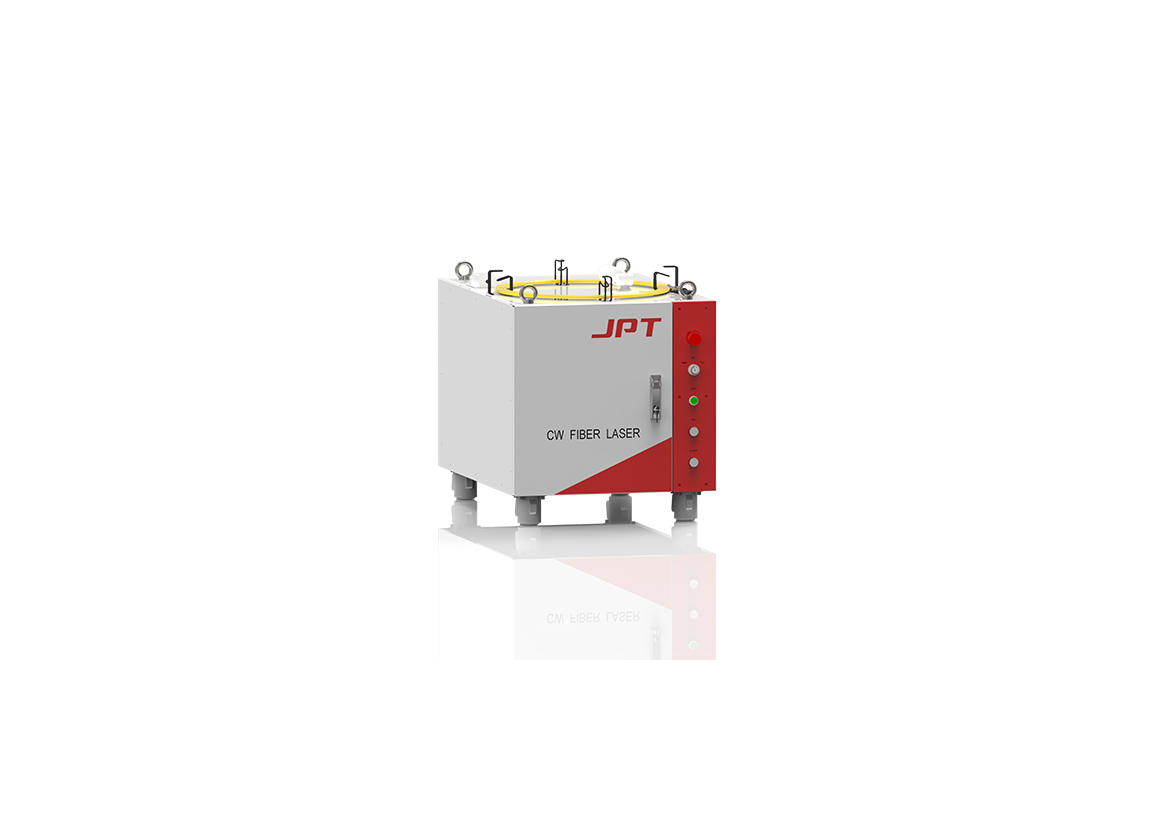

  • AOB-4000/4000-L-W
    AOB-4000/4000-L-W.png

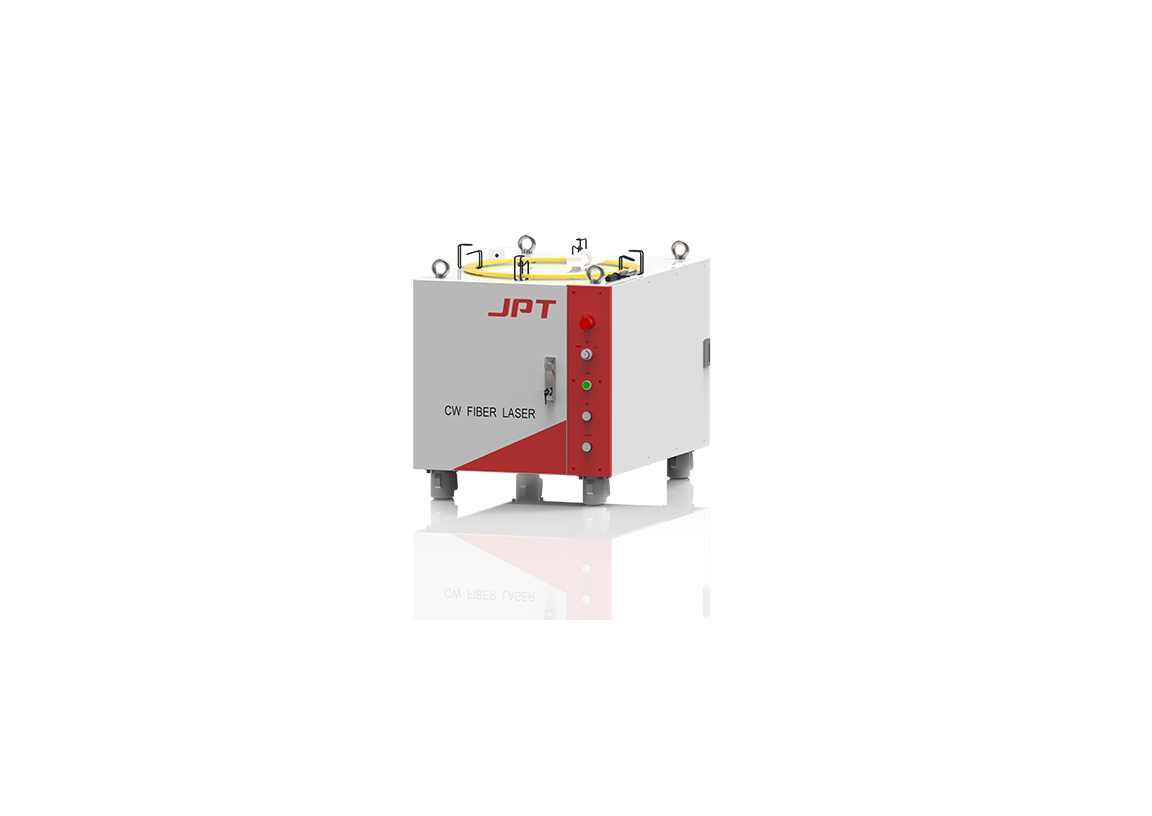

  • AOB-6000/6000-L-W
    AOB-6000/6000-L-W.png
  • Central Beam Parameter Product (mm×mrad)
  • Annular Beam Parameter Product (mm×mrad)
  • Armored Cable Length (m)
  • Central Power (W)
  • Ring Power (W)
  • Maximum Modulation Frequency (kHz)
  • Cooling Method
  • Operating Voltage (V)
  • Maximum Power Consumption (kW)
  • Central Emission Wavelength (nm)
  • Spectral Width@3dB (nm)
  • Operating Temperature (℃)
  • Laser Weight (kg)
  • Dimensions (L×W×H) (mm)
  • AOB-1000/1000-L2-W

    AOB-1000/1000-L2-W.png
    • Central Beam Parameter Product (mm×mrad)
      ≤ 2.2 @ 50 μm
    • Annular Beam Parameter Product (mm×mrad)
      ≤ 7 @ 150 μm
    • Armored Cable Length (m)
      10
    • Central Power (W)
      1000
    • Ring Power (W)
      1000
    • Maximum Modulation Frequency (kHz)
      10
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      220 (AC)
    • Maximum Power Consumption (kW)
      6
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10 ~ 40
    • Laser Weight (kg)
      37
    • Dimensions (L×W×H) (mm)
      742 × 482 × 105
  • AOB-2000/2000-L2-W

    AOB-2000/2000-L2-W.png
    • Central Beam Parameter Product (mm×mrad)
      ≤ 2.2 @ 50 μm
    • Annular Beam Parameter Product (mm×mrad)
      ≤ 7 @ 150 μm
    • Armored Cable Length (m)
      10
    • Central Power (W)
      2000
    • Ring Power (W)
      2000
    • Maximum Modulation Frequency (kHz)
      5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      12
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10 ~ 40
    • Laser Weight (kg)
      43
    • Dimensions (L×W×H) (mm)
      742 × 482 × 105
  • AOB-3000/3000-L-W

    AOB-3000/3000-L-W.png
    • Central Beam Parameter Product (mm×mrad)
      ≤ 2.2 @ 50 μm
    • Annular Beam Parameter Product (mm×mrad)
      ≤ 7 @ 150 μm
    • Armored Cable Length (m)
      10
    • Central Power (W)
      3000
    • Ring Power (W)
      3000
    • Maximum Modulation Frequency (kHz)
      5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      20
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      220
    • Dimensions (L×W×H) (mm)
      1120 × 674 × 797
  • AOB-4000/2000-L-W

    AOB-4000/2000-L-W.png
    • Central Beam Parameter Product (mm×mrad)
      ≤ 2.2 @ 50 μm
    • Annular Beam Parameter Product (mm×mrad)
      ≤ 7 @ 150 μm
    • Armored Cable Length (m)
      10
    • Central Power (W)
      4000
    • Ring Power (W)
      2000
    • Maximum Modulation Frequency (kHz)
      5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      20
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      <6
    • Operating Temperature (℃)
      10 ~ 40
    • Laser Weight (kg)
      240
    • Dimensions (L×W×H) (mm)
      1120 × 674 × 797
  • AOB-4000/4000-L-W

    AOB-4000/4000-L-W.png
    • Central Beam Parameter Product (mm×mrad)
      ≤ 2.2 @ 50 μm
    • Annular Beam Parameter Product (mm×mrad)
      ≤ 7 @ 150 μm
    • Armored Cable Length (m)
      10
    • Central Power (W)
      4000
    • Ring Power (W)
      4000
    • Maximum Modulation Frequency (kHz)
      5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      27
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      255
    • Dimensions (L×W×H) (mm)
      1120 × 674 × 797
  • AOB-6000/6000-L-W

    AOB-6000/6000-L-W.png
    • Central Beam Parameter Product (mm×mrad)
      ≤ 2.2 @ 50 μm
    • Annular Beam Parameter Product (mm×mrad)
      ≤ 7 @ 150 μm
    • Armored Cable Length (m)
      10
    • Central Power (W)
      6000
    • Ring Power (W)
      6000
    • Maximum Modulation Frequency (kHz)
      5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      40
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      < 6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      350
    • Dimensions (L×W×H) (mm)
      1253 × 600 × 1337
