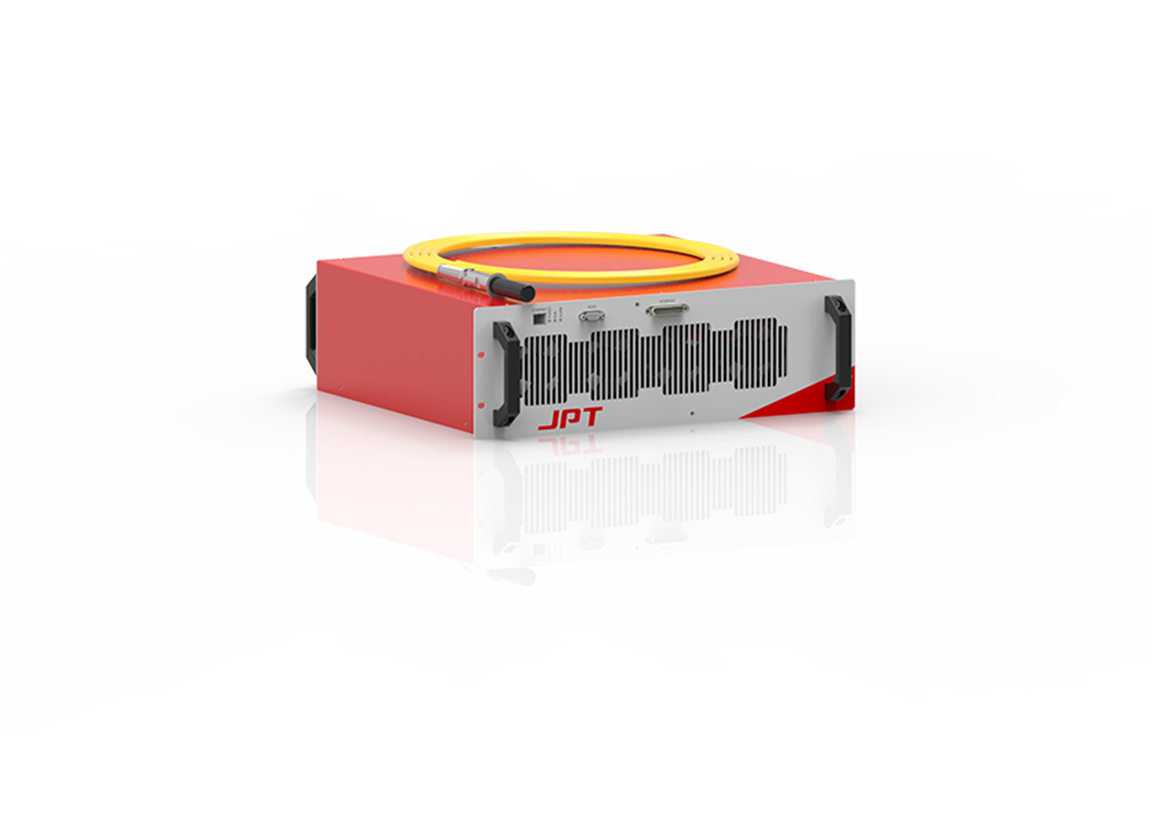

QCW Fiber Laser
150/1500W-600/6000W
Quasi-Continuous Wave (QCW) Lasers offer significant advantages including high electro-optical conversion efficiency, compact design, maintenance-free operation, and flexible fiber-optic beam delivery, making them ideal light sources for industrial laser cutting, welding and other applications.
-
0.01~50msAdjustable Pulse Width
-
6000WPeak Power (Max)
-
10kHzModulation Frequency
-
Product Advantages
-
Applications
-
Specifications
-
Related Products
-
Application Solutions
Product Advantages
-
Editable Pulse Waveform
Flexible customization of pulse shapes and parameters to precisely match diverse processing requirements
-
High Beam Quality
Superior beam characteristics enabling precise focusing and exceptional processing results
-
Excellent Power Stability
Minimal output power fluctuation ensures consistent and repeatable processing performance
Applications
-

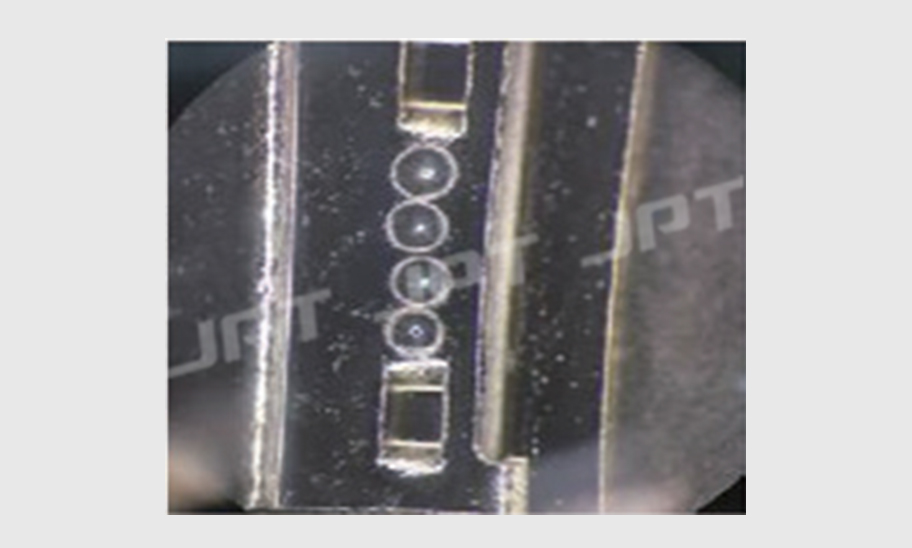

Precision Welding -

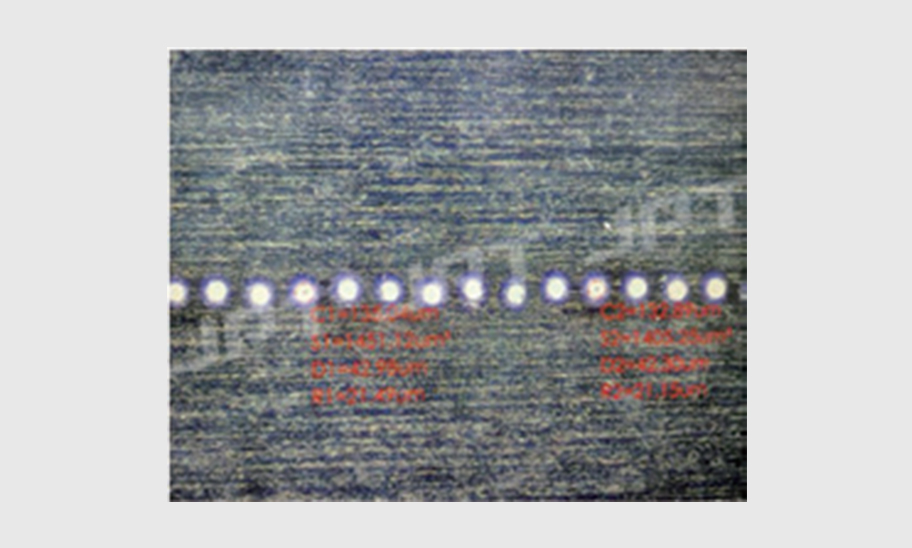

Ceramic/Metal Drilling -

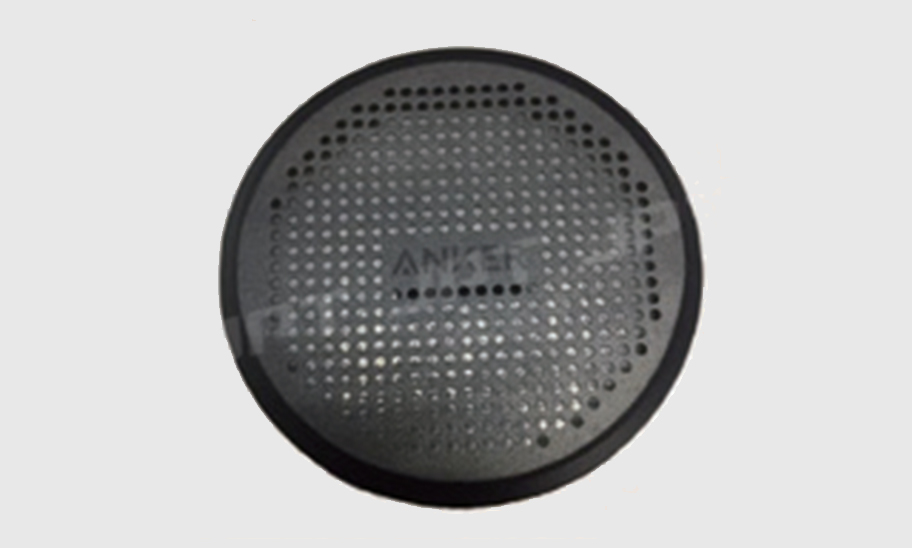

Metal Cutting
Specifications
-

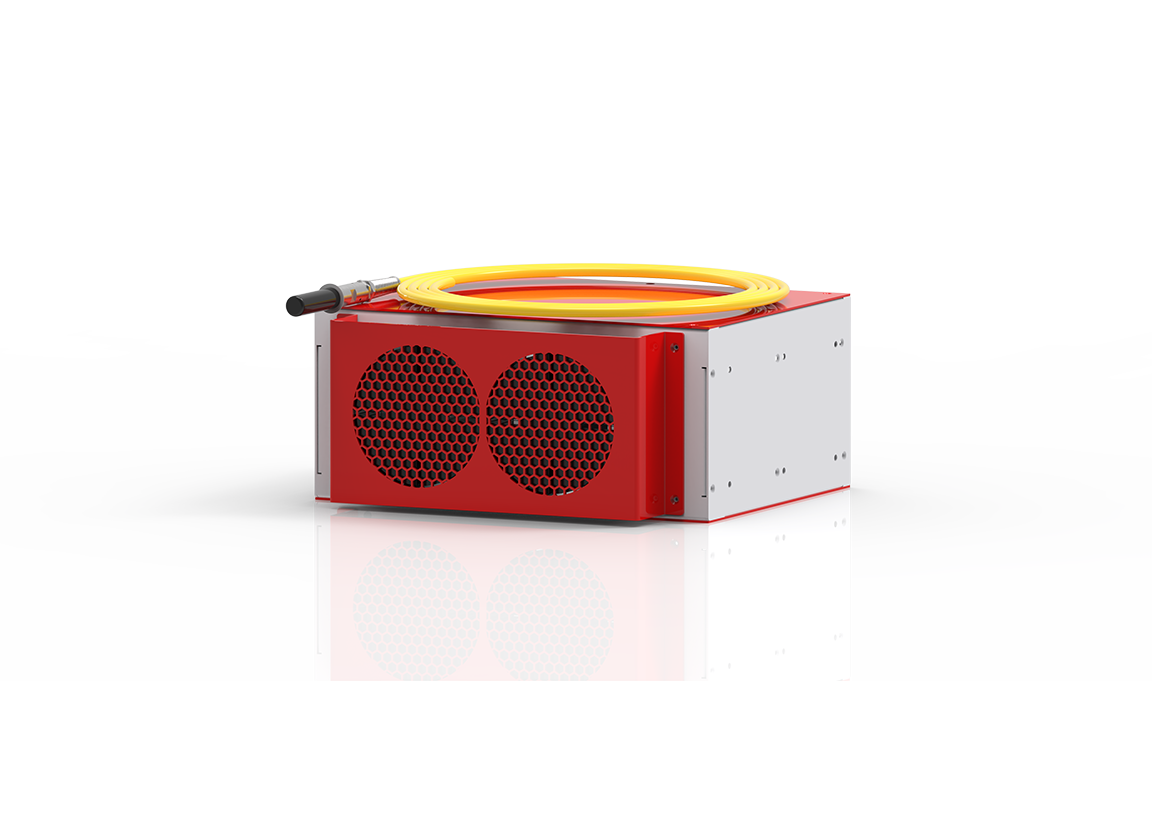

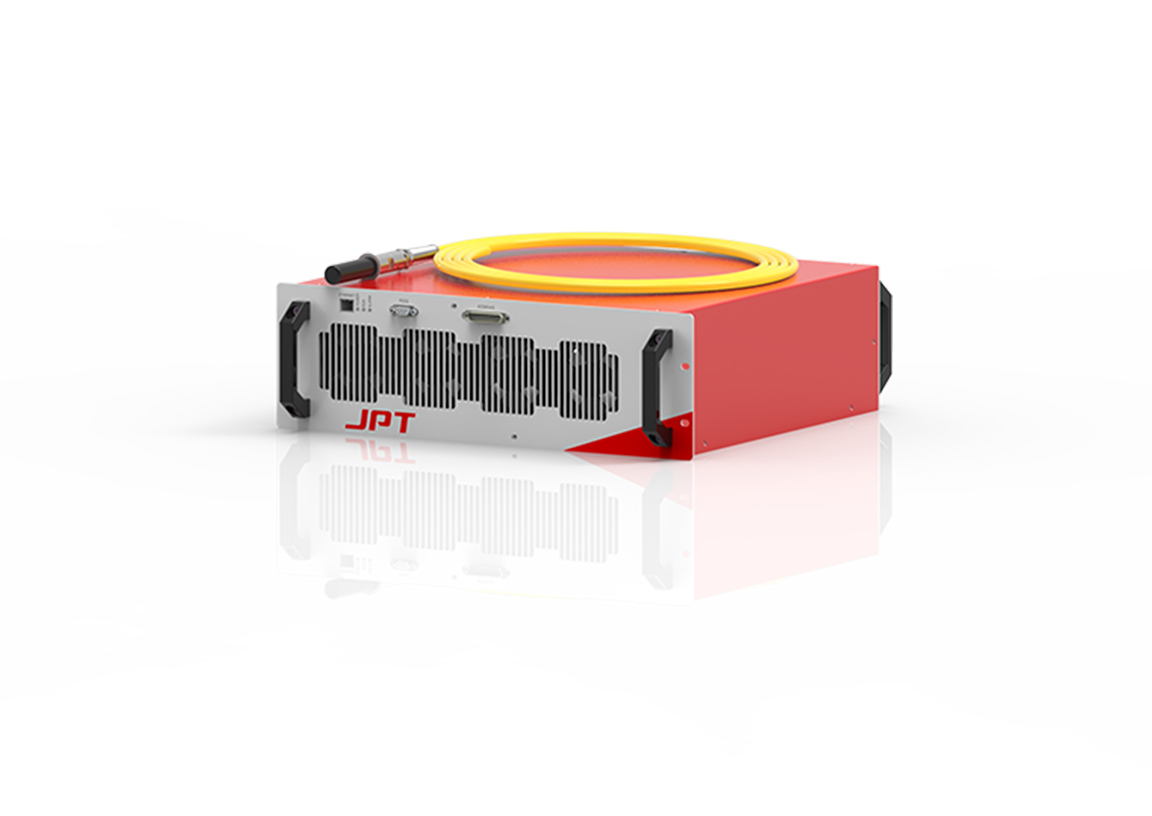

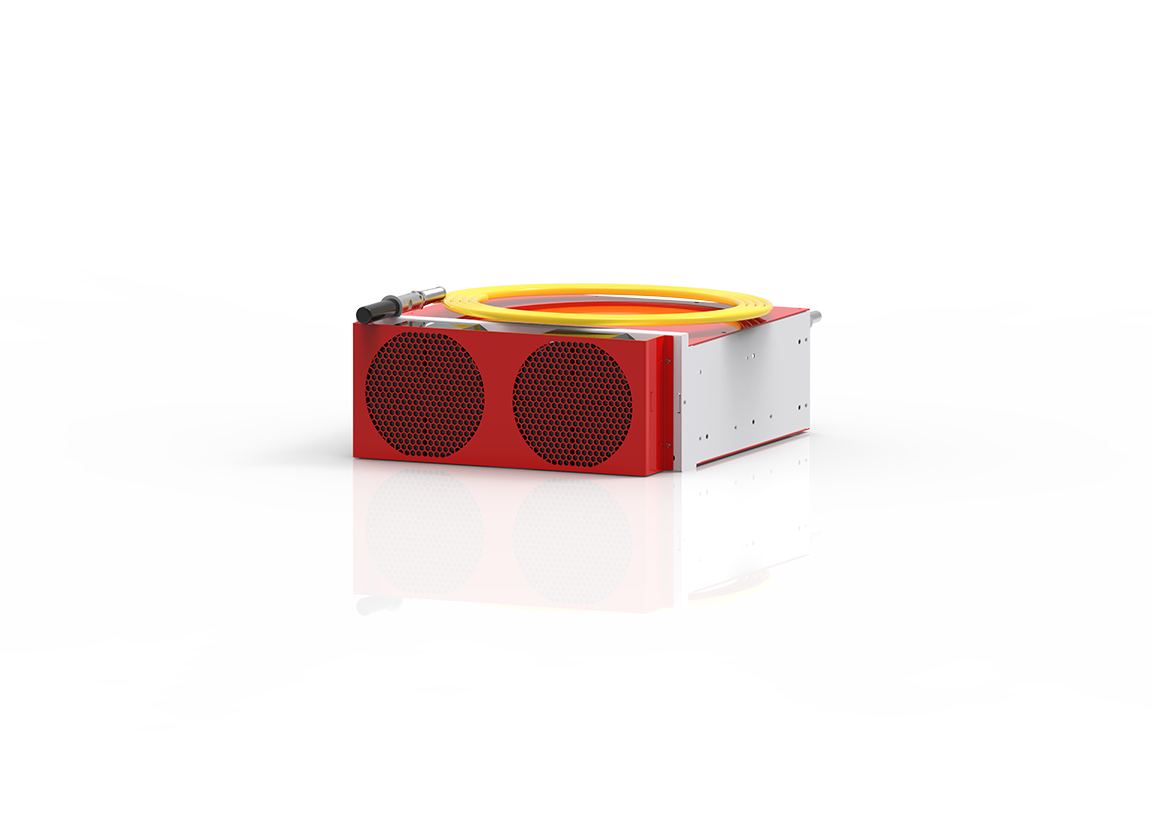

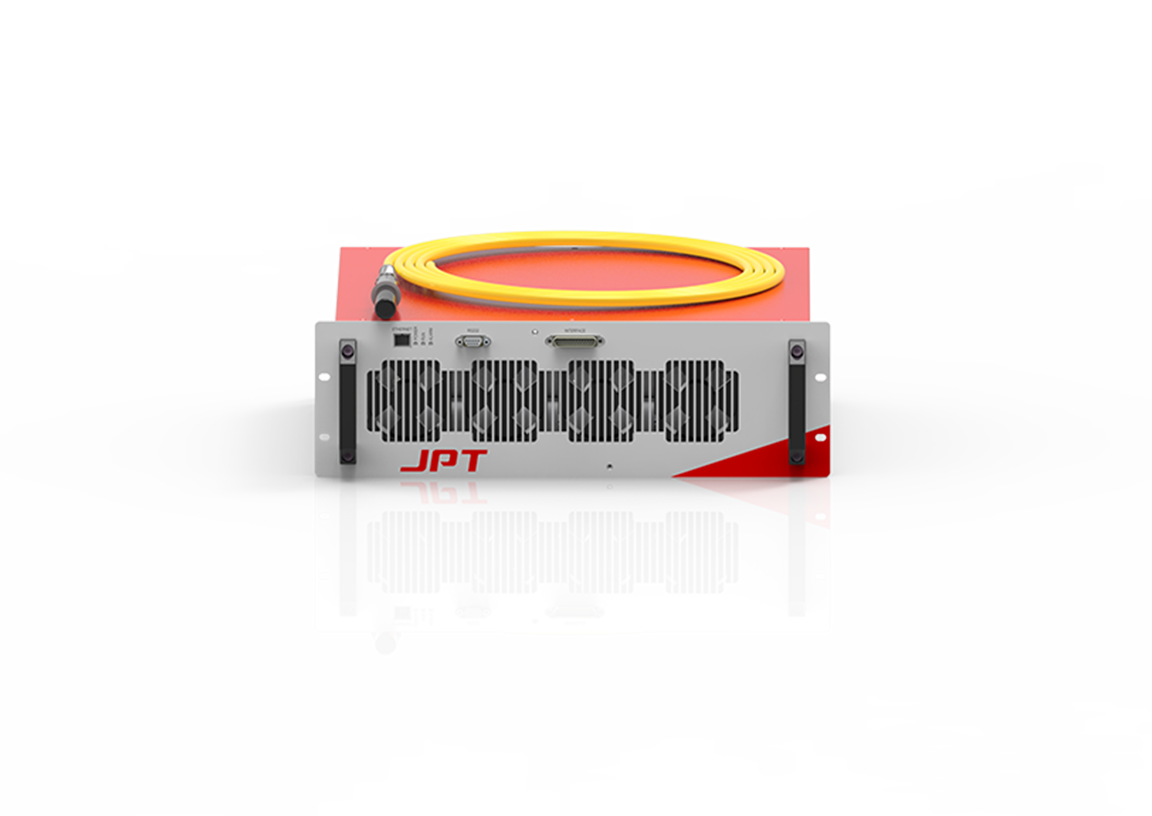

QCW-150/1500-L-A
-
QCW-300/3000-L-A
-
QCW-450/4500-L-A
-
QCW-600/6000-L-A
-
QCW-200/1000-L2-A
-
QCW-300/1500-L2-A
-
Beam Parameter Product (mmxmrad)
-
Average Output Power (W)
-
Maximum Power In Continuous Mode (W)
-
Peak Power (W)
-
Maximum Pulse Energy (J)
-
Maximum Modulation Frequency (kHz)
-
Pulse Width (ms)
-
Cooling Method
-
Operating Voltage (V)
-
Maximum Power Consumption (kW)
-
Central Wavelength (nm)
-
Laser Weight (kg)
-
Dimensions (L×W×H) (mm)
-
QCW-150/1500-L-A
-
Beam Parameter Product (mmxmrad)≤0.5 @20μm
-
Average Output Power (W)150
-
Maximum Power In Continuous Mode (W)250
-
Peak Power (W)1500
-
Maximum Pulse Energy (J)15
-
Maximum Modulation Frequency (kHz)10
-
Pulse Width (ms)0.01~10
-
Cooling MethodAir Cooled
-
Operating Voltage (V)48 (DC)
-
Maximum Power Consumption (kW)1
-
Central Wavelength (nm)1080
-
Laser Weight (kg)26.5
-
Dimensions (L×W×H) (mm)486×483×148
-
-
QCW-300/3000-L-A
-
Beam Parameter Product (mmxmrad)≤0.6 @25μm
-
Average Output Power (W)300
-
Maximum Power In Continuous Mode (W)400
-
Peak Power (W)3000
-
Maximum Pulse Energy (J)30
-
Maximum Modulation Frequency (kHz)10
-
Pulse Width (ms)0.01~10
-
Cooling MethodAir Cooled
-
Operating Voltage (V)48 (DC)
-
Maximum Power Consumption (kW)1.8
-
Central Wavelength (nm)1080
-
Laser Weight (kg)38
-
Dimensions (L×W×H) (mm)561×483×148
-
-
QCW-450/4500-L-A
-
Beam Parameter Product (mmxmrad)≤2 @50μm
-
Average Output Power (W)450
-
Maximum Power In Continuous Mode (W)450
-
Peak Power (W)4500
-
Maximum Pulse Energy (J)45
-
Maximum Modulation Frequency (kHz)10
-
Pulse Width (ms)0.01~10
-
Cooling MethodAir Cooled
-
Operating Voltage (V)48 (DC)
-
Maximum Power Consumption (kW)2.1
-
Central Wavelength (nm)1080
-
Laser Weight (kg)42
-
Dimensions (L×W×H) (mm)561×483×148
-
-

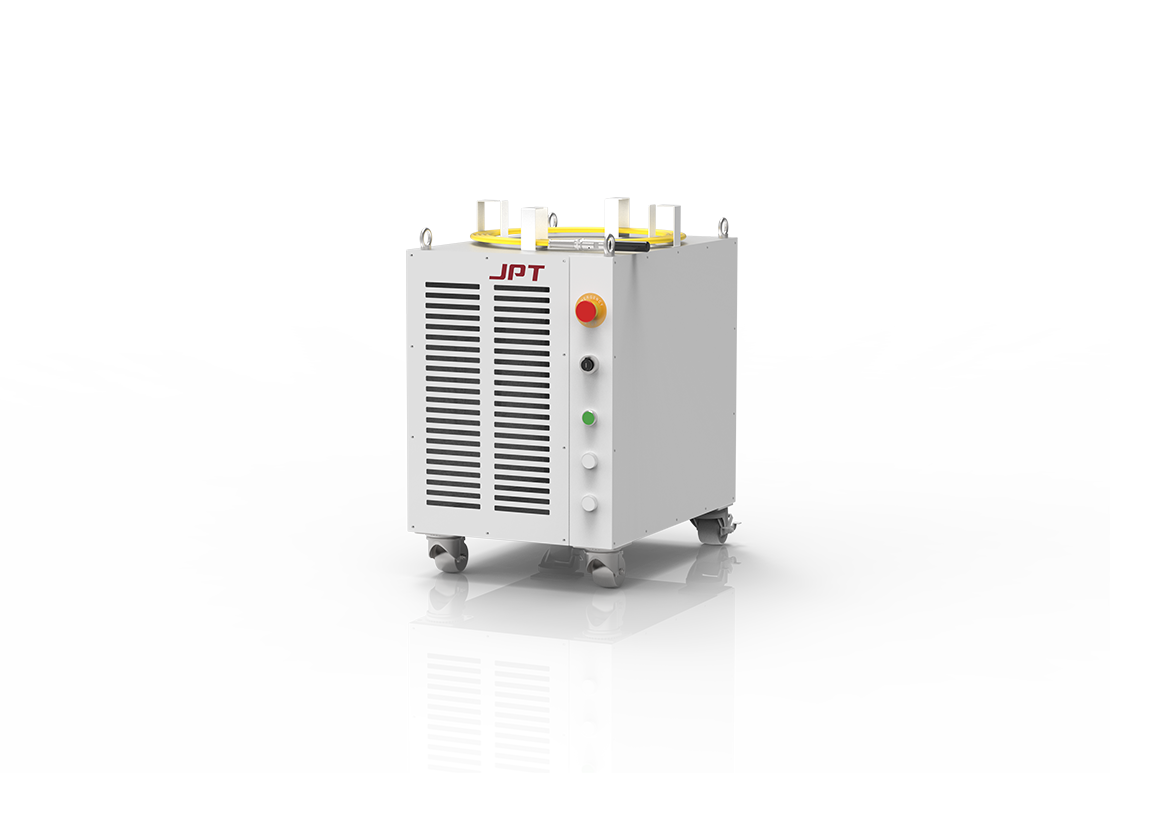

QCW-600/6000-L-A
-
Beam Parameter Product (mmxmrad)≤4 @100μm
-
Average Output Power (W)600
-
Maximum Power In Continuous Mode (W)600
-
Peak Power (W)6000
-
Maximum Pulse Energy (J)60
-
Maximum Modulation Frequency (kHz)5
-
Pulse Width (ms)0.01~10
-
Cooling MethodAir Cooled
-
Operating Voltage (V)220 (AC)
-
Maximum Power Consumption (kW)2.4
-
Central Wavelength (nm)1080
-
Laser Weight (kg)121
-
Dimensions (L×W×H) (mm)603×435×715
-
-
QCW-200/1000-L2-A
-
Beam Parameter Product (mmxmrad)≤0.45 @14μm
-
Average Output Power (W)100
-
Maximum Power In Continuous Mode (W)200
-
Peak Power (W)1000
-
Maximum Pulse Energy (J)10
-
Maximum Modulation Frequency (kHz)10
-
Pulse Width (ms)0.01~10
-
Cooling MethodAir Cooled
-
Operating Voltage (V)48 (DC)
-
Maximum Power Consumption (kW)0.8
-
Central Wavelength (nm)1080
-
Laser Weight (kg)15
-
Dimensions (L×W×H) (mm)257×288×129.5
-
-

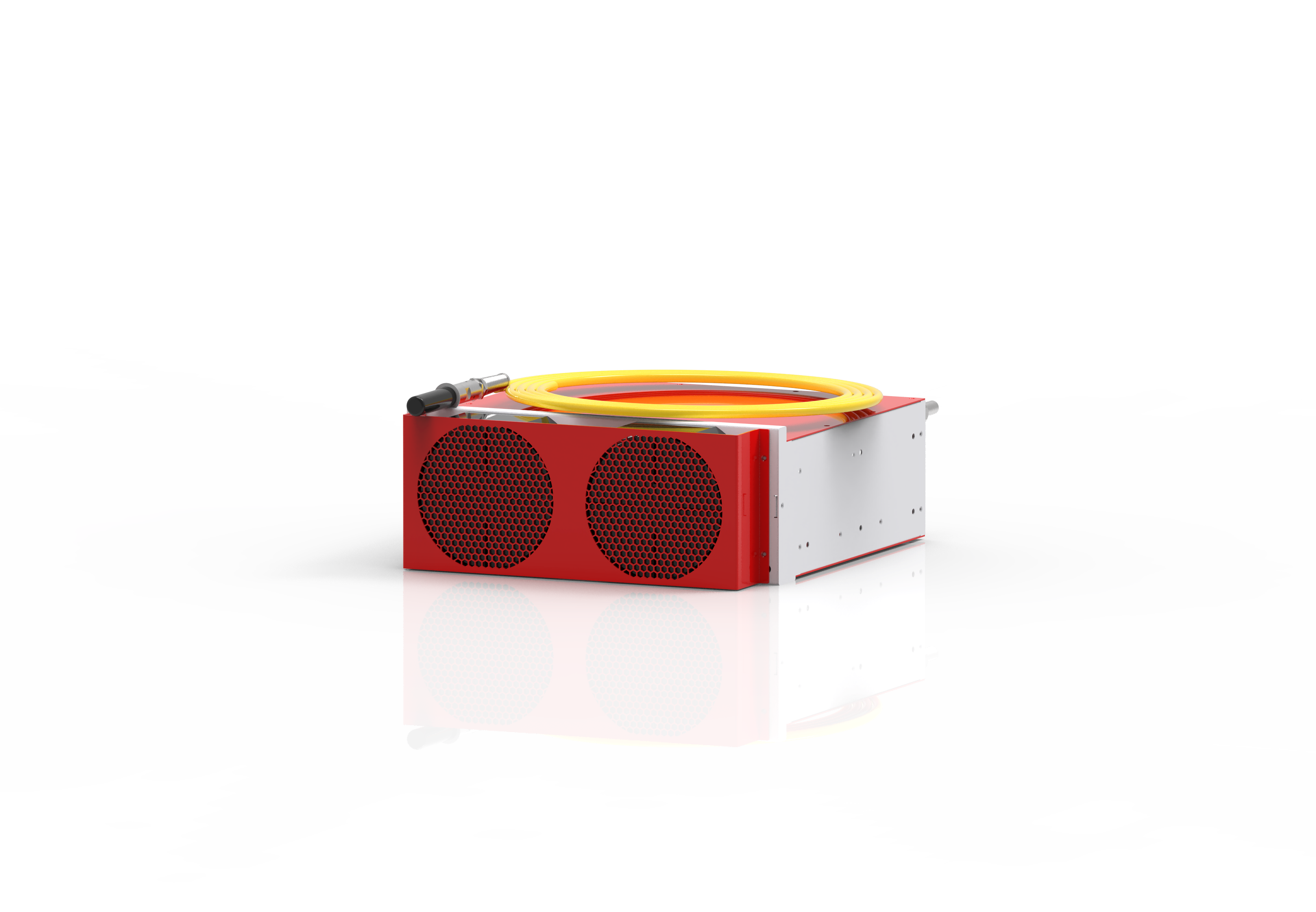

QCW-300/1500-L2-A
-
Beam Parameter Product (mmxmrad)≤0.5 @20μm
-
Average Output Power (W)150
-
Maximum Power In Continuous Mode (W)300
-
Peak Power (W)1500
-
Maximum Pulse Energy (J)15
-
Maximum Modulation Frequency (kHz)10
-
Pulse Width (ms)0.01~10
-
Cooling MethodAir Cooled
-
Operating Voltage (V)48 (DC)
-
Maximum Power Consumption (kW)1.2
-
Central Wavelength (nm)1080
-
Laser Weight (kg)17
-
Dimensions (L×W×H) (mm)407.5x397.8x154
-
