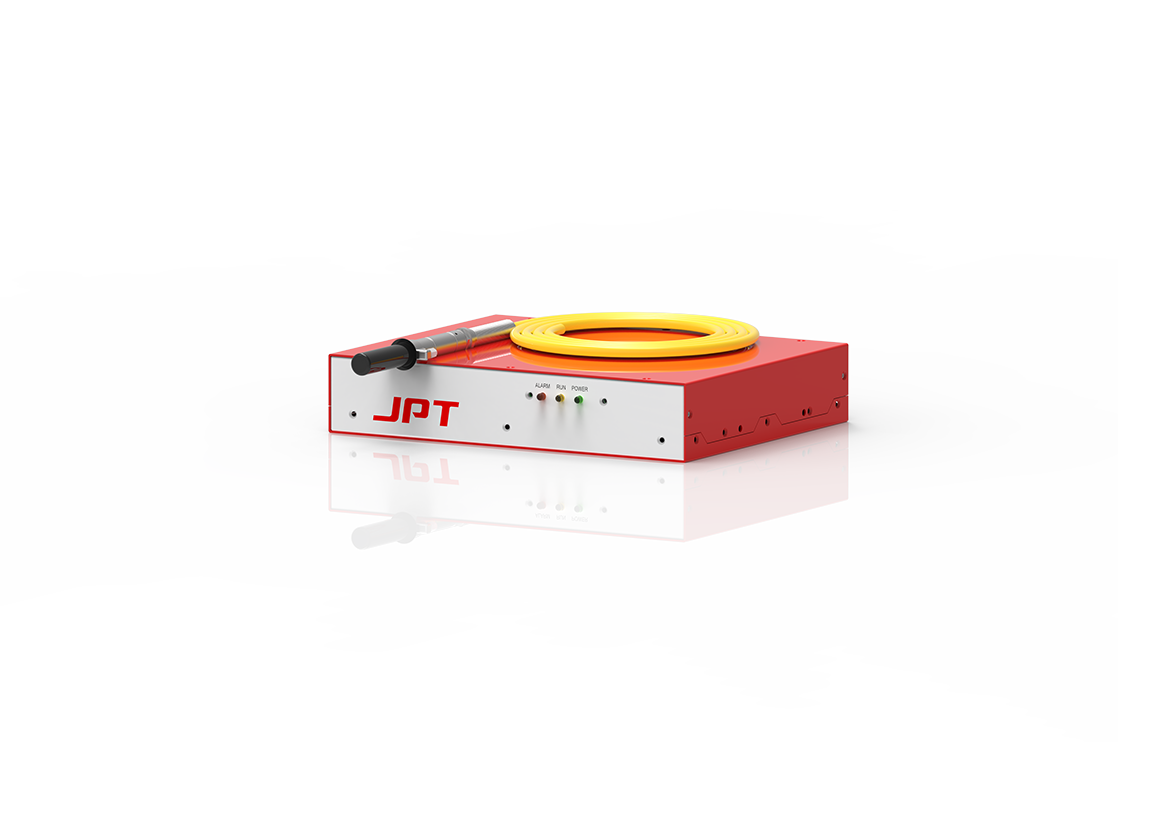

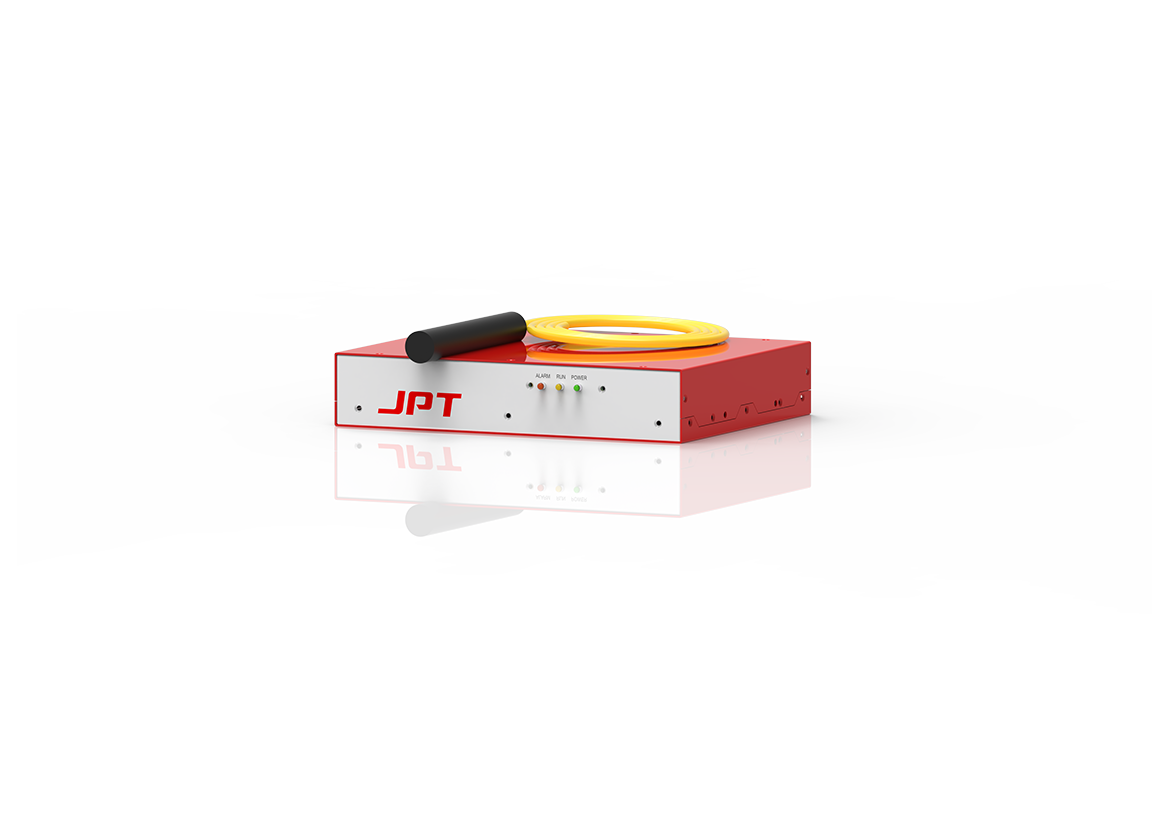

    500W
  • 1.1.png

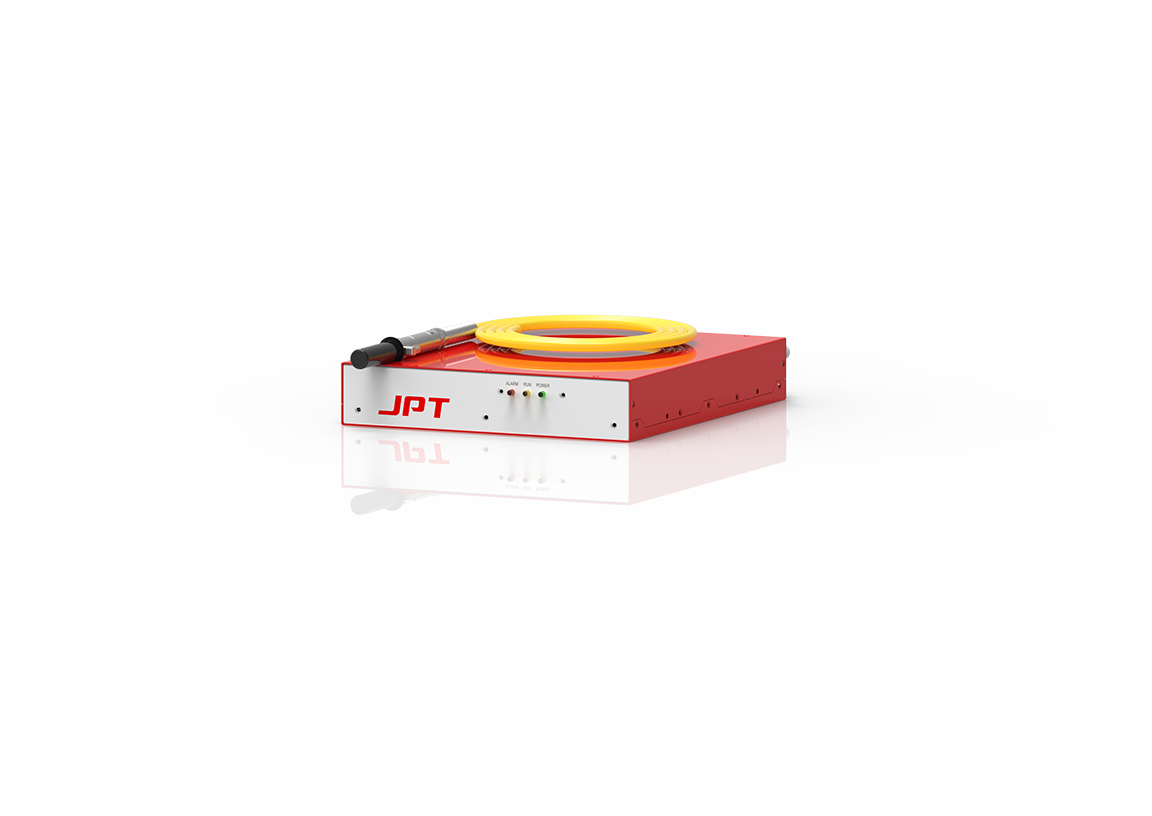

    1000-1200W
  • 1.1.png
    2000W
  • 1.1.png

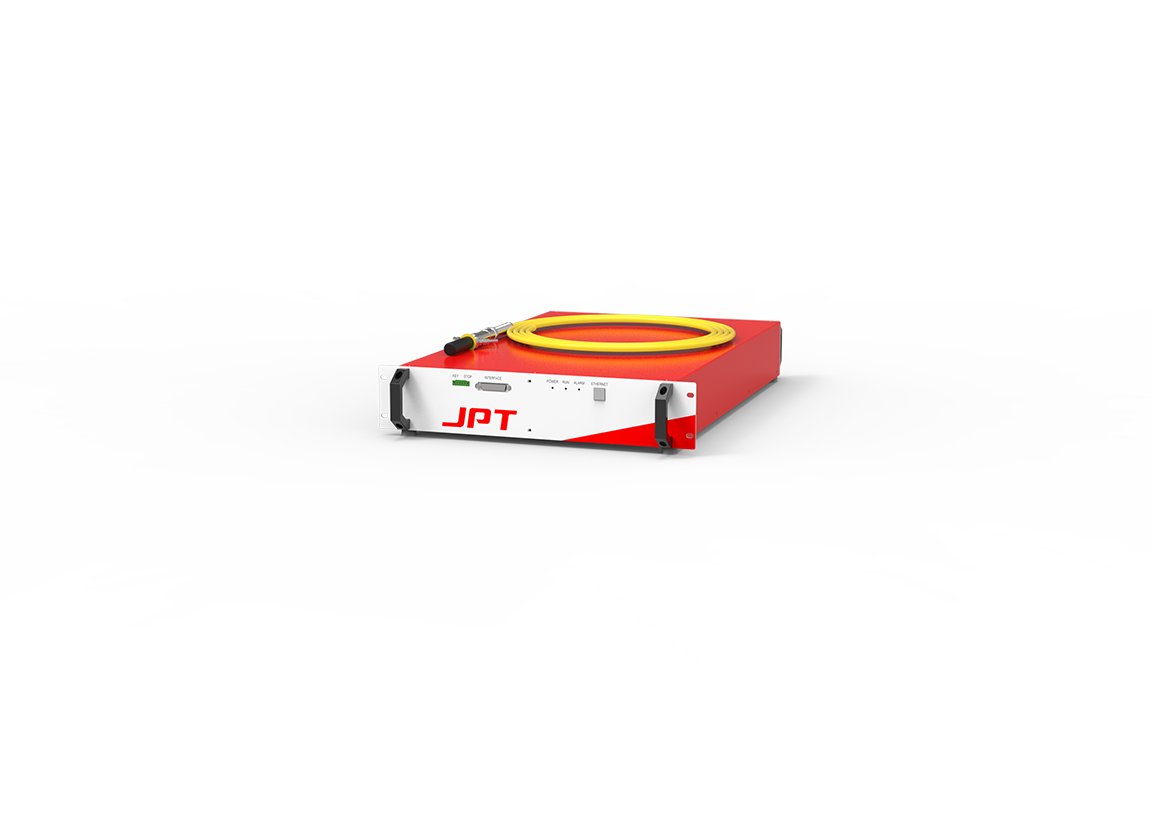

    3000-4000W
  • 1.1.png
    6000W
  • 1.1.png
  • 1.1.png
  • 1.1.png
  • 1.1.png
  • 1.1.png

CW Rack 500-6000W

500-6000W

Continuous Wave Single-Mode Water-Cooled Laser is a fiber laser that delivers continuous output, featuring high beam quality, high power, high efficiency, and exceptional reliability. It serves as an ideal light source for industrial cutting, welding, and other applications.

  • 6000W
    Peak Power (Max)
  • 7kg
    Minimum laser weight
  • 20kHz
    Modulation Frequency
Contact Us
Download

  • Product Advantages

  • Applications

  • Specifications

  • Related Products

  • Application Solutions

Contact Us

Product Advantages

  • Compact Design

    Space-saving dimensions for easy system integration

  • High Reliability

    Ensures stable continuous operation with minimal maintenance requirements

  • Exceptional Beam Quality

    Delivers superior processing efficiency and precision for high-quality manufacturing

Applications

  • underlay image Single Mode High-reflection Material Cutting.png
    High-reflection Material Cutting
  • underlay image Lithium Battery Welding.png

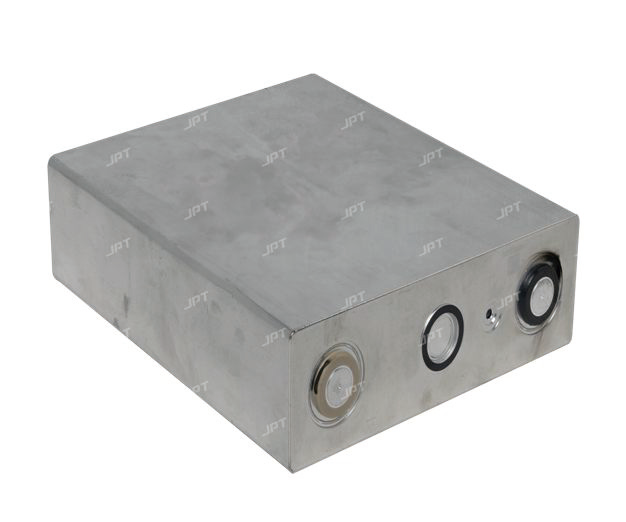

    Lithium Battery Welding
  • underlay image Carbon Steel Cutting.jpg

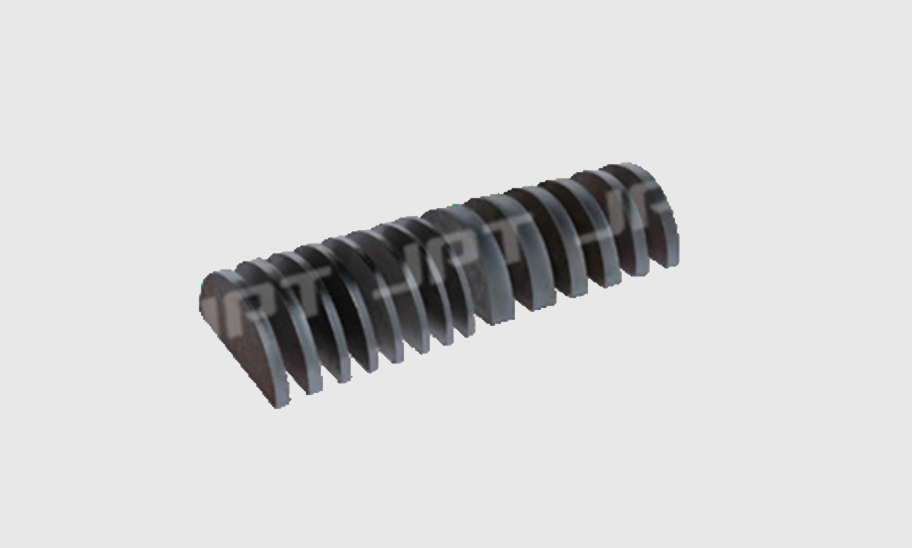

    Carbon Steel Cutting

Specifications

Product Model
  • YDFLC-500-L2-W
  • YDFLC-1000-L2-W
  • YDFLC-1200-L2-W
  • YDFLC-2000-L2-W
  • YDFLC-3000-L-W
  • YDFLC-4000-L-W
  • YDFLC-6000-L2-W
  • Beam Parameter Product (mm×mrad)
  • Armored Cable Length (m)
  • Average Output Power (W)
  • Maximum Modulation Frequency (kHz)
  • Cooling Method
  • Operating Voltage (V)
  • Maximum Power Consumption (kW)
  • Central Emission Wavelength (nm)
  • Spectral Width@3dB (nm)
  • Operating Temperature (℃)
  • Laser Weight (kg)
  • Dimensions (L×W×H) (mm)

  • YDFLC-500-L2-W

    • Beam Parameter Product (mm×mrad)
      ≤0.45@14μm
    • Armored Cable Length (m)
      5
    • Average Output Power (W)
      500
    • Maximum Modulation Frequency (kHz)
      10
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      48 (DC)
    • Maximum Power Consumption (kW)
      1.8
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      ＜6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      7
    • Dimensions (L×W×H) (mm)
      230×290×56

  • YDFLC-1000-L2-W

    • Beam Parameter Product (mm×mrad)
      ≤0.45@14μm
    • Armored Cable Length (m)
      8
    • Average Output Power (W)
      1000
    • Maximum Modulation Frequency (kHz)
      10
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      58 (DC)
    • Maximum Power Consumption (kW)
      3
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      ＜6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      7
    • Dimensions (L×W×H) (mm)
      230×290×56

  • YDFLC-1200-L2-W

    • Beam Parameter Product (mm×mrad)
      ≤0.45@14μm
    • Armored Cable Length (m)
      8
    • Average Output Power (W)
      1200
    • Maximum Modulation Frequency (kHz)
      10
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      58 (DC)
    • Maximum Power Consumption (kW)
      3.5
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      ＜6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      7
    • Dimensions (L×W×H) (mm)
      230×290×56

  • YDFLC-2000-L2-W

    • Beam Parameter Product (mm×mrad)
      <2@50μm
    • Armored Cable Length (m)
      10
    • Average Output Power (W)
      2000
    • Maximum Modulation Frequency (kHz)
      10
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      120 (DC)
    • Maximum Power Consumption (kW)
      6
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      ＜6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      12
    • Dimensions (L×W×H) (mm)
      283×328×56

  • YDFLC-3000-L-W

    • Beam Parameter Product (mm×mrad)
      <2@50μm
    • Armored Cable Length (m)
      15
    • Average Output Power (W)
      3000
    • Maximum Modulation Frequency (kHz)
      20
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      9
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      ＜6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      41
    • Dimensions (L×W×H) (mm)
      742×482×105

  • YDFLC-4000-L-W

    • Beam Parameter Product (mm×mrad)
      <2@50μm
    • Armored Cable Length (m)
      15
    • Average Output Power (W)
      4000
    • Maximum Modulation Frequency (kHz)
      20
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      12
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      ＜6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      43
    • Dimensions (L×W×H) (mm)
      742×482×105

  • YDFLC-6000-L2-W

    • Beam Parameter Product (mm×mrad)
      ≤4@100μm
    • Armored Cable Length (m)
      15
    • Average Output Power (W)
      6000
    • Maximum Modulation Frequency (kHz)
      5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      380 (AC)
    • Maximum Power Consumption (kW)
      18
    • Central Emission Wavelength (nm)
      1080
    • Spectral Width@3dB (nm)
      ＜6
    • Operating Temperature (℃)
      10~40
    • Laser Weight (kg)
      66
    • Dimensions (L×W×H) (mm)
      934×482×127.5
