TCR Tester
The high-temperature testing machine (also known as a TCR tester) uses 2T or 4T probes to measure the resistance of resistors at room temperature. The resistor substrates on the platform are then heated to a set value (e.g., 125 ℃), and resistance values are measured again under high-temperature conditions. By comparing resistance values before and after heating, along with the temperature difference, the Temperature Coefficient of Resistance (TCR) can be calculated. The equipment also supports laser cutting of abnormal resistors detected before or after heating.
-
01005-2512Resistor Specification
-
100 mΩ – 20 MΩResistance Range
-
~ 150 ℃Temperature Range: Room Temperature
-
Product Advantages
-
Applications
-
Specifications
-
Related Products
Product Advantages
-
Self-Developed Laser – Cost-Effective & Reliable
JPT's proprietary laser can be customized for specific applications at low cost. Built using the highest-performance components (fiber, crystal, pump source, etc.), and validated with a 72-hour aging test to ensure long-term reliability.
-
Precise & Controllable Heating
Heating range from room temperature to 150 ℃, with adjustable set values. Temperature variation between the platform surface center and edges can be controlled to within < ±1.5 ℃.
-
Integrated Laser for Abnormal Resistor Cutting
Abnormal resistors detected before or after heating can be cut off using the built-in laser system, preventing faulty components from entering subsequent processes.
Applications
-

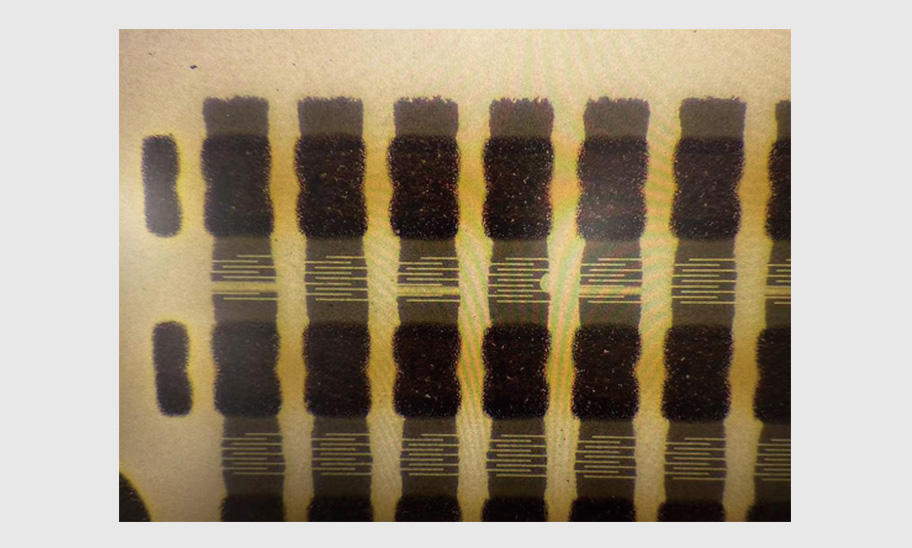

Defective Resistor Cutting Effect -

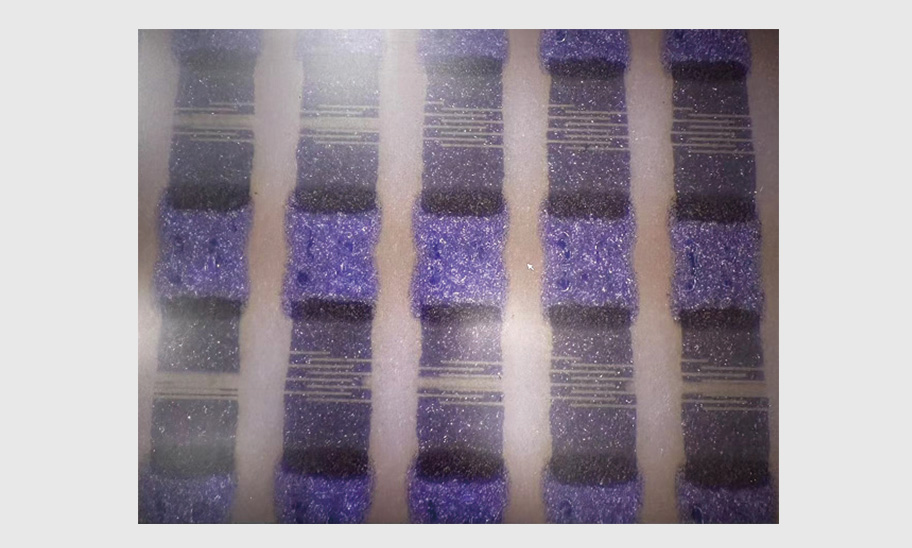

Defective Resistor Cutting Effect

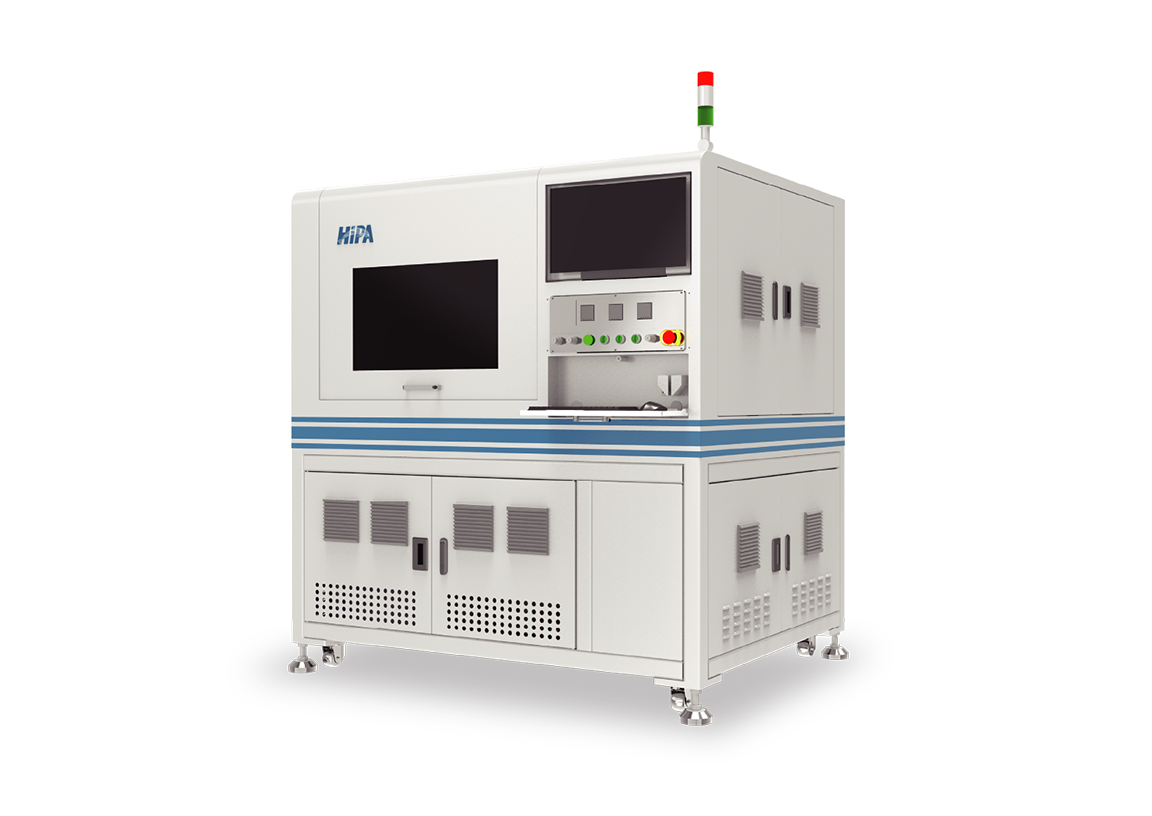

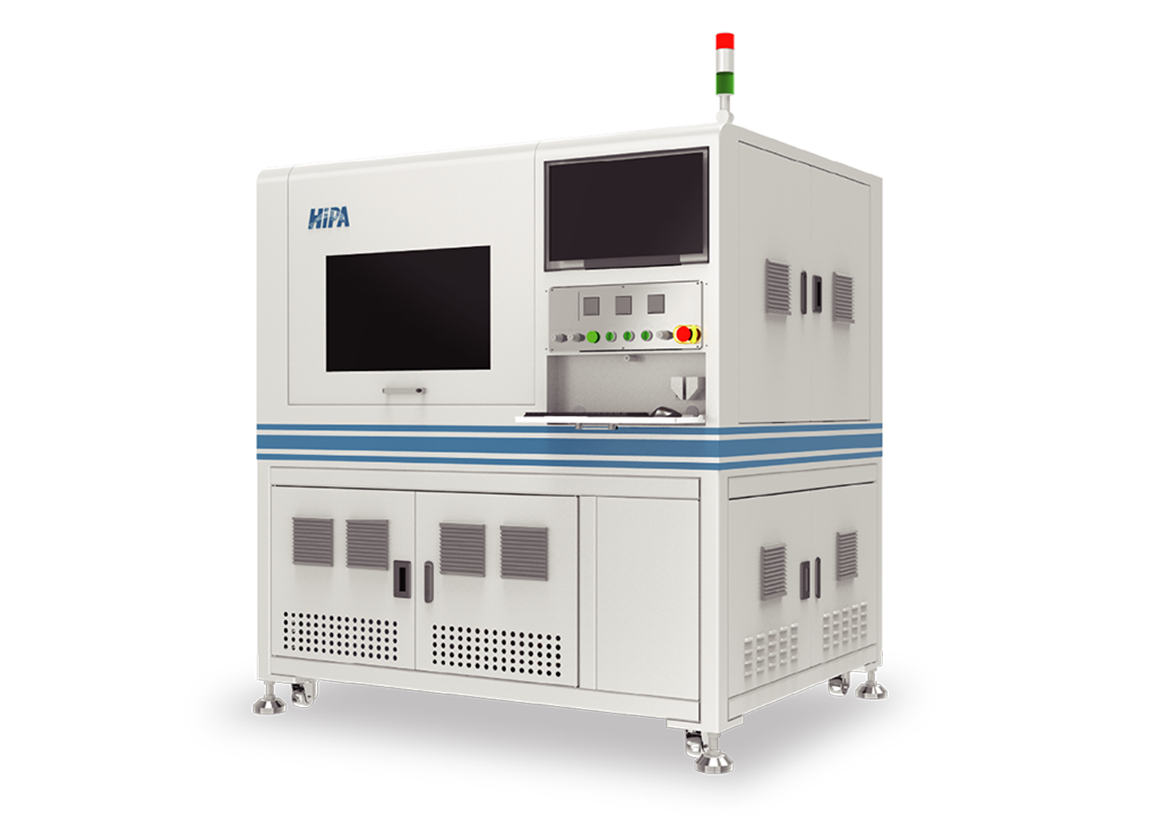

TCR High Temperature Resistor Tester
Specifications
-
TCR Tester
-
Product Specification
-
Temperature Control Accuracy
-
Measurement Repeatability
-
Laser Power
-
Galvo Scanning Area
-
Galvo Cutting Speed
-
TCR Tester
-
Product Specification0201~2512
-
Temperature Control Accuracy≤ ±1.5 ℃ (five-point measurement)
-
Measurement Repeatability≤ ±1.5 PPM/℃
-
Laser PowerIR > 30 W @ 23 kHz
-
Galvo Scanning Area12mm × 75mm @ F125
-
Galvo Cutting Speed1 mm/s ~ 400 mm/s
-
