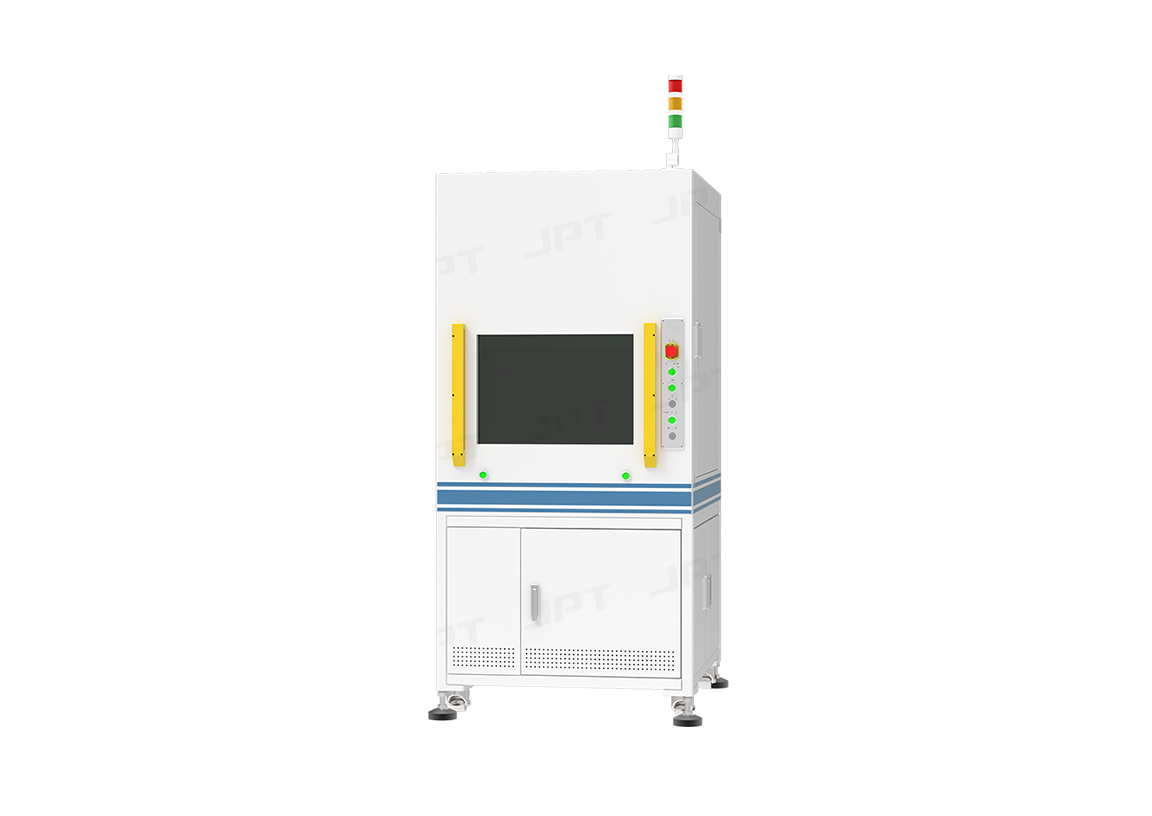

3C Five-Axis Laser Linkage Universal Platform

3C Five-Axis Laser Linkage Universal Platformsystem combines the versatility of a universal platform with the specialization of a five-axis (machine tool) + three-axis (galvo) linkage precision laser processing system. It is composed of a five-axis motion system, laser and optical modules, CCD vision positioning with auto-focus, and a numerical control system.

ns、ps

Capable Laser
Customizable

Average Power
Ceramics, metals, etc.

Applicable Materials

Product Advantages
Specifications
Related Products
Application Solutions

Product Advantages

Five-Axis Linkage for High-Precision Synchronous Processing

Closed-loop coordination between the laser system and motion control ensures stable and consistent quality in precision machining of complex 3D surfaces.
High-Speed Processing with Uniform Trajectories

Laser processing density remains unaffected by variations in path speed, guaranteeing uniform filling and making it suitable for complex pattern machining.
High-Precision Positioning Platform for Reliable Performance

Integrates high-accuracy linear modules with DD motors, achieving superior repeatability and precise trajectory control.

Specifications

Product Model

3C Five-Axis Laser Linkage Universal Platform

Laser Source
Average Power
Applicable Materials
Equipment Dimensions
Control Software

3C Five-Axis Laser Linkage Universal Platform
- Laser Source

  ns, ps, etc. (customizable)
- Average Power

  Customizable
- Applicable Materials

  Ceramics, metals, organics, brittle materials, thin-film products, etc.
- Equipment Dimensions

  1600 mm × 1130 mm × 2100 mm
- Control Software

  JPT
