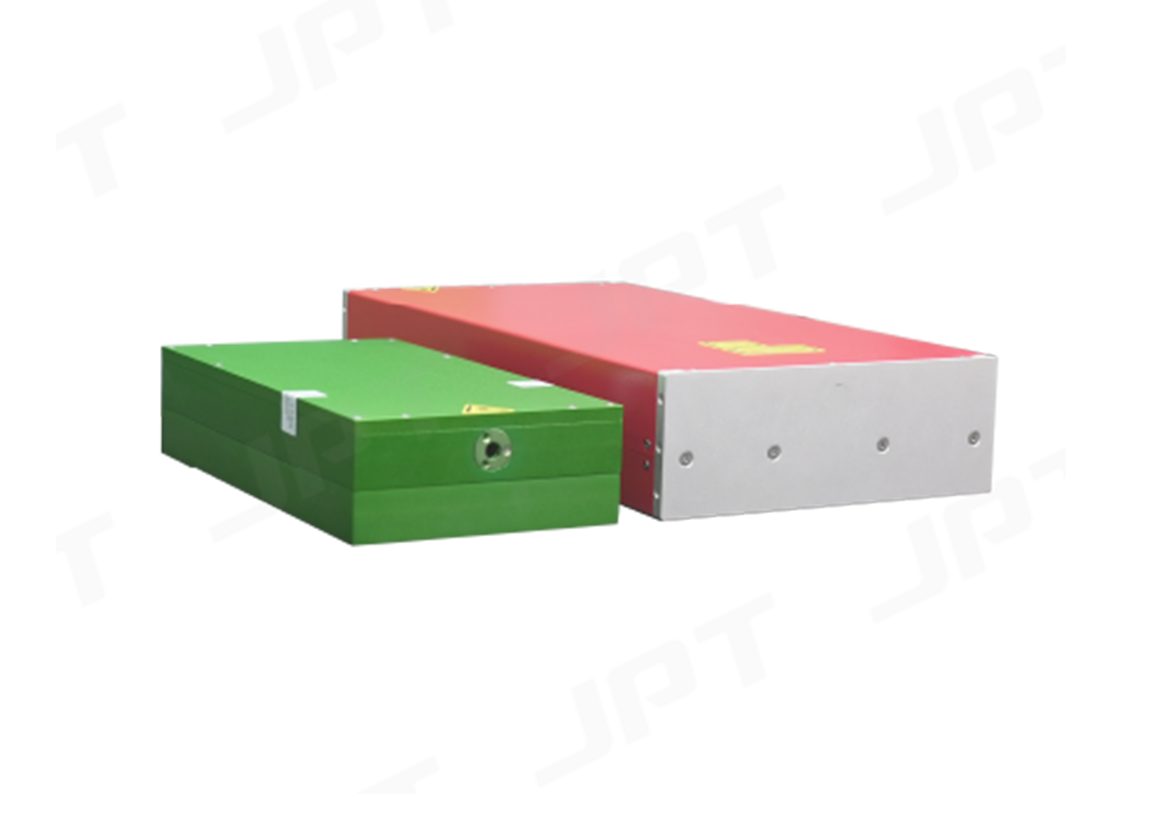

    FL-GR 70-150W
  • FL-GR 70-150W.png

FL-GR 70-150W

70-150W

The JPT GR series laser adopts a Master Oscillator Power Amplifier (MOPA) configuration, supporting independent adjustment of pulse width and pulse frequency. Building upon the flexible parameter control of MOPA lasers, it incorporates external cavity frequency doubling technology to deliver high-power green laser output.This system is particularly suitable for: Copper welding applications, Photovoltaic processing, Precision marking.

  • 150W
    Maximum average power
  • 532nm
    Center wavelength
  • 10-250ns
    Adjustable pulse width
Download
  • Product Advantages

  • Applications

  • Specifications

  • Related Products

  • Application Solutions

Product Advantages

  • Flexible pulse parameters

  • High beam quality

  • Water-cooled modular design

Applications

  • underlay image Glass Drilling.jpg
    Glass Drilling
  • underlay image Copper Welding.jpg
    Copper Welding
  • underlay image Aluminum Welding.jpg
    Aluminum Welding

Specifications

Product Model
  • YDFLP-GR-70
  • YDFLP-GR-100
  • YDFLP-GR-120
  • YDFLP-GR-150
  • (M²)
  • Armored Cable Length (m)
  • Nominal Average Output Power (W)
  • Maximum Pulse Energy (µJ)
  • Pulse Repetition Rate Range (kHz)
  • Pulse Width (ns)
  • Output Power Instability (%)
  • Cooling Method
  • Operating Voltage (V)
  • Nominal Power Consumption (W)
  • Supply Power Demand (A)
  • Central Emission Wavelength (nm)
  • Emission Bandwidth @3dB (nm)
  • Output Power Tuning Range (%)
  • Operating Temperature (℃)
  • Host Machine Weight (kg)
  • Output Head Weight (kg)
  • Host Machine Dimensions (L×W×H) (mm)
  • Output Head Dimensions (L×W×H) (mm)
  • YDFLP-GR-70

    • (M²)
      <1.2
    • Armored Cable Length (m)
      3
    • Nominal Average Output Power (W)
      70
    • Maximum Pulse Energy (µJ)
      400
    • Pulse Repetition Rate Range (kHz)
      1~4000
    • Pulse Width (ns)
      1.5×1-3burst or 10-250
    • Output Power Instability (%)
      <5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      48 (DC)
    • Nominal Power Consumption (W)
      400
    • Supply Power Demand (A)
      ≥450
    • Central Emission Wavelength (nm)
      532
    • Emission Bandwidth @3dB (nm)
      <2
    • Output Power Tuning Range (%)
      0~100
    • Operating Temperature (℃)
      10~40
    • Host Machine Weight (kg)
      10
    • Output Head Weight (kg)
      5
    • Host Machine Dimensions (L×W×H) (mm)
      450×235×84
    • Output Head Dimensions (L×W×H) (mm)
      160×300×67
  • YDFLP-GR-100

    • (M²)
      <1.2
    • Armored Cable Length (m)
      3
    • Nominal Average Output Power (W)
      100
    • Maximum Pulse Energy (µJ)
      400
    • Pulse Repetition Rate Range (kHz)
      1~4000
    • Pulse Width (ns)
      1.5×1-3burst or 10-250
    • Output Power Instability (%)
      <5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      48 (DC)
    • Nominal Power Consumption (W)
      560
    • Supply Power Demand (A)
      ≥600
    • Central Emission Wavelength (nm)
      532
    • Emission Bandwidth @3dB (nm)
      <2
    • Output Power Tuning Range (%)
      0~100
    • Operating Temperature (℃)
      10~40
    • Host Machine Weight (kg)
      10
    • Output Head Weight (kg)
      5
    • Host Machine Dimensions (L×W×H) (mm)
      450×235×84
    • Output Head Dimensions (L×W×H) (mm)
      160×300×67
  • YDFLP-GR-120

    • (M²)
      <1.4
    • Armored Cable Length (m)
      3
    • Nominal Average Output Power (W)
      120
    • Maximum Pulse Energy (µJ)
      400
    • Pulse Repetition Rate Range (kHz)
      1~4000
    • Pulse Width (ns)
      1.5×1-3burst or 10-250
    • Output Power Instability (%)
      <5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      48 (DC)
    • Nominal Power Consumption (W)
      650
    • Supply Power Demand (A)
      ≥700
    • Central Emission Wavelength (nm)
      532
    • Emission Bandwidth @3dB (nm)
      <2
    • Output Power Tuning Range (%)
      0~100
    • Operating Temperature (℃)
      10~40
    • Host Machine Weight (kg)
      10
    • Output Head Weight (kg)
      5
    • Host Machine Dimensions (L×W×H) (mm)
      450×235×84
    • Output Head Dimensions (L×W×H) (mm)
      160×300×67
  • YDFLP-GR-150

    • (M²)
      <1.4
    • Armored Cable Length (m)
      3
    • Nominal Average Output Power (W)
      150
    • Maximum Pulse Energy (µJ)
      400
    • Pulse Repetition Rate Range (kHz)
      1~4000
    • Pulse Width (ns)
      1.5×1-3burst or 10-250
    • Output Power Instability (%)
      <5
    • Cooling Method
      Water Cooled
    • Operating Voltage (V)
      48 (DC)
    • Nominal Power Consumption (W)
      800
    • Supply Power Demand (A)
      ≥850
    • Central Emission Wavelength (nm)
      532
    • Emission Bandwidth @3dB (nm)
      <2
    • Output Power Tuning Range (%)
      0~100
    • Operating Temperature (℃)
      10~40
    • Host Machine Weight (kg)
      10
    • Output Head Weight (kg)
      5
    • Host Machine Dimensions (L×W×H) (mm)
      450×235×84
    • Output Head Dimensions (L×W×H) (mm)
      160×300×67
