M8 20-50W
20-50W
The JPT M8 series laser adopts a Master Oscillator Power Amplifier (MOPA) architecture, supporting independent adjustment of pulse width and pulse frequency. Building upon the performance of its predecessors, the M8 series has been specifically optimized for pulse peak power and beam quality, delivering exceptional beam characteristics even under high-power operation.With a maximum peak power exceeding 100kW, this series is particularly suitable for demanding applications such as glass drilling, where both high peak power and brightness are critical requirements.
-
50kwHigh Peak Power
-
<1.4Excellent Beam Quality
-
4mJMaximum pulse energy
-
Product Advantages
-
Applications
-
Specifications
-
Related Products
-
Application Solution
Product Advantages
-
High Peak Power
-
Excellent Beam Quality
-
Compact Integrated Design
Applications
-
Glass Drilling -
Plastic Cutting -
Glass Frosting -
Titanium Coloring -
Metal Matte Surface Polishing
Specifications
-
YDFLP-50-M8-M-R
-
YDFLP-20-M8-S-R
-
Nominal Average Output Power (W)
-
Beam Quality (m2)
-
Maximum Pulse Energy (mJ)
-
Pulse Width (ns)
-
Output Power Tuning Range (kHz)
-
Output Beam Diameter (mm)
-
Operating Voltage (V)
-
Cooling Method
-
Laser Weight (kg)
-
Dimensions (mm)
-

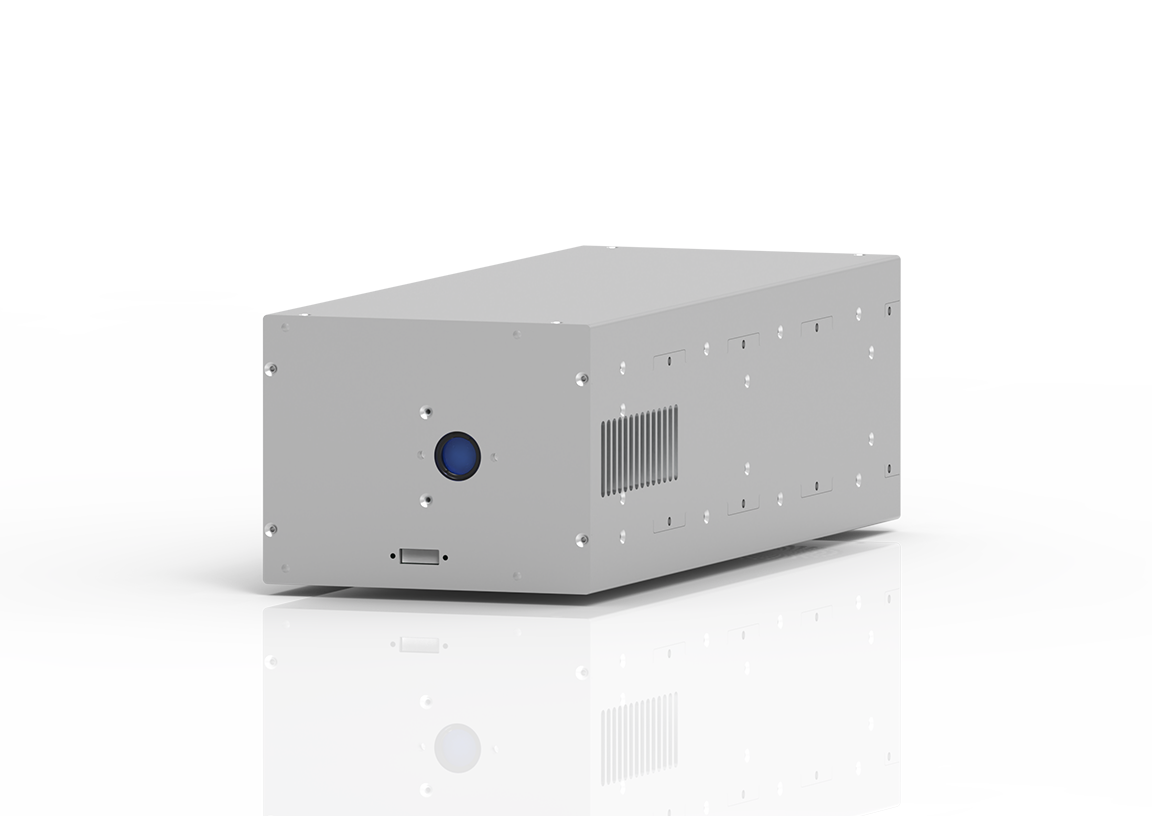

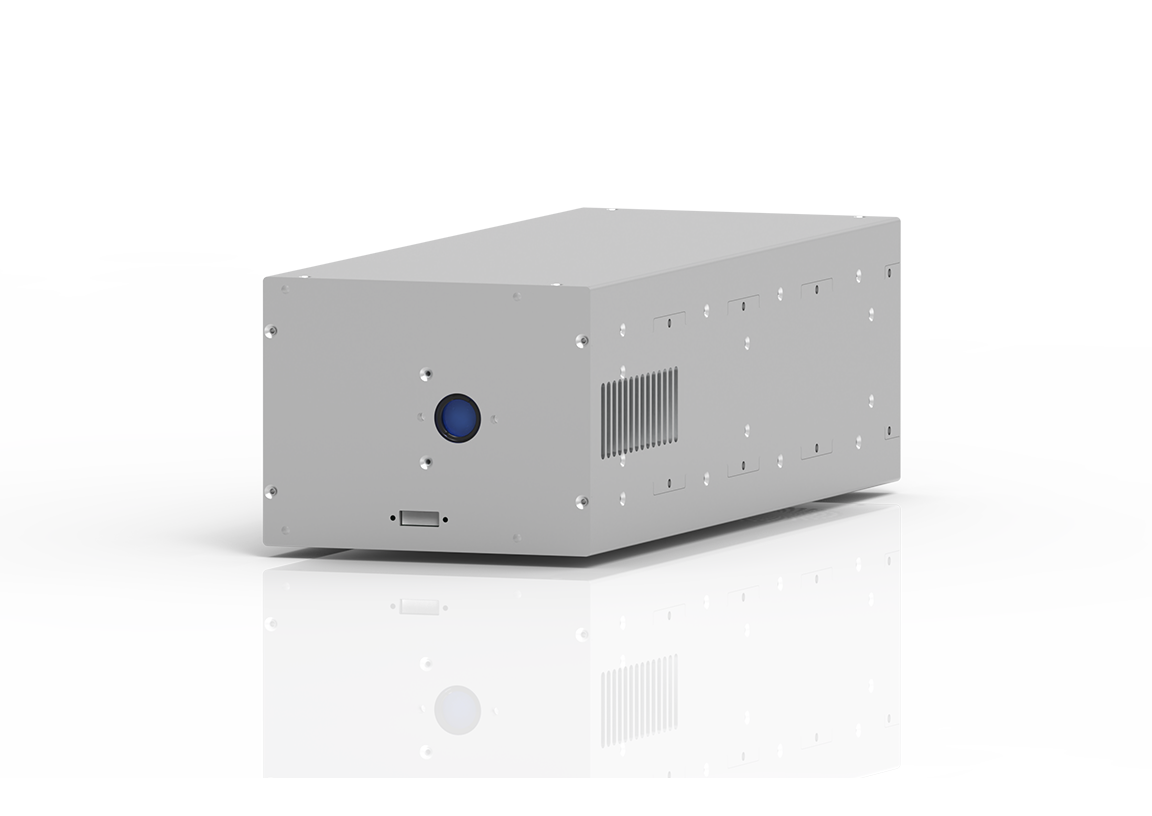

YDFLP-50-M8-M-R
-
Nominal Average Output Power (W)50
-
Beam Quality (m2)< 1.4
-
Maximum Pulse Energy (mJ)4
-
Pulse Width (ns)1~350
-
Output Power Tuning Range (kHz)1~4000
-
Output Beam Diameter (mm)7.0±1.0
-
Operating Voltage (V)24 (DC)
-
Cooling MethodAir Cooled
-
Laser Weight (kg)4
-
Dimensions (mm)337×130×100
-
-

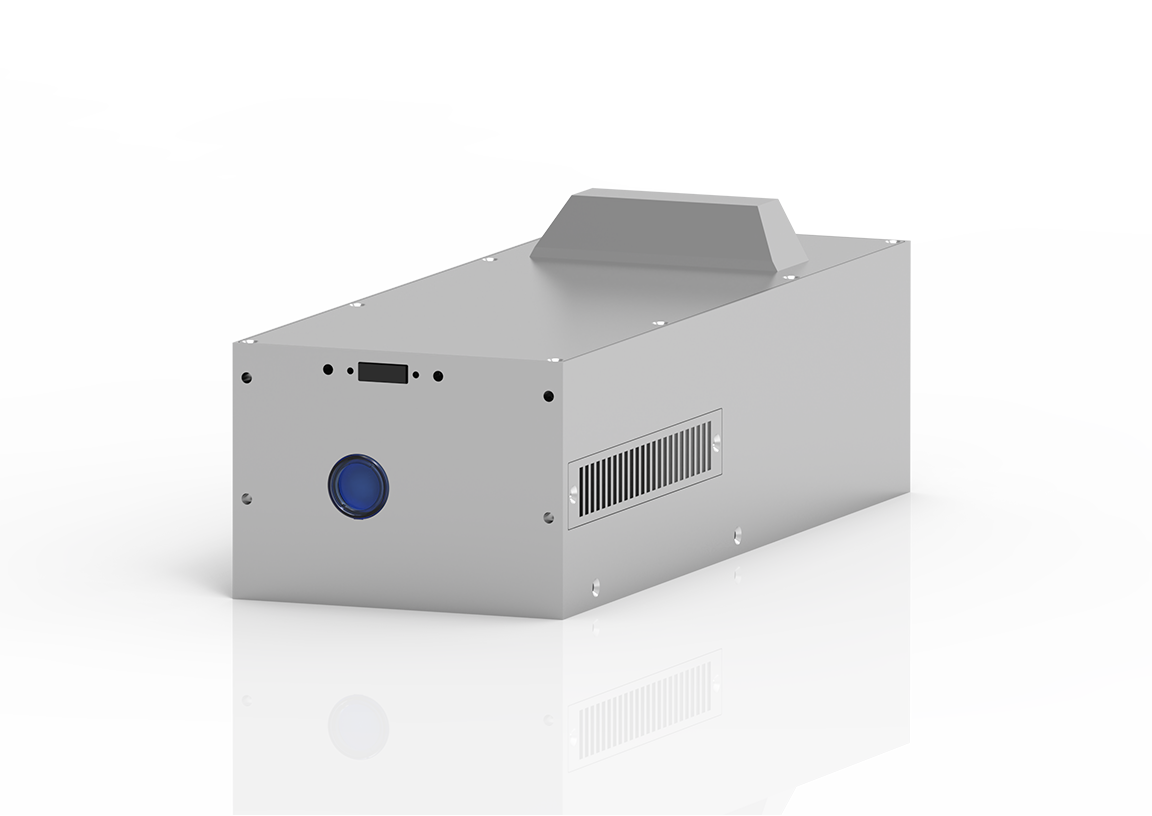

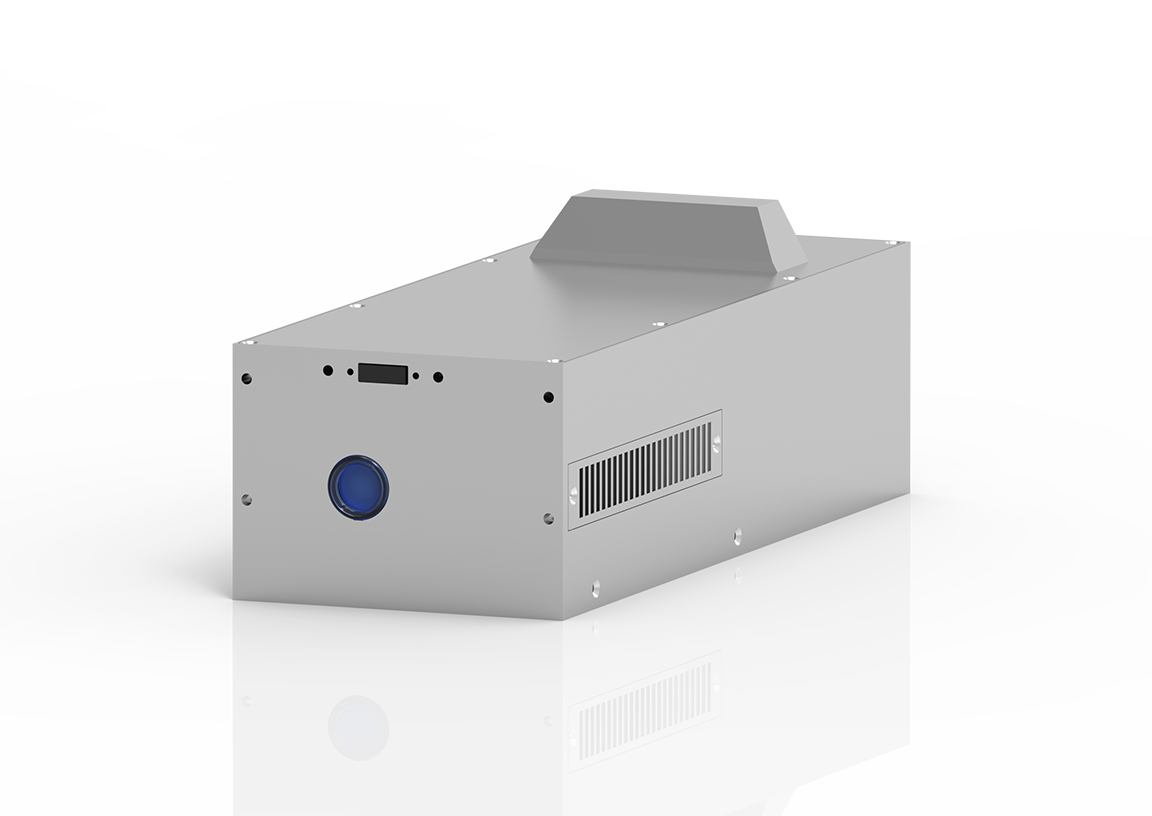

YDFLP-20-M8-S-R
-
Nominal Average Output Power (W)20
-
Beam Quality (m2)< 1.4
-
Maximum Pulse Energy (mJ)1.1
-
Pulse Width (ns)1~350
-
Output Power Tuning Range (kHz)1~4000
-
Output Beam Diameter (mm)7.0±1.0
-
Operating Voltage (V)100~240 (AC)
-
Cooling MethodAir Cooled
-
Laser Weight (kg)2.7
-
Dimensions (mm)272×105×76.2
-
