M7 200-300W
200-300W
JPT M7 Series is a high-power fiber laser adopting the Master Oscillator Power Amplifier (MOPA) configuration with a directly electrically modulated semiconductor laser seed source. It delivers exceptional beam characteristics and precise pulse shaping control.Compared to Q-switched fiber lasers, MOPA fiber lasers allow independent control of pulse frequency and pulse width. By adjusting these two key laser parameters, they achieve consistent high peak power output and broader compatibility with various marking substrates.Moreover, MOPA technology makes possible what Q-switched lasers cannot—higher output power, giving it a distinct advantage in high-speed marking applications.
-
M/LOptiona fiber types
-
6.3kgMinimum laser weight
-
1064nmCentral emission wavelength
-
Product Advantages
-
Applications
-
Specifications
-
Related Products
-
Application Solution
Product Advantages
-
Independently adjustable pulse width & frequency
-
Compact design for easy integration
-
High reliability
Applications
-
Aluminum Oxidation Polishing -
Titanium Coloring -
Plastic Marking -
Metal Matte Surface Polishing -
Metal Foil Welding -
VIN/Frame Number Deep Engraving -
Stainless Steel Coloring -
Electrode Sheet Cutting
Specifications
-
YDFLP-E-300-M7-L-R
-
YDFLP-E-300-M7-M-R
-
YDFLP-E3-200-M7-L-R
-
YDFLP-E3-200-M7-M-R
-
Nominal Average Output Power (W)
-
Beam Quality (m2)
-
Armored Cable Length (m)
-
Maximum Pulse Energy (mJ)
-
Pulse Width (ns)
-
Pulse Repetition Rate Range (kHz)
-
Output Beam Diameter (mm)
-
Operating Voltage (V)
-
Cooling Method
-
Laser Weight (kg)
-
Dimensions (mm)
-

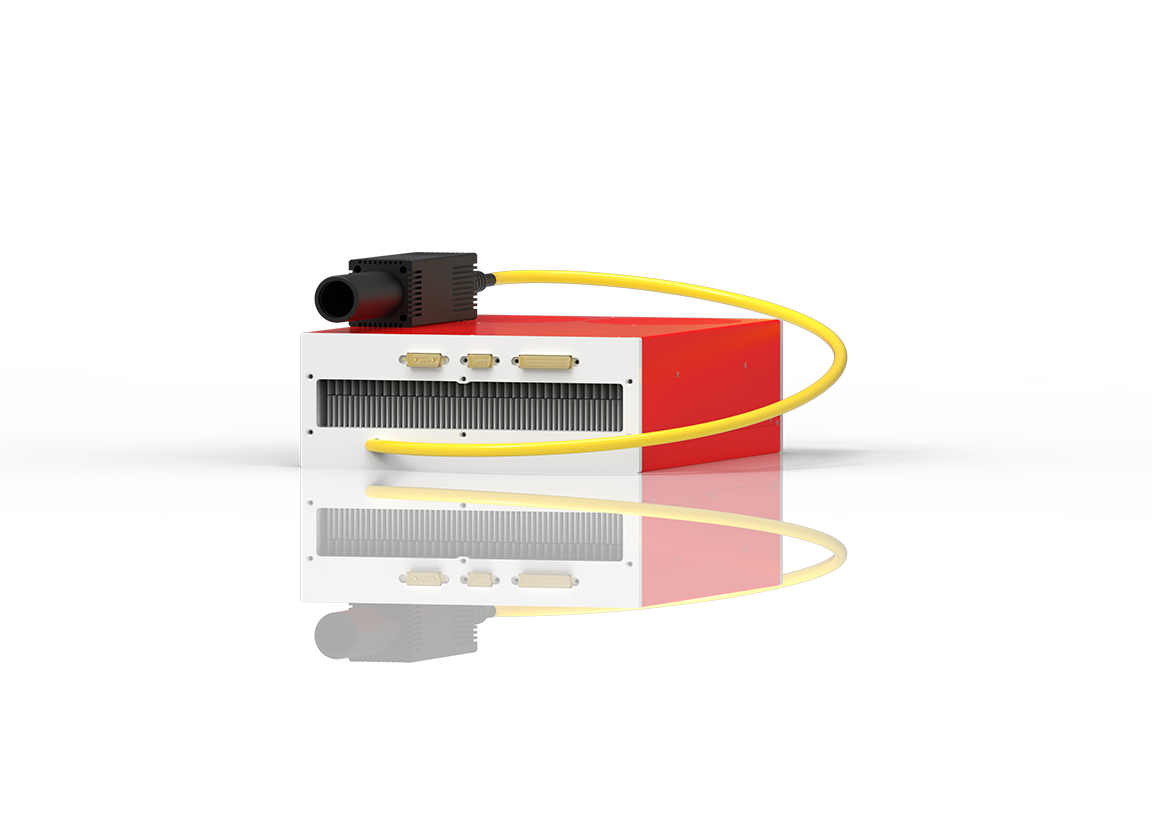

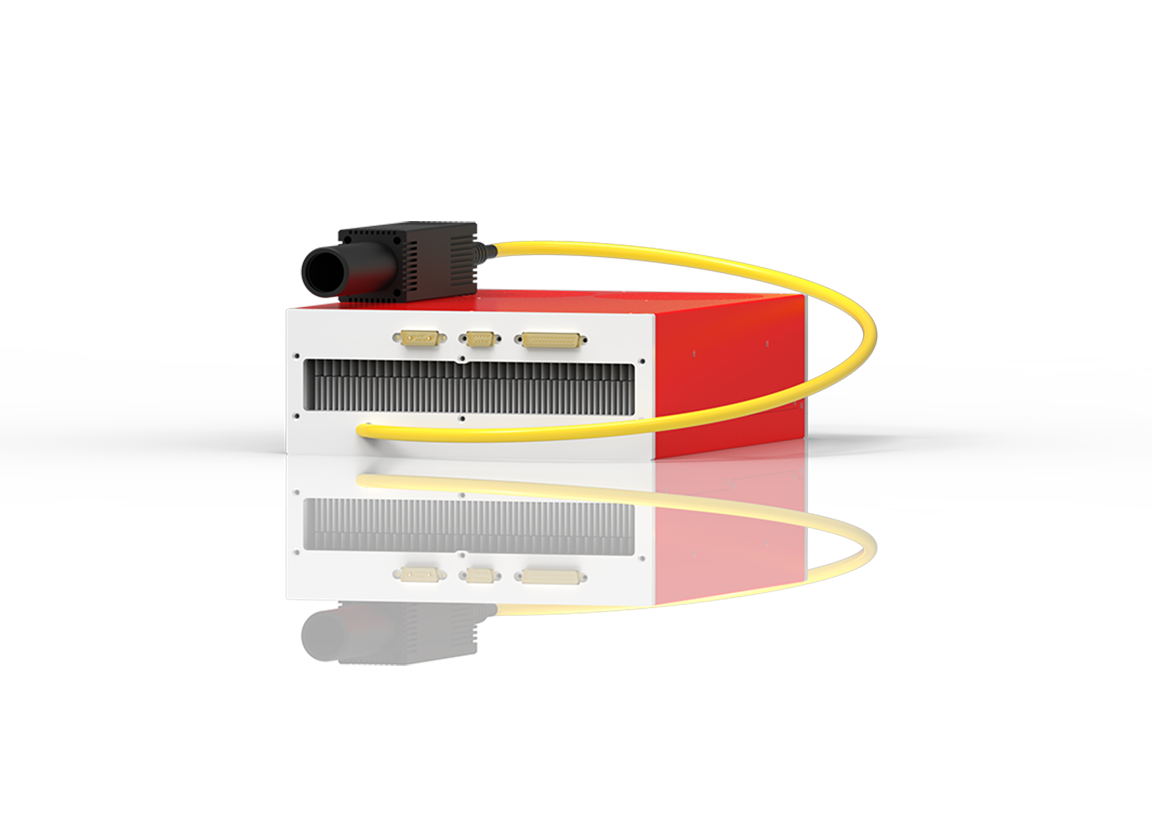

YDFLP-E-300-M7-L-R
-
Nominal Average Output Power (W)300
-
Beam Quality (m2)< 1.8
-
Armored Cable Length (m)3
-
Maximum Pulse Energy (mJ)2.3
-
Pulse Width (ns)2~500
-
Pulse Repetition Rate Range (kHz)1~4000
-
Output Beam Diameter (mm)8.0±1.0
-
Operating Voltage (V)48（DC）
-
Cooling Method风冷
-
Laser Weight (kg)25.3
-
Dimensions (mm)483×351×133
-
-

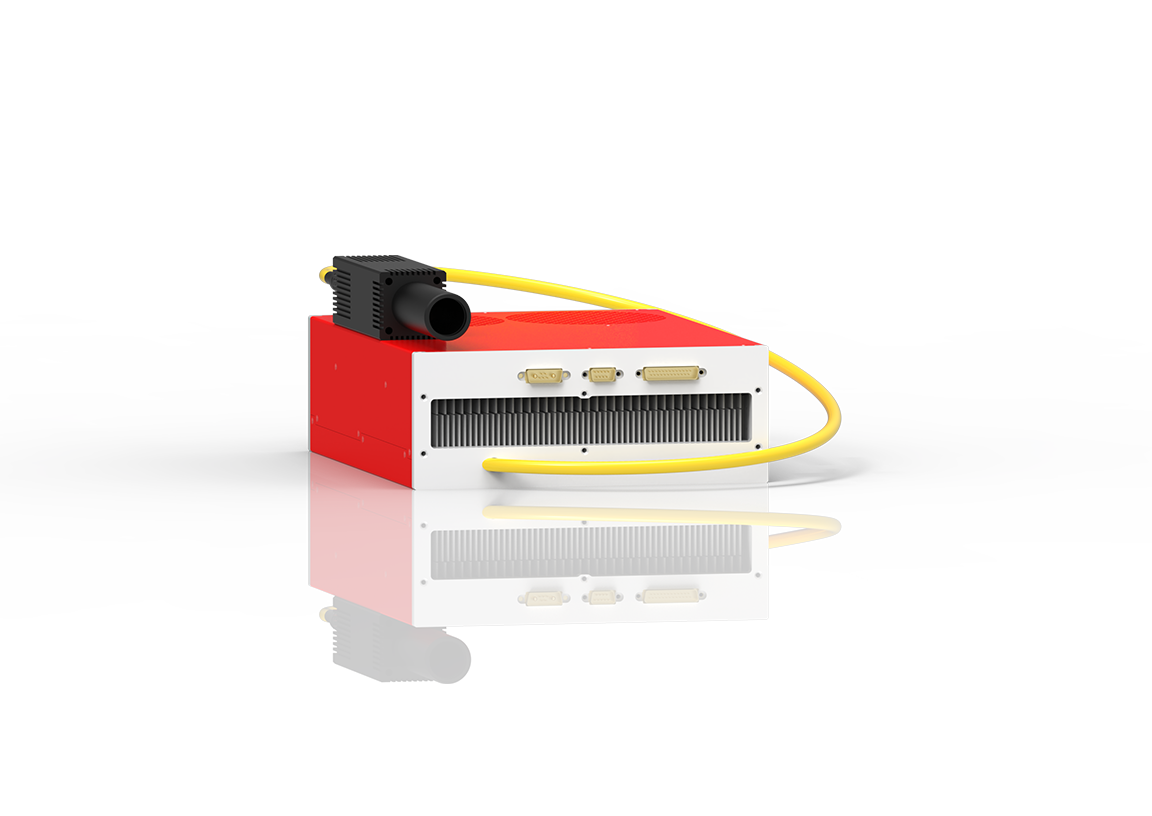

YDFLP-E-300-M7-M-R
-
Nominal Average Output Power (W)300
-
Beam Quality (m2)< 1.6
-
Armored Cable Length (m)5
-
Maximum Pulse Energy (mJ)1.5
-
Pulse Width (ns)2~500
-
Pulse Repetition Rate Range (kHz)1~4000
-
Output Beam Diameter (mm)7.0±1.0
-
Operating Voltage (V)48（DC）
-
Cooling Method风冷
-
Laser Weight (kg)25.3
-
Dimensions (mm)483×351×133
-
-

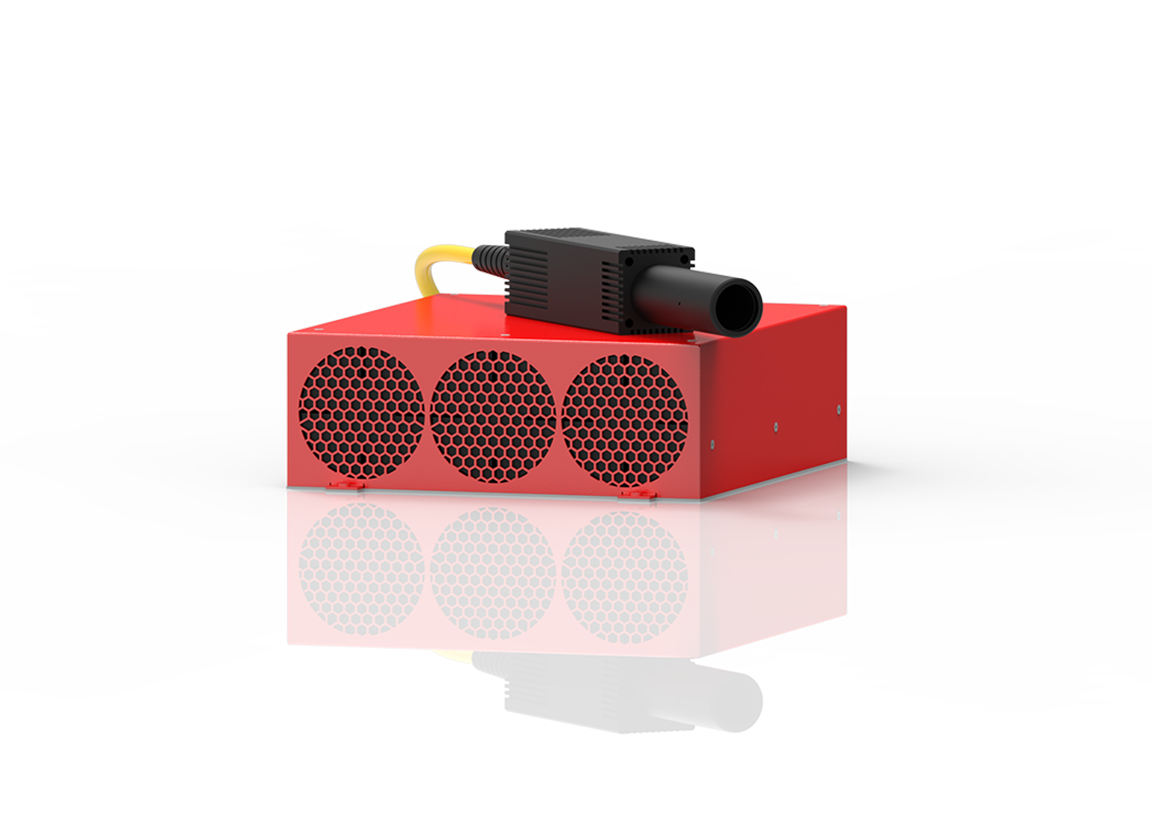

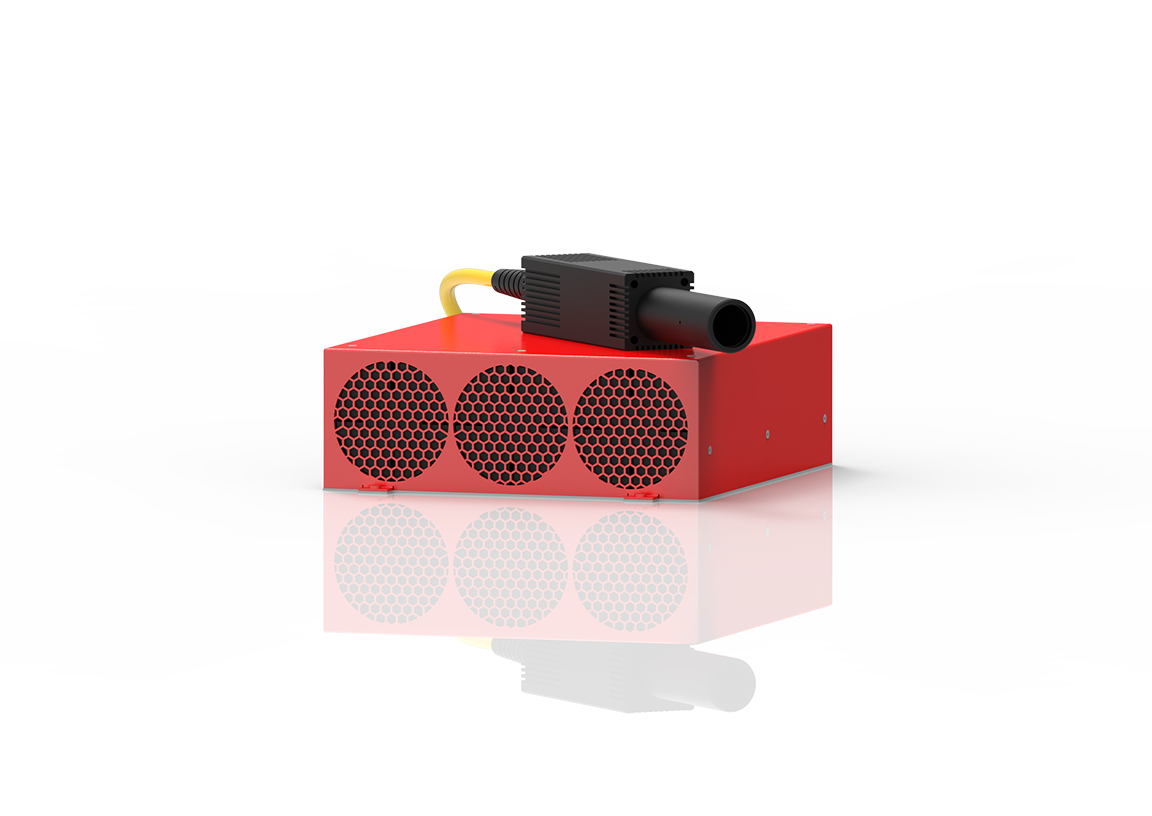

YDFLP-E3-200-M7-L-R
-
Nominal Average Output Power (W)200
-
Beam Quality (m2)< 1.6
-
Armored Cable Length (m)3
-
Maximum Pulse Energy (mJ)2
-
Pulse Width (ns)2~500
-
Pulse Repetition Rate Range (kHz)1~4000
-
Output Beam Diameter (mm)7.0±1.0 or 11.0±1.0
-
Operating Voltage (V)48（DC）
-
Cooling Method风冷
-
Laser Weight (kg)6.3
-
Dimensions (mm)295×255×92
-
-

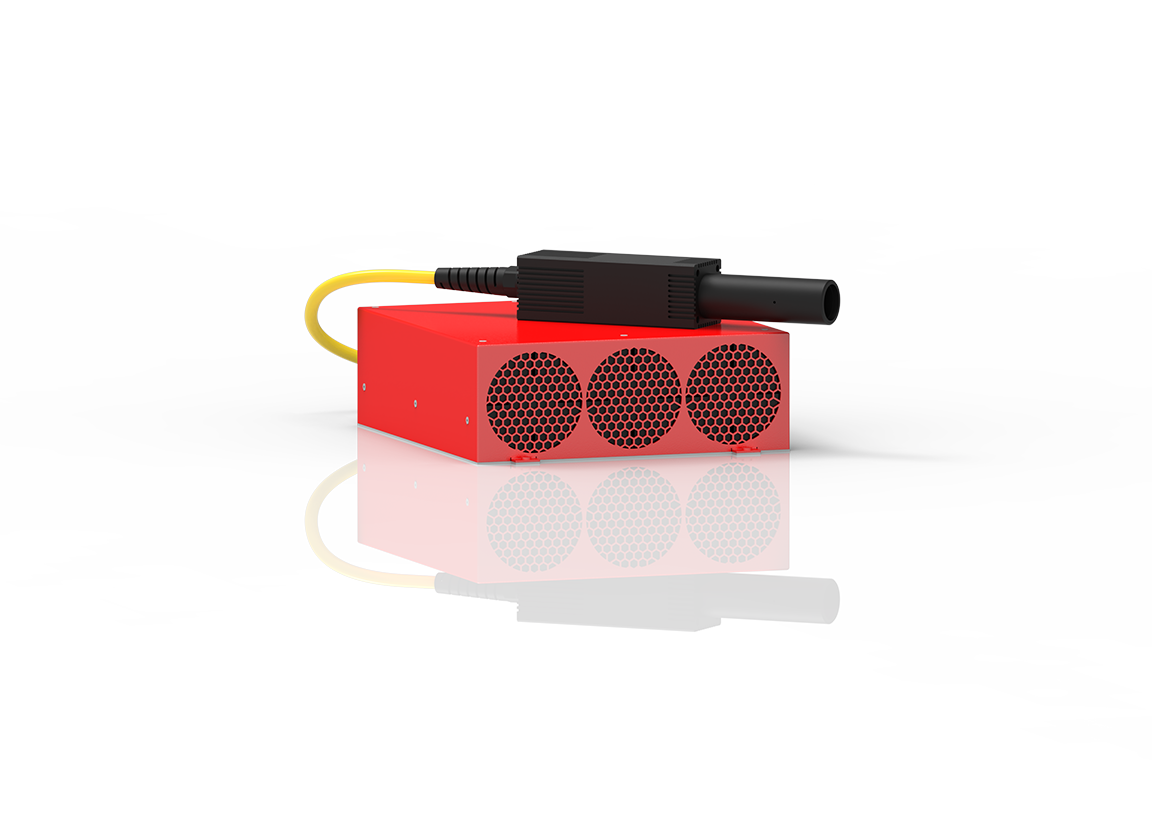

YDFLP-E3-200-M7-M-R
-
Nominal Average Output Power (W)200
-
Beam Quality (m2)< 1.6
-
Armored Cable Length (m)5
-
Maximum Pulse Energy (mJ)1.5
-
Pulse Width (ns)2~500
-
Pulse Repetition Rate Range (kHz)1~4000
-
Output Beam Diameter (mm)7.0±1.0
-
Operating Voltage (V)48（DC）
-
Cooling Method风冷
-
Laser Weight (kg)6.3
-
Dimensions (mm)295×255×92
-
