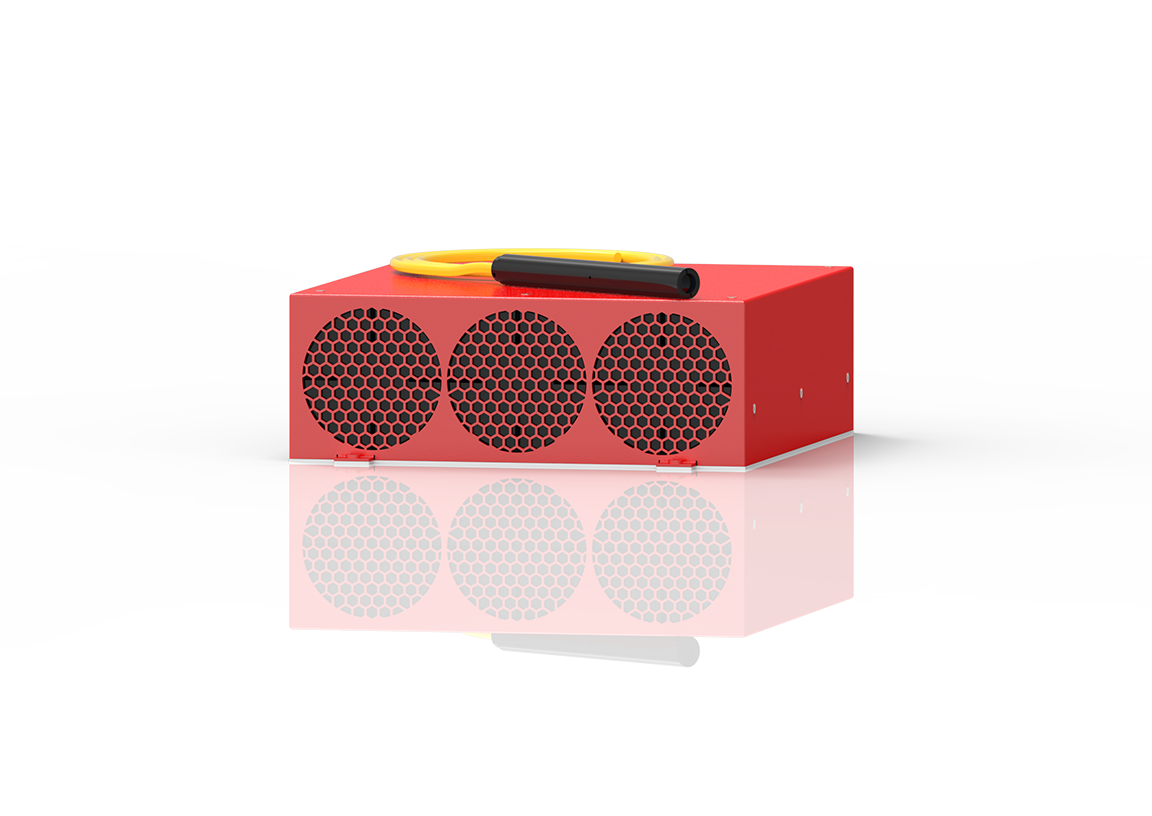

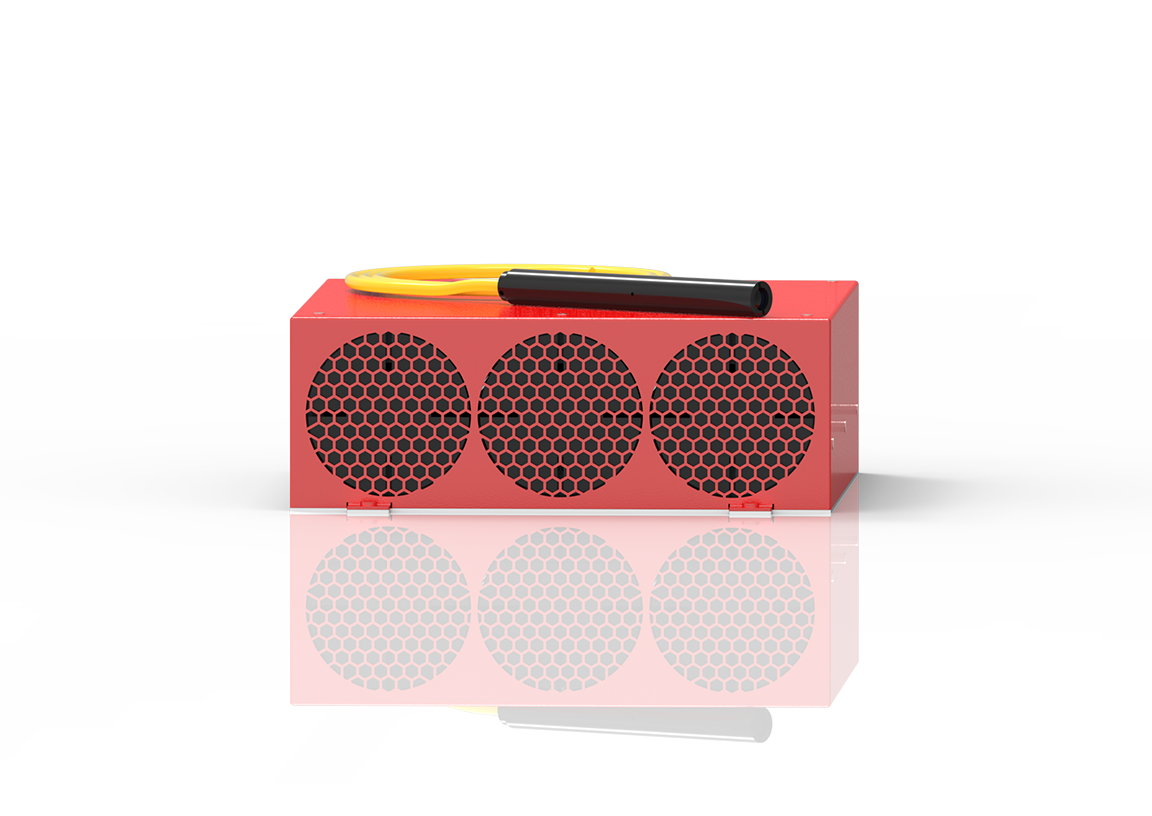

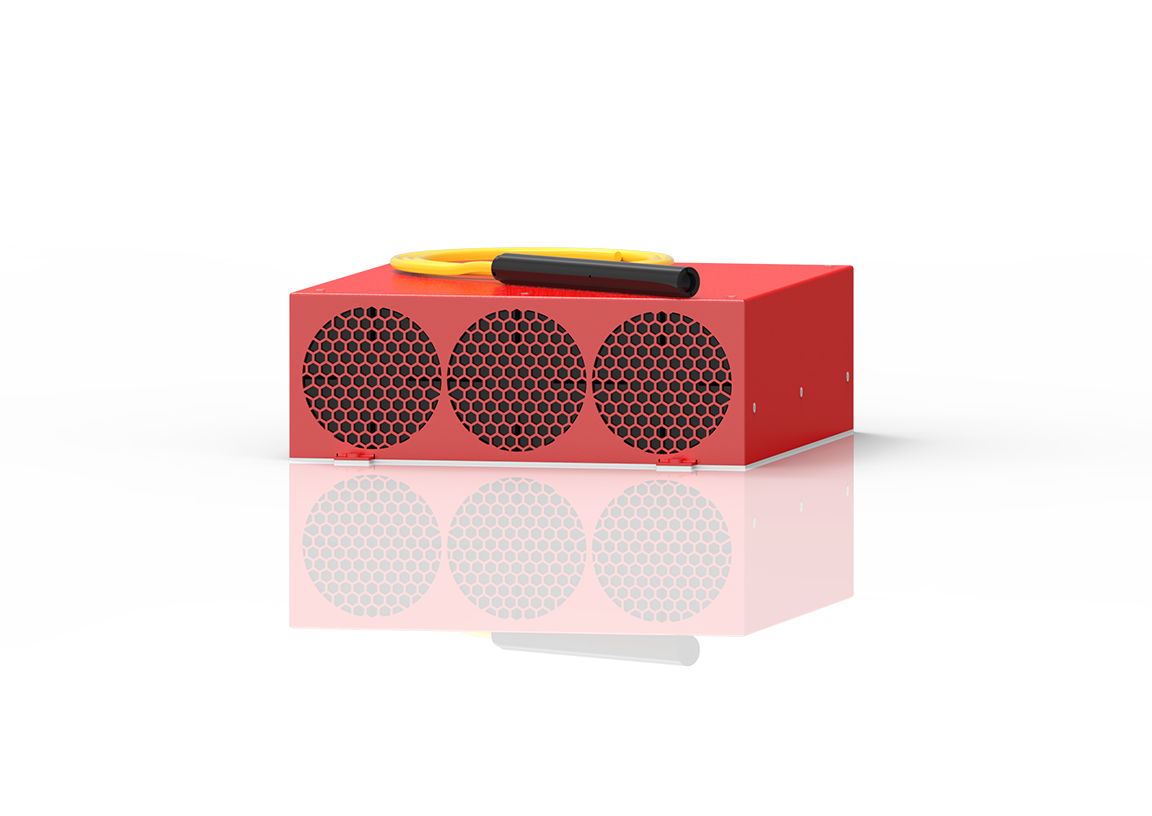

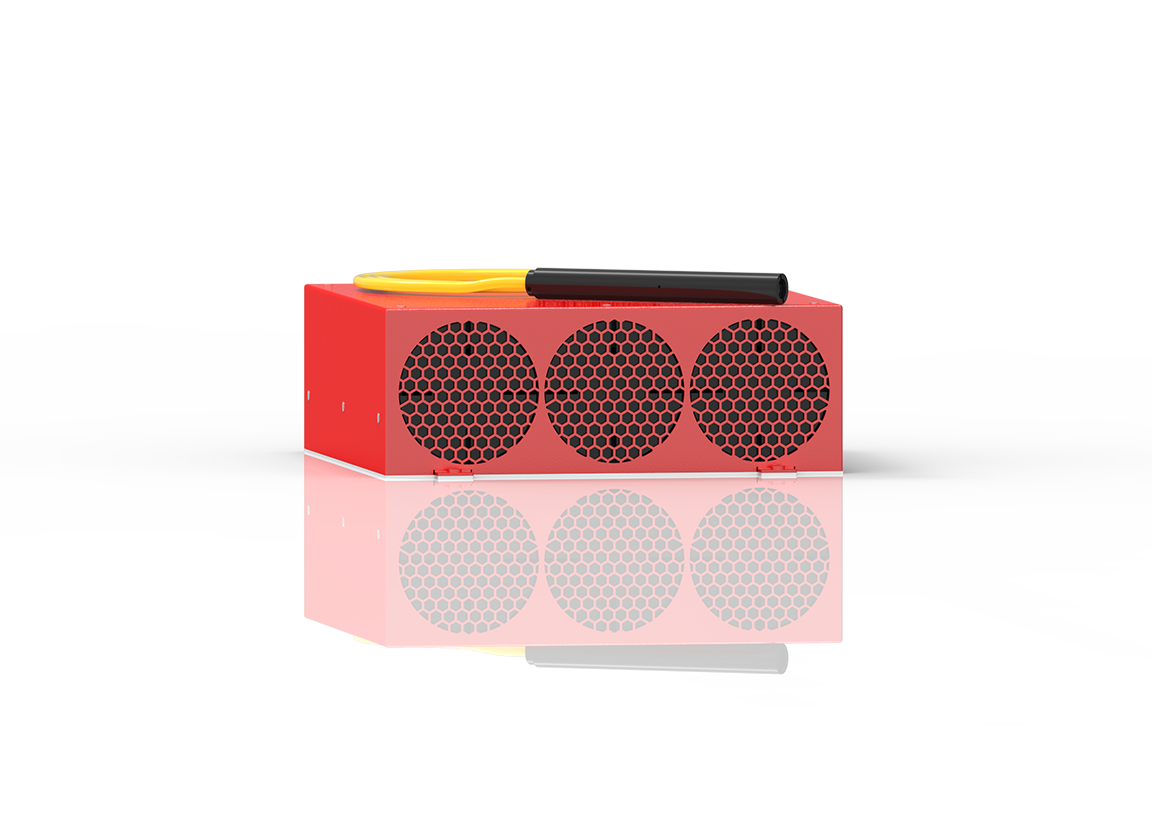

CL2 200-300W

200-300W

The JPT CL series is a high-power fiber laser system based on the Master Oscillator Power Amplifier (MOPA) configuration, utilizing a direct-electrically-modulated semiconductor laser seed source. It delivers exceptional beam characteristics and precise pulse shaping control capabilities.Compared to conventional Q-switched fiber lasers, the MOPA fiber laser provides independent control of pulse frequency and pulse width. Through optimized adjustment of these two key laser parameters, it achieves stable high peak power output and broader compatibility with various marking substrates.The CL water-cooled series employs a power beam combining solution, offering high pulse energy and uniform energy distribution across the output beam spot. This makes it an ideal and highly efficient light source for laser cleaning applications.

  • 3kinds
    optional beam modes
  • QCS
    head output
  • 1064nm
    Central emission wavelength
Download
  • Product Advantages

  • Applications

  • Specifications

  • Related Products

  • Application Solution

Product Advantages

  • Flexible Pulse Parameters

  • Lightweight High-Power Design

  • Single/Multi-Mode Options Available

Applications

  • underlay image Laser Rust Removal.jpg
    Laser Rust Removal
  • underlay image Mold Cleaning.jpg
    Mold Cleaning
  • underlay image Plastic Keypad Paint stripping.jpg
    Plastic Keypad Paint stripping

Specifications

Product Model
  • YDFLP-CL2-200-1-A
  • YDFLP-CL2-300-1-A
  • YDFLP-CL2-200-5-A
  • YDFLP-CL2-300-5-A
  • YDFLP-CL2-300-10-A
  • Beam Quality (M²)
  • Armored Cable Length (m)
  • Nominal Average Output Power (W)
  • Maximum Pulse Energy (mJ)
  • Pulse Repetition Rate Range (kHz)
  • Pulse Width (ns)
  • Output Power Instability (%)
  • Cooling Method
  • Operating Voltage (V)
  • Nominal Power Consumption (W)
  • Supply Power Demand (A)
  • Central Emission Wavelength (nm)
  • Emission Bandwidth @3dB (nm)
  • Output Beam Diameter (mm)
  • Output Power Tuning Range (%)
  • Operating Temperature (℃)
  • Laser Weight (kg)
  • Dimensions (L×W×H) (mm)
  • YDFLP-CL2-200-1-A

    • Beam Quality (M²)
      <1.5
    • Armored Cable Length (m)
      5
    • Nominal Average Output Power (W)
      200
    • Maximum Pulse Energy (mJ)
      2
    • Pulse Repetition Rate Range (kHz)
      1~3000
    • Pulse Width (ns)
      13~500
    • Output Power Instability (%)
      <5
    • Cooling Method
      Air Cooled
    • Operating Voltage (V)
      48 (DC)
    • Nominal Power Consumption (W)
      680
    • Supply Power Demand (A)
      ≥800
    • Central Emission Wavelength (nm)
      1064
    • Emission Bandwidth @3dB (nm)
      <15
    • Output Beam Diameter (mm)
      6.0±1.0
    • Output Power Tuning Range (%)
      0~100
    • Operating Temperature (℃)
      0~40
    • Laser Weight (kg)
      8.9
    • Dimensions (L×W×H) (mm)
      340×265×100
  • YDFLP-CL2-300-1-A

    • Beam Quality (M²)
      <1.5
    • Armored Cable Length (m)
      5
    • Nominal Average Output Power (W)
      300
    • Maximum Pulse Energy (mJ)
      2
    • Pulse Repetition Rate Range (kHz)
      1~3000
    • Pulse Width (ns)
      13~500
    • Output Power Instability (%)
      <5
    • Cooling Method
      Air Cooled
    • Operating Voltage (V)
      48 (DC)
    • Nominal Power Consumption (W)
      1050
    • Supply Power Demand (A)
      ≥1200
    • Central Emission Wavelength (nm)
      1064
    • Emission Bandwidth @3dB (nm)
      <15
    • Output Beam Diameter (mm)
      6.0±1.0
    • Output Power Tuning Range (%)
      0~100
    • Operating Temperature (℃)
      0~40
    • Laser Weight (kg)
      8.9
    • Dimensions (L×W×H) (mm)
      340×265×100
  • YDFLP-CL2-200-5-A

    • Beam Quality (M²)
      <5
    • Armored Cable Length (m)
      5
    • Nominal Average Output Power (W)
      200
    • Maximum Pulse Energy (mJ)
      5
    • Pulse Repetition Rate Range (kHz)
      1~3000
    • Pulse Width (ns)
      13~500
    • Output Power Instability (%)
      <5
    • Cooling Method
      Air Cooled
    • Operating Voltage (V)
      48 (DC)
    • Nominal Power Consumption (W)
      680
    • Supply Power Demand (A)
      ≥800
    • Central Emission Wavelength (nm)
      1064
    • Emission Bandwidth @3dB (nm)
      <15
    • Output Beam Diameter (mm)
      7.0±1.0
    • Output Power Tuning Range (%)
      0~100
    • Operating Temperature (℃)
      0~40
    • Laser Weight (kg)
      8.9
    • Dimensions (L×W×H) (mm)
      340×265×100
  • YDFLP-CL2-300-5-A

    • Beam Quality (M²)
      <5
    • Armored Cable Length (m)
      5
    • Nominal Average Output Power (W)
      300
    • Maximum Pulse Energy (mJ)
      5
    • Pulse Repetition Rate Range (kHz)
      1~3000
    • Pulse Width (ns)
      13~500
    • Output Power Instability (%)
      <5
    • Cooling Method
      Air Cooled
    • Operating Voltage (V)
      48 (DC)
    • Nominal Power Consumption (W)
      1050
    • Supply Power Demand (A)
      ≥1200
    • Central Emission Wavelength (nm)
      1064
    • Emission Bandwidth @3dB (nm)
      <15
    • Output Beam Diameter (mm)
      7.0±1.0
    • Output Power Tuning Range (%)
      0~100
    • Operating Temperature (℃)
      0~40
    • Laser Weight (kg)
      8.9
    • Dimensions (L×W×H) (mm)
      340×265×100
  • YDFLP-CL2-300-10-A

    • Beam Quality (M²)
      <12
    • Armored Cable Length (m)
      5
    • Nominal Average Output Power (W)
      300
    • Maximum Pulse Energy (mJ)
      15
    • Pulse Repetition Rate Range (kHz)
      1~3000
    • Pulse Width (ns)
      13~500
    • Output Power Instability (%)
      <5
    • Cooling Method
      Air Cooled
    • Operating Voltage (V)
      48 (DC)
    • Nominal Power Consumption (W)
      1050
    • Supply Power Demand (A)
      ≥1200
    • Central Emission Wavelength (nm)
      1064
    • Emission Bandwidth @3dB (nm)
      <15
    • Output Beam Diameter (mm)
      7.0±1.0
    • Output Power Tuning Range (%)
      0~100
    • Operating Temperature (℃)
      0~40
    • Laser Weight (kg)
      8.9
    • Dimensions (L×W×H) (mm)
      340×265×100
