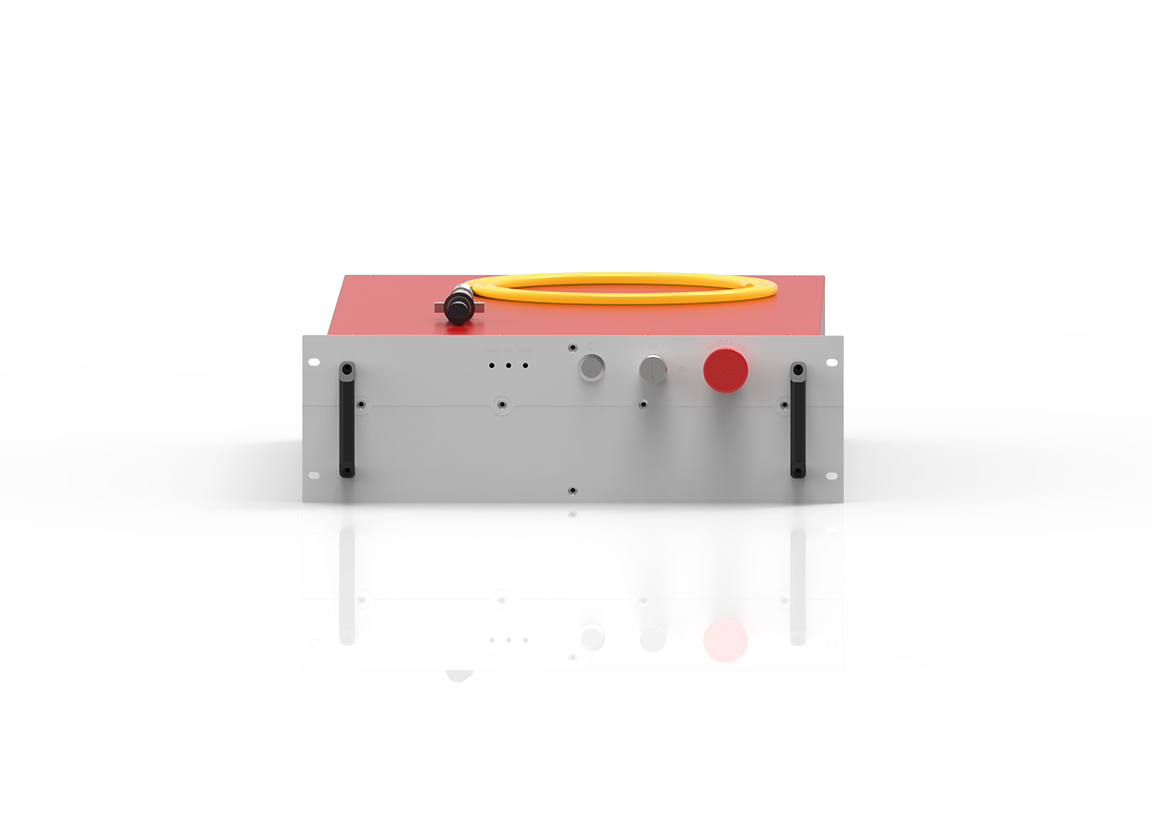

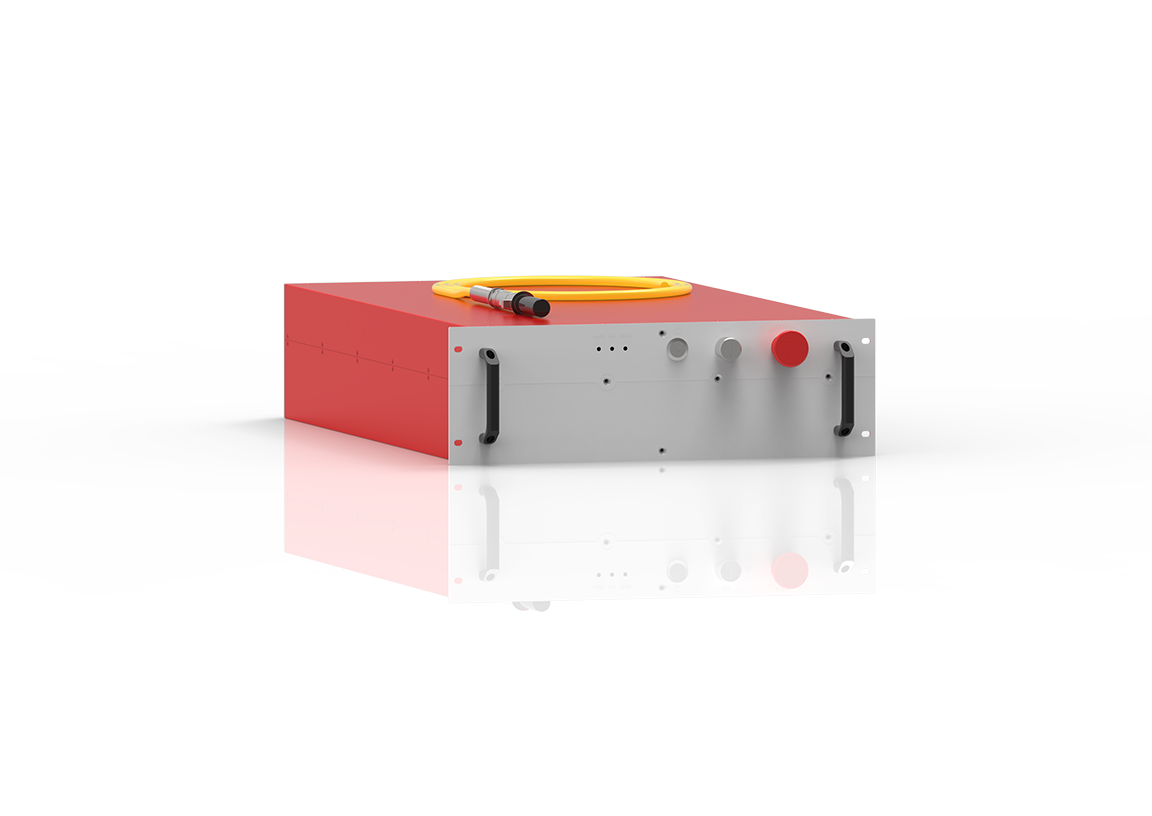

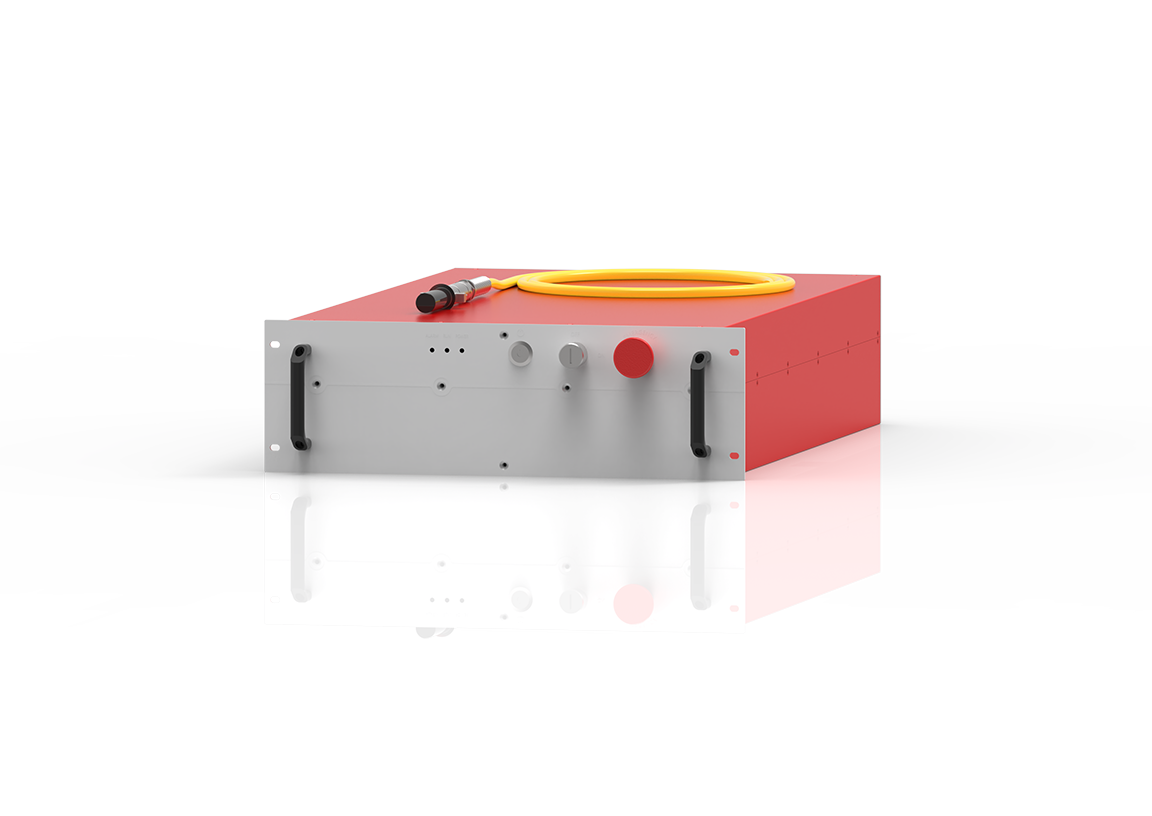

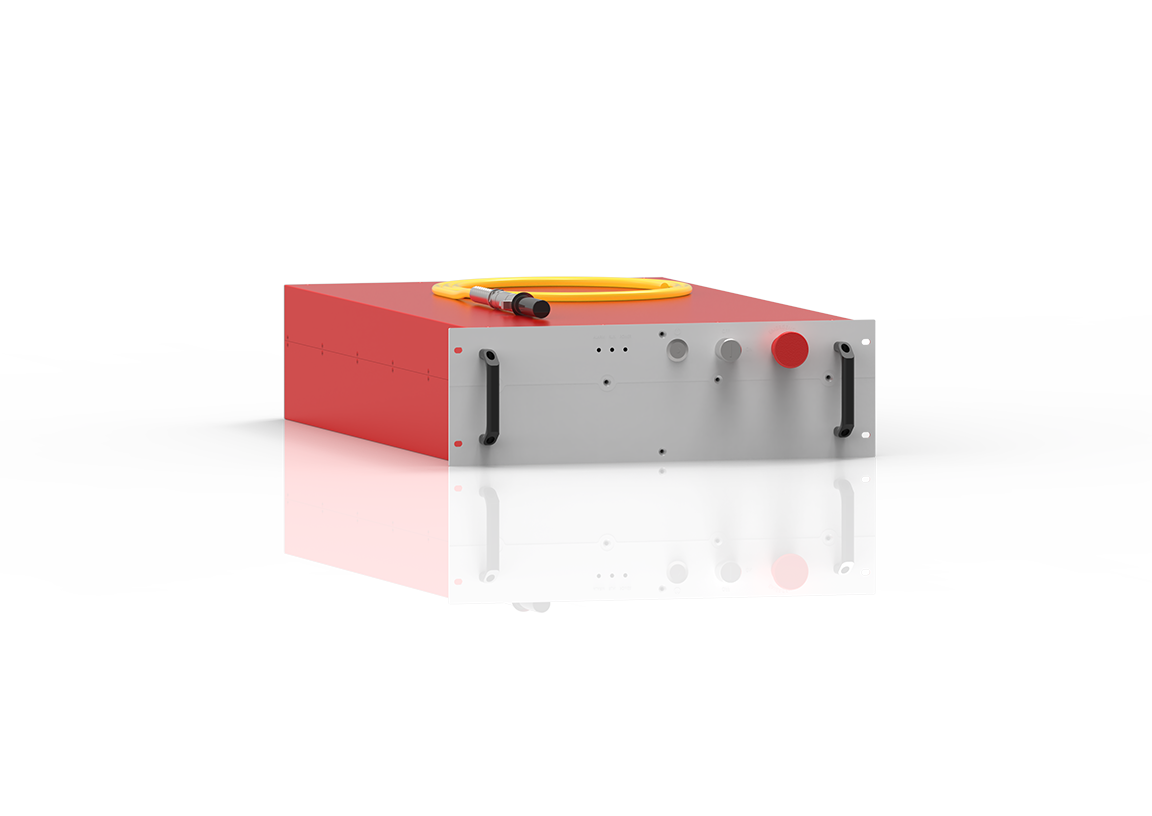

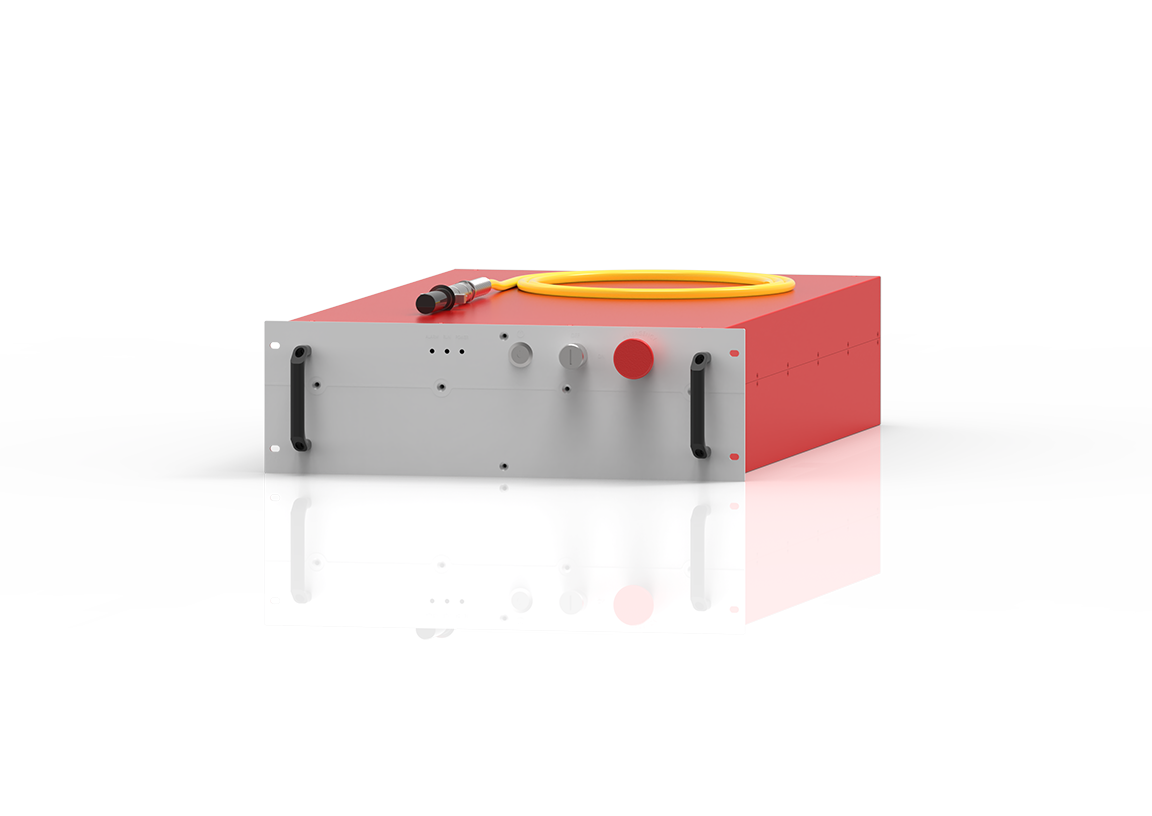

CL Water Cooled 2000-3000W

2000-3000W

The JPT CL series is a high-power fiber laser system based on the Master Oscillator Power Amplifier (MOPA) configuration, utilizing a direct-electrically-modulated semiconductor laser seed source. It delivers exceptional beam characteristics and precise pulse shaping control capabilities.Compared to conventional Q-switched fiber lasers, the MOPA fiber laser provides independent control of pulse frequency and pulse width. Through optimized adjustment of these two key laser parameters, it achieves stable high peak power output and broader compatibility with various marking substrates.The CL water-cooled series employs a power beam combining solution, offering high pulse energy and uniform energy distribution across the output beam spot. This makes it an ideal and highly efficient light source for laser cleaning applications.

2000W

Maximum average power
Water Cooled

Cooling Method
3

optional beam modes

Download

Product Advantages
Applications
Specifications
Related Products
Application Solution

Product Advantages

Flexible Pulse Parameters
Lightweight High-Power Design
Single/Multi-Mode Options Available

Applications

Laser Rust Removal
Mold Cleaning
Plastic Keypad Paint stripping

Specifications

Product Model

YDFLP-CL-2000-15-W
YDFLP-CL-2000-50-W
YDFLP-CL-2000-100-W
YDFLP-CL-3000-50-W
YDFLP-CL-3000-100-W

Beam Parameter Product (mmxmrad)
Armored Cable Length (m)
Nominal Average Output Power (W)
Maximum Pulse Energy (mJ)
Pulse Repetition Rate Range (kHz)
Pulse Width (ns)
Output Power Instability (%)
Cooling Method
Operating Voltage (V)
Nominal Power Consumption (W)
Supply Power Demand (W)
Central Emission Wavelength (nm)
Emission Bandwidth @3dB (nm)
Output Power Tuning Range (%)
Operating Temperature (℃)
Laser Weight (kg)
Dimensions (L×W×H) (mm)

YDFLP-CL-2000-15-W
- Beam Parameter Product (mmxmrad)

  < 4.5
- Armored Cable Length (m)

  10
- Nominal Average Output Power (W)

  2000
- Maximum Pulse Energy (mJ)

  15
- Pulse Repetition Rate Range (kHz)

  1 ~ 4000
- Pulse Width (ns)

  30 ~ 500
- Output Power Instability (%)

  < 5
- Cooling Method

  Water Cooled
- Operating Voltage (V)

  380 (AC)
- Nominal Power Consumption (W)

  6500
- Supply Power Demand (W)

  ≥ 6500
- Central Emission Wavelength (nm)

  1064
- Emission Bandwidth @3dB (nm)

  < 15
- Output Power Tuning Range (%)

  0 ~ 100
- Operating Temperature (℃)

  0 ~ 40
- Laser Weight (kg)

  53.9
- Dimensions (L×W×H) (mm)

  801 × 483 × 150
YDFLP-CL-2000-50-W
- Beam Parameter Product (mmxmrad)

  < 10
- Armored Cable Length (m)

  10
- Nominal Average Output Power (W)

  2000
- Maximum Pulse Energy (mJ)

  50
- Pulse Repetition Rate Range (kHz)

  1 ~ 4000
- Pulse Width (ns)

  30 ~ 500
- Output Power Instability (%)

  <5
- Cooling Method

  Water Cooled
- Operating Voltage (V)

  380 (AC)
- Nominal Power Consumption (W)

  6500
- Supply Power Demand (W)

  ≥ 6500
- Central Emission Wavelength (nm)

  1064
- Emission Bandwidth @3dB (nm)

  < 15
- Output Power Tuning Range (%)

  0 ~ 100
- Operating Temperature (℃)

  0 ~ 40
- Laser Weight (kg)

  53.9
- Dimensions (L×W×H) (mm)

  801 × 483 × 150
YDFLP-CL-2000-100-W
- Beam Parameter Product (mmxmrad)

  < 25
- Armored Cable Length (m)

  10
- Nominal Average Output Power (W)

  2000
- Maximum Pulse Energy (mJ)

  100
- Pulse Repetition Rate Range (kHz)

  10 ~ 100
- Pulse Width (ns)

  RR20kHz@100ns Pmax
- Output Power Instability (%)

  < 5
- Cooling Method

  Water Cooled
- Operating Voltage (V)

  380 (AC)
- Nominal Power Consumption (W)

  6500
- Supply Power Demand (W)

  ≥ 6500
- Central Emission Wavelength (nm)

  1064
- Emission Bandwidth @3dB (nm)

  < 15
- Output Power Tuning Range (%)

  0 ~ 100
- Operating Temperature (℃)

  0 ~ 40
- Laser Weight (kg)

  53.9
- Dimensions (L×W×H) (mm)

  801 × 483 × 150
YDFLP-CL-3000-50-W
- Beam Parameter Product (mmxmrad)

  < 25
- Armored Cable Length (m)

  10
- Nominal Average Output Power (W)

  3000
- Maximum Pulse Energy (mJ)

  50
- Pulse Repetition Rate Range (kHz)

  10 ~ 200
- Pulse Width (ns)

  RR60kHz@100ns Pmax
- Output Power Instability (%)

  < 5
- Cooling Method

  Water Cooled
- Operating Voltage (V)

  380 (AC)
- Nominal Power Consumption (W)

  > 12000
- Supply Power Demand (W)

  18.2
- Central Emission Wavelength (nm)

  1064
- Emission Bandwidth @3dB (nm)

  < 10
- Output Power Tuning Range (%)

  0 ~ 100
- Operating Temperature (℃)

  0 ~ 40
- Laser Weight (kg)

  53.9
- Dimensions (L×W×H) (mm)

  801 × 483 × 150
YDFLP-CL-3000-100-W
- Beam Parameter Product (mmxmrad)

  < 25
- Armored Cable Length (m)

  10
- Nominal Average Output Power (W)

  3000
- Maximum Pulse Energy (mJ)

  100
- Pulse Repetition Rate Range (kHz)

  10 ~ 200
- Pulse Width (ns)

  RR30kHz@100ns Pmax
- Output Power Instability (%)

  < 5
- Cooling Method

  Water Cooled
- Operating Voltage (V)

  380 (AC)
- Nominal Power Consumption (W)

  > 12000
- Supply Power Demand (W)

  18.2
- Central Emission Wavelength (nm)

  1064
- Emission Bandwidth @3dB (nm)

  < 10
- Output Power Tuning Range (%)

  0 ~ 100
- Operating Temperature (℃)

  0 ~ 40
- Laser Weight (kg)

  53.9
- Dimensions (L×W×H) (mm)

  801 × 483 × 150
