CL Air Cooled 500W

500W

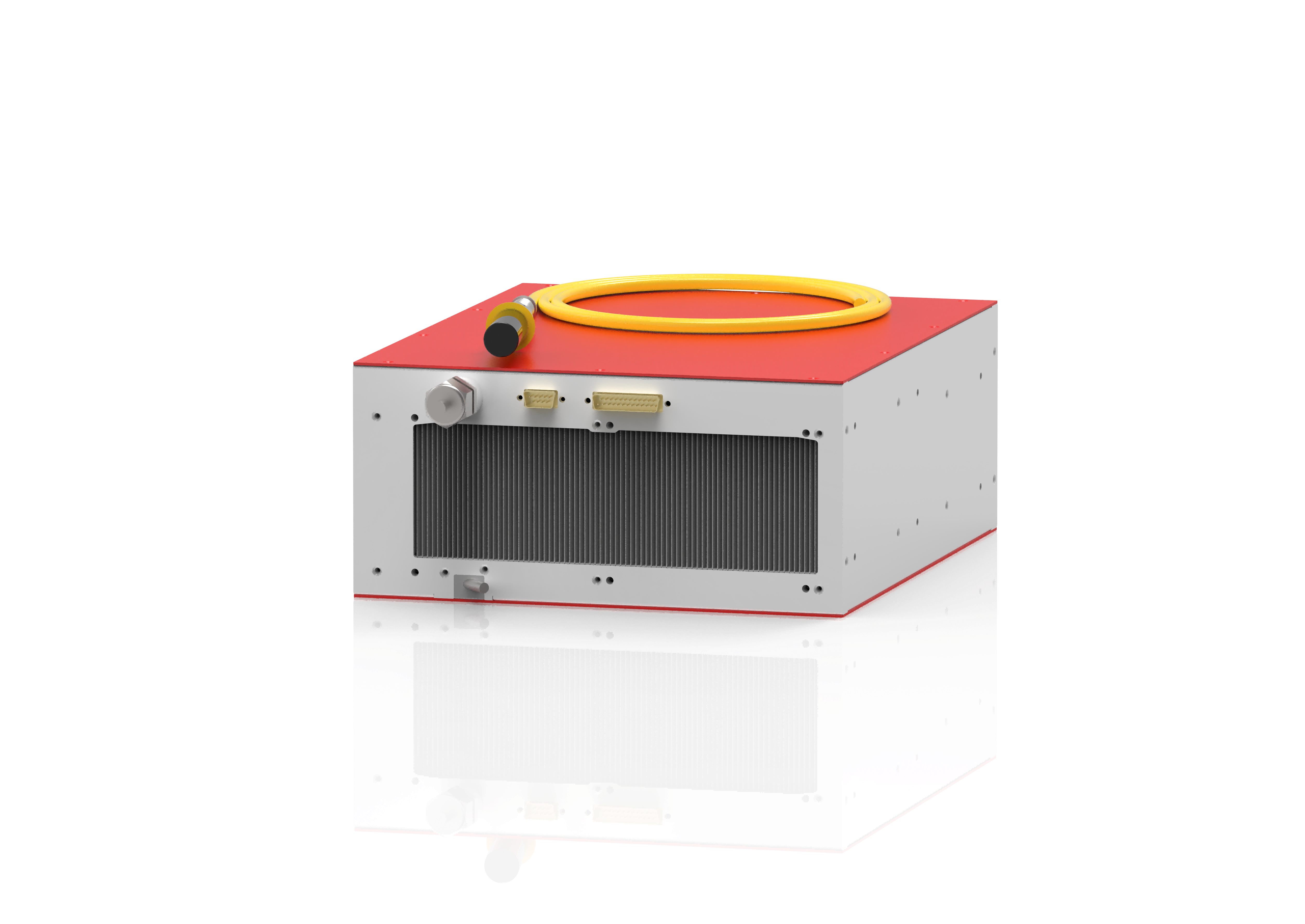

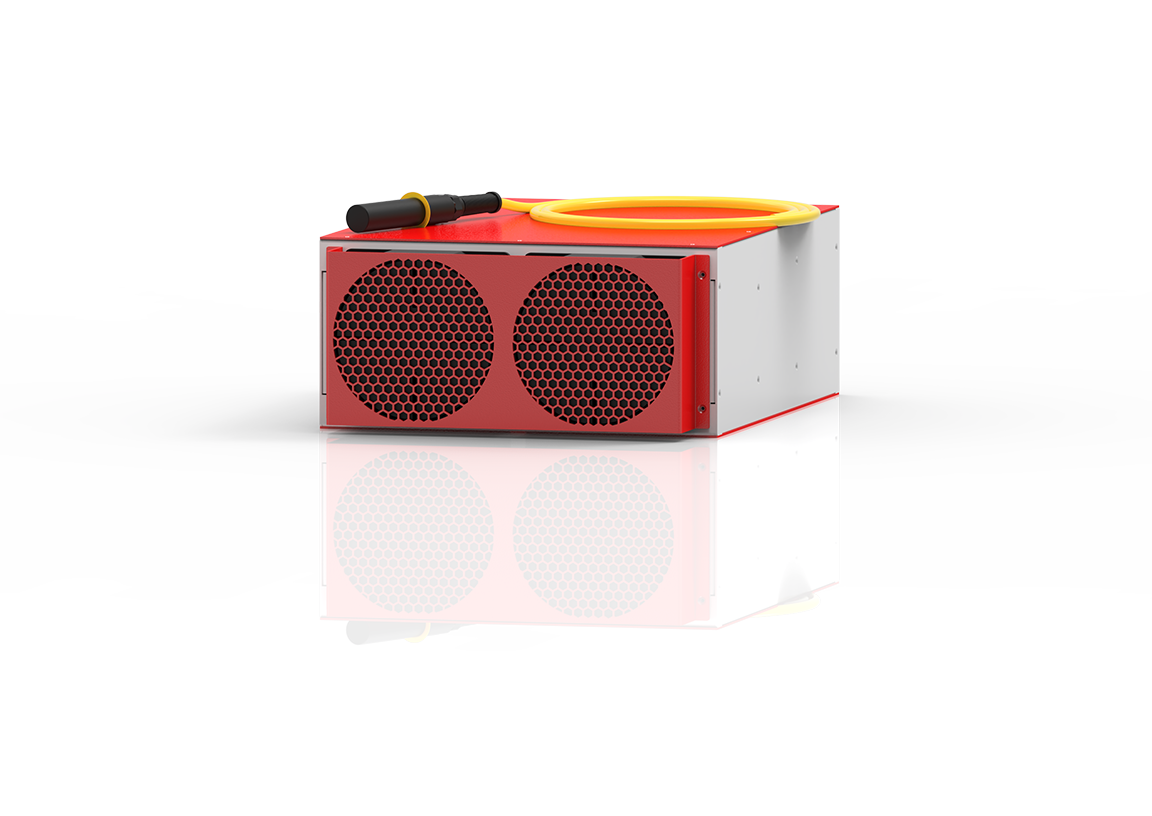

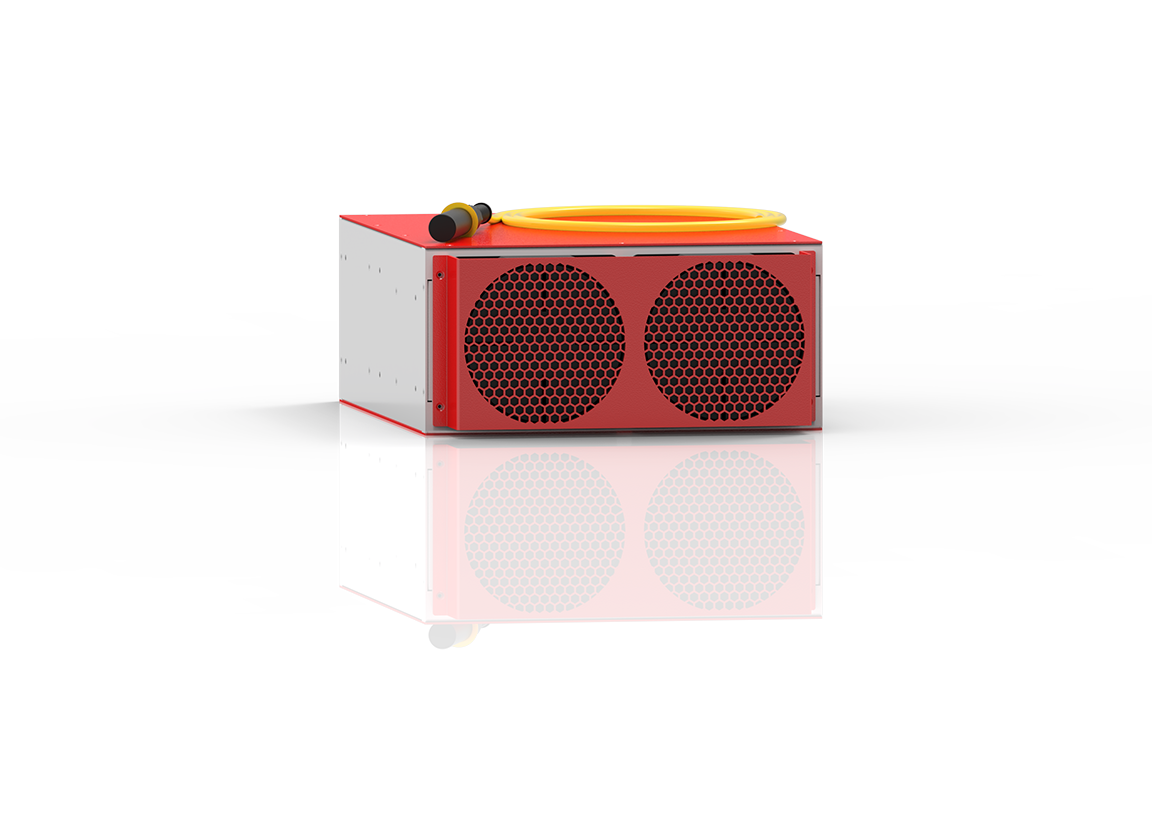

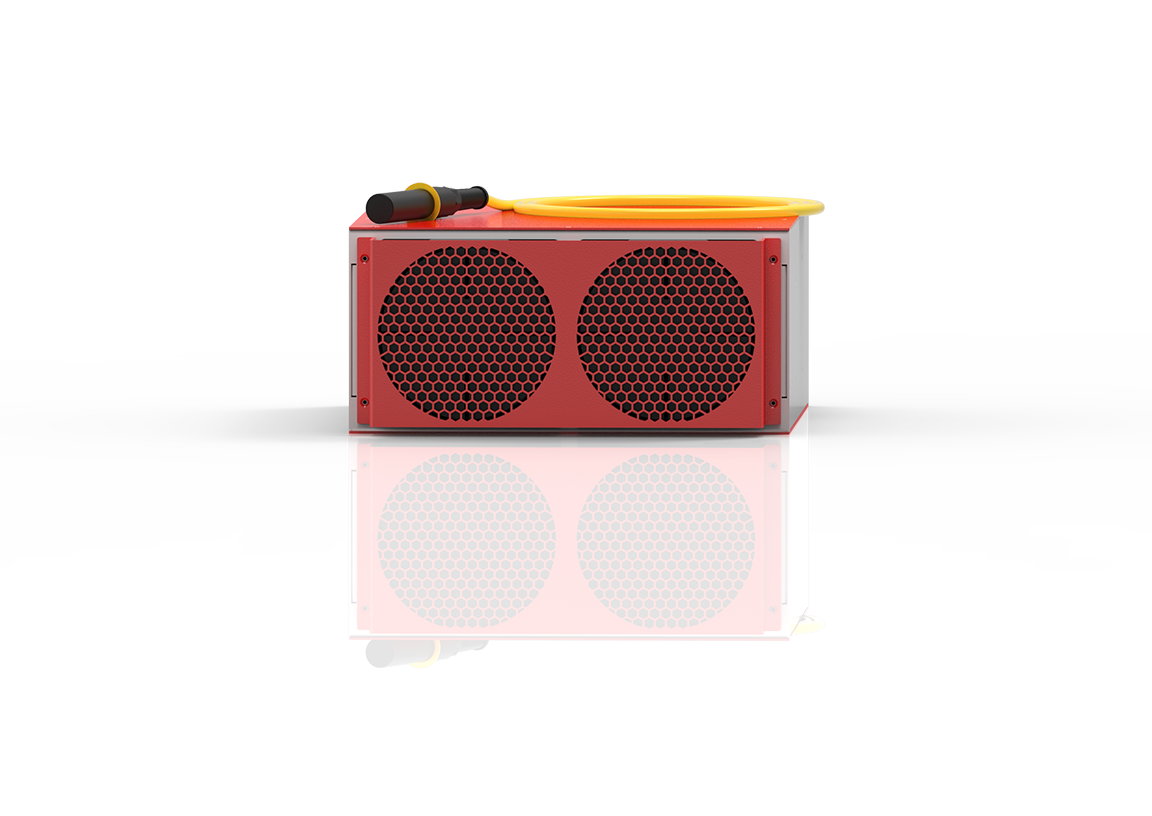

The JPT CL 500W Air-Cooled MOPA Fiber Laser is a next-generation high-power laser source designed for industrial cleaning and surface processing applications. Based on JPT's proprietary MOPA architecture, it enables independent adjustment of pulse width and pulse frequency while maintaining high peak power and excellent beam quality.

Compared with conventional Q-switched fiber lasers, the CL 500W pulse laser provides greater parameter flexibility and broader material compatibility. The system supports multiple beam modes, including single-mode and multi-mode options, making it suitable for a wide range of precision cleaning and surface treatment tasks.

Air Cooled

Cooling Method
4

optional beam modes
11.3kg

Minimum laser weight

Download

Add Comparison

YDFLP-CL-500-1-A
YDFLP-CL-500-5-A
YDFLP-CL-500-15-A
YDFLP-CL-500-50-A

Product Advantages
Applications
Specifications
Related Products
Application Solution

Product Advantages

Flexible Pulse Parameters

The 500W pulse laser supports independent adjustment of pulse width and frequency, easily meeting the precision cleaning requirements of various materials.
Lightweight High-Power Design

This air-cooled high-power fiber laser combines 500W output with only 11.3 kg, simplifying integration while reducing the space required for the cleaning system.
Single/Multi-Mode Options Available

Selectable beam modes allow the 500W fiber laser to adapt to different materials and cleaning requirements, making it suitable as the core source in laser cleaning.

Applications

Laser Rust Removal
Mold Cleaning
Plastic Keypad Paint stripping

Specifications

Product Model

YDFLP-CL-500-1-A

vs
YDFLP-CL-500-5-A

vs
YDFLP-CL-500-15-A

vs
YDFLP-CL-500-50-A

vs

M² / Beam Parameter Product (mmxmrad)
Armored Cable Length (m)
Armored Cable Length (m)
Maximum Pulse Energy (mJ)
Pulse Repetition Rate Range (kHz)
Pulse Width (ns)
Output Power Instability (%)
Cooling Method
Operating Voltage (V)
Nominal Power Consumption (W)
Supply Power Demand (W)
Central Emission Wavelength (nm)
Emission Bandwidth @3dB (nm)
Output Power Tuning Range (%)
Operating Temperature (℃)
Laser Weight (kg)
Dimensions (L×W×H) (mm)

YDFLP-CL-500-1-A
- M² / Beam Parameter Product (mmxmrad)

  M² < 1.7
- Armored Cable Length (m)

  5
- Armored Cable Length (m)

  500
- Maximum Pulse Energy (mJ)

  1.5
- Pulse Repetition Rate Range (kHz)

  1 ~ 4000
- Pulse Width (ns)

  30 ~ 500
- Output Power Instability (%)

  < 5
- Cooling Method

  Air Cooled
- Operating Voltage (V)

  48 (DC)
- Nominal Power Consumption (W)

  1800
- Supply Power Demand (W)

  ≥ 2200
- Central Emission Wavelength (nm)

  1064
- Emission Bandwidth @3dB (nm)

  < 20
- Output Power Tuning Range (%)

  0 ~ 100
- Operating Temperature (℃)

  0 ~ 40
- Laser Weight (kg)

  11.3
- Dimensions (L×W×H) (mm)

  392 × 288 × 135
YDFLP-CL-500-5-A
- M² / Beam Parameter Product (mmxmrad)

  M² < 5
- Armored Cable Length (m)

  10
- Armored Cable Length (m)

  500
- Maximum Pulse Energy (mJ)

  5
- Pulse Repetition Rate Range (kHz)

  1 ~ 4000
- Pulse Width (ns)

  30 ~ 500
- Output Power Instability (%)

  < 5
- Cooling Method

  Air Cooled
- Operating Voltage (V)

  48 (DC)
- Nominal Power Consumption (W)

  1800
- Supply Power Demand (W)

  ≥ 2200
- Central Emission Wavelength (nm)

  1064
- Emission Bandwidth @3dB (nm)

  < 20
- Output Power Tuning Range (%)

  0 ~ 100
- Operating Temperature (℃)

  0 ~ 40
- Laser Weight (kg)

  11.3
- Dimensions (L×W×H) (mm)

  392 × 288 × 135
YDFLP-CL-500-15-A
- M² / Beam Parameter Product (mmxmrad)

  BPP < 4.7
- Armored Cable Length (m)

  10
- Armored Cable Length (m)

  500
- Maximum Pulse Energy (mJ)

  15
- Pulse Repetition Rate Range (kHz)

  1 ~ 4000
- Pulse Width (ns)

  30 ~ 500
- Output Power Instability (%)

  < 5
- Cooling Method

  Air Cooled
- Operating Voltage (V)

  48 (DC)
- Nominal Power Consumption (W)

  1800
- Supply Power Demand (W)

  ≥ 2200
- Central Emission Wavelength (nm)

  1064
- Emission Bandwidth @3dB (nm)

  < 20
- Output Power Tuning Range (%)

  0 ~ 100
- Operating Temperature (℃)

  0 ~ 40
- Laser Weight (kg)

  12.3
- Dimensions (L×W×H) (mm)

  392 × 288 × 135
YDFLP-CL-500-50-A
- M² / Beam Parameter Product (mmxmrad)

  BPP <11
- Armored Cable Length (m)

  10
- Armored Cable Length (m)

  > 500
- Maximum Pulse Energy (mJ)

  50
- Pulse Repetition Rate Range (kHz)

  1 ~ 4000
- Pulse Width (ns)

  30 ~ 500
- Output Power Instability (%)

  < 5
- Cooling Method

  Air Cooled
- Operating Voltage (V)

  48 (DC)
- Nominal Power Consumption (W)

  1800
- Supply Power Demand (W)

  ≥ 2200
- Central Emission Wavelength (nm)

  1064
- Emission Bandwidth @3dB (nm)

  < 20
- Output Power Tuning Range (%)

  0 ~ 100
- Operating Temperature (℃)

  0 ~ 40
- Laser Weight (kg)

  13.2
- Dimensions (L×W×H) (mm)

  412 × 313 × 135
