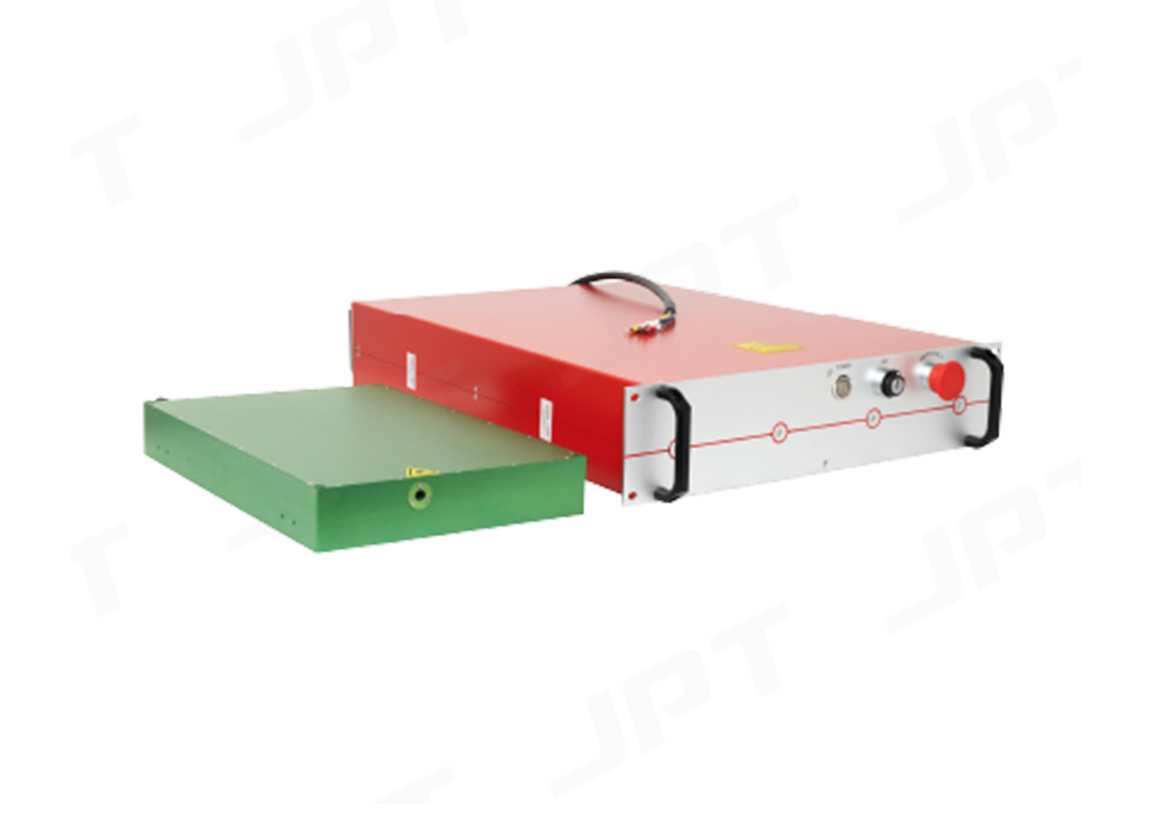

FL-GR 200-300W
200-300W
The JPT GR series laser adopts a Master Oscillator Power Amplifier (MOPA) configuration, supporting independent adjustment of pulse width and pulse frequency. Building upon the flexible parameter control of MOPA lasers, it incorporates external cavity frequency doubling technology to deliver high-power green laser output.This system is particularly suitable for: Copper welding applications, Photovoltaic processing, Precision marking.
-
300WMaximum average power
-
532nmCenter emission wavelength
-
10-250nsAdjustable pulse width
-
Product Advantages
-
Applications
-
Specifications
-
Related Products
-
Application Solutions
Product Advantages
-
Flexible pulse parameters
-
High beam quality
-
Water-cooled modular design
Applications
-
Glass Drilling -
Electrode Sheet Cutting -

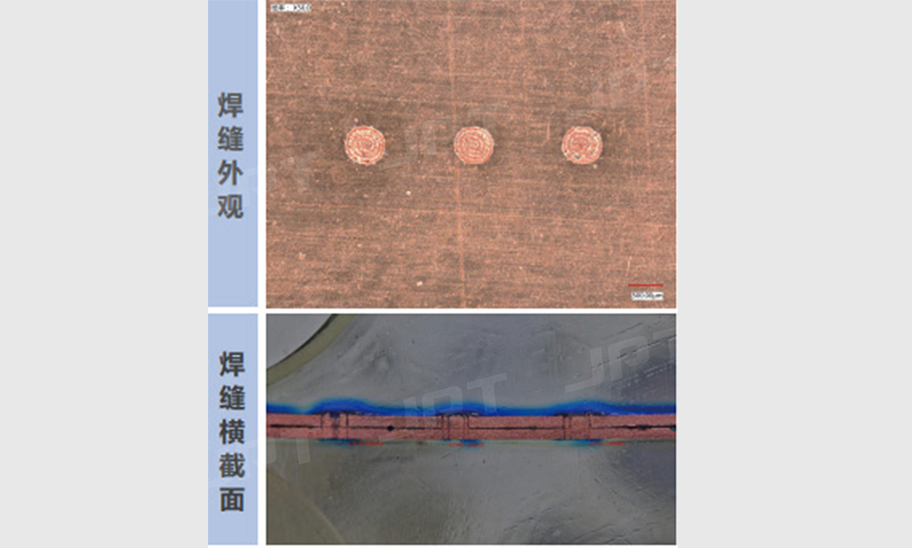

Copper Welding -

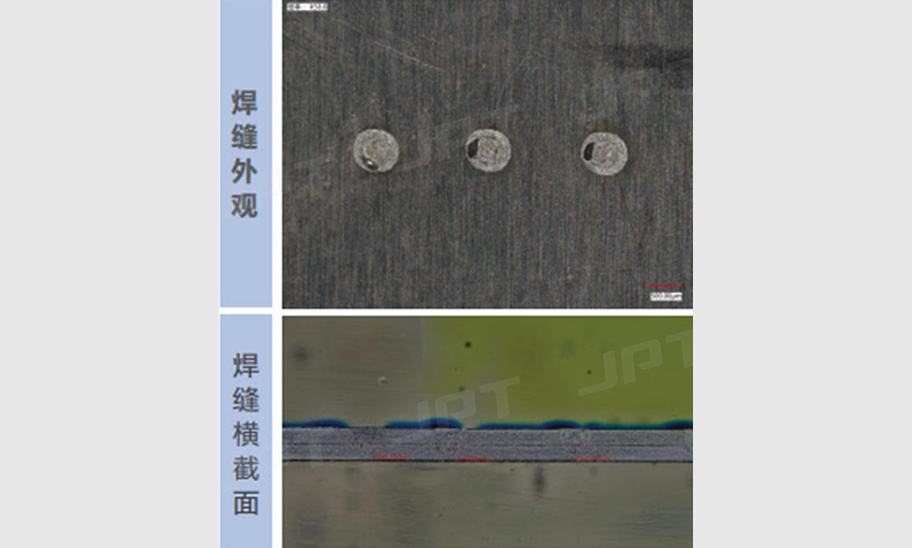

Aluminum Welding
Specifications
-
YDFLP-GR-200
vs -
YDFLP-GR-300
vs
-
M²
-
Armored Cable Length (m)
-
Nominal Average Output Power (W)
-
Maximum Pulse Energy (µJ)
-
Pulse Repetition Rate Range (kHz)
-
Pulse Width (ns)
-
Output Power Instability (%)
-
Cooling Method
-
Operating Voltage (V)
-
Nominal Power Consumption (W)
-
Supply Power Demand (W)
-
Central Emission Wavelength (nm)
-
Emission Bandwidth @3dB (nm)
-
Output Power Tuning Range (%)
-
Operating Temperature (℃)
-
Host Machine Weight (kg)
-
Output Head Weight (kg)
-
Host Machine Dimensions (L×W×H) (mm)
-
Output Head Dimensions (L×W×H) (mm)
-
YDFLP-GR-200
-
M²<1.6
-
Armored Cable Length (m)3
-
Nominal Average Output Power (W)200
-
Maximum Pulse Energy (µJ)200
-
Pulse Repetition Rate Range (kHz)1~4000
-
Pulse Width (ns)1.5×1-3burst or 10-250
-
Output Power Instability (%)<5
-
Cooling MethodWater Cooled
-
Operating Voltage (V)220 (AC)
-
Nominal Power Consumption (W)1200
-
Supply Power Demand (W)≥1400
-
Central Emission Wavelength (nm)532
-
Emission Bandwidth @3dB (nm)<2
-
Output Power Tuning Range (%)0~100
-
Operating Temperature (℃)10~40
-
Host Machine Weight (kg)40
-
Output Head Weight (kg)10
-
Host Machine Dimensions (L×W×H) (mm)599×440×108
-
Output Head Dimensions (L×W×H) (mm)370×260×52
-
-
YDFLP-GR-300
-
M²<1.6
-
Armored Cable Length (m)3
-
Nominal Average Output Power (W)300
-
Maximum Pulse Energy (µJ)200
-
Pulse Repetition Rate Range (kHz)1~4000
-
Pulse Width (ns)1.5×1-3burst or 10-250
-
Output Power Instability (%)<5
-
Cooling MethodWater Cooled
-
Operating Voltage (V)220 (AC)
-
Nominal Power Consumption (W)2000
-
Supply Power Demand (W)≥2200
-
Central Emission Wavelength (nm)532
-
Emission Bandwidth @3dB (nm)<2
-
Output Power Tuning Range (%)0~100
-
Operating Temperature (℃)10~40
-
Host Machine Weight (kg)40
-
Output Head Weight (kg)10
-
Host Machine Dimensions (L×W×H) (mm)599×440×108
-
Output Head Dimensions (L×W×H) (mm)370×260×52
-
