Post-Weld AOI Inspection Module
The Post-Weld AOI Inspection Module integrates cutting-edge 3D imaging technology with deep learning algorithms, designed to deliver high-accuracy and high-efficiency weld quality inspection. It captures weld surface morphology in real time and automatically identifies various welding defects. With its innovative technology combination, it can effectively detect porosity, spatter, cracks, undercuts, weld beads, cold joints, misalignment, and missed welds. The overall detection rate reaches up to 99.5%, significantly enhancing the reliability of weld quality control and production efficiency.
-
Product Advantages
-
Applications
-
Related Products
Product Advantages
-
3D + 2D Multi-Dimensional Inspection

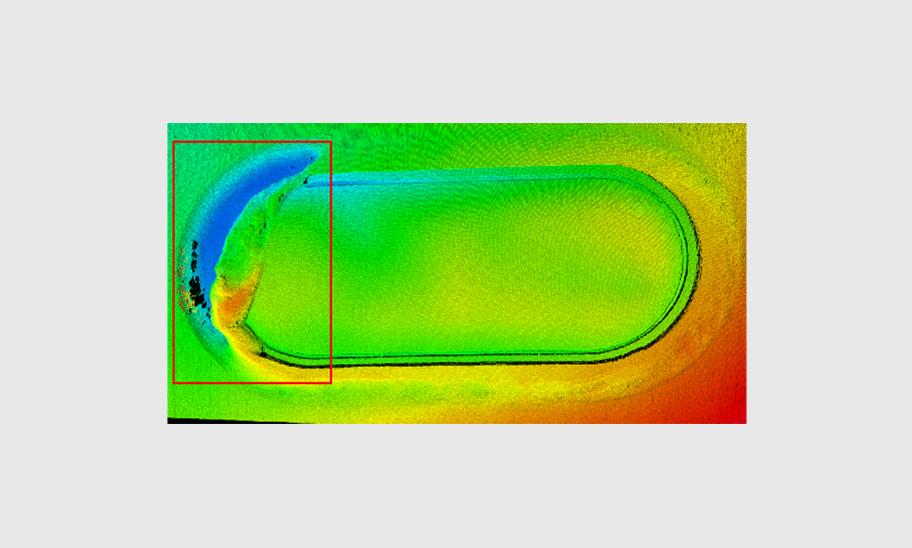

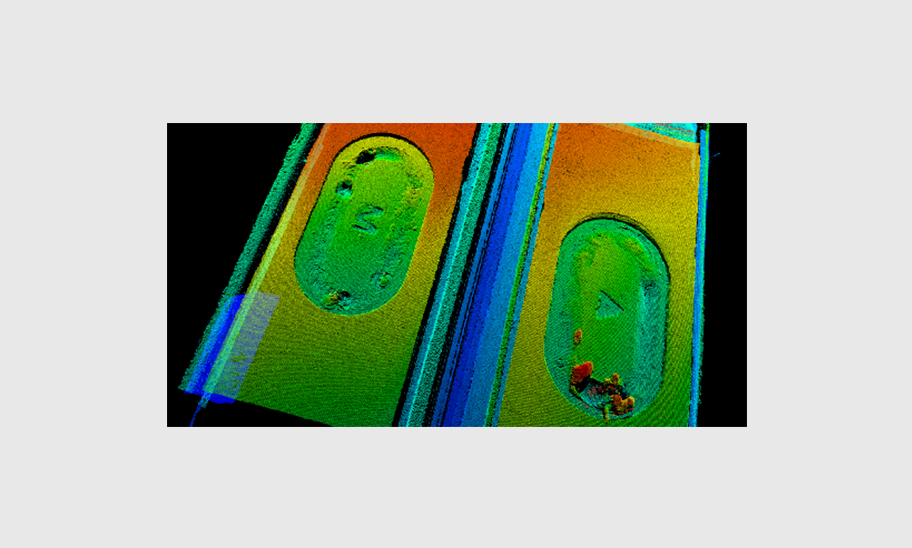

Combines 3D morphology quantification (including concavity, convexity, and step height) with 2D surface defect recognition, providing comprehensive weld evaluation and enabling simultaneous detection of multiple defects.
-
AI-Powered Algorithms, Accurate & Stable
Incorporates deep learning algorithms to greatly improve feasibility and robustness, effectively overcoming the limitations of traditional detection methods when dealing with variable weld forms and complex environments.
Applications
-

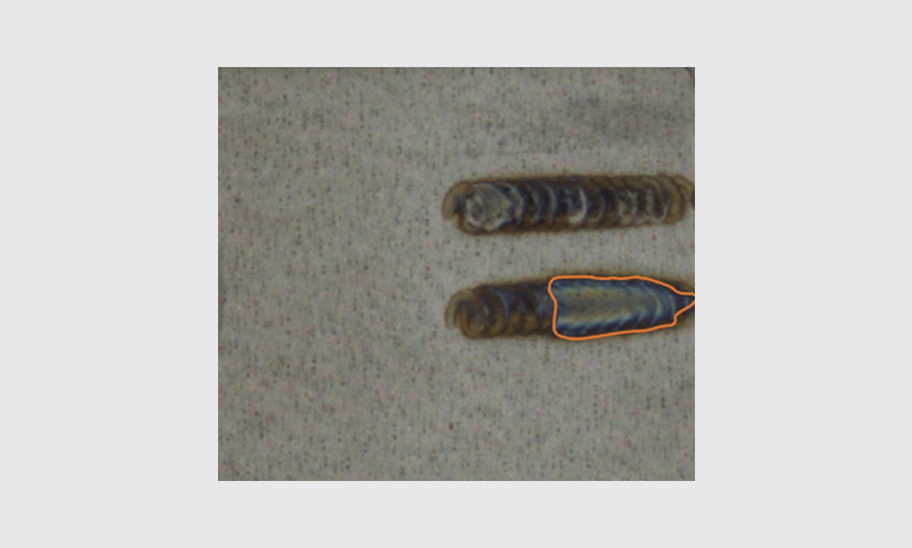

Soft battery sampling terminal post-welding inspection
-

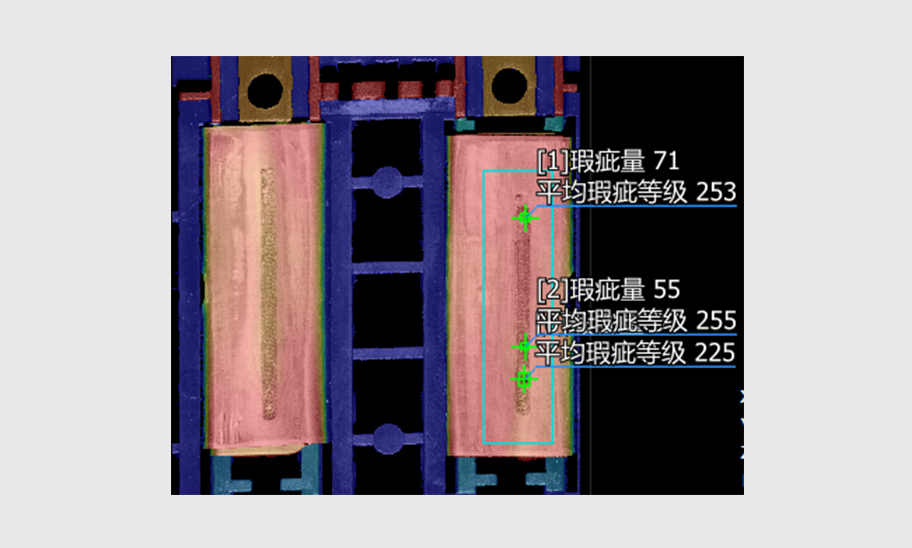

Power Battery Tab Post-Welding Inspection
-
Power Battery Connector Post-Welding Inspection
-

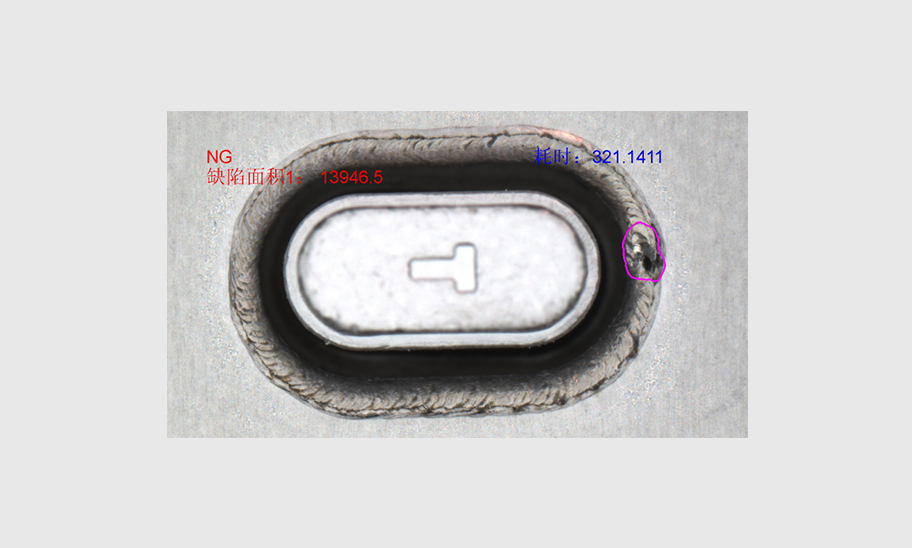

Power Battery Safety Vent Post-Welding Inspection
-

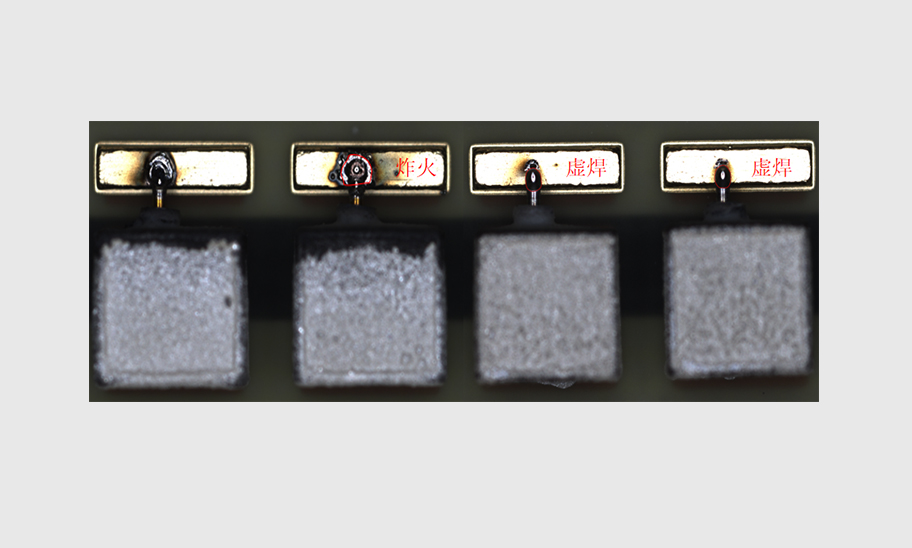

Passive Component Post-Welding Inspection
-
Pouch Cell Tab Post-Welding Inspection
