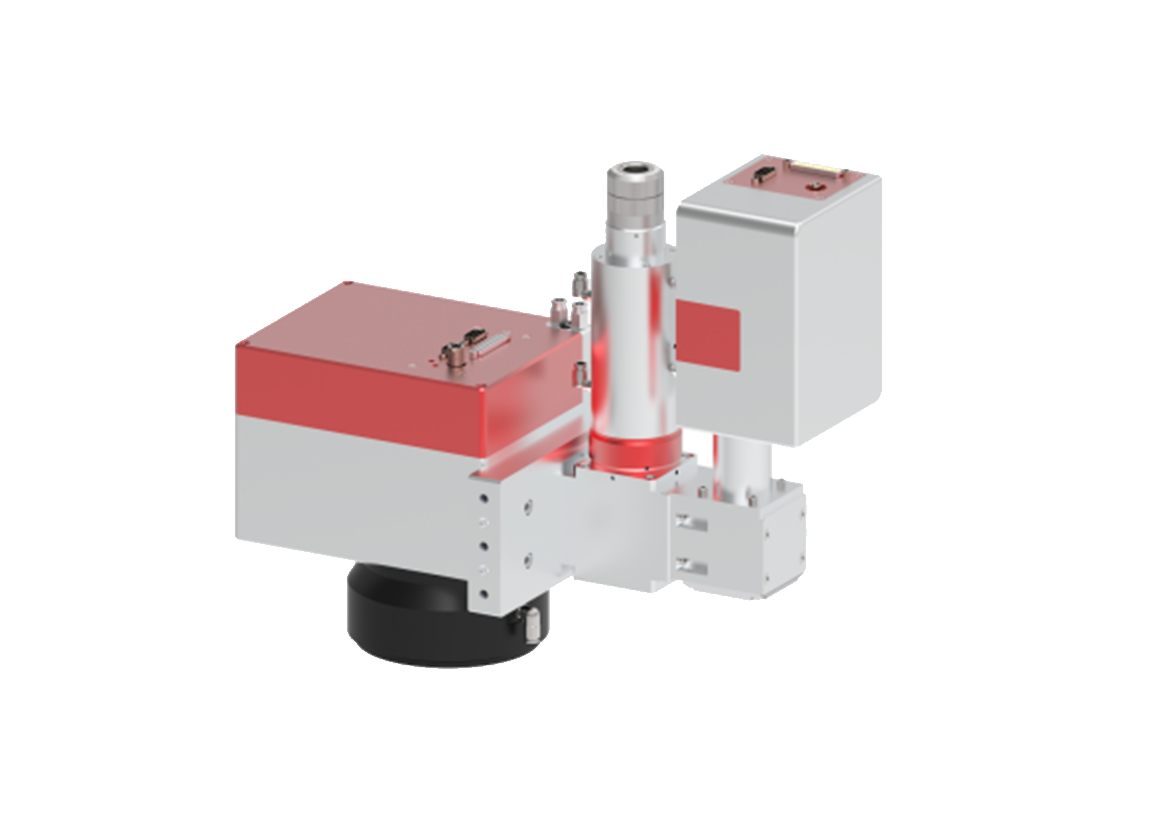

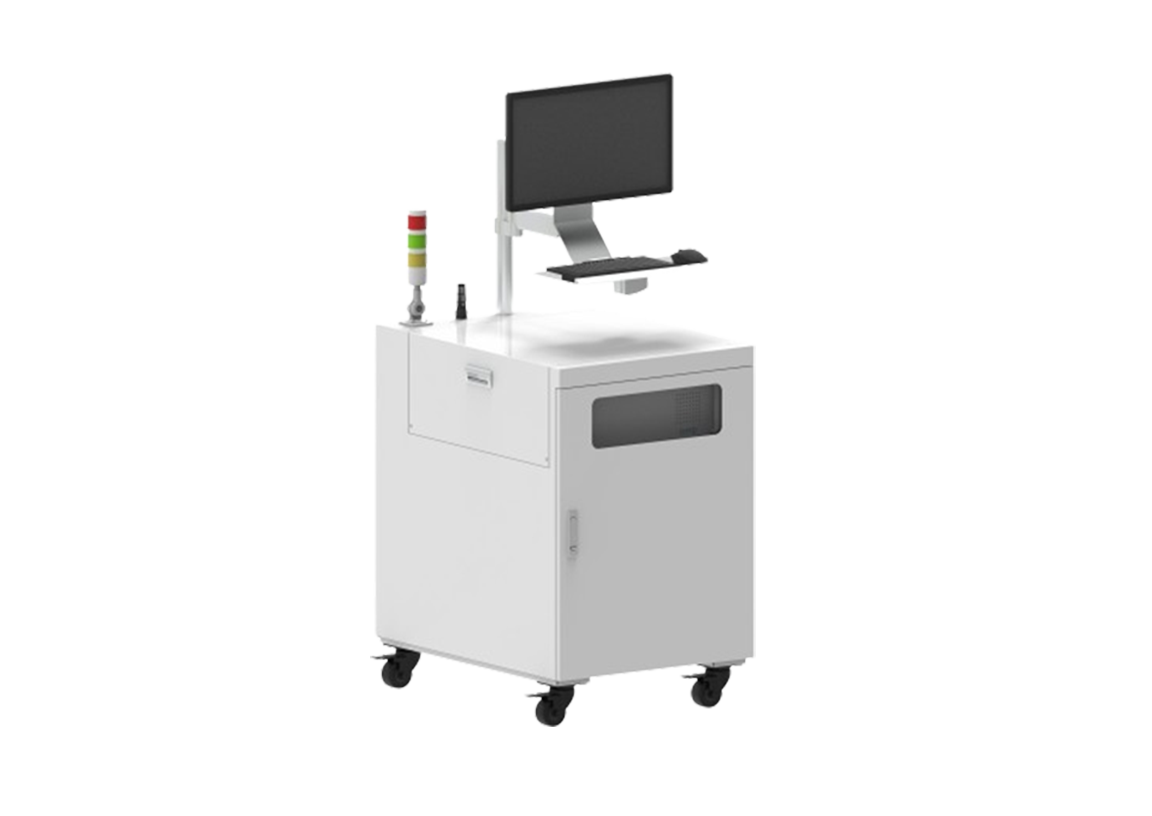

OCT Penetration Online Detection System

The weld penetration detection technology is based on Optical Coherence Tomography (OCT). When the optical path difference between the light signal returned from the welding optical path and the reference light signal falls within the coherence length of the light source, interference occurs. This allows the system to extract and image light signals containing weld penetration information.

It provides real-time, high-resolution, non-invasive tomographic measurement of the internal structure of the material being tested. With its high precision and strong repeatability, the penetration depth detection technology enables faster, more accurate, and more efficient welding, improves yield, and ensures better control of welding results.

  • 25/20 μm
    Lateral/Axial Scanning Accuracy
  • 10 mm
    Maximum Scanning Depth
  • 80/150/250 kHz
    Scanning Frequency
  • Product Advantages

  • Specifications

  • Related Products

Product Advantages

  • Ultra-Fast & Micron-Level Precision

    Achieves scanning speeds up to 250 kHz with micron-level resolution, enabling real-time high-accuracy imaging of weld penetration.

  • Non-Destructive & Reliable Detection

    Performs high-resolution OCT imaging without affecting the workpiece or welding optics, ensuring safe and worry-free operation.

  • Wide Compatibility & Flexible Integration

    Seamlessly integrates with pulsed, quasi-continuous, and CW laser welding systems, adapting to different speeds and fixtures to improve productivity.

  • Intelligent Evaluation with Instant Feedback

    Automatically records and assesses welding quality in real time, providing immediate alerts for anomalies and reducing manual intervention.

  • Comprehensive Quality Assurance

    Covers pre-weld inspection, in-process monitoring, and post-weld review, ensuring stable, repeatable, and consistent welding results.

Specifications

Product Model
  • OCT Penetration Online Detection System

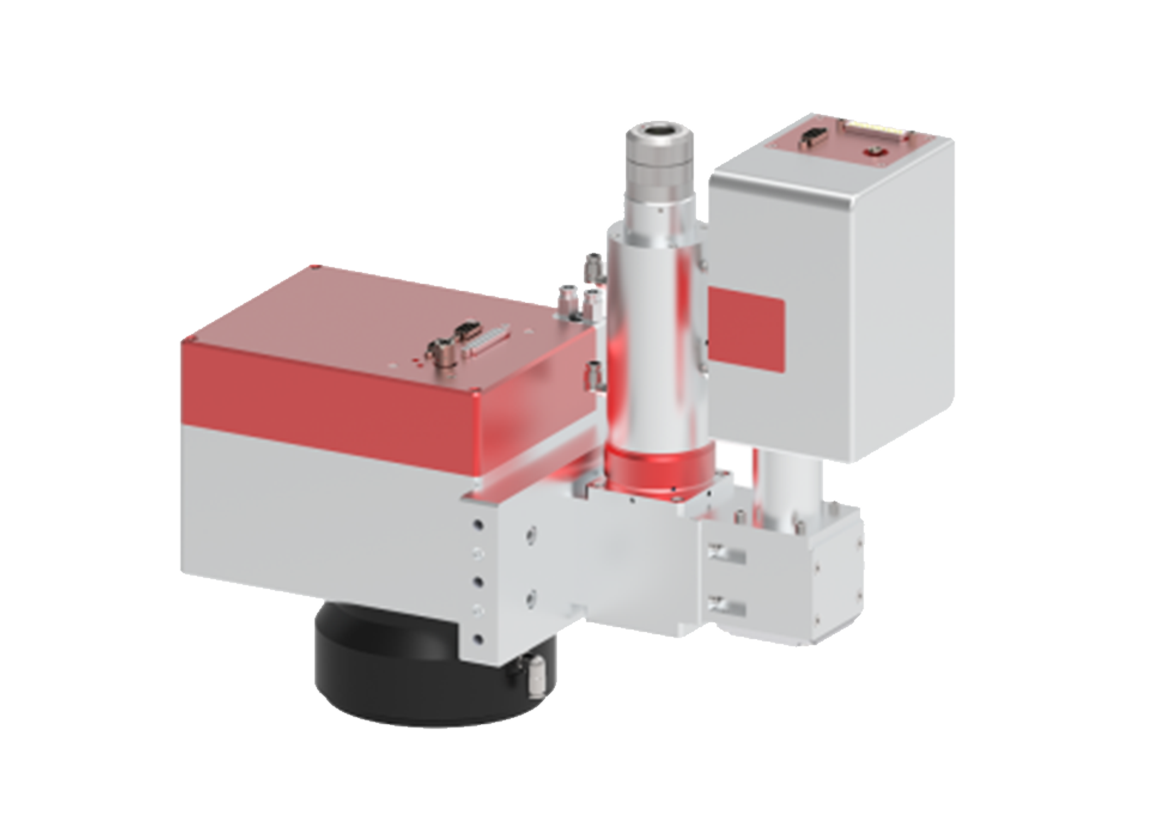

    OCT Penetration Online Detection.png
  • Central Wavelength
  • Scanning Frequency
  • Axial Scanning Accuracy
  • Lateral Scanning Accuracy
  • Maximum Depth
  • Communication Interface
  • OCT Penetration Online Detection System

    OCT Penetration Online Detection.png
    • Central Wavelength
      800 - 900nm
    • Scanning Frequency
      80 / 150 / 250 kHz
    • Axial Scanning Accuracy
      20 μm
    • Lateral Scanning Accuracy
      25 μm
    • Maximum Depth
      10 mm
    • Communication Interface
      RS485,I/O
