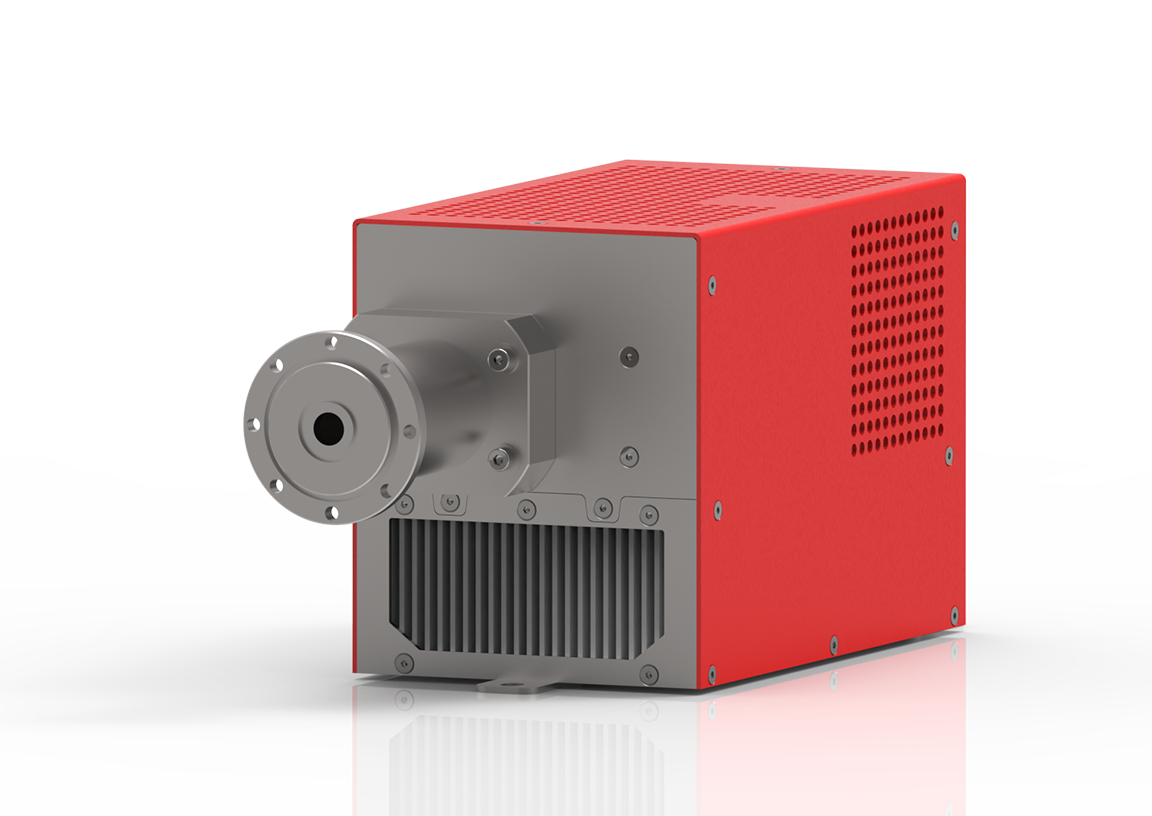

• Sparrow-355-2.png
    Sparrow-355-2

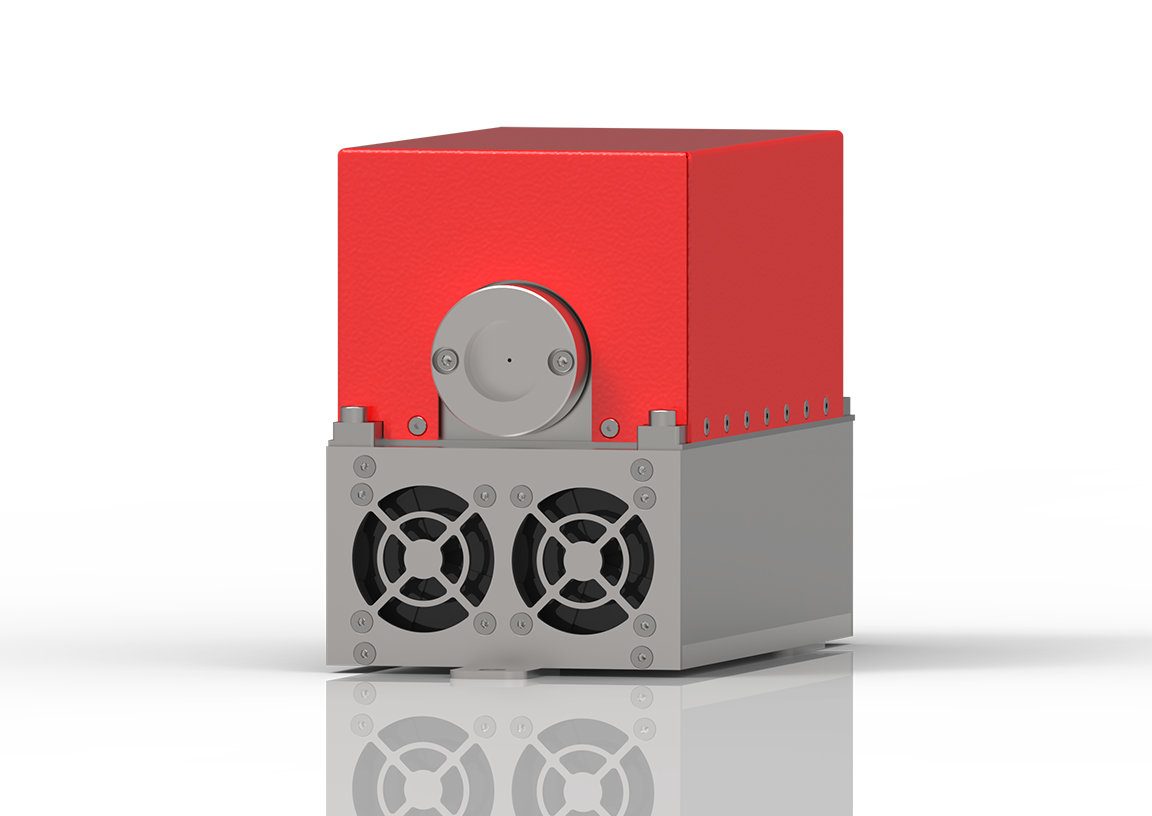

  • Sparrow-532-2 绿光.png
    Sparrow-532-2
  • Sparrow-355-2.png
  • Sparrow-532-2 绿光.png

Sparrow-355/532

800mW-2W

The Sparrow-355-2 represents a newly upgraded air-cooled ultraviolet solid-state laser, featuring further reduced dimensions and weight for optimized customer installation space efficiency.

  • 355/532
    Wavelength
  • 800mW-2W
    Average Power
  • Air Cooled
    Cooling Method
Download
  • Product Advantages

  • Applications

  • Specifications

  • Related Products

  • Application Solutions

Product Advantages

  • Air-Cooled Structure with Intelligent Speed Regulation

  • Compact Form Factor: Reduced Size, Lighter Weight, Enhanced Aesthetics

  • Advanced EMI Resistance | High-Efficiency Thermal Management | User-Friendly GUI Interface

  • Tool-Free Installation | Maintenance-Free Operation

Applications

  • underlay image Mobile phone Case Marking.png
    Mobile phone Case Marking
  • underlay image Cover Film Cutting.png
    Cover Film Cutting
  • underlay image Glass Marking.png
    Glass Marking
  • underlay image Thin Film Drilling.png
    Thin Film Drilling
  • underlay image SLA Photocuring.png
    SLA Photocuring
  • underlay image Plastic Marking.png
    Plastic Marking

Specifications

Product Model
  • Sparrow-355-800
  • Sparrow-355-2
  • Sparrow-532-2
    Sparrow-532-2 绿光.png
  • Wavelength (nm)
  • Average Power (W)
  • Pulse Width (ns)
  • Frequency Range (kHz)
  • Spatial Mode
  • Beam Circularity
  • Beam Full Divergence Angle (mrad)
  • Beam Diameter (mm)
  • Polarization Ratio
  • Polarization Orientation
  • Average Power Stability (hr)
  • Pulse-to-Pulse Stability (kHz)
  • Operating Temp.&RH (℃)
  • Storage Temp.&RH (℃)
  • Cooling Method
  • Electricity Requirement (V)
  • Average Power Consumption (W)
  • Dimensions (L×W×H) (mm)
  • Laser Weight (kg)
  • Sparrow-355-800

    • Wavelength (nm)
      355
    • Average Power (W)
      > 800m@30kHz
    • Pulse Width (ns)
      < 15@30kHz
    • Frequency Range (kHz)
      30 ~ 150
    • Spatial Mode
      TEM00
    • ≤ 1.3
    • Beam Circularity
      > 85%
    • Beam Full Divergence Angle (mrad)
      < 2.5
    • Beam Diameter (mm)
      0.45 ± 0.15
    • Polarization Ratio
      > 100:1
    • Polarization Orientation
      Horizontal
    • Average Power Stability (hr)
      RMS ≤ 5%@24
    • Pulse-to-Pulse Stability (kHz)
      RMS ≤ 5%@30
    • Operating Temp.&RH (℃)
      0 ~ 35; < 80%
    • Storage Temp.&RH (℃)
      -15 ~ 50; < 90%
    • Cooling Method
      Air Cooled
    • Electricity Requirement (V)
      12 (DC)
    • Average Power Consumption (W)
      < 75
    • Dimensions (L×W×H) (mm)
      173.5 × 93.6 × 133.1
    • Laser Weight (kg)
      2.6
  • Sparrow-355-2

    • Wavelength (nm)
      355
    • Average Power (W)
      > 2@30kHz
    • Pulse Width (ns)
      < 18@30kHz
    • Frequency Range (kHz)
      20 ~ 200
    • Spatial Mode
      TEM00
    • ≤ 1.2
    • Beam Circularity
      > 90%
    • Beam Full Divergence Angle (mrad)
      ≤ 2
    • Beam Diameter (mm)
      0.45 ± 0.15
    • Polarization Ratio
      > 100:1
    • Polarization Orientation
      Horizontal
    • Average Power Stability (hr)
      RMS ≤ 3%@24
    • Pulse-to-Pulse Stability (kHz)
      RMS ≤ 3%@30
    • Operating Temp.&RH (℃)
      0 ~ 40; < 80%
    • Storage Temp.&RH (℃)
      -15 ~ 50; < 90%
    • Cooling Method
      Air Cooled
    • Electricity Requirement (V)
      12 (DC)
    • Average Power Consumption (W)
      <120
    • Dimensions (L×W×H) (mm)
      200.5 × 114 × 137
    • Laser Weight (kg)
      4.32
  • Sparrow-532-2

    Sparrow-532-2 绿光.png
    • Wavelength (nm)
      532
    • Average Power (W)
      > 2@80kHz
    • Pulse Width (ns)
      < 15@80kHz
    • Frequency Range (kHz)
      30 ~ 150
    • Spatial Mode
      TEM00
    • ≤ 1.3
    • Beam Circularity
      > 85%
    • Beam Full Divergence Angle (mrad)
      < 3.0
    • Beam Diameter (mm)
      0.45 ± 0.15
    • Polarization Ratio
      > 100:1
    • Polarization Orientation
      Vertical
    • Average Power Stability (hr)
      RMS ≤ 5%@24
    • Pulse-to-Pulse Stability (kHz)
      RMS ≤ 5%@80
    • Operating Temp.&RH (℃)
      0 ~ 35; < 80%
    • Storage Temp.&RH (℃)
      -15 ~ 50; < 90%
    • Cooling Method
      Air Cooled
    • Electricity Requirement (V)
      12 (DC)
    • Average Power Consumption (W)
      < 75
    • Dimensions (L×W×H) (mm)
      173.4 × 92 × 129.6
    • Laser Weight (kg)
      2.6
