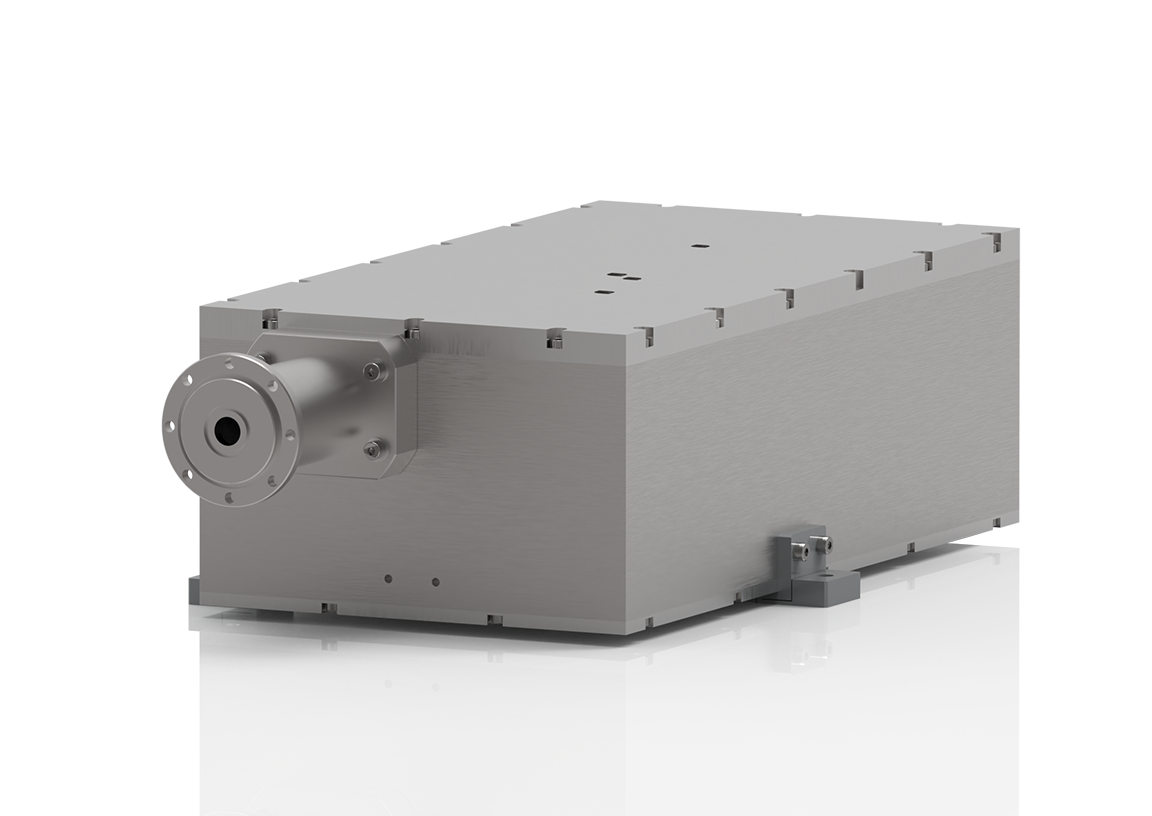

• seal-532-20.png
    seal-532-20

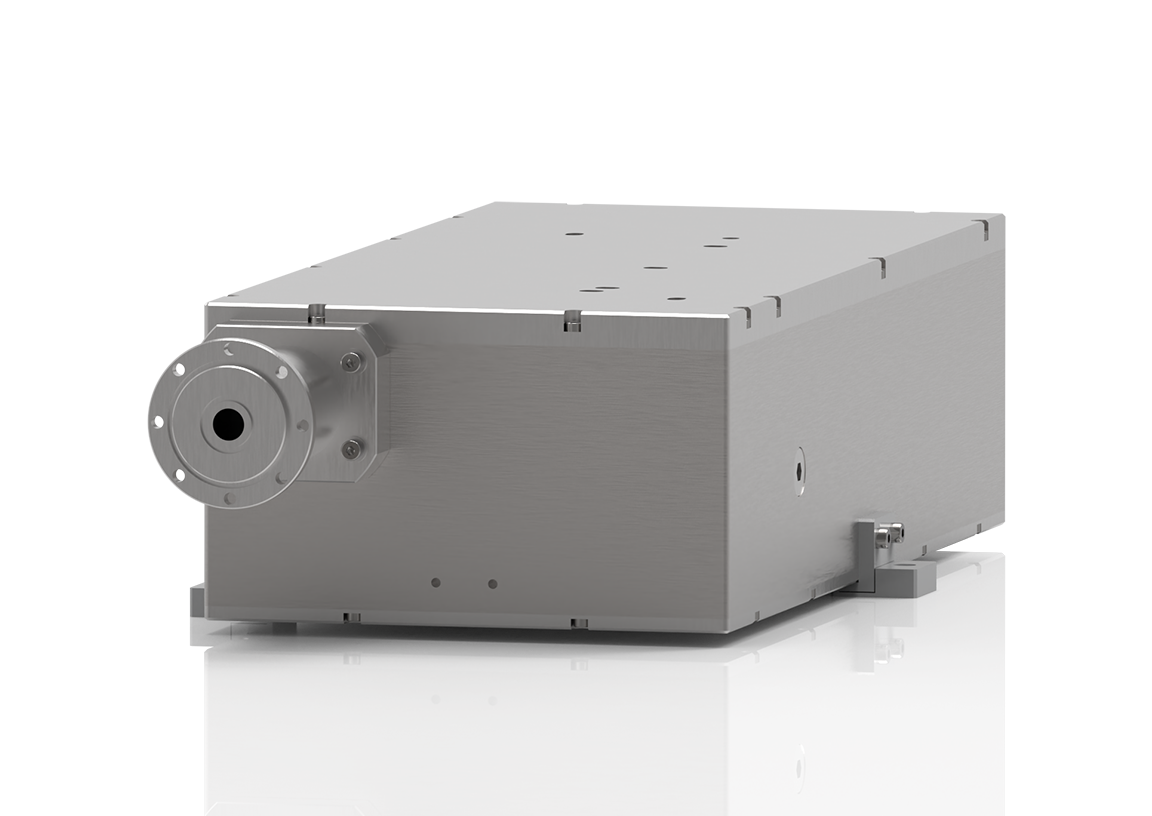

  • seal-532-40S.png
    seal-532-30
  • seal-532-20.png
  • seal-532-40S.png

SEAL 532-7/10/20/30

7-30W

SEAL 532 is the green laser model in this series, featuring exceptional beam quality and optimal spot characteristics. The laser system adopts a monolithic integrated design, combining both optical path and external drive circuitry into a single unit, which provides superior electromagnetic interference (EMI) resistance.The upgraded fully hermetic structure effectively prevents external particulate contamination while creating a moisture barrier that delivers outstanding humidity resistance, enabling the SEAL series to perform reliably in harsh industrial environments.Additionally, the incorporation of an internal self-cleaning system significantly extends the operational lifespan.

  • 532nm
    Wavelength
  • 7-30W
    Average Power
  • Water Cooled
    Cooling Method
Download
  • Product Advantages

  • Applications

  • Specifications

  • Related Products

  • Application Solutions

Product Advantages

  • Integrated Optoelectronic System with EMI Shielding and One-Touch Operation

  • Hermetically Sealed Enclosure Providing IP6X Dustproof and Moisture-Resistant Protection

  • Integrated Cavity Self-Purification Technology for Enhanced Operational Longevity

  • Compact Footprint Design Optimizing Space Utilization in Industrial Integration

Applications

  • underlay image Mobile phone Case Marking.png
    Mobile phone Case Marking
  • underlay image Cover Film Cutting.png
    Cover Film Cutting
  • underlay image Glass Marking.png
    Glass Marking
  • underlay image Thin Film Drilling.png
    Thin Film Drilling
  • underlay image SLA Photocuring.png
    SLA Photocuring
  • underlay image Plastic Marking.png
    Plastic Marking

Specifications

Product Model
  • Seal-532-7
  • Seal-532-10
  • Seal-532-20
  • Seal-532-30
  • Wavelength (nm)
  • Average Power (W)
  • Pulse Width (ns)
  • Frequency Range (kHz)
  • Spatial Mode
  • Beam Circularity
  • Beam Full Divergence Angle (mrad)
  • Beam Diameter (mm)
  • Polarization Ratio
  • Polarization Orientation
  • Average Power Stability (hr)
  • Pulse-to-Pulse Stability (kHz)
  • Operating Temp.&RH (℃)
  • Storage Temp.&RH (℃)
  • Cooling Method
  • Cooling Capacity Requirement (W)
  • Electricity Requirement (V)
  • Average Power Consumption (W)
  • Dimensions (L×W×H) (mm)
  • Laser Weight (kg)
  • Seal-532-7

    • Wavelength (nm)
      532
    • Average Power (W)
      >7@50kHz
    • Pulse Width (ns)
      <18@50kHz
    • Frequency Range (kHz)
      40~300
    • Spatial Mode
      TEM00
    • ≤1.2
    • Beam Circularity
      >90%
    • Beam Full Divergence Angle (mrad)
      ≤3.0
    • Beam Diameter (mm)
      0.6±0.15
    • Polarization Ratio
      >100:1
    • Polarization Orientation
      Vertical
    • Average Power Stability (hr)
      RMS≤3%@24
    • Pulse-to-Pulse Stability (kHz)
      RMS≤3%@40
    • Operating Temp.&RH (℃)
      0~40; <80%
    • Storage Temp.&RH (℃)
      -15~50; <90%
    • Cooling Method
      Water Cooled
    • Cooling Capacity Requirement (W)
      500
    • Electricity Requirement (V)
      12 (DC)
    • Average Power Consumption (W)
      <200
    • Dimensions (L×W×H) (mm)
      290×180×114
    • Laser Weight (kg)
      8.7
  • Seal-532-10

    • Wavelength (nm)
      532
    • Average Power (W)
      >10@50kHz
    • Pulse Width (ns)
      <18@50kHz
    • Frequency Range (kHz)
      40~300
    • Spatial Mode
      TEM00
    • ≤1.2
    • Beam Circularity
      >90%
    • Beam Full Divergence Angle (mrad)
      ≤3.0
    • Beam Diameter (mm)
      0.6±0.15
    • Polarization Ratio
      >100:1
    • Polarization Orientation
      Vertical
    • Average Power Stability (hr)
      RMS≤3%@24
    • Pulse-to-Pulse Stability (kHz)
      RMS≤3%@40
    • Operating Temp.&RH (℃)
      0~40; <80%
    • Storage Temp.&RH (℃)
      -15~50; <90%
    • Cooling Method
      Water Cooled
    • Cooling Capacity Requirement (W)
      500
    • Electricity Requirement (V)
      12 (DC)
    • Average Power Consumption (W)
      <200
    • Dimensions (L×W×H) (mm)
      290×180×114
    • Laser Weight (kg)
      8.7
  • Seal-532-20

    • Wavelength (nm)
      532
    • Average Power (W)
      >20@80kHz
    • Pulse Width (ns)
      <18@80kHz
    • Frequency Range (kHz)
      40~300
    • Spatial Mode
      TEM00
    • ≤1.2
    • Beam Circularity
      >90%
    • Beam Full Divergence Angle (mrad)
      ≤2.5
    • Beam Diameter (mm)
      0.7±0.15
    • Polarization Ratio
      >100:1
    • Polarization Orientation
      Vertical
    • Average Power Stability (hr)
      RMS≤3%@24
    • Pulse-to-Pulse Stability (kHz)
      RMS≤3%@80
    • Operating Temp.&RH (℃)
      0~40; <80%
    • Storage Temp.&RH (℃)
      -15~50; <90%
    • Cooling Method
      Water Cooled
    • Cooling Capacity Requirement (W)
      1000
    • Electricity Requirement (V)
      36 (DC)
    • Average Power Consumption (W)
      <250
    • Dimensions (L×W×H) (mm)
      290×180×114
    • Laser Weight (kg)
      8.7
  • Seal-532-30

    • Wavelength (nm)
      532
    • Average Power (W)
      >30@80kHz
    • Pulse Width (ns)
      <18@80kHz
    • Frequency Range (kHz)
      40~300
    • Spatial Mode
      TEM00
    • ≤1.2
    • Beam Circularity
      >90%
    • Beam Full Divergence Angle (mrad)
      ≤2.5
    • Beam Diameter (mm)
      0.7±0.15
    • Polarization Ratio
      >100:1
    • Polarization Orientation
      Vertical
    • Average Power Stability (hr)
      RMS≤3%@24
    • Pulse-to-Pulse Stability (kHz)
      RMS≤3%@80
    • Operating Temp.&RH (℃)
      0~40; <80%
    • Storage Temp.&RH (℃)
      -15~50; <90%
    • Cooling Method
      Water Cooled
    • Cooling Capacity Requirement (W)
      1000
    • Electricity Requirement (V)
      36 (DC)
    • Average Power Consumption (W)
      <250
    • Dimensions (L×W×H) (mm)
      325×180×114
    • Laser Weight (kg)
      9.8
