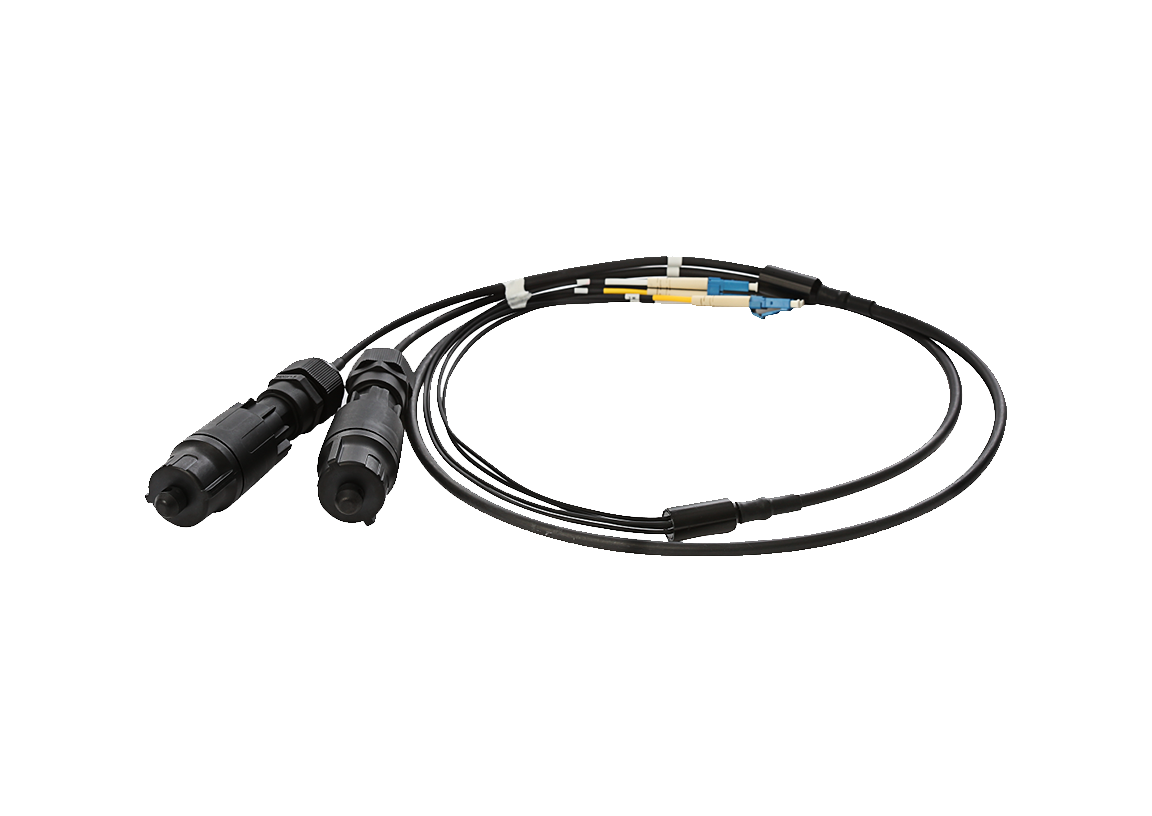

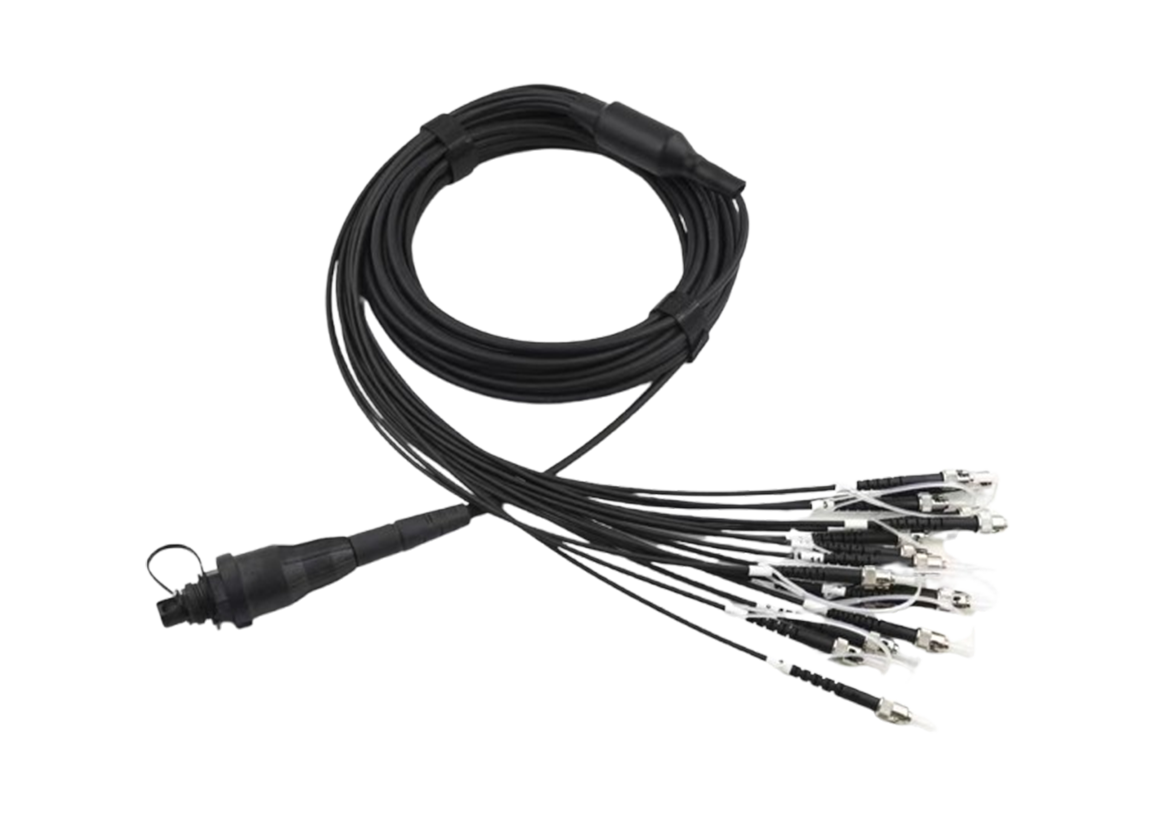

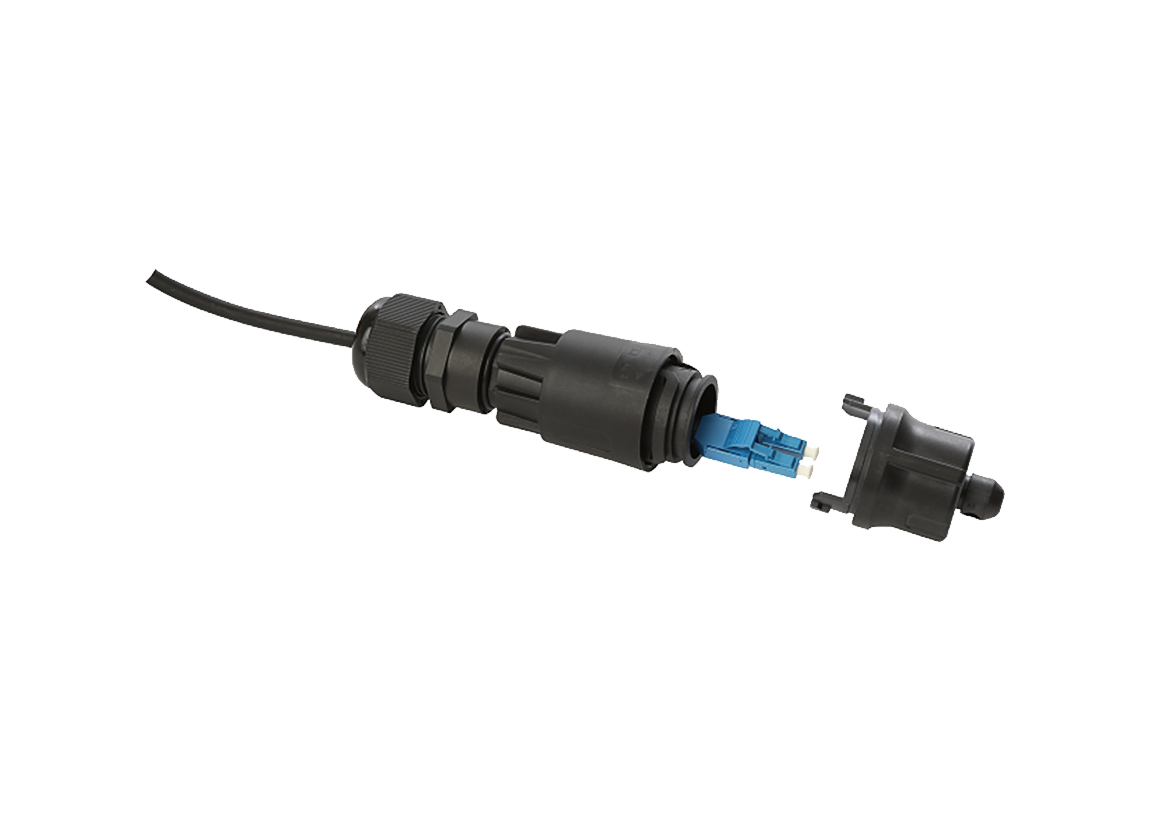

ODVA Outdoor Cable Assembly

With a special mechanical sealing structure, waterproof, dustproof, UV protection, cable assembly is suitable for outdoor environments with variable conditions

  • ≤0.30dB
    Insertion Loss
  • IP67
    Protection Grade
  • Product Feature

  • Product Application

  • Specification

  • Application Solutions

Product Feature

  • IP67 water and dust protection

  • UV resistant, rat-bite resistant

  • Suitable for outdoor environments with variable conditions

  • Factory-assembled cables for a fast on-site installation

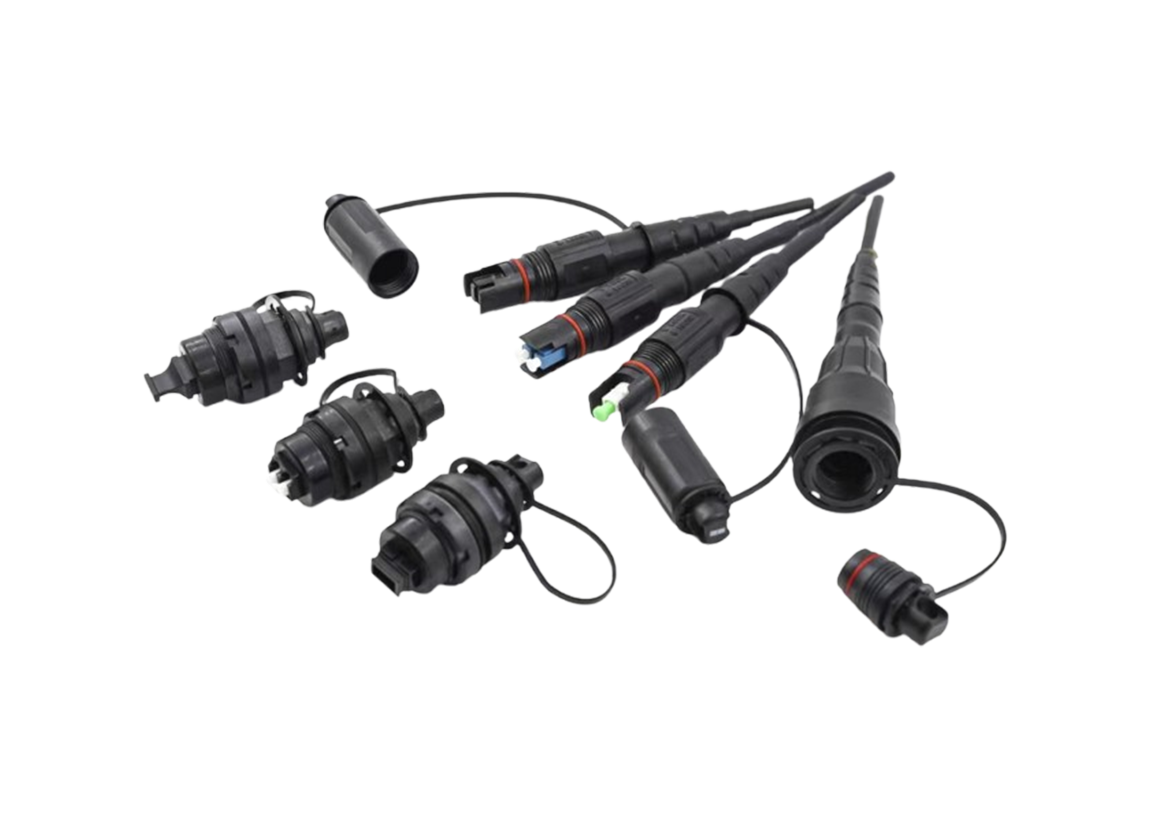

  • Various connector available, such as MPO/LC/SC, etc

Product Application

  • underlay image 应用于远程无线塔基站1.jpg
    Applied to remote wireless base station
  • underlay image 用于配线箱和RRH之间的连接1.jpg
    It is used to connect the distribution box to the RRH
  • underlay image 多功能户外跳线1.jpg
    Multifunctional outdoor patchcord

Specification

Product Model
  • ODVA Outdoor Cable Assembly
  • ODVA Outdoor Cable Assembly
  • ODVA Outdoor Cable Assembly
  • Fiber Mode
  • End-face Finishing
  • Insertion Loss (dB)
  • Return Loss (dB)
  • Exchangeability (dB)
  • Repeatability (dB)
  • Operating Temperature(℃)
  • Operating Wavelength(nm)
  • Tensile Strength (N)
  • ODVA Outdoor Cable Assembly

    • Fiber Mode
      SM
    • End-face Finishing
      UPC
    • Insertion Loss (dB)
      ≤0.30
    • Return Loss (dB)
      ≥50
    • Exchangeability (dB)
      ≤0.20
    • Repeatability (dB)
      ≤0.20
    • Operating Temperature(℃)
      -40 ~+ 80℃
    • Operating Wavelength(nm)
      1310, 1550
    • Tensile Strength (N)
      ≥300
  • ODVA Outdoor Cable Assembly

    • Fiber Mode
      SM
    • End-face Finishing
      APC
    • Insertion Loss (dB)
      ≤0.30
    • Return Loss (dB)
      ≥60
    • Exchangeability (dB)
      ≤0.20
    • Repeatability (dB)
      ≤0.20
    • Operating Temperature(℃)
      -40 ~+ 80℃
    • Operating Wavelength(nm)
      1310, 1550
    • Tensile Strength (N)
      ≥300
  • ODVA Outdoor Cable Assembly

    • Fiber Mode
      MM
    • End-face Finishing
      PC
    • Insertion Loss (dB)
      ≤0.30
    • Return Loss (dB)
      ≥35
    • Exchangeability (dB)
      ≤0.20
    • Repeatability (dB)
      ≤0.20
    • Operating Temperature(℃)
      -40 ~+ 80℃
    • Operating Wavelength(nm)
      850, 1300
    • Tensile Strength (N)
      ≥300
