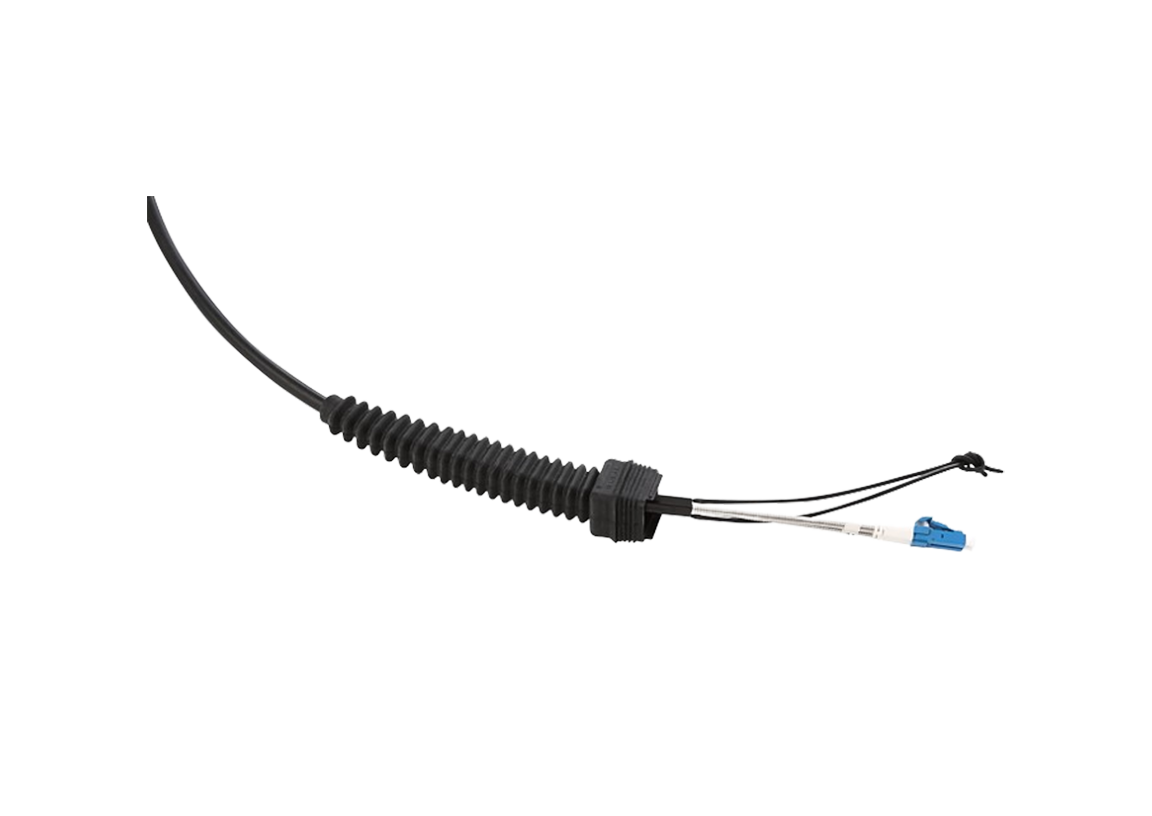

NSN Boot Outdoor Cable Assembly
With a special mechanical sealing structure, waterproof, dustproof, UV protection, cable assembly is suitable for outdoor environments with variable conditions
-
≤0.30dBInsertion Loss
-
IP65Protection Grade
-
Product Feature
-
Product Application
-
Specification
-
Application Solutions
Product Feature
-
IP67 water and dust protection
-
UV resistant, rat-bite resistant
-
Suitable for outdoor environments with variable conditions
-
Factory-assembled cables for a fast on-site installation
-
Capacity 2 to 6 fiber cores, LC connector or specified connector
Product Application
-
Applied to remote wireless base station -
It is used to connect the distribution box to the RRH -
Multifunctional outdoor patchcord
Specification
Product Model
-
NSN Boot Outdoor Cable Assembly
-
NSN Boot Outdoor Cable Assembly
-
NSN Boot Outdoor Cable Assembly
-
Fiber Mode
-
End-face Finishing
-
Insertion Loss (dB)
-
Return Loss (dB)
-
Exchangeability (dB)
-
Repeatability (dB)
-
Operating Temperature(℃)
-
Operating Wavelength(nm)
-
Tensile Strength (N)
-
NSN Boot Outdoor Cable Assembly
-
Fiber ModeSM
-
End-face FinishingUPC
-
Insertion Loss (dB)≤0.30
-
Return Loss (dB)≥50
-
Exchangeability (dB)≤0.20
-
Repeatability (dB)≤0.20
-
Operating Temperature(℃)-40 ~+ 80℃
-
Operating Wavelength(nm)1310, 1550
-
Tensile Strength (N)≥300
-
-
NSN Boot Outdoor Cable Assembly
-
Fiber ModeSM
-
End-face FinishingAPC
-
Insertion Loss (dB)≤0.30
-
Return Loss (dB)≥60
-
Exchangeability (dB)≤0.20
-
Repeatability (dB)≤0.20
-
Operating Temperature(℃)-40 ~+ 80℃
-
Operating Wavelength(nm)1310, 1550
-
Tensile Strength (N)≥300
-
-
NSN Boot Outdoor Cable Assembly
-
Fiber ModeMM
-
End-face FinishingPC
-
Insertion Loss (dB)≤0.30
-
Return Loss (dB)≥35
-
Exchangeability (dB)≤0.20
-
Repeatability (dB)≤0.20
-
Operating Temperature(℃)-40 ~+ 80℃
-
Operating Wavelength(nm)850, 1300
-
Tensile Strength (N)≥300
-
