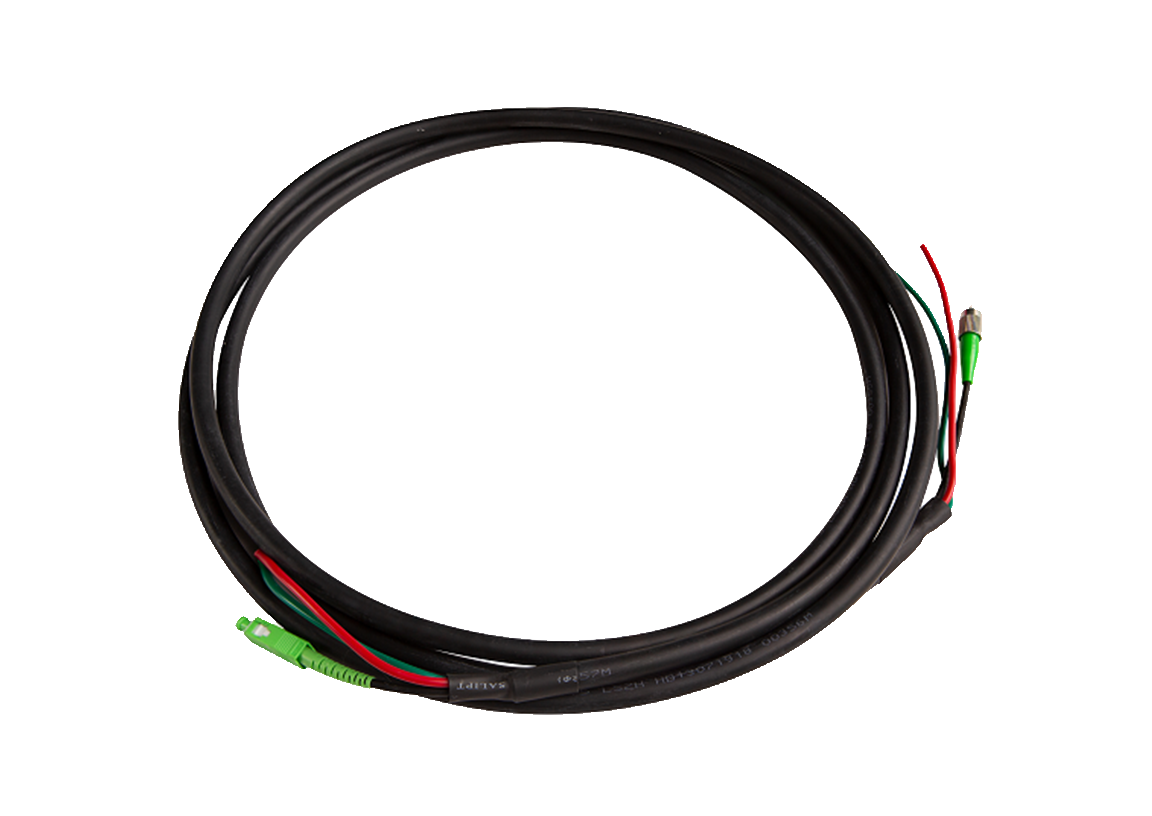

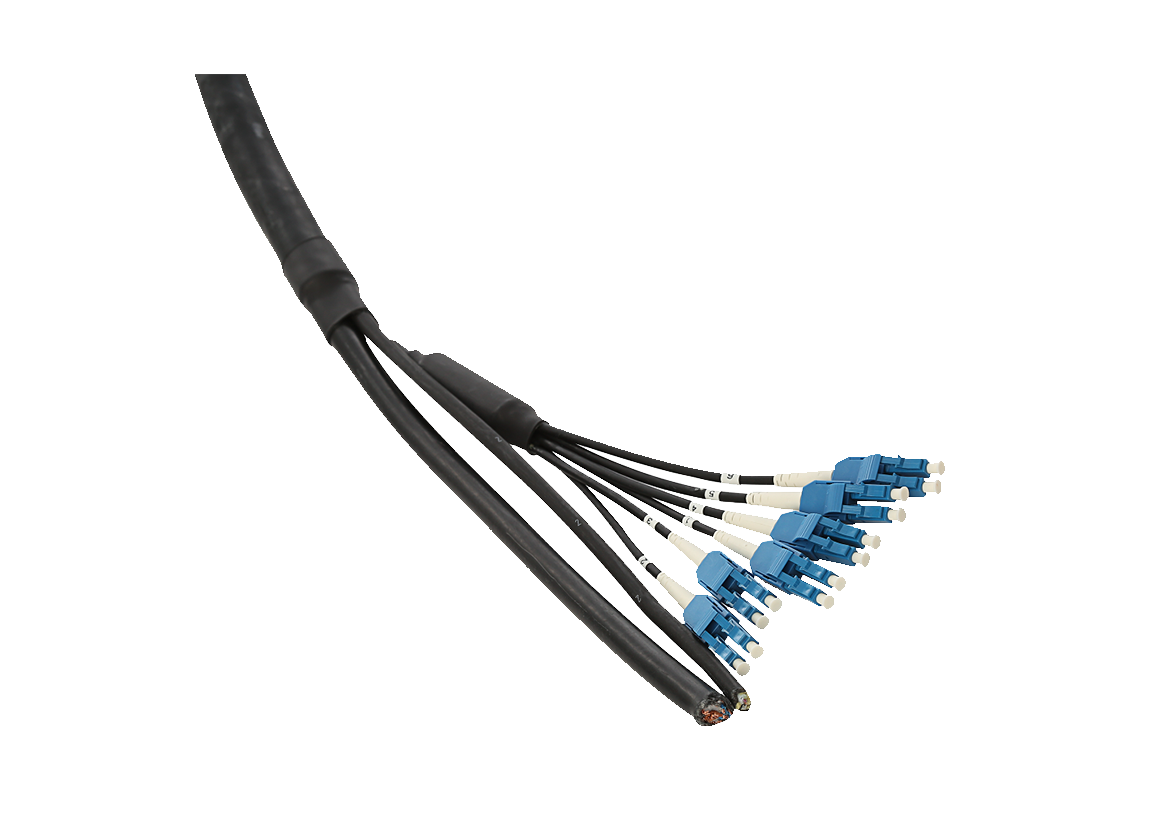

Hybrid Optoelectric Cable Assembly

OECC cable assembly is applied for optical and electric signal transmission, telecommunication system, LAN System, pipe laying and base station. It features dynamic combination with optical communication and power transmission. What 's more, OECC Patch cord enhance the cable's block water performance and service life by using the resistance water material and so on, we provide a series of GTTS cable assembly with difference meters, size, materials for special applications. All products meet Telcordia-GR-326-CORE, IEC-61754,IEC 62807-3 and RoHS requirements.

  • ≤0.30dB
    Insertion Loss
  • Customized Structure
    Cable Structrure
  • Product Feature

  • Product Application

  • Specification

  • Application Solutions

Product Feature

  • High return loss and low insertion loss

  • High reliability and stability

  • Operating temperature range: -40℃~+75℃

  • Customized packaging and configuration

Product Application

  • underlay image FTTA布线1.jpg
    FTTA cable distribution
  • underlay image 智慧城市与工业场景1.jpg
    Smart city and industrial scene
  • underlay image 5G小基站1.jpg
    5G small base station
  • underlay image 园区网络1.jpg
    Zone network

Specification

Product Model
  • Hybrid Optoelectric Cable Assembly
  • Hybrid Optoelectric Cable Assembly
  • Hybrid Optoelectric Cable Assembly
  • Fiber Mode
  • End-face Finishing
  • Insertion Loss (dB)
  • Return Loss (dB)
  • Exchangeability (dB)
  • Repeatability (dB)
  • Operating Temperature(℃)
  • Operating Wavelength(nm)
  • Tensile Strength (N)
  • Hybrid Optoelectric Cable Assembly

    • Fiber Mode
      SM
    • End-face Finishing
      UPC
    • Insertion Loss (dB)
      ≤0.30
    • Return Loss (dB)
      ≥50
    • Exchangeability (dB)
      ≤0.20
    • Repeatability (dB)
      ≤0.20
    • Operating Temperature(℃)
      -40 ~+ 75℃
    • Operating Wavelength(nm)
      1310, 1550
    • Tensile Strength (N)
      ≥300
  • Hybrid Optoelectric Cable Assembly

    • Fiber Mode
      SM
    • End-face Finishing
      APC
    • Insertion Loss (dB)
      ≤0.30
    • Return Loss (dB)
      ≥60
    • Exchangeability (dB)
      ≤0.20
    • Repeatability (dB)
      ≤0.20
    • Operating Temperature(℃)
      -40 ~+ 75℃
    • Operating Wavelength(nm)
      1310, 1550
    • Tensile Strength (N)
      ≥300
  • Hybrid Optoelectric Cable Assembly

    • Fiber Mode
      MM
    • End-face Finishing
      PC
    • Insertion Loss (dB)
      ≤0.30
    • Return Loss (dB)
      ≥35
    • Exchangeability (dB)
      ≤0.20
    • Repeatability (dB)
      ≤0.20
    • Operating Temperature(℃)
      -40 ~+ 75℃
    • Operating Wavelength(nm)
      850, 1300
    • Tensile Strength (N)
      ≥300
