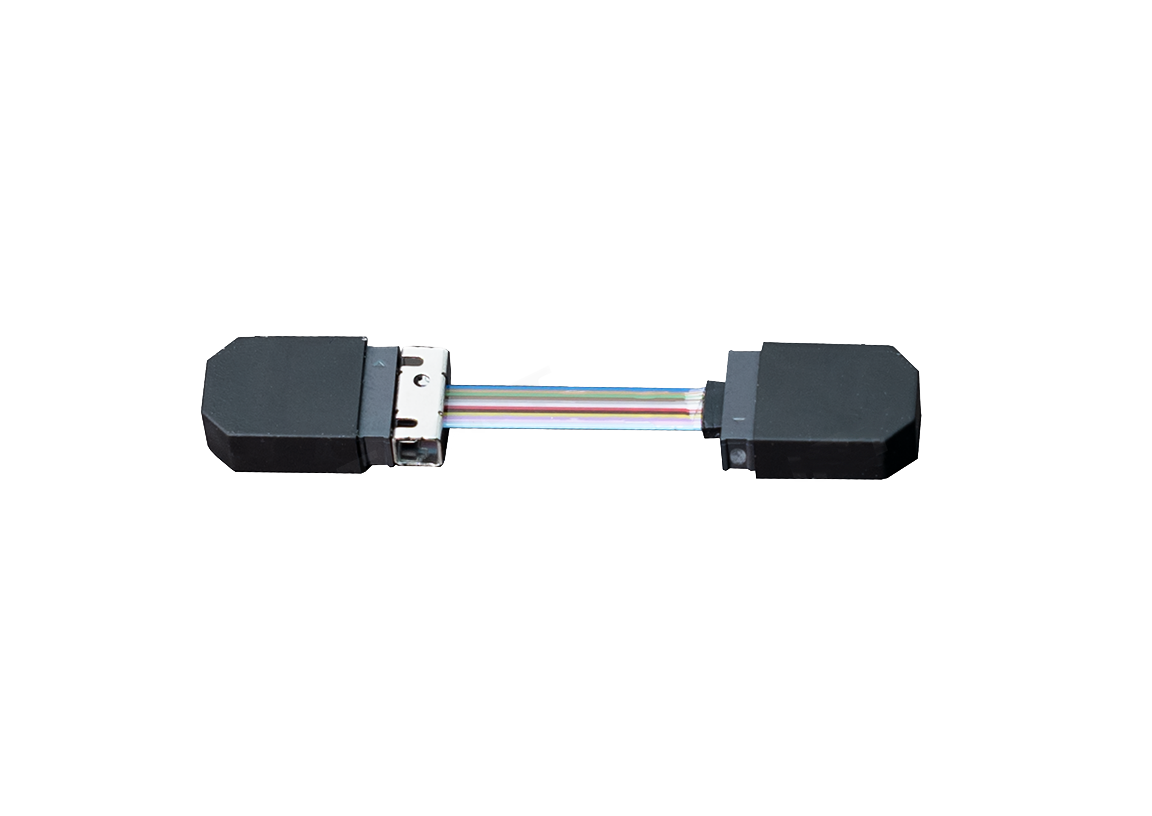

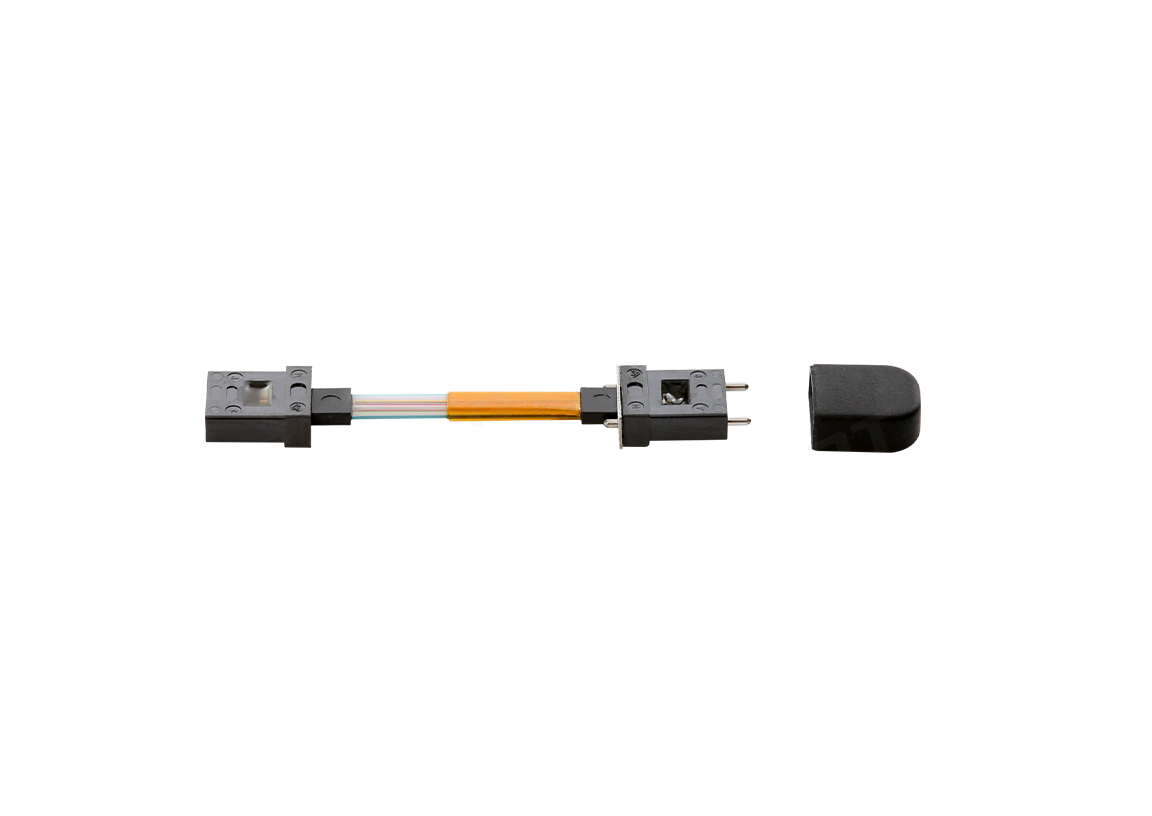

MT-MT Short Patchcord

MT-MT short patchcord is mainly used for a parallel optical technology module (QSFP) which connects the internal optical lens and external port to meet the signal transmission of the optical module. By miniaturization, high precision and customized design, MT short jumper solves the contradiction between the limited space inside the high-speed optical module and the high-density wiring.

  • ≤0.35dB
    Insertion Loss
  • SM APC≥60dB
    Return Loss
  • Product Feature

  • Product Application

  • Specification

  • Application Solutions

Product Feature

  • Comply with IEC-61754-7, GR-468-CORE, RoHS

  • Quick insertion and withdraw, easy to operate

  • Low insertion loss and high return loss

Product Application

  • underlay image 光纤配线系统1.jpg
    Optical fiber distribution system
  • underlay image PC间数据平行交换应用1.jpg
    Application of parallel data exchange between PC
  • underlay image 10G-40G-100G-400G网络传输1.jpg
    40G/100G/400G/800G network transmission
  • underlay image 光模块,AOC,交换设备1.jpg
    Optical module, AOC, Switching equipment
  • underlay image 数据中心互联1.jpg
    Apply for AWG/WSS/VMUX/OCM/MCS

Specification

Product Model
  • MT-MT Short Patchcord
  • MT-MT Short Patchcord
  • MT-MT Short Patchcord
  • MT-MT Short Patchcord
  • Test Items
  • Insertion Loss
  • Return Loss
  • Durability
  • Operating Temperature(℃)
  • Test Wavelength
  • MT-MT Short Patchcord

    • Test Items
      SM (APC)
    • Insertion Loss
      Standard: ≤0.70dB
    • Return Loss
      ≥60dB
    • Durability
      ≥200 times
    • Operating Temperature(℃)
      -25 ~ + 70℃
    • Test Wavelength
      1310nm/1550nm
  • MT-MT Short Patchcord

    • Test Items
      SM (APC)
    • Insertion Loss
      Elite / Low: ≤0.35dB
    • Return Loss
      ≥60dB
    • Durability
      ≥200 times
    • Operating Temperature(℃)
      -25 ~ + 70℃
    • Test Wavelength
      1310nm/1550nm
  • MT-MT Short Patchcord

    • Test Items
      MM (PC)
    • Insertion Loss
      Standard: ≤0.50dB
    • Return Loss
      ≥20dB
    • Durability
      ≥200 times
    • Operating Temperature(℃)
      -25 ~ + 70℃
    • Test Wavelength
      850nm/1300nm
  • MT-MT Short Patchcord

    • Test Items
      MM (PC)
    • Insertion Loss
      Elite / Low: ≤0.35dB
    • Return Loss
      ≥20dB
    • Durability
      ≥200 times
    • Operating Temperature(℃)
      -25 ~ + 70℃
    • Test Wavelength
      850nm/1300nm
