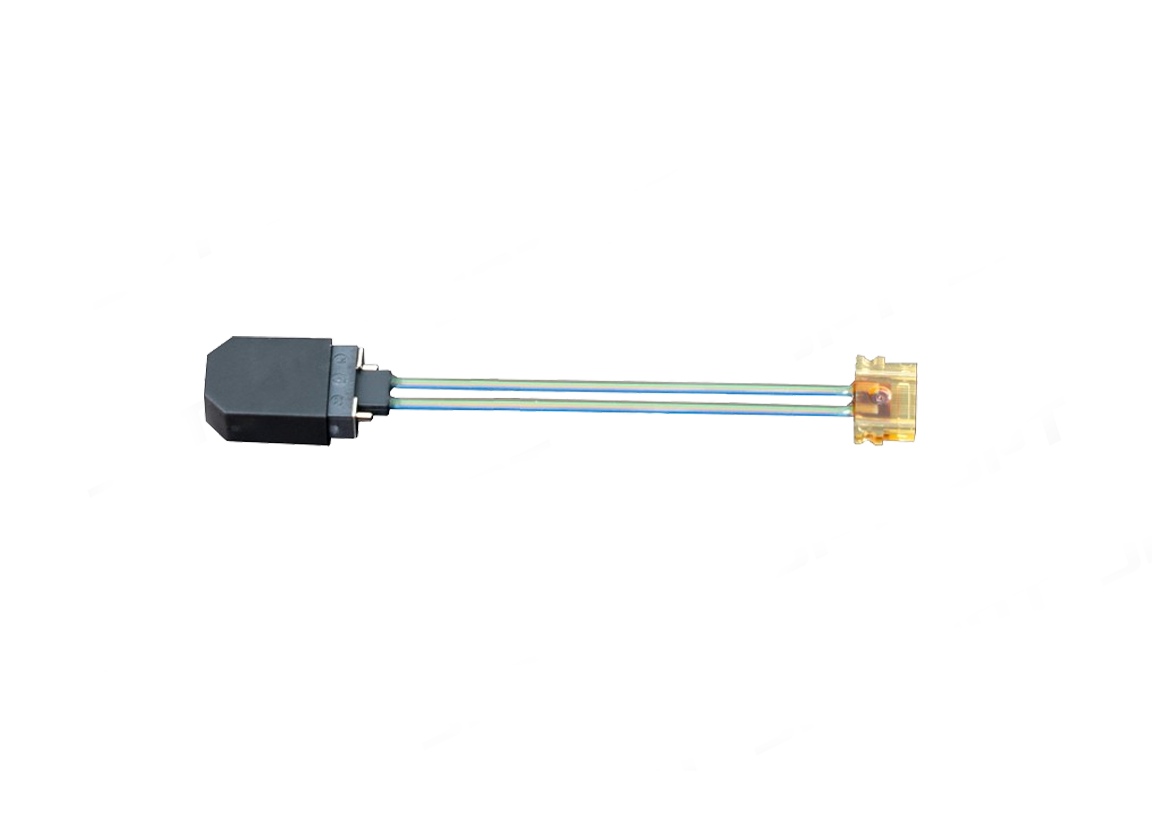

MT-Jumper

MT-jumper is mainly used for a parallel optical technology module (QSFP) which connects the internal optical lens and external port to meet the signal transmission of the optical module. By miniaturization, high precision and customized design, MT-jumper solves the contradiction between the limited space inside the high-speed optical module and the high-density wiring.

  • ≤0.35dB
    Insertion Loss
  • SM APC≥60dB
    Return Loss
  • Product Feature

  • Product Application

  • Specification

  • Application Solutions

Product Feature

  • Comply with IEC-61754-7, GR-468-CORE, RoHS

  • Quick insertion and withdraw, easy to operate

  • Low insertion loss and high return loss

Product Application

  • underlay image 数据中心互联1.jpg
    Apply for AWG/WSS/VMUX/OCM/MCS

Specification

Product Model
  • MT-Jumper
  • MT-Jumper
  • MT-Jumper
  • MT-Jumper
  • Test Items
  • Insertion Loss
  • Return Loss
  • Durability
  • Operating Temperature(℃)
  • Test Wavelength
  • MT-Jumper

    • Test Items
      SM (APC)
    • Insertion Loss
      Standard: ≤0.70dB
    • Return Loss
      ≥60dB
    • Durability
      ≥200 times
    • Operating Temperature(℃)
      -25 ~ + 70℃
    • Test Wavelength
      1310nm/1550nm
  • MT-Jumper

    • Test Items
      SM (APC)
    • Insertion Loss
      Elite / Low: ≤0.35dB
    • Return Loss
      ≥60dB
    • Durability
      ≥200 times
    • Operating Temperature(℃)
      -25 ~ + 70℃
    • Test Wavelength
      1310nm/1550nm
  • MT-Jumper

    • Test Items
      MM (PC)
    • Insertion Loss
      Standard: ≤0.50dB
    • Return Loss
      ≥20dB
    • Durability
      ≥200 times
    • Operating Temperature(℃)
      -25 ~ + 70℃
    • Test Wavelength
      850nm/1300nm
  • MT-Jumper

    • Test Items
      MM (PC)
    • Insertion Loss
      Elite / Low: ≤0.35dB
    • Return Loss
      ≥20dB
    • Durability
      ≥200 times
    • Operating Temperature(℃)
      -25 ~ + 70℃
    • Test Wavelength
      850nm/1300nm
