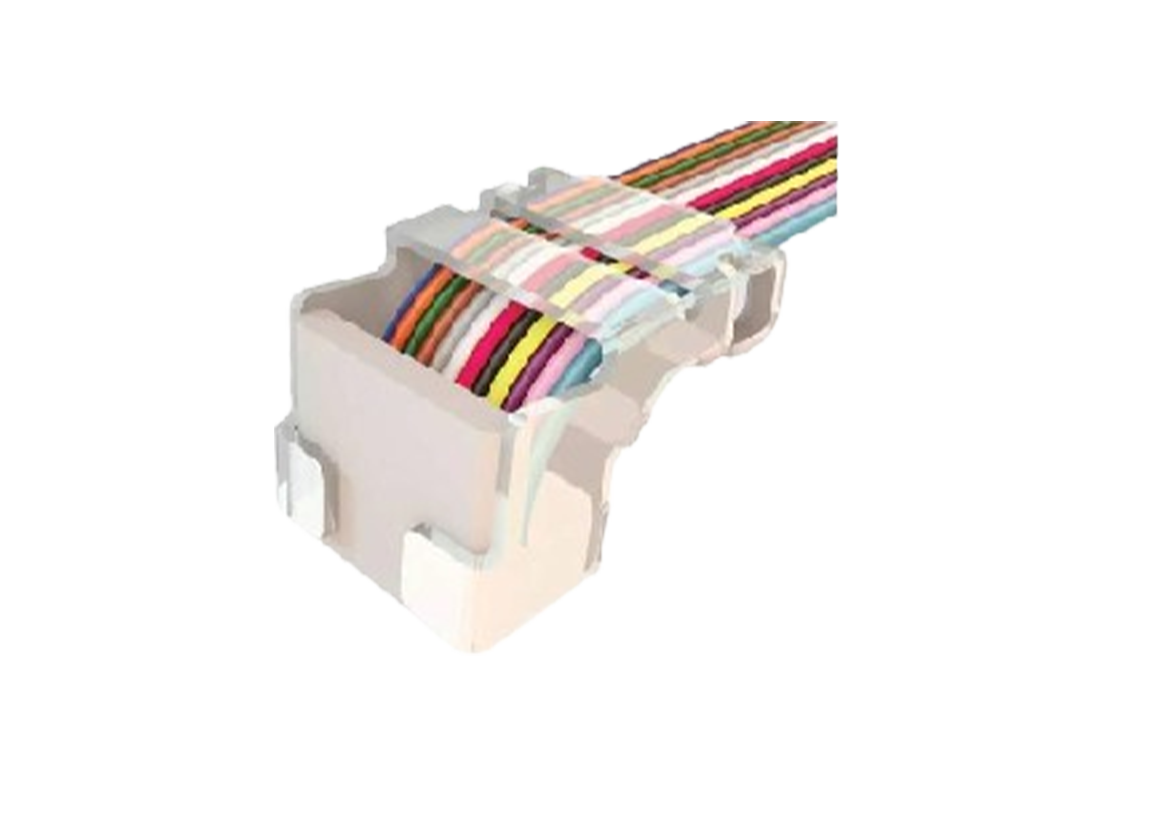

    90°FA
  • MFD FA.png

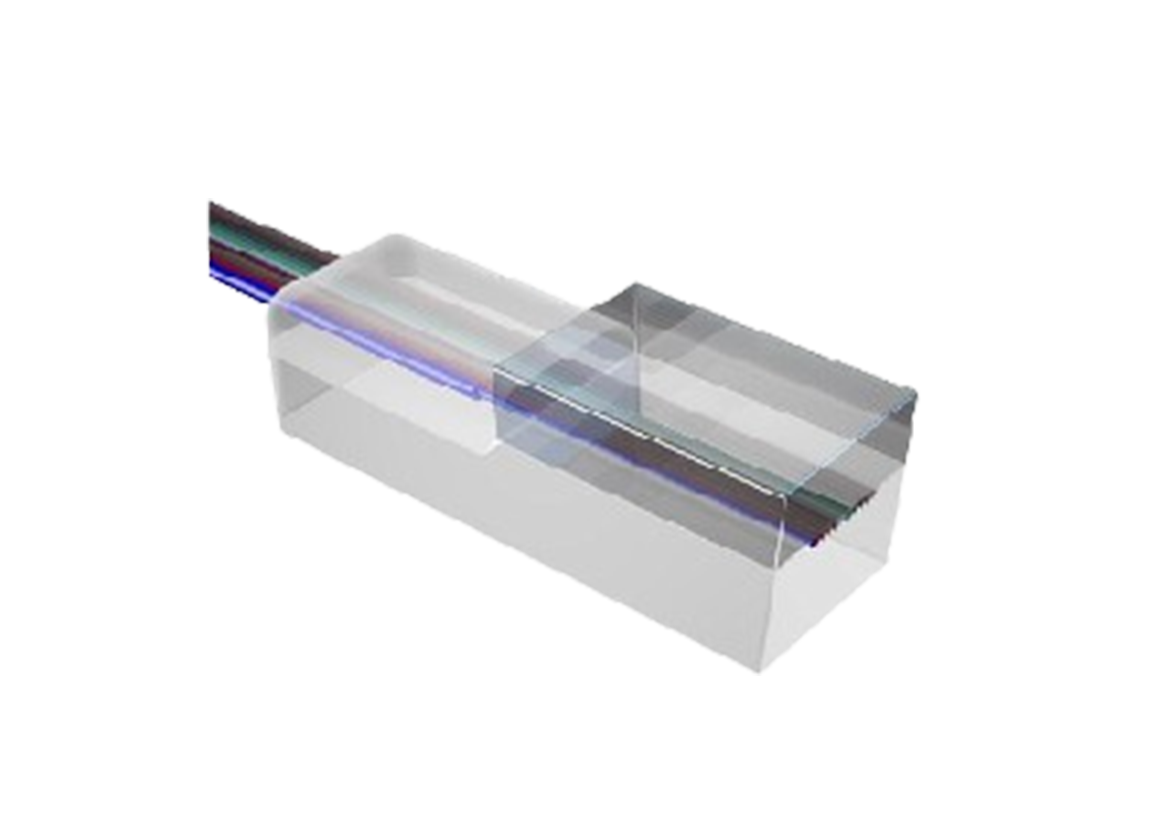

    MFD FA
  • 42.5-45 FA.png

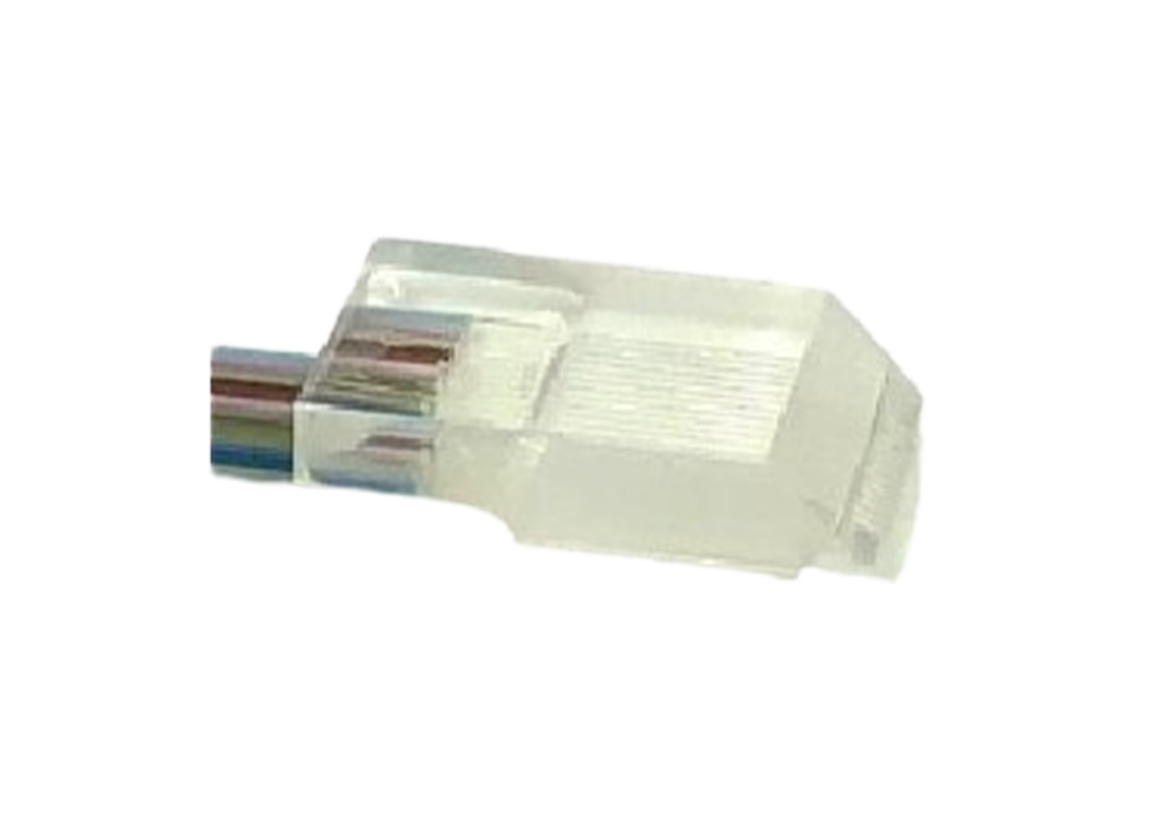

    42.5°/45° FA
  • No Cover FA.png

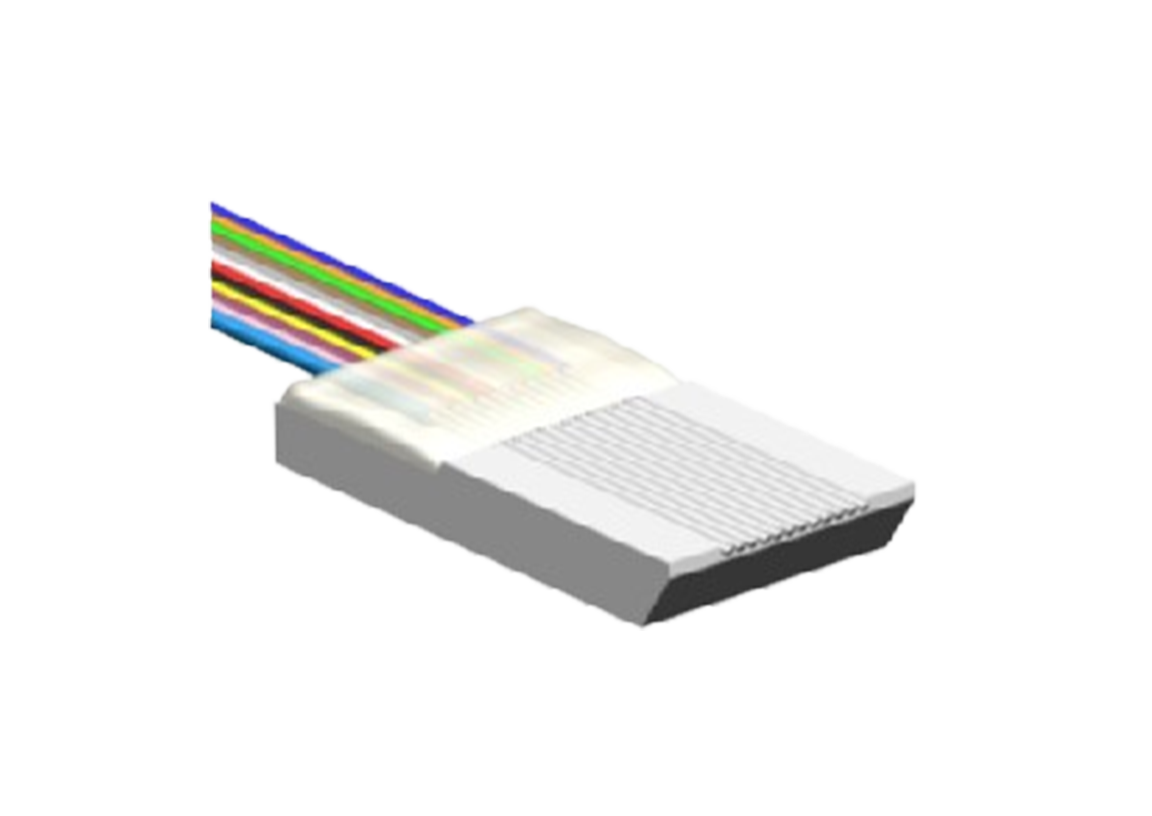

    No Cover FA
  • 2D FA.png

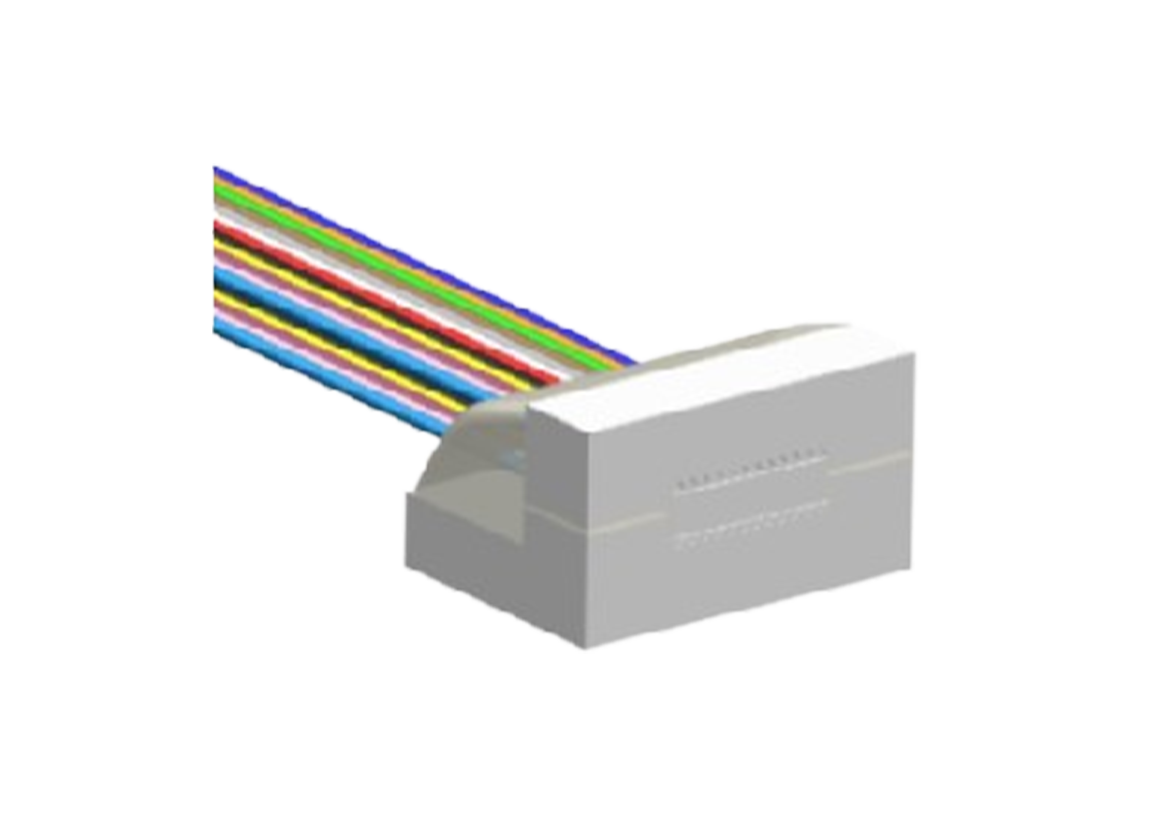

    2D FA
  • High Density Channel FA.png

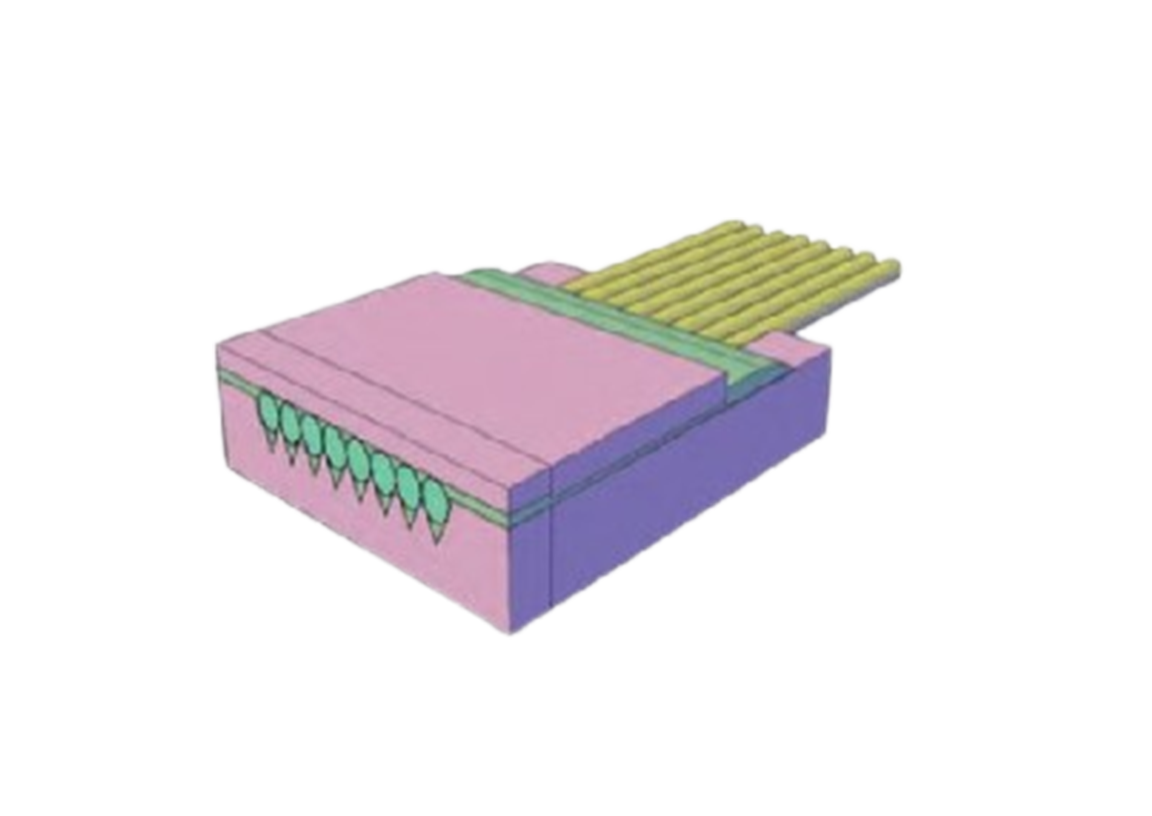

    High Density Channel FA
  • 90-FA.png
  • MFD FA.png
  • 42.5-45 FA.png
  • No Cover FA.png
  • 2D FA.png
  • High Density Channel FA.png

Fiber Array

Fiber Array (FA) is an optical device constructed by precisely aligning multiple optical fibers or fiber ribbons on a substrate with V-shaped grooves (V-Grooves). This architecture ensures accurate positioning of fiber cores to minimize connection losses and enable high-density optical signal transmission.

  • ≤0.30dB
    Insertion Loss
  • 3~5mm
    FA Length
  • Product Feature

  • Product Application

  • Specification

  • Application Solutions

Product Feature

  • 0°/8°/41°/42.5/45° (according to customer requirements)

  • Distance between fiber(um): 125/250/500/750

  • Diameter tolerance(mm): ±0.1(user-defined)

  • High transmission rate, low comsuption, high stability and reliability

  • SMF28e/G657A1(2)/MM/PM

Product Application

  • underlay image PC间数据平行交换应用1.jpg
    HDMI, AOC
  • underlay image 10G-40G-100G-400G网络传输1.jpg
    Parallel optical transmission
  • underlay image 光纤配线系统1.jpg
    QSFP, QSFP+, SR, SNAP12
  • underlay image 光模块,AOC,交换设备1.jpg
    High speed silicon photonics transceiver modules
  • underlay image 数据中心互联1.jpg
    Apply for AWG/WSS/VMUX/OCM/MCS

Specification

Product Model
  • 1CH
  • 2CH
  • 3CH
  • 4CH
  • 8CH
  • 16CH
  • FA Pitch(um)
  • FA Pitch Accuracy(um)
  • Small Die Spot Size(um)
  • IL(max)(dB)
  • FA Length(mm)
  • PER(min)(dB)
  • 1CH

    • FA Pitch(um)
      127 or 250
    • FA Pitch Accuracy(um)
      /
    • Small Die Spot Size(um)
      5.5、4、3.3 @ 1310 4、3.2 @ 1550
    • IL(max)(dB)
      <0.3
    • FA Length(mm)
      3~5mm
    • In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
    • PER(min)(dB)
      Small die pot>22 Non-MFD matched>28
  • 2CH

    • FA Pitch(um)
      127 or 250
    • FA Pitch Accuracy(um)
      ±0.5
    • Small Die Spot Size(um)
      5.5、4、3.3 @ 1310 4、3.2 @ 1550
    • IL(max)(dB)
      <0.3
    • FA Length(mm)
      3~5mm
    • In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
    • PER(min)(dB)
      Small die pot>22 Non-MFD matched>28
  • 3CH

    • FA Pitch(um)
      127 or 250
    • FA Pitch Accuracy(um)
      ±0.5
    • Small Die Spot Size(um)
      5.5、4、3.3 @ 1310 4、3.2 @ 1550
    • IL(max)(dB)
      <0.3
    • FA Length(mm)
      3~5mm
    • In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
    • PER(min)(dB)
      Small die pot>22 Non-MFD matched>28
  • 4CH

    • FA Pitch(um)
      127 or 250
    • FA Pitch Accuracy(um)
      ±0.5
    • Small Die Spot Size(um)
      5.5、4、3.3 @ 1310 4、3.2 @ 1550
    • IL(max)(dB)
      <0.3
    • FA Length(mm)
      3~5mm
    • In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
    • PER(min)(dB)
      Small die pot>22 Non-MFD matched>28
  • 8CH

    • FA Pitch(um)
      127 or 250
    • FA Pitch Accuracy(um)
      ±0.7
    • Small Die Spot Size(um)
      5.5、4、3.3 @ 1310 4、3.2 @ 1550
    • IL(max)(dB)
      <0.3
    • FA Length(mm)
      3~5mm
    • In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
    • PER(min)(dB)
      Small die pot>22 Non-MFD matched>28
  • 16CH

    • FA Pitch(um)
      127 or 250
    • FA Pitch Accuracy(um)
      ±1.0
    • Small Die Spot Size(um)
      5.5、4、3.3 @ 1310 4、3.2 @ 1550
    • IL(max)(dB)
      <0.3
    • FA Length(mm)
      3~5mm
    • In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
    • PER(min)(dB)
      Small die pot>22 Non-MFD matched>28
