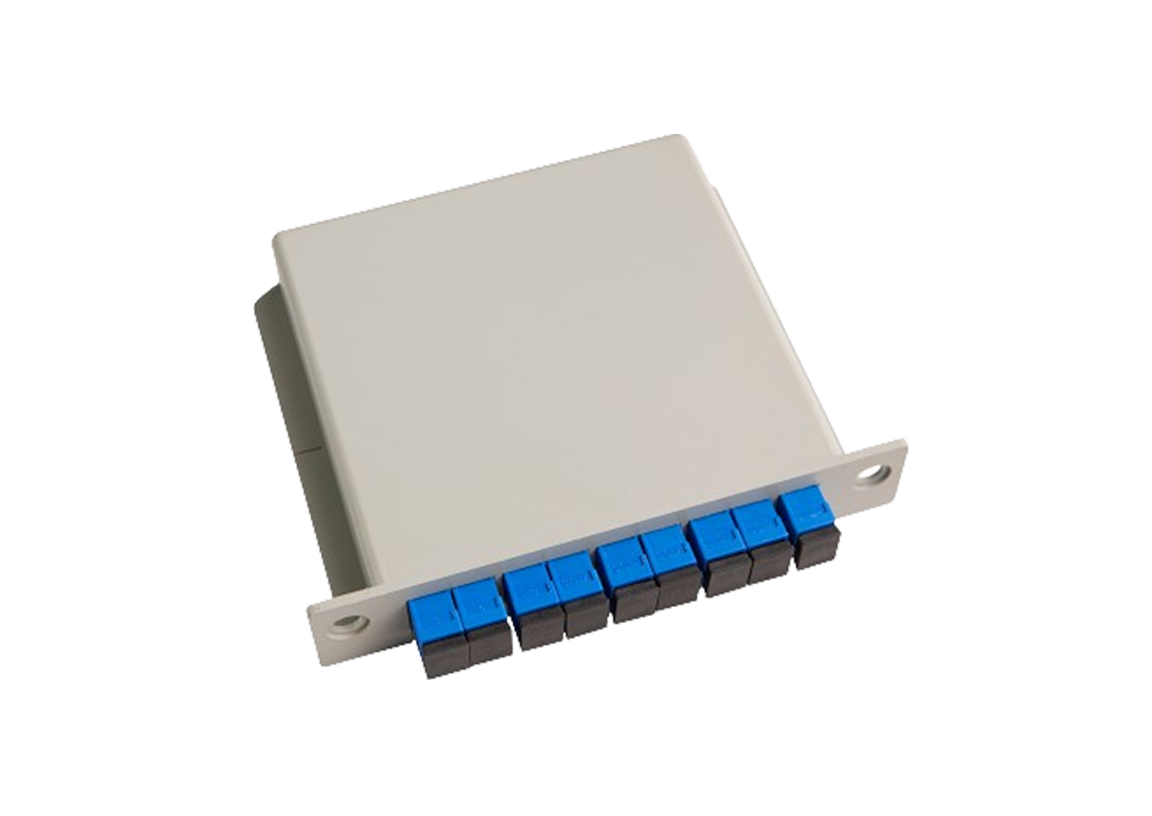

Plug-in Cassette Type PLC Fiber Splitter

Planar lightwave circuit (PLC) splitter is an integrated waveguide optical power distribution device based on quartz substrate. Like coaxial cable transmission system, optical network system also needs to couple, branch and distribute optical signals, which requires optical splitter to achieve it. It is one of the most important passive devices in optical fiber links, and it is a fiber junction device with multiple inputs and multiple outputs, especially suitable for connecting the office and the terminal equipment and realizing the distribution of optical signals in passive optical networks (EPON, GPON, BPON, etc.).

UPC≥50dB, APC≥60dB

Return Loss

Product Feature
Product Application
Specification

Product Feature

Wide Wavelength Range for Versatile Optical Networks

Supports an operating wavelength range of 1260–1650 nm, meeting the needs of various optical splitting applications.
Low Insertion Loss for Stable Transmission

Features low insertion loss with dependable optical performance, enhancing link quality and ensuring stable network operation.
Excellent Uniformity and Low Polarization-Dependent Loss

Provides good uniformity across split channels and low PDL, ensuring consistent output power and reliable signal quality.
Flexible Connector and Packaging Options

Available with a variety of connector types and packaging sizes, enabling easy installation and adaptability to different deployment environments.

Product Application

Optical fiber sensing
Optical cable network system
Telecommunication Networks
LAN and CATV networks

Specification

Product Model

Nx2(N=1or2)
Nx4(N=1or2)
Nx8(N=1or2)
Nx16(N=1or2)
Nx32(N=1or2)
Nx64(N=1or2)

Fiber
Wave length (nm)
Insertion Loss (dB)
Loss Uniformity (dB)
PDL (dB)
Return Loss (dB)
Directivity (dB)
Operating Temperature (℃)

Nx2(N=1or2)
- Fiber

  G657A or customer specified
- Wave length (nm)

  1260~1650(nm)
- Insertion Loss (dB)

  ≤3.9dB
- Loss Uniformity (dB)

  ≤0.6dB
- PDL (dB)

  ≤0.15dB
- Return Loss (dB)

  UPC≥50dB APC≥60dB
- Directivity (dB)

  ≥55dB
- Operating Temperature (℃)

  -40°C to +85°C
Nx4(N=1or2)
- Fiber

  G657A or customer specified
- Wave length (nm)

  1260~1650(nm)
- Insertion Loss (dB)

  ≤7.1dB
- Loss Uniformity (dB)

  ≤0.6dB
- PDL (dB)

  ≤0.15dB
- Return Loss (dB)

  UPC≥50dB APC≥60dB
- Directivity (dB)

  ≥55dB
- Operating Temperature (℃)

  -40°C to +85°C
Nx8(N=1or2)
- Fiber

  G657A or customer specified
- Wave length (nm)

  1260~1650(nm)
- Insertion Loss (dB)

  ≤10.3dB
- Loss Uniformity (dB)

  ≤0.8dB
- PDL (dB)

  ≤0.2dB
- Return Loss (dB)

  UPC≥50dB APC≥60dB
- Directivity (dB)

  ≥55dB
- Operating Temperature (℃)

  -40°C to +85°C
Nx16(N=1or2)
- Fiber

  G657A or customer specified
- Wave length (nm)

  1260~1650(nm)
- Insertion Loss (dB)

  ≤13.3dB
- Loss Uniformity (dB)

  ≤1.2dB
- PDL (dB)

  ≤0.2dB
- Return Loss (dB)

  UPC≥50dB APC≥60dB
- Directivity (dB)

  ≥55dB
- Operating Temperature (℃)

  -40°C to +85°C
Nx32(N=1or2)
- Fiber

  G657A or customer specified
- Wave length (nm)

  1260~1650(nm)
- Insertion Loss (dB)

  ≤16.3dB
- Loss Uniformity (dB)

  ≤1.5dB
- PDL (dB)

  ≤0.2dB
- Return Loss (dB)

  UPC≥50dB APC≥60dB
- Directivity (dB)

  ≥55dB
- Operating Temperature (℃)

  -40°C to +85°C
Nx64(N=1or2)
- Fiber

  G657A or customer specified
- Wave length (nm)

  1260~1650(nm)
- Insertion Loss (dB)

  ≤19.8dB
- Loss Uniformity (dB)

  ≤2.0dB
- PDL (dB)

  ≤0.3dB
- Return Loss (dB)

  UPC≥50dB APC≥60dB
- Directivity (dB)

  ≥55dB
- Operating Temperature (℃)

  -40°C to +85°C
