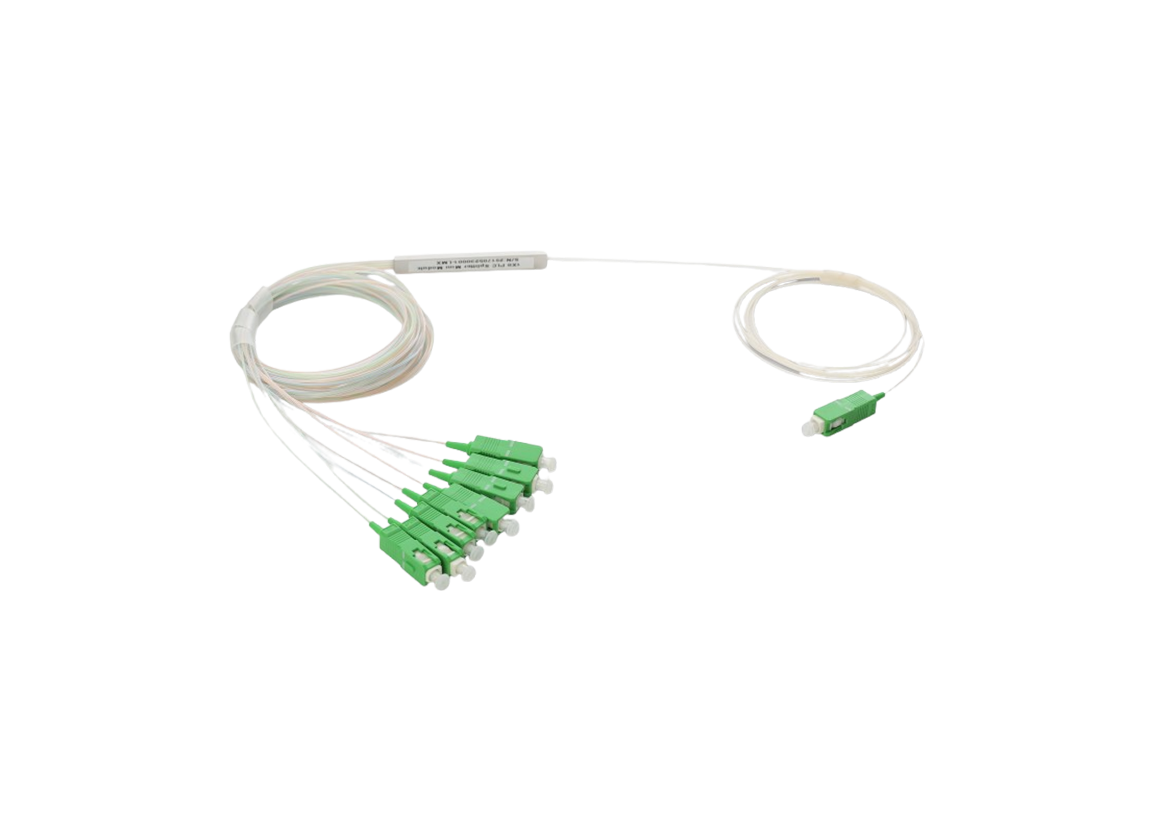

Mini Module PLC Fiber Splitter

Planar lightwave circuit (PLC) splitter is an integrated waveguide optical power distribution device based on quartz substrate. Like coaxial cable transmission system, optical network system also needs to couple, branch and distribute optical signals, which requires optical splitter to achieve it. It is one of the most important passive devices in optical fiber links, and it is a fiber junction device with multiple inputs and multiple outputs, especially suitable for connecting the office and the terminal equipment and realizing the distribution of optical signals in passive optical networks (EPON, GPON, BPON, etc.).

  • UPC≥50dB, APC≥60dB
    Return Loss
  • Product Feature

  • Product Application

  • Specification

Product Feature

  • Wide Operating wavelength From 1260-1650nm

  • Low insertion loss & High performance

  • Good uniformity & Low PDL

  • Various connector type & Package Size available

Product Application

  • underlay image 光纤传感1.jpg
    Optical fiber sensing
  • underlay image 光模块,AOC,交换设备1.jpg
    Optical cable network system
  • underlay image 电信网络1.jpg
    Telecommunication Networks
  • underlay image 局域网和CATV网络1.jpg
    LAN and CATV networks

Specification

Product Model
  • Nx2(N=1or2)
  • Nx4(N=1or2)
  • Nx8(N=1or2)
  • Nx16(N=1or2)
  • Nx32(N=1or2)
  • Nx64(N=1or2)
  • Fiber
  • Wave length (nm)
  • Insertion Loss (dB)
  • Loss Uniformity (dB)
  • PDL (dB)
  • Return Loss (dB)
  • Directivity (dB)
  • Operating Temperature (℃)
  • Nx2(N=1or2)

    • Fiber
      G657A or customer specified
    • Wave length (nm)
      1260~1650(nm)
    • Insertion Loss (dB)
      ≤3.9dB
    • Loss Uniformity (dB)
      ≤0.6dB
    • PDL (dB)
      ≤0.15dB
    • Return Loss (dB)
      UPC≥50dB   APC≥60dB
    • Directivity (dB)
      ≥55dB
    • Operating Temperature (℃)
      -40°C to +85°C
  • Nx4(N=1or2)

    • Fiber
      G657A or customer specified
    • Wave length (nm)
      1260~1650(nm)
    • Insertion Loss (dB)
      ≤7.1dB
    • Loss Uniformity (dB)
      ≤0.6dB
    • PDL (dB)
      ≤0.15dB
    • Return Loss (dB)
      UPC≥50dB   APC≥60dB
    • Directivity (dB)
      ≥55dB
    • Operating Temperature (℃)
      -40°C to +85°C
  • Nx8(N=1or2)

    • Fiber
      G657A or customer specified
    • Wave length (nm)
      1260~1650(nm)
    • Insertion Loss (dB)
      ≤10.3dB
    • Loss Uniformity (dB)
      ≤0.8dB
    • PDL (dB)
      ≤0.2dB
    • Return Loss (dB)
      UPC≥50dB   APC≥60dB
    • Directivity (dB)
      ≥55dB
    • Operating Temperature (℃)
      -40°C to +85°C
  • Nx16(N=1or2)

    • Fiber
      G657A or customer specified
    • Wave length (nm)
      1260~1650(nm)
    • Insertion Loss (dB)
      ≤13.3dB
    • Loss Uniformity (dB)
      ≤1.2dB
    • PDL (dB)
      ≤0.2dB
    • Return Loss (dB)
      UPC≥50dB   APC≥60dB
    • Directivity (dB)
      ≥55dB
    • Operating Temperature (℃)
      -40°C to +85°C
  • Nx32(N=1or2)

    • Fiber
      G657A or customer specified
    • Wave length (nm)
      1260~1650(nm)
    • Insertion Loss (dB)
      ≤16.3dB
    • Loss Uniformity (dB)
      ≤1.5dB
    • PDL (dB)
      ≤0.2dB
    • Return Loss (dB)
      UPC≥50dB   APC≥60dB
    • Directivity (dB)
      ≥55dB
    • Operating Temperature (℃)
      -40°C to +85°C
  • Nx64(N=1or2)

    • Fiber
      G657A or customer specified
    • Wave length (nm)
      1260~1650(nm)
    • Insertion Loss (dB)
      ≤19.8dB
    • Loss Uniformity (dB)
      ≤2.0dB
    • PDL (dB)
      ≤0.3dB
    • Return Loss (dB)
      UPC≥50dB   APC≥60dB
    • Directivity (dB)
      ≥55dB
    • Operating Temperature (℃)
      -40°C to +85°C
