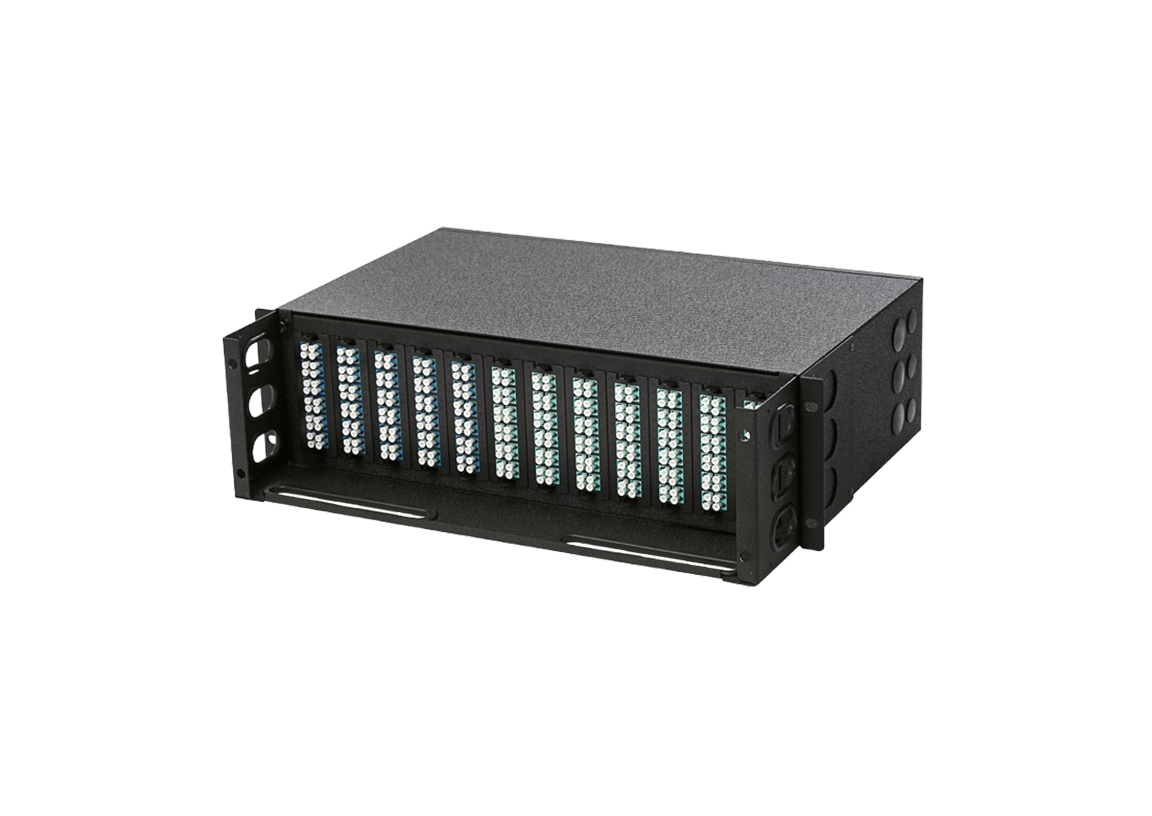

High Density MPO/MTP Module Patch Panel 19" 3U(正）

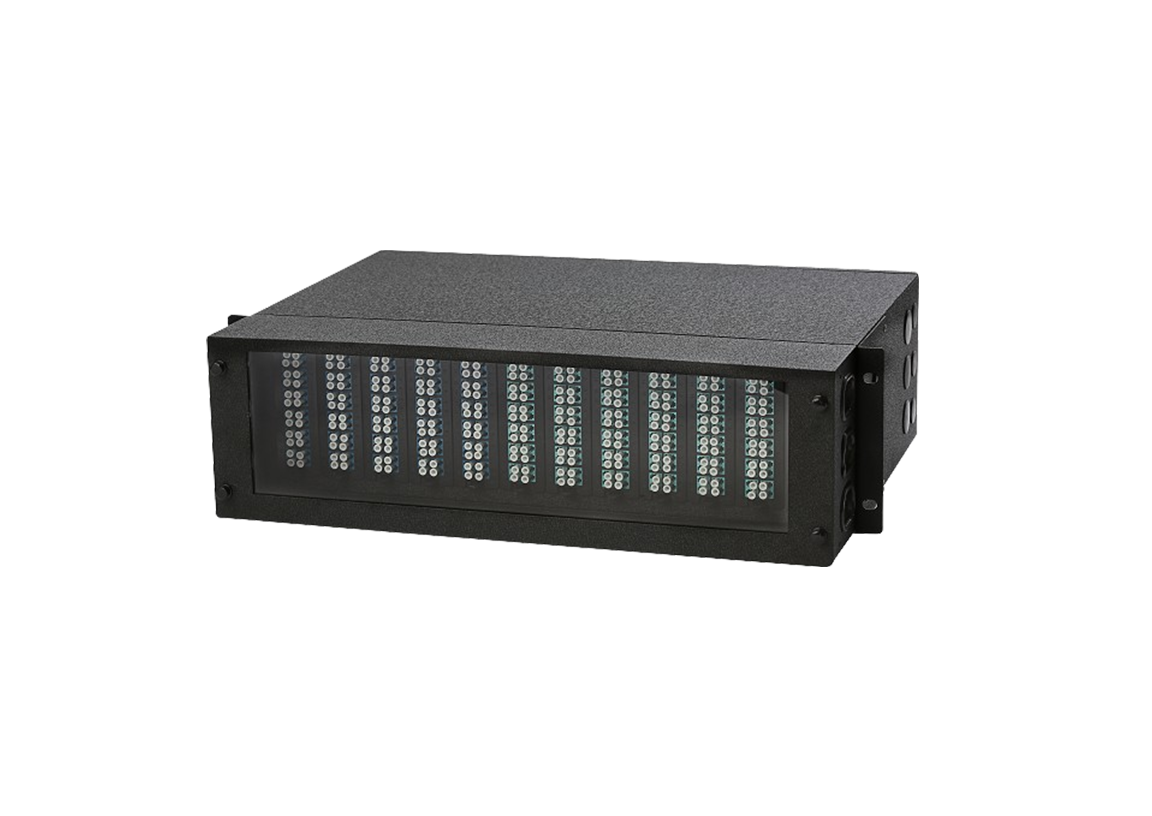

High Density MPO/MTP Module Patch Panel 19" 3U（反）

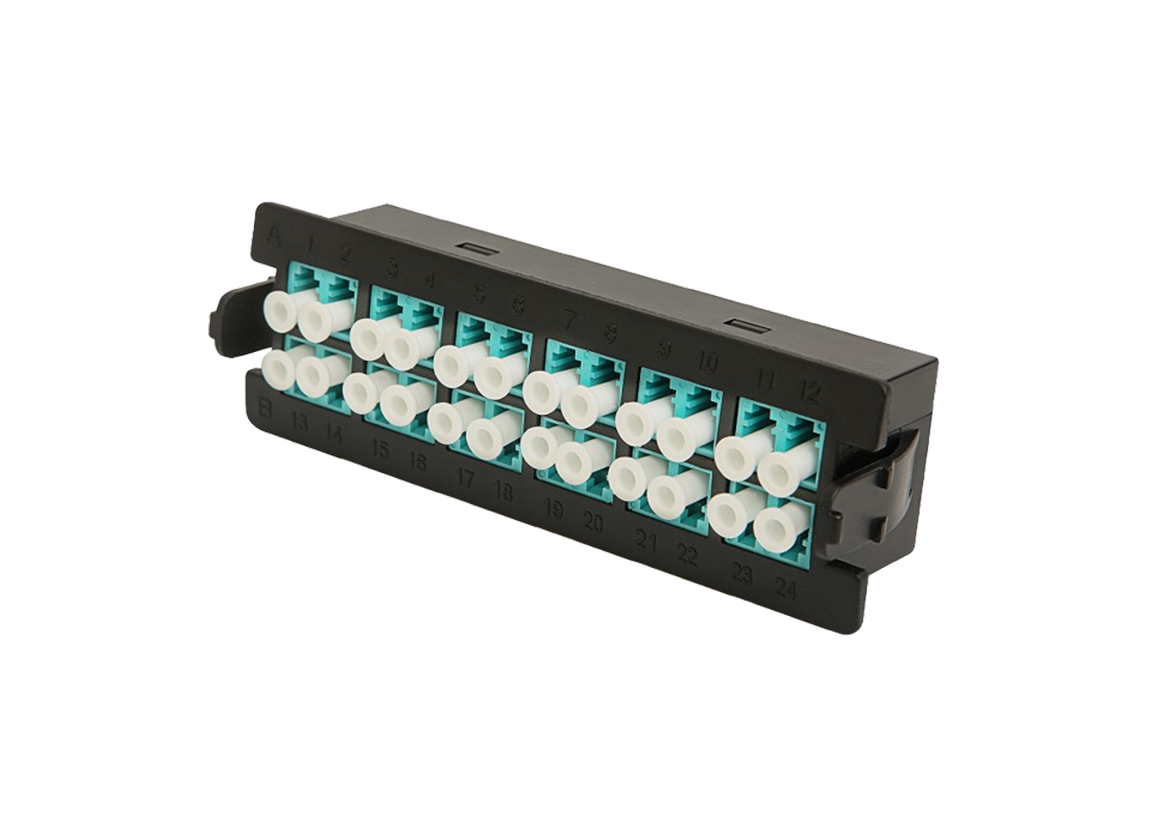

24-Core 12-Port LC Adaptor Panel

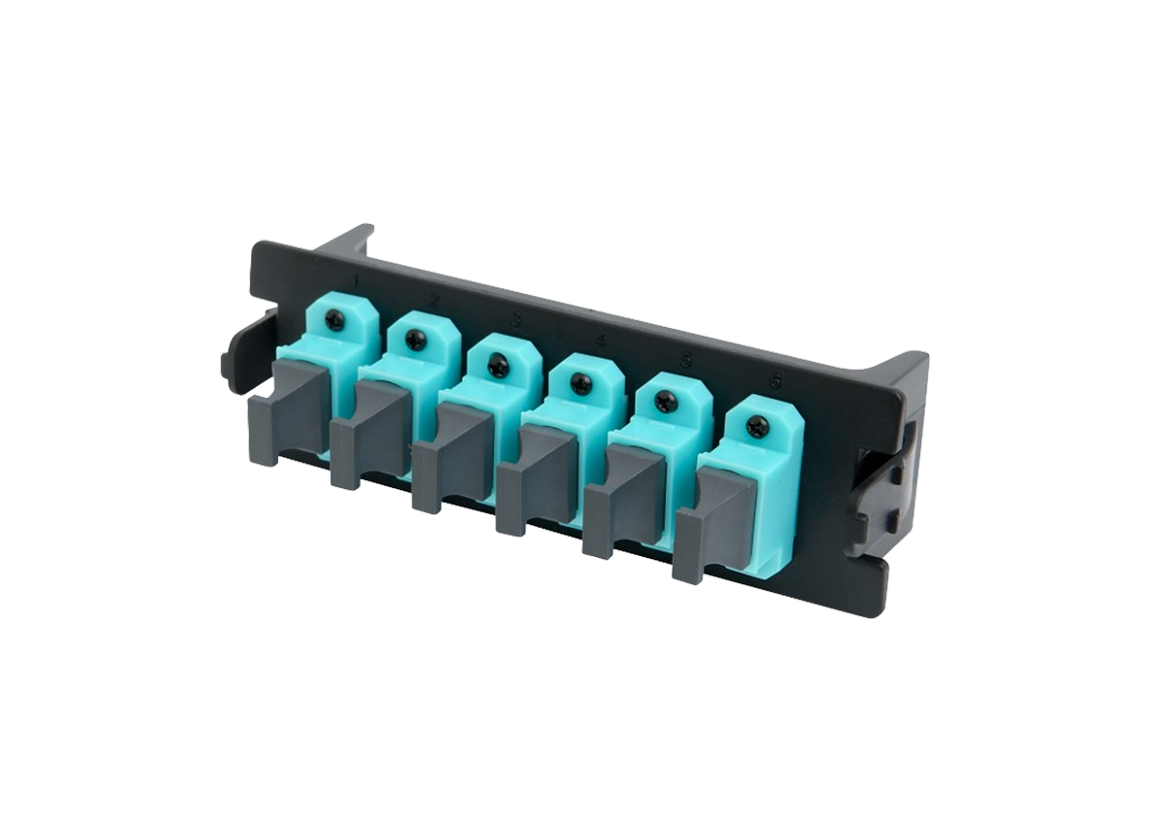

6-Port MPO Adaptor Panel

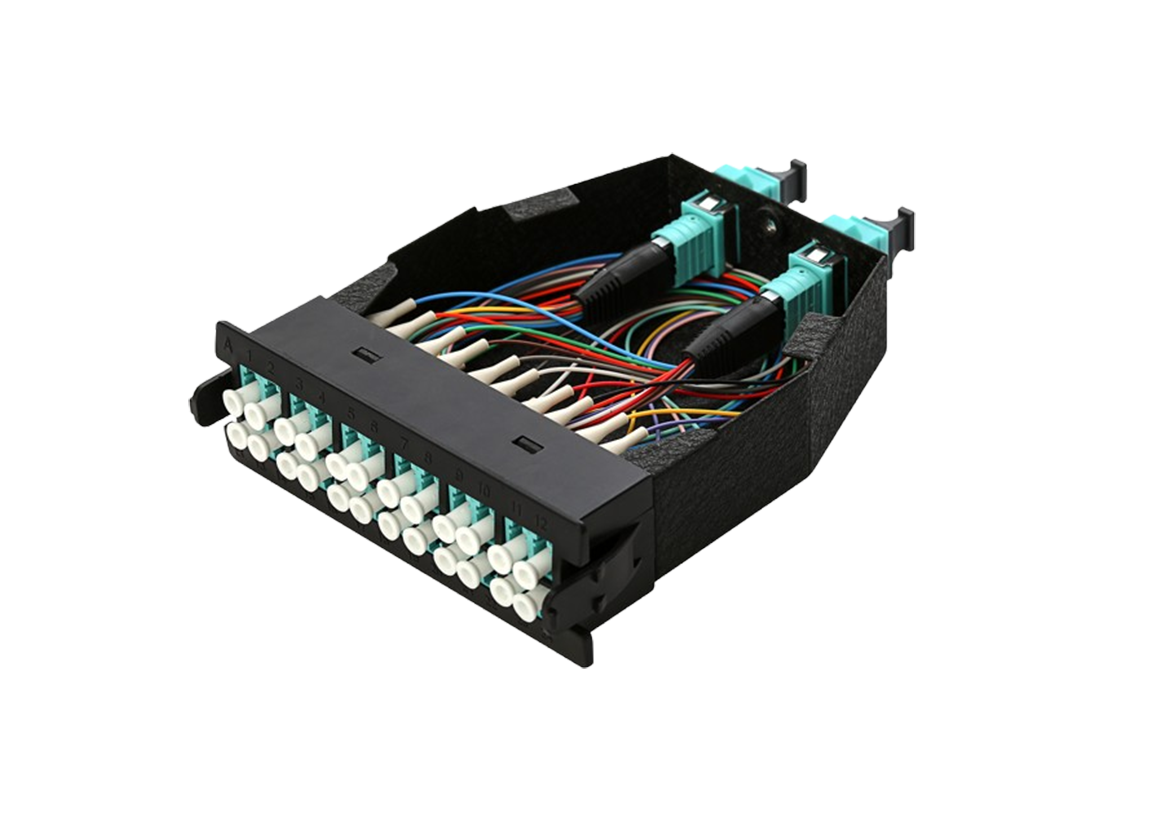

24 core Integrated Module Box

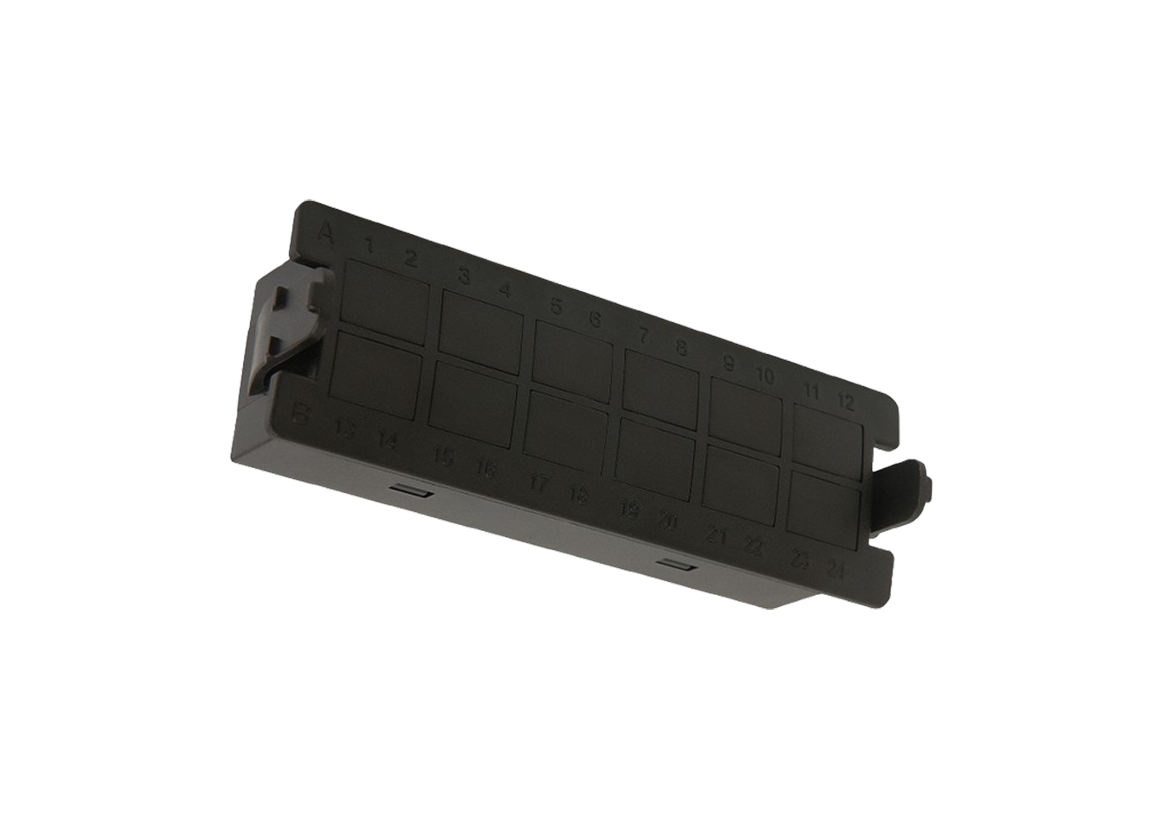

Blind Plate

High Density MPO/MTP Module Patch Panel 19" 3U

This high density module patch panel loads MTP/MPO module, fiber adaptor panels, or splice trays inside, providing versatility and flexibility solution for a variety of fiber optic patching, terminating, and splicing applications. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center.

Max288cores

Capacity
Customized design

Structure

Product Feature
Product Application
Specification
Application Solutions

Product Feature

Modular design, 1U can accommodate up to 4PCS 24 core module, max 96 core
Suitable for 19" standard rack
Material and colour are optional
Modules can be installed with a module box or adapter panel bar, the unused modular can be equipped with blind plates
