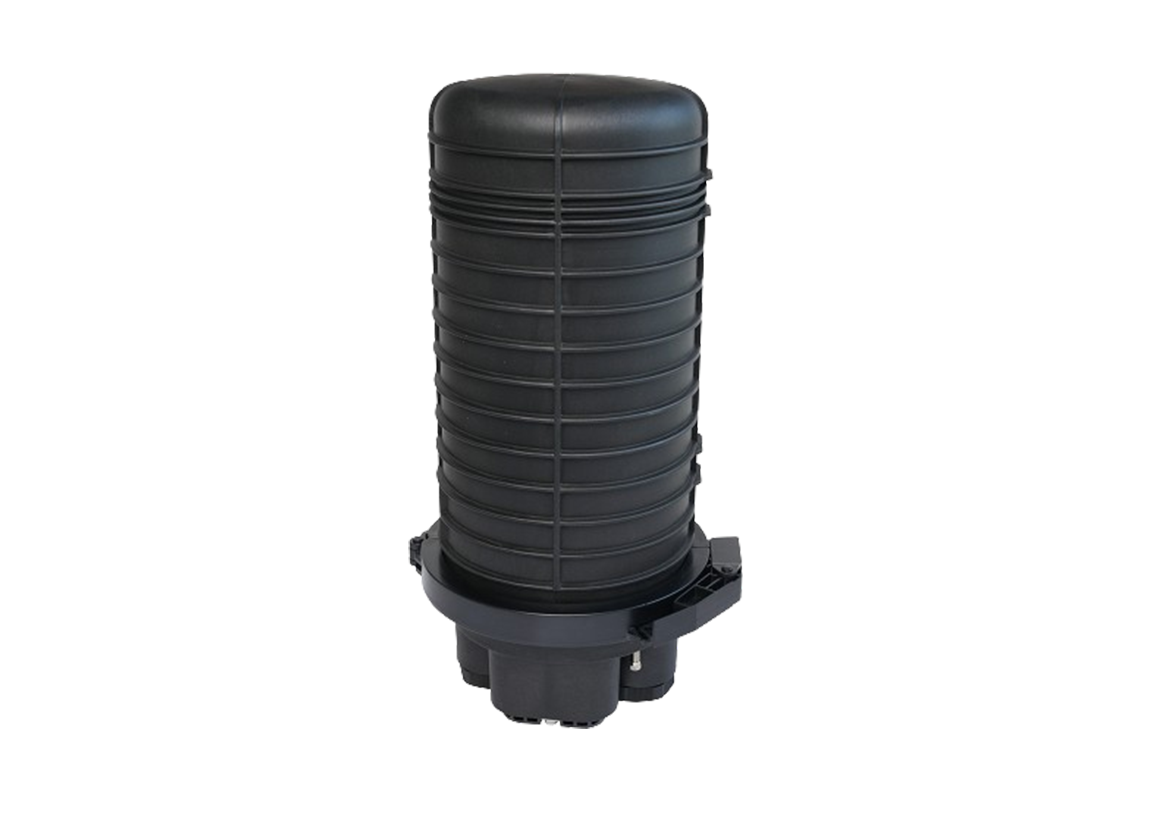

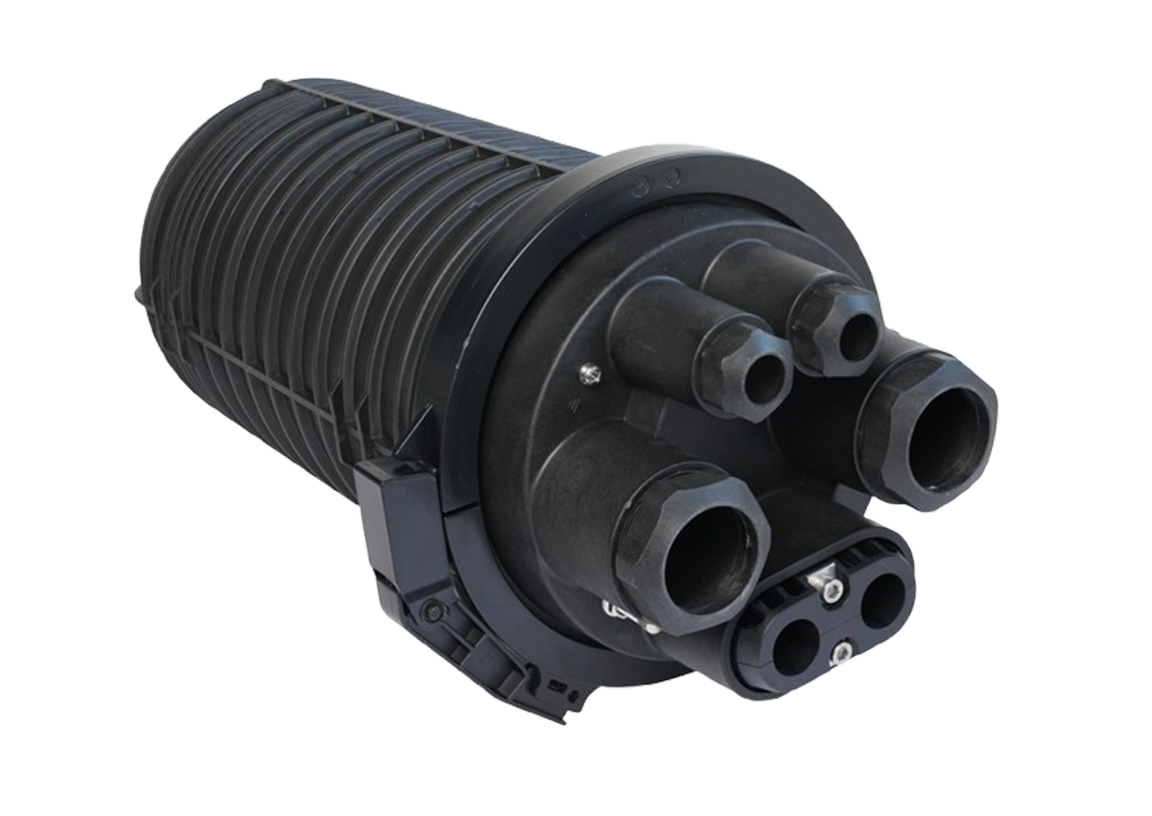

Dome Fiber Optic Closure JFOC09-5801

JFOC09-5801 type of fiber optic closure is designed for connection and protection of fiber cables. This model can be installed with 10 splice trays with large capacity. The closure is made of excellent performance of materials. The internal fastener is made of high quality of stainless steel, which strengths the product durability.

  • IP68
    Protection Grade
  • 720
    Max Cores Capacity
  • Product Feature

  • Product Application

  • Specification

  • Application Solutions

Product Feature

  • Mechanical seal for the box and cable ports, with good sealing performance, easy for operation

  • Protection grade: IP68

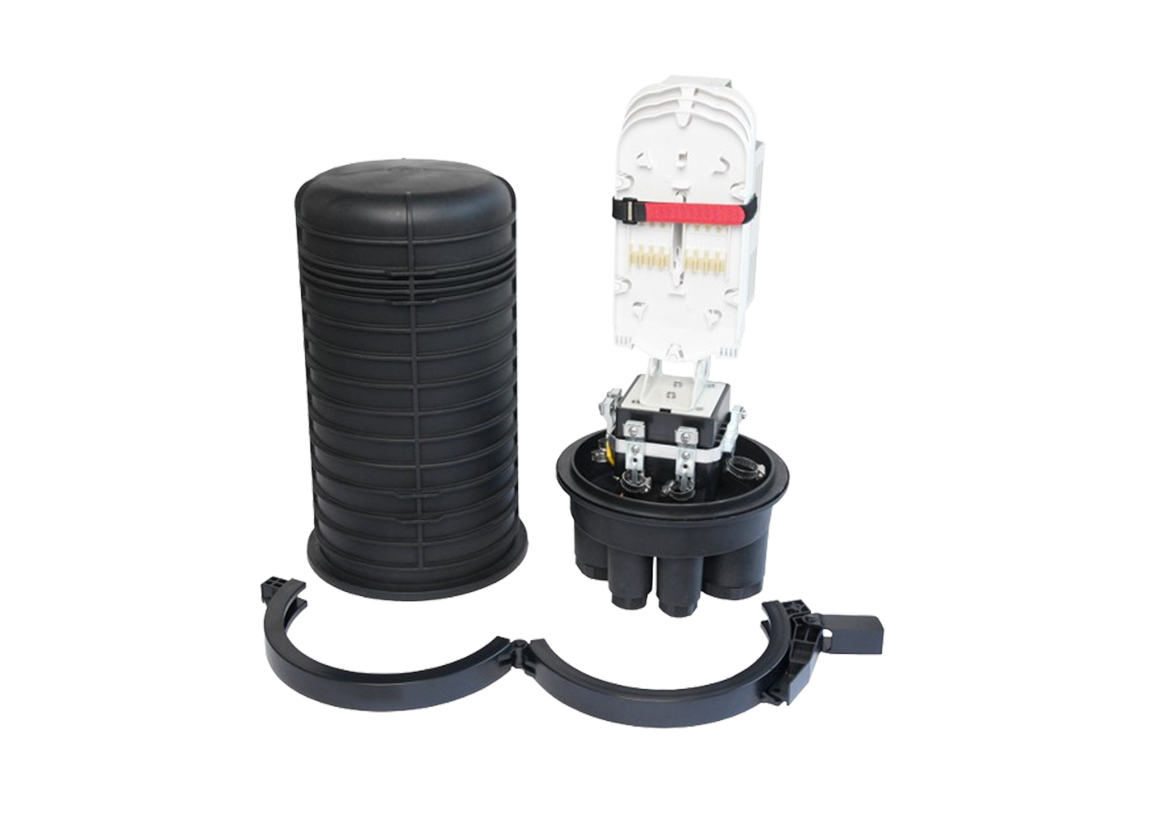

  • Splice trays are all tightly fixed by black buckle when splicing

  • Applicable for both bundle cable and ribbon cable

  • Installation method: wall mounting, pole mounting, direct buried, etc

Product Application

  • underlay image 光纤传感1.jpg
    Optical fiber sensing
  • underlay image 光模块,AOC,交换设备1.jpg
    Optical cable network system
  • underlay image 电信网络1.jpg
    Telecommunication Networks
  • underlay image 局域网和CATV网络1.jpg
    LAN and CATV networks

Specification

Product Model
  • JFOC09-5801
  • Size
  • Material
  • Splice Tray
  • Max. Capacity
  • Cable Port
  • JFOC09-5801

    • Size
      475XΦ260 mm
    • Material
      PP+GF
    • Splice Tray
      10 tray
    • Max. Capacity
      Bundle cable:
      Ribbon cable: 720F
    • Cable Port
      1 oval port + 4 round port
