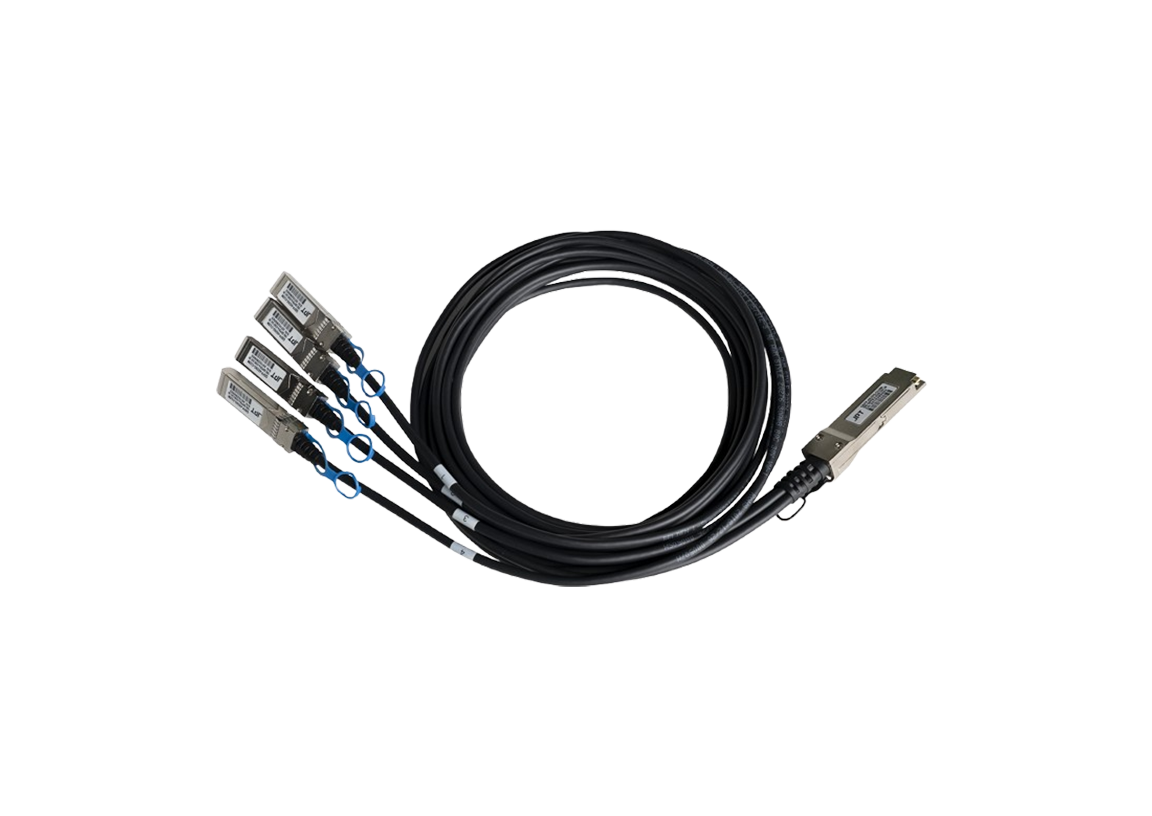

100G QSFP28 to 4 x 25G SFP28 Direct Attach Copper Cable
Direct Attach Cable (DAC) is a high-speed, cost-effective alternative for short-distance connectivity within a rack or between adjacent racks in data centers. This cable provides low insertion loss and ultra-low crosstalk. And it complies with IEEE 802.3, SFF-8431, ensuring reliability of network with full system testing in targeted Switches.
-
100 GbpsMax Data Rate
-
1~5 mTransmission Distance
-
Product Feature
-
Specification
Product Feature
-
Broad Compatibility with Multiple High-Speed Standards
Compliant with QSFP28 MSA, SFP28 MSA, SFF-8636, and SFF-8402 specifications, ensuring reliable interoperability across various high-speed network systems.
-
High Data Rate up to 103.125Gbps
Supports maximum throughput of 103.125Gbps (4×25Gbps), ideal for data centers, cloud computing, and other high-bandwidth environments.
-
Meets 100G / 25G Ethernet Requirements
Fully compliant with IEEE 802.3bj 100GBASE-CR4 and IEEE 802.3by 25GBASE-CR standards, delivering stable and dependable link performance.
-
Hot-Pluggable for Efficient Deployment and Maintenance
Allows installation or replacement without powering down the system, improving operational flexibility and service efficiency.
-
All-Metal Housing with Strong EMI Suppression
Features a durable metal enclosure that provides excellent EMI shielding, ensuring signal integrity in high-speed transmission.
-
Multiple Cable Gauges Available for Flexible Deployment
Available in 24AWG, 26AWG, 30AWG, and 32AWG options, adaptable to various reach and flexibility requirements, and fully RoHS compliant.
Specification
-
QSFP28-4×25G-DAC
-
Connector Type
-
Cable Type
-
Jacket Material
-
Working Temperature
-
Brand
-
Max Data Rate
-
Transmission Distance
-
Power Voltage
-
Warranty
-
QSFP28-4×25G-DAC
-
Connector TypeQSFP28 to 4SFP28
-
Cable Type30AWG/28AWG
-
Jacket MaterialPVC
-
Working Temperature0°C~70°C
-
BrandJPT
-
Max Data Rate100Gbps
-
Transmission Distance1~5m
-
Power Voltage3.3V
-
Warranty3 Years
-
