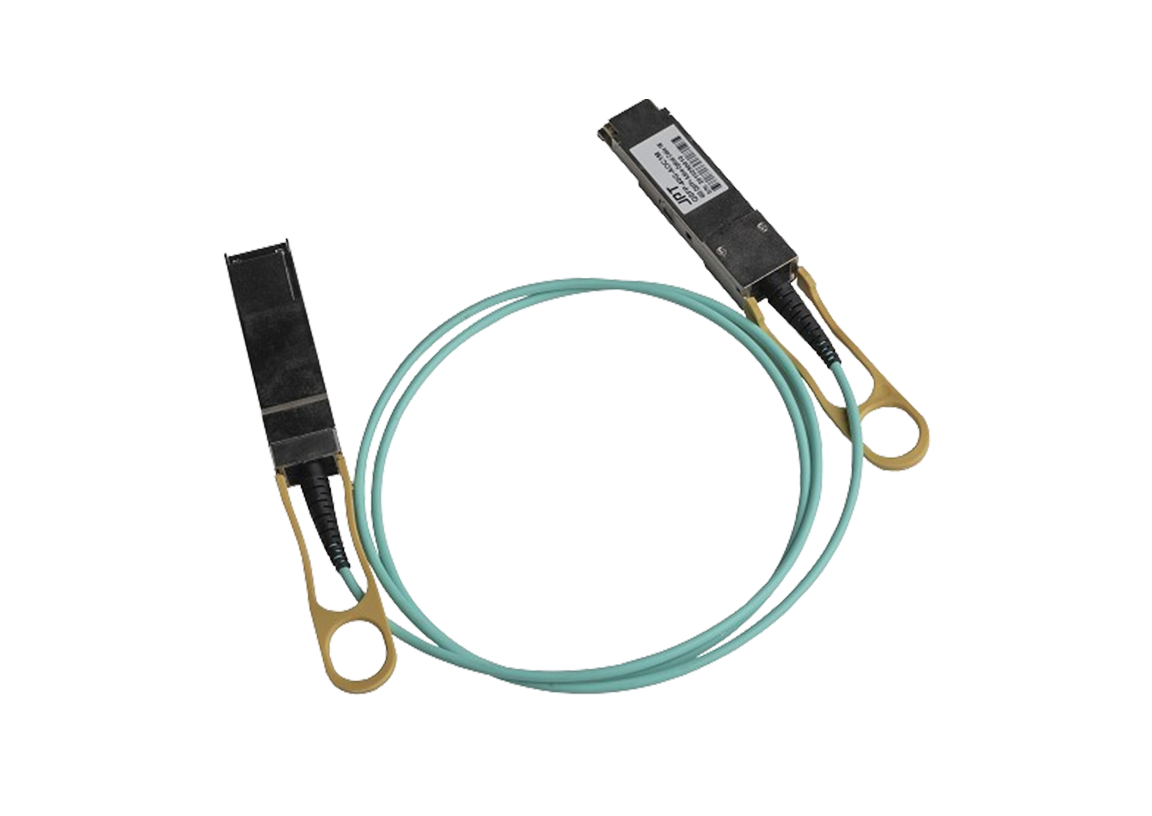

40G QSFP+ Active Optical Cable

Active optical cable (AOC) uses electrical-to-optical conversion on the cable ends to improve speed and distance performance of the cable without sacrificing compatibility with standard electrical interfaces. It is designed for high-density cabling interconnect systems like data centers, and high-performance computing application.

  • 40 Gbps
    Max Data Rate
  • 1~100 m
    Transmission Distance
  • Product Feature

  • Specification

Product Feature

  • Max. Power Consumption 1.5W

  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability

  • Compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 standard

  • Hot Pluggable

  • All-metal housing for superior EMI performance

  • RoHS compliant

Specification

Product Model
  • QSFP-40G-AOC
    AOC-40G (1).png
  • Connector Type
  • Cable Type
  • Jacket Material
  • Working Temperature
  • Brand
  • Max Data Rate
  • Transmission Distance
  • Power Consumption
  • Warranty
  • QSFP-40G-AOC

    AOC-40G (1).png
    • Connector Type
      QSFP+ to QSFP+
    • Cable Type
      OM3, OM4(Optional)
    • Jacket Material
      PVC, LSZH
    • Working Temperature
      0°C~70°C
    • Brand
      JPT
    • Max Data Rate
      40Gbps
    • Transmission Distance
      1~100m(Optional)
    • Power Consumption
      <1.5W
    • Warranty
      3 Years
