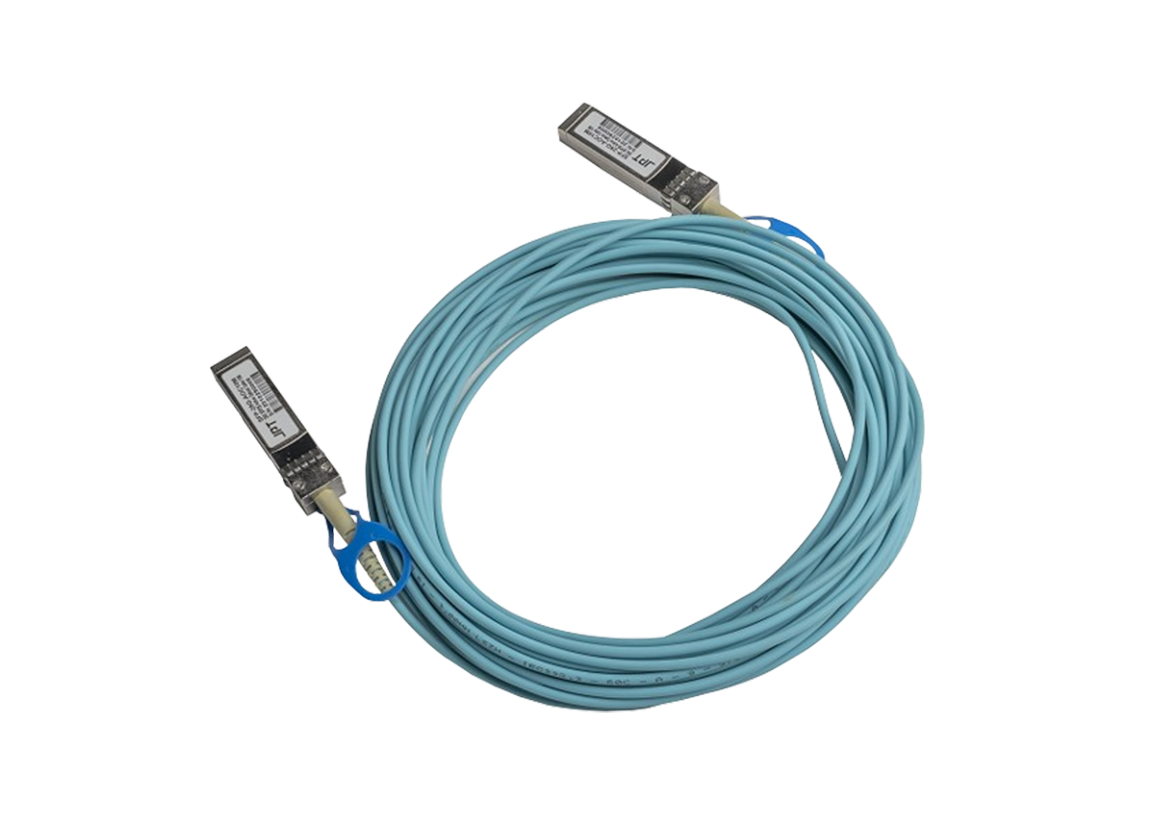

25G SFP28 Active Optical Cable
Active optical cable (AOC) uses electrical-to-optical conversion on the cable ends to improve speed and distance performance of the cable without sacrificing compatibility with standard electrical interfaces. It is designed for high-density cabling interconnect systems like data centers, and high-performance computing application.
-
25 GbpsMax Data Rate
-
1~100 mTransmission Distance
-
Product Feature
-
Specification
Product Feature
-
Max. Power Consumption 1W
-
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
-
Compliant with the SFP28 MSA and the IEEE 802.3by 25GBASE-SR Ethernet standard
-
Hot Pluggable
-
All-metal housing for superior EMI performance
-
RoHS compliant
Specification
Product Model
-
SFP28-25G-AOC
-
Connector Type
-
Cable Type
-
Jacket Material
-
Working Temperature
-
Brand
-
Max Data Rate
-
Transmission Distance
-
Power Consumption
-
Warranty
-
SFP28-25G-AOC
-
Connector TypeSFP28 to SFP28
-
Cable TypeOM3, OM4(Optional)
-
Jacket MaterialPVC, LSZH
-
Working Temperature0°C~70°C
-
BrandJPT
-
Max Data Rate25Gbps
-
Transmission Distance1~100m（Optional）
-
Power Consumption<1W
-
Warranty3 Years
-
