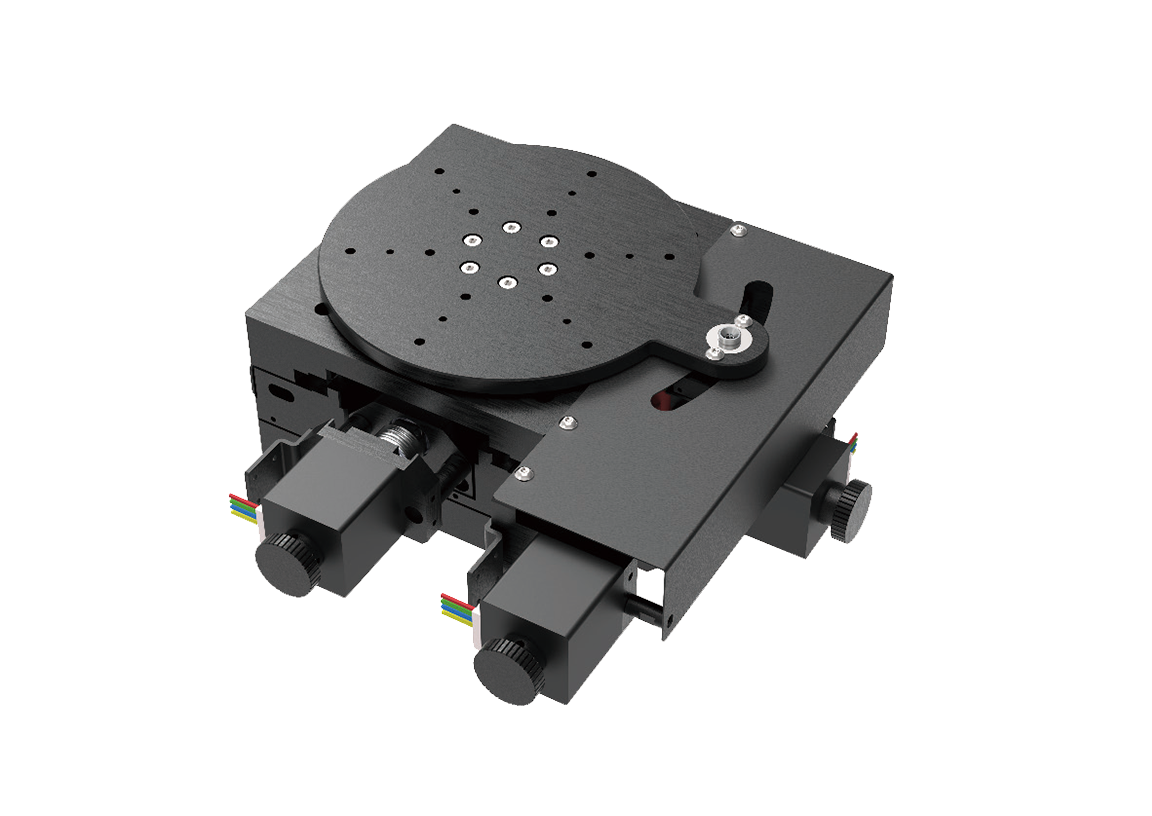

XYR Three Axis Sliding Table
Utilizing a compact three-axis serial kinematic design, the HiPA XYR stage delivers extended travel ranges, high payload capacity, and exceptional accuracy for precise linear (X/Y) and rotational (RZ) displacement with synchronized coordinated motion.
-
Quick Response, Dynamic Response Time<10ms
-
Micron Leve Positioning Accuracy
-
Support Non-standard Customization
-
Product Advantages
-
Specifications
-
Application Solutions
Product Advantages
-
High Response & Long Lifespan
Delivers fast response with low noise operation, ensuring extended service life and stable performance.
-
Reliable Series Structure
Features a series design with simple control, high reliability, and excellent positioning accuracy.
-
Compact & High Load Capacity
Highly integrated body with small size and low center of gravity, combined with a high load capacity for versatile applications.
-
Smooth & Precise Motion
Equipped with high-precision crossed roller guide rails to ensure smooth, stable, and accurate movement.
-
Customizable Solutions
Supports non-standard customization to meet diverse application requirements.
Specifications
-
XYR Three Axis Sliding Table
-
XYR Three Axis Sliding Table
-
Items
-
X-axis Travel / Accuracy
-
Y-axis Travel / Accuracy
-
Rz-axis Travel / Accuracy
-
Lead Screw Pitch
-
Rated Speed
-
Drive Type
-
Drive Motor
-
Main Material
-
Surface Treatment
-
Horizontal Load Capacity
-
Installation Method
-
Weight
-
Dimensions
-
XYR Three Axis Sliding Table
-
Items130x130
-
X-axis Travel / Accuracy±2.0mm/±5μm
-
Y-axis Travel / Accuracy±2.0mm/±5μm
-
Rz-axis Travel / Accuracy±2°/ ±0.01°
-
Lead Screw Pitch1mm
-
Rated Speed5mm/s
-
Drive TypeLead Screw
-
Drive MotorStepper
-
Main MaterialCast Iron
-
Surface TreatmentBlack Hard Anodizing
-
Horizontal Load Capacity80N
-
Installation MethodHorizontal Mount
-
Weight2.2 kg
-
Dimensions130×130×35 mm
-
-
XYR Three Axis Sliding Table
-
Items170x170
-
X-axis Travel / Accuracy±5.0mm/±5μm
-
Y-axis Travel / Accuracy±5.0mm/±5μm
-
Rz-axis Travel / Accuracy±3°/ ±0.01°
-
Lead Screw Pitch1mm
-
Rated Speed5mm/s
-
Drive TypeLead Screw
-
Drive MotorStepper / Servo
-
Main MaterialCast Iron
-
Surface TreatmentBlack Hard Anodizing
-
Horizontal Load Capacity250N
-
Installation MethodHorizontal Mount
-
Weight6 kg
-
Dimensions170×170×45 mm
-
