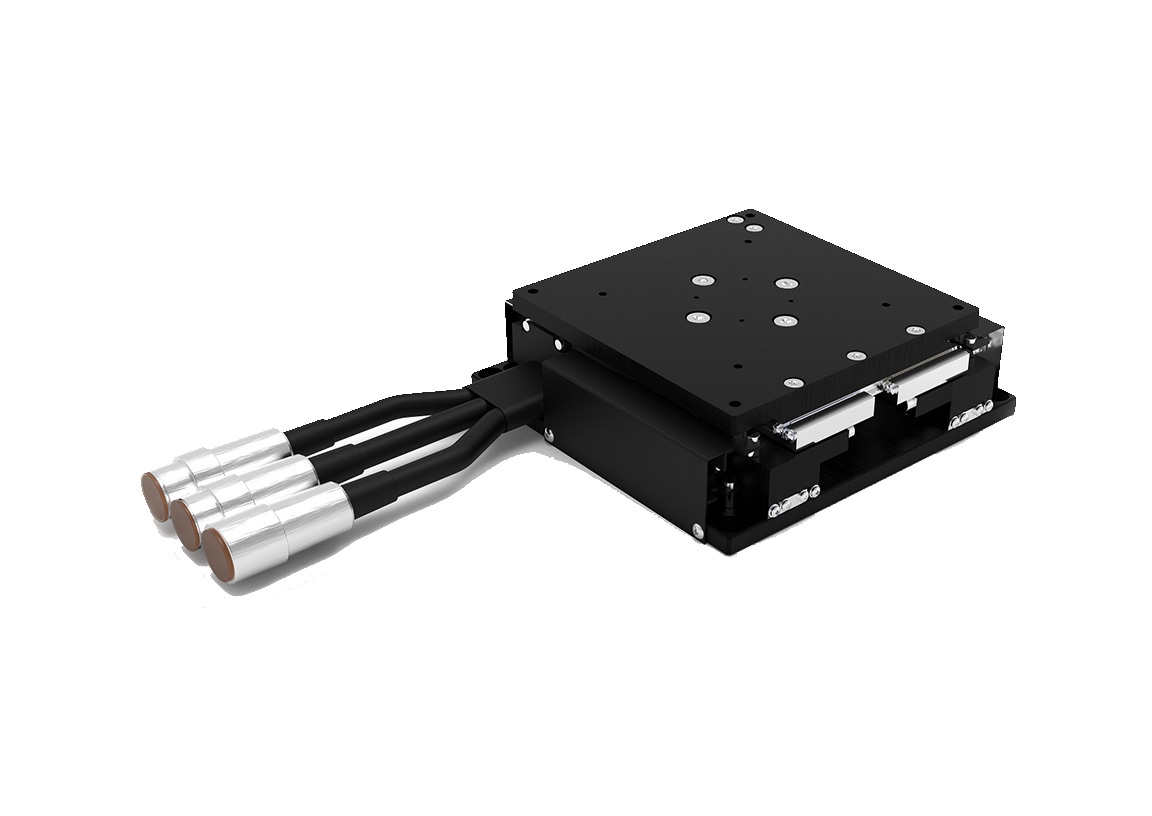

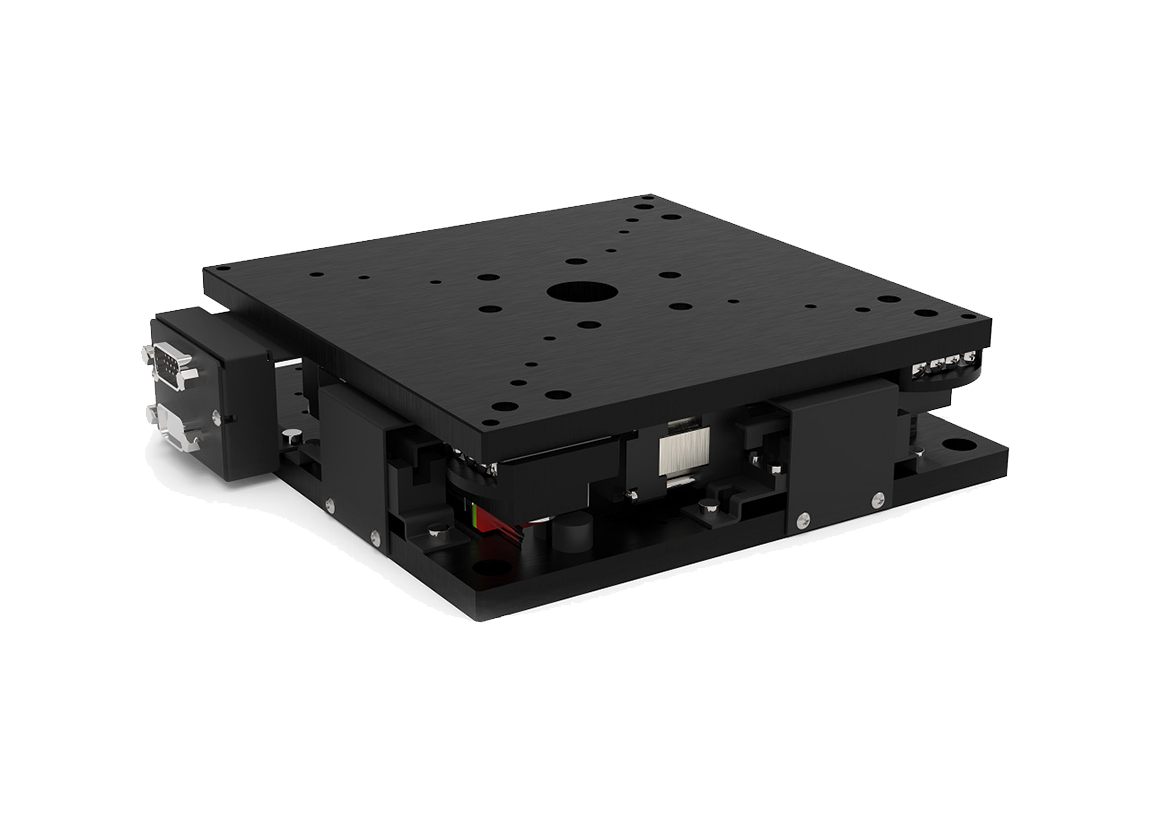

UVW Three Axis Sliding Table
The UVW stage employs a three-axis parallel kinematic structure that eliminates mechanical stacking errors, enabling combined rotation and translation about any arbitrary point on the plane. This breakthrough overcomes the limitation of conventional XYθ stages that can only rotate about a fixed center point. Ideal for precision spatial positioning and alignment calibration in demanding applications.
-
Quick Response, Dynamic Response Time<10ms
-
Micron Leve Positioning Accuracy
-
Support Non-standard Customization
-
Product Advantages
-
Specifications
-
Application Solutions
Product Advantages
-
Parallel Structure, High-Precision Control
Adopts a parallel design that effectively eliminates inter-axis stacking errors, achieving micron-level positioning accuracy and stable repeatability.
-
Flexible Motion, Multi-Dimensional Adjustability
Supports rotation and translation at any point on the plane, ideal for high-demand scenarios such as precision assembly and optical alignment, with options for non-standard customization.
-
Compact Structure, High Integration
Compact body with a low center of gravity, suitable for integration into various confined spaces while ensuring stable system operation.
-
High Load Capacity, Stable and Durable
Equipped with built-in steel ball bearing modules to support heavy loads, combined with high-precision crossed-roller guides for smooth and stable motion.
-
Optimized Cabling, Simplified Integration
Embedded cable design simplifies on-site connections, enhances system cleanliness, and improves integration efficiency.
Specifications
-
UVW Three Axis Sliding Table
-
UVW Three Axis Sliding Table
-
Items
-
X-axis Travel / Accuracy
-
Y-axis Travel / Accuracy
-
Rz-axis Travel / Accuracy
-
Lead Screw Pitch
-
Rated Speed
-
Drive Type
-
Drive Motor
-
Main Material
-
Surface Treatment
-
Horizontal Load Capacity
-
Installation Method
-
Weight
-
Dimensions
-
UVW Three Axis Sliding Table
-
Items130x130
-
X-axis Travel / Accuracy±2.0mm /±5μm
-
Y-axis Travel / Accuracy±2.0mm /±5μm
-
Rz-axis Travel / Accuracy±2°/ ±0.01°
-
Lead Screw Pitch1mm
-
Rated Speed5mm/s
-
Drive TypeLead Screw
-
Drive MotorStepper
-
Main MaterialCast Iron
-
Surface TreatmentBlack Hard Anodizing
-
Horizontal Load Capacity80N
-
Installation MethodHorizontal Moun
-
Weight2.2 kg
-
Dimensions130×130×35 mm
-
-
UVW Three Axis Sliding Table
-
Items170x170
-
X-axis Travel / Accuracy±5.0mm /±5μm
-
Y-axis Travel / Accuracy±5.0mm /±5μm
-
Rz-axis Travel / Accuracy±3°/ ±0.01°
-
Lead Screw Pitch1mm
-
Rated Speed5mm/s
-
Drive TypeLead Screw
-
Drive MotorStepper / Servo
-
Main MaterialCast Iron
-
Surface TreatmentBlack Hard Anodizing
-
Horizontal Load Capacity250N
-
Installation MethodHorizontal Mount
-
Weight6kg
-
Dimensions170×170×45 mm
-
