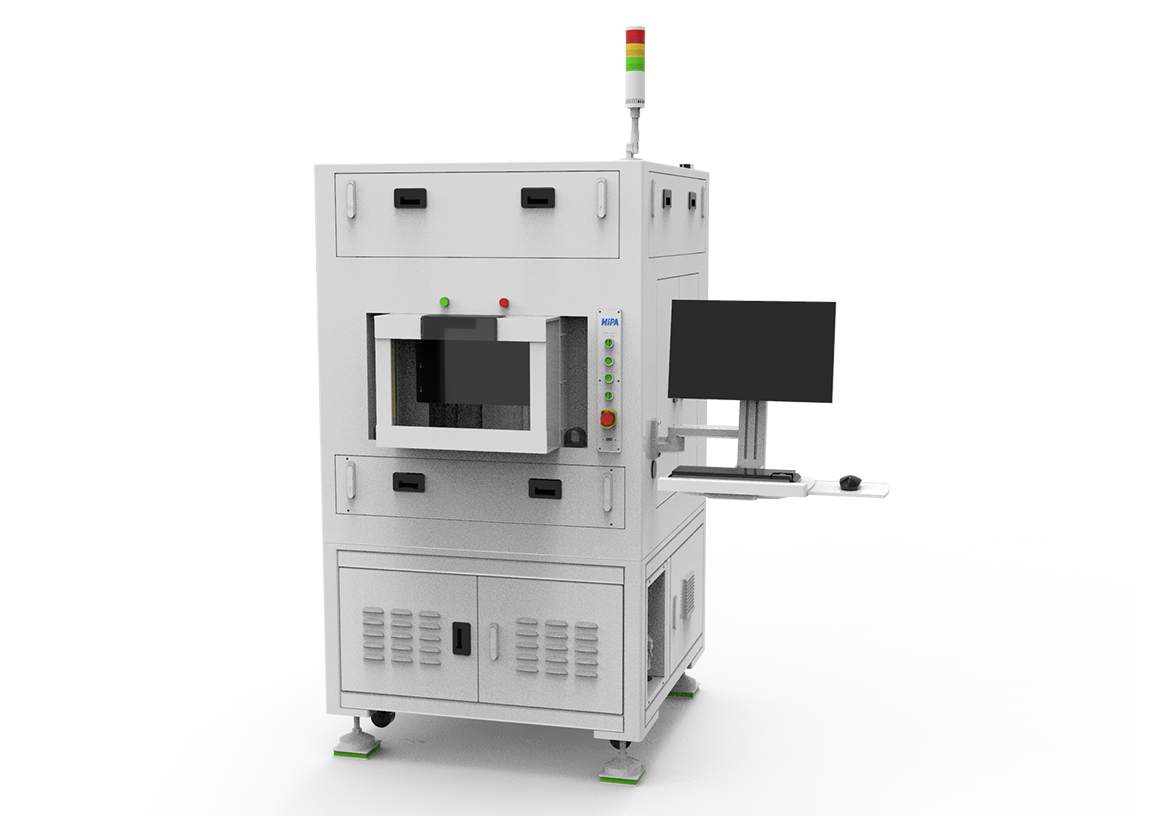

Transmittance & Reflectance Tester

This system enables automated multi-angle transmittance/reflectance measurements of optical materials, facilitating the determination of transmission/reflection ratios, color coordinates, and optical thin-film thickness

  • 1.0~8.0 mm
    Wavelength range (expandable)
  • ±0.3%
    Measurement Accuracy
  • 1.0~8.0 mm
    Spot Size Range
  • Product Advantages

  • Specifications

  • Application Solutions

Product Advantages

  • Comprehensive & Versatile Testing

    Supports multi-functional measurements including transmittance, reflectance, color, and coating thickness across a broad spectral range.

  • High Precision & Stability

    Features a unique calibration algorithm, micron-level stepper motor control, and auto-alignment for consistently accurate results.

  • Fast & Non-Destructive Detection

    Optical, non-contact testing ensures rapid data acquisition with excellent repeatability and zero sample damage.

  • Smart Automation & Easy Operation

    Built-in sensors, automated result evaluation, and a user-friendly visual interface simplify workflows and enhance efficiency.

  • Compact & Modular Design

    Space-saving structure with vibration-insensitive performance and streamlined integration for flexible deployment.

Specifications

Product Model
  • Transmittance & Reflectance Tester
  • 波长范围
  • 测试时间
  • 测量精度
  • 自动对齐
  • 光斑尺寸范围
  • GRR
  • 相关性
  • 重复性
  • Transmittance & Reflectance Tester

    • 波长范围
      380 nm~1100 nm
    • 测试时间
      ≤15s (better than UV-3700)
    • 测量精度
      T%&R%+/-0.3% (compliant with BK7 and sapphire requirements)
    • 自动对齐
      Accuracy of 20um
    • 光斑尺寸范围
      1.0~8.0 mm
    • GRR
      <20% tolerance (10 samples, tested 3 times, 3 operators)
    • 相关性
      <10% tolerance (standard machine UV-3700 deviation)
    • 重复性
      6*sigma/Tol<10% or 6*sigma<0.22
