Six Axis Sliding Table

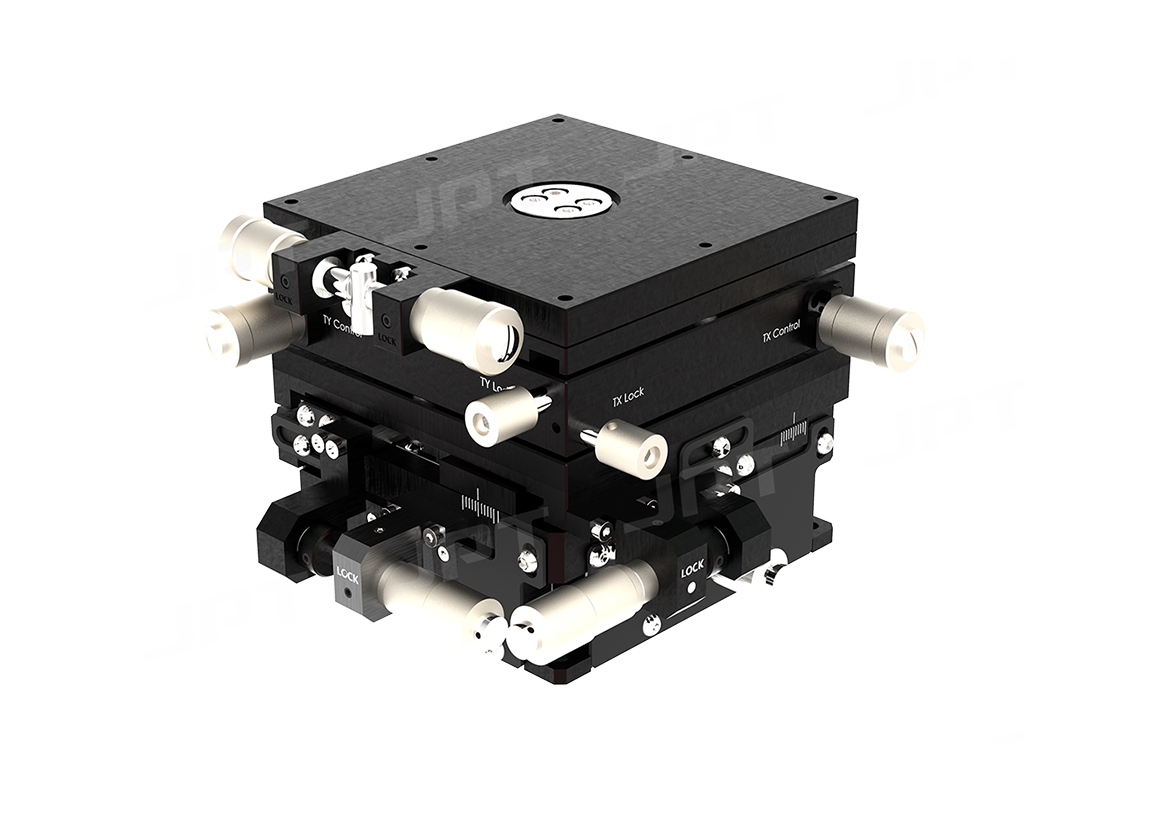

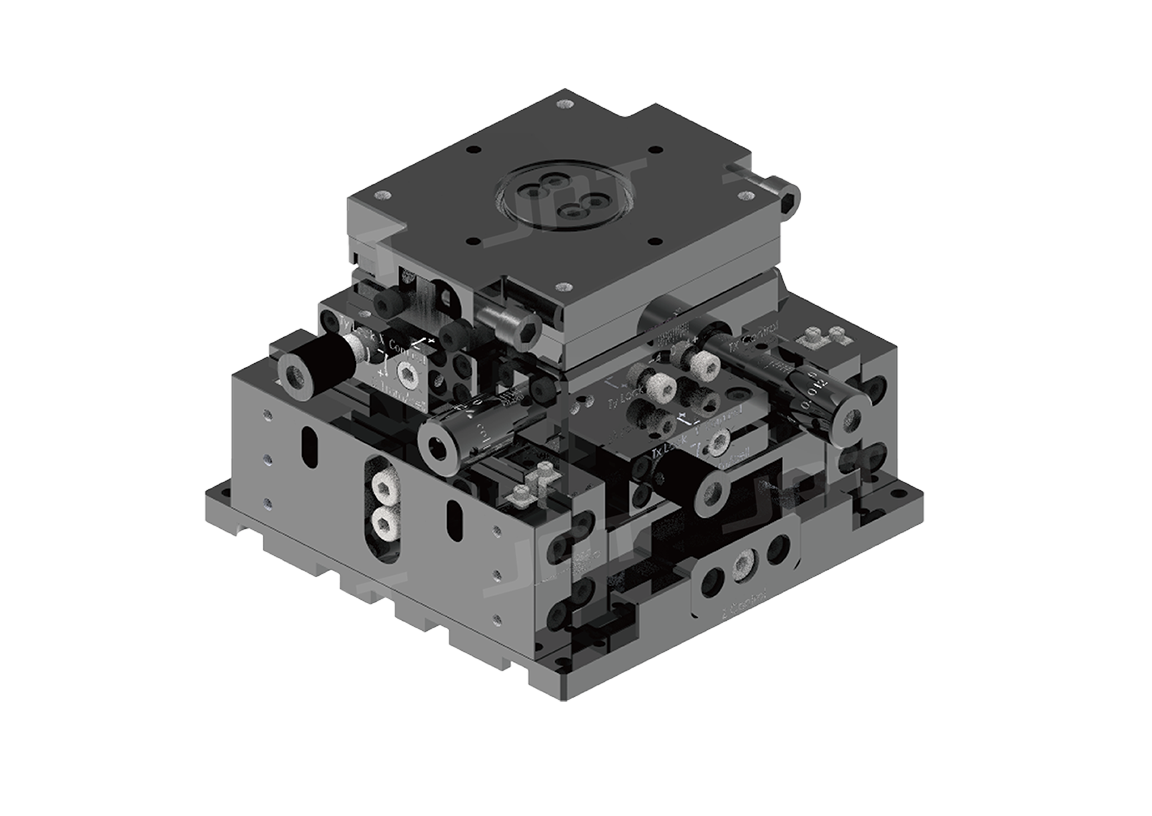

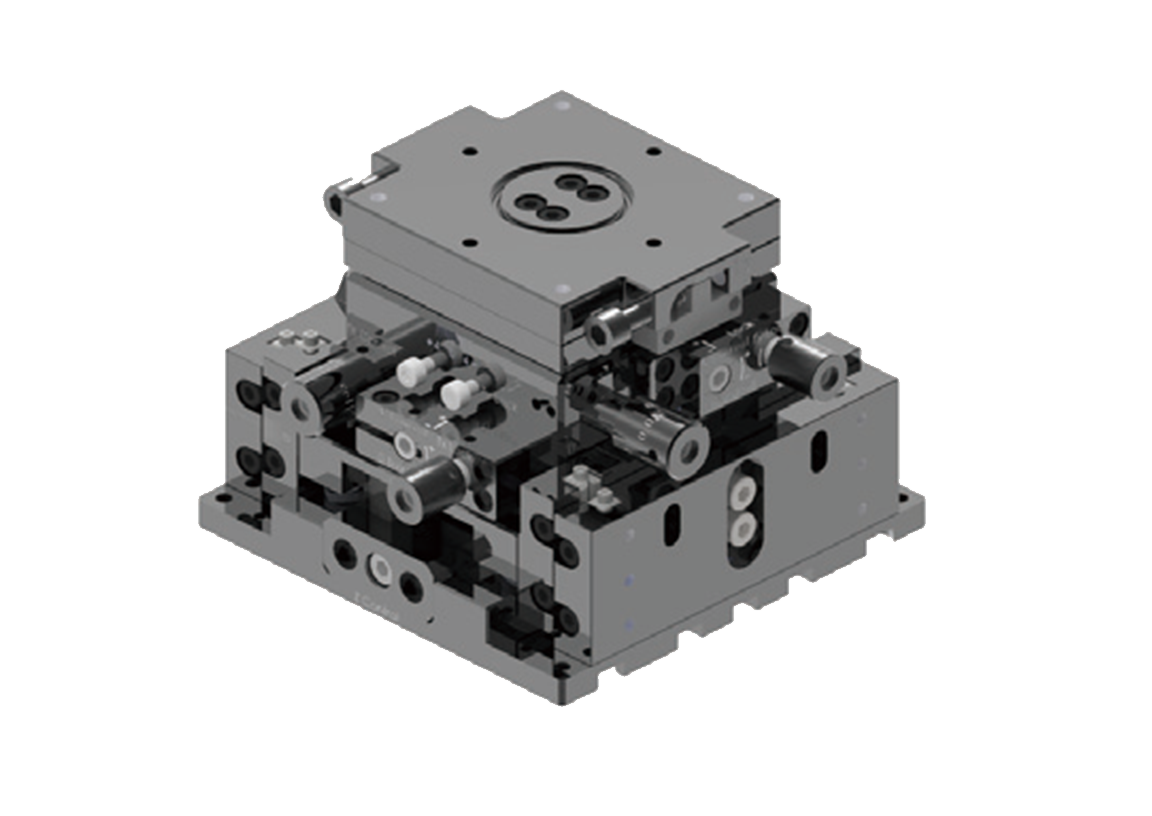

The Manual hexapod is a high-precision, adjustable mechanical positioning system. Utilizing fine-threaded micrometer screws for manual adjustment, it provides precise 6-degree-of-freedom (6-DOF) control in 3D space - combining linear translation (X/Y/Z) and rotational movement (about X/Y/Z axes). This system is specifically designed for precision spatial positioning and alignment calibration applications.
-
Product Advantages
-
Specifications
-
Application Solutions
Product Advantages
-
Independent 6-DOF Adjustment
Six degrees of freedom can be adjusted independently without mutual interference, providing flexible and precise control.
-
High Accuracy & Minimal Backlash
Engineered with small return clearance and high adjustment accuracy for stable, repeatable performance.
-
Compact & Highly Integrated
Small, space-saving design with high integration, ideal for use in narrow or confined environments.
-
Smooth Motion & Strong Locking
Ensures smooth adjustment with a reliable locking mechanism, maintaining stability during operation.
-
Durable & Vibration-Resistant
Built for long-term stability, with strong resistance to vibration interference and no precision loss over time.
Specifications
-
Six Axis Sliding Table
-
Six Axis Sliding Table
-
Adjustment method
-
Table dimensions
-
Weight
-
X-axis Travel / Accuracy
-
Y-axis Travel / Accuracy
-
Z-axis Travel / Accuracy
-
Tx-axis Travel / Accuracy
-
Ty-axis Travel / Accuracy
-
Rz-axis Travel / Accuracy
-
Drive Type
-
Main Material
-
Surface Treatment
-
Horizontal Load Capacity
-
Installation Method
-
MR
-
MK
-
MQ
-
MP
-
Six Axis Sliding Table
-
Adjustment methodHandwheel with Lead Screw
-
Table dimensions100 × 100 × 73 mm
-
Weight1.4kg
-
X-axis Travel / Accuracy±4.0/0.01mm
-
Y-axis Travel / Accuracy±4.0/0.01mm
-
Z-axis Travel / Accuracy±2.0/0.01mm
-
Tx-axis Travel / Accuracy±3.0°/ 0.05°
-
Ty-axis Travel / Accuracy±3.0°/ 0.05°
-
Rz-axis Travel / Accuracy±6.5°/ 0.05°
-
Drive TypeLead Screw
-
Main MaterialAL7075-T6
-
Surface TreatmentBlack Hard Anodizing
-
Horizontal Load Capacity60 N
-
Installation MethodHorizontal Mount
-
Static Allowable Torque
-
MR0
-
MK2.5 N・m
-
MQ0
-
MP2.5 N・m
-
-
Six Axis Sliding Table
-
Adjustment methodMicrometer Adjustment
-
Table dimensions100 × 100 × 90 mm
-
Weight2.5kg
-
X-axis Travel / Accuracy±4.0/0.01mm
-
Y-axis Travel / Accuracy±4.0/0.01mm
-
Z-axis Travel / Accuracy±2.0/0.01mm
-
Tx-axis Travel / Accuracy±3.0°/ 0.05°
-
Ty-axis Travel / Accuracy±3.0°/ 0.05°
-
Rz-axis Travel / Accuracy±6.5°/ 0.05°
-
Drive TypeLead Screw
-
Main MaterialAL7075-T6
-
Surface TreatmentBlack Hard Anodizing
-
Horizontal Load Capacity60 N
-
Installation MethodHorizontal Mount
-
Static Allowable Torque
-
MR0
-
MK2.5 N・m
-
MQ0
-
MP2.5 N・m
-
