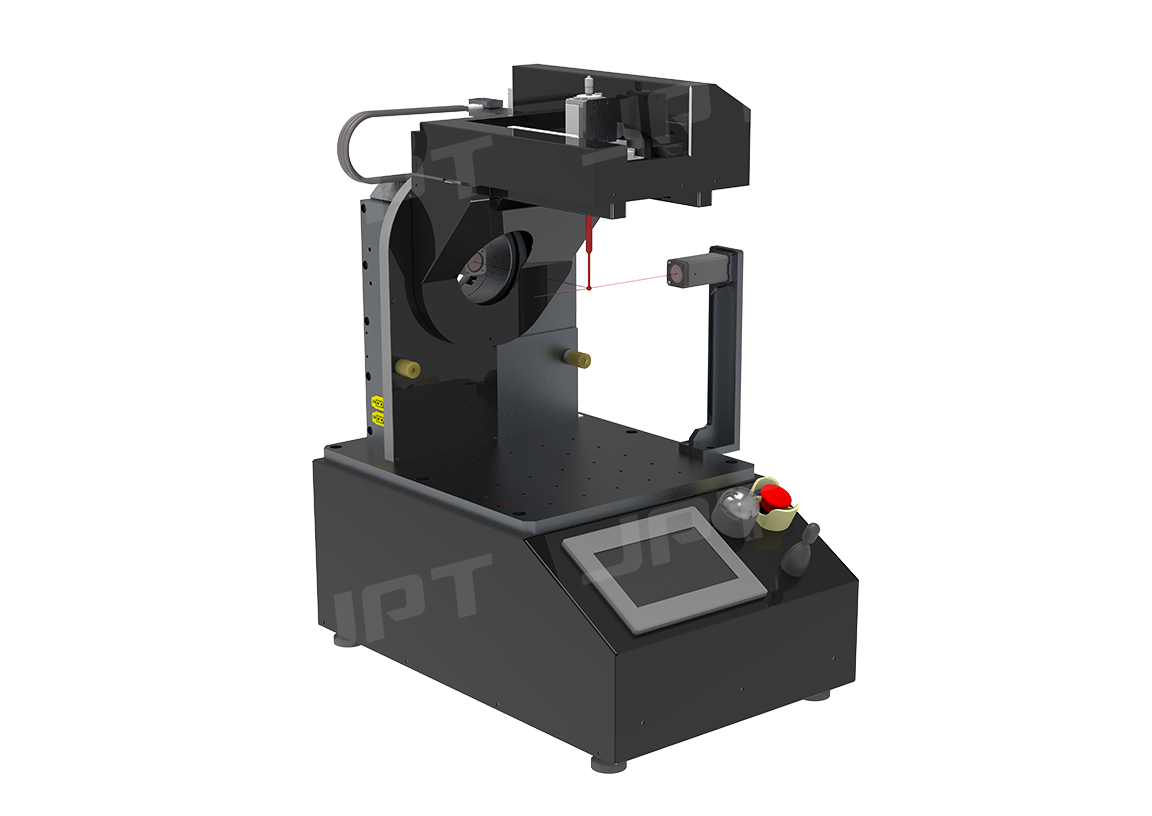

Multifunctional Automatic Stage
Redefining Industry Standards with Inverted Design
Integrating high-precision dynamic measurement with industrial-grade durability, this system is engineered for demanding applications including optical device calibration, semiconductor manufacturing, 3D scanning, and scientific research. Through micron-level calibration, intelligent control systems, and wide-angle load capacity, it pushes the boundaries of industrial measurement efficiency and precision.
-
Quick response, dynamic response time<10ms
-
Micron level positioning accuracy
-
Support non-standard customization
-
Product Advantages
-
Specifications
-
Application Solutions
Product Advantages
-
Inverted Design – Industry Pioneer
Breaking through traditional goniometer structures to fill market gaps, our innovative solution supports ±90° (Rx) and ±22° (Ry) wide-angle rotation while accommodating high payloads (5kg) and high-speed motion scenarios.
-
Micron-Level Calibration for Precision Positioning
Features dual-camera high-precision calibration on X/Y axes with micron-grade shaft coincidence accuracy. Equipped with universal mounting holes and integrated laser rotation center indication to ensure zero-deviation positioning of test specimens.
-
Smart Integrated Control with Flexible Expandability
PLC control system supports touchscreen, joystick, and remote command operation. Enables second-level switching between preset positions, with 3 Ethernet ports for EtherCAT bus compatibility. Optional WiFi remote control available, supporting I/O expansion and functional customization.
-
Industrial-Grade Robust Design
Precision components combined with hollow rotary tables/ball screw drives, featuring universal mounting holes (baseplate compatible with fixtures/XY stages). Ensures stable operation in harsh environments (-10°C to 60°C).
Specifications
-
Multifunctional Automatic Stage
-
Rx Rotation Range
-
Ry Rotation Range
-
Angular Resolution
-
Angular Repeatability
-
Functional Module Max. Size
-
Rx Drive System
-
Ry Drive System
-
Pivot Alignment
-
Functional Module Max. Load
-
Control System
-
Communication Interface
-
WiFi Remote Control
-
Dimensions
-
Weight
-
Operating Environment
-
Multifunctional Automatic Stage
-
Rx Rotation Range-90°~+900°
-
Ry Rotation Range-22°~+22°
-
Angular Resolution0.02°
-
Angular Repeatability0.01
-
Functional Module Max. Size115x75 mm
-
Rx Drive SystemServo motor with hollow rotary platform
-
Ry Drive SystemServo motor with high-precision ball screw
-
Pivot AlignmentX & Y axis goniometer
-
Functional Module Max. Load5 kg
-
Control SystemPLC control with communication interface
-
Communication Interface3 ports, compatible with PLC debugging and upper-level communication; supports EtherCAT protocol devices
-
WiFi Remote ControlOptional
-
Dimensions591 x400x728.5 mm
-
Weight45 kg
-
Operating Environment-10℃~60°C
-
Application Solutions
-
Consumer ElectronicsWith deep expertise in lasers, JPT provides advanced optical calibration and inspection systems for electronics. Combining optical design, vision algorithms, and motion control, we deliver intelligent, high-precision solutions that empower the industry.
Learn More -
Pan-SemiconductorJPT integrates core laser and automation technologies for wafer trimming, ceramic cutting, glass drilling, and marking. Our high-performance lasers and intelligent equipment enhance precision, yield, and process consistency across MLCC, LTCC, and IC substrates.
Learn More
