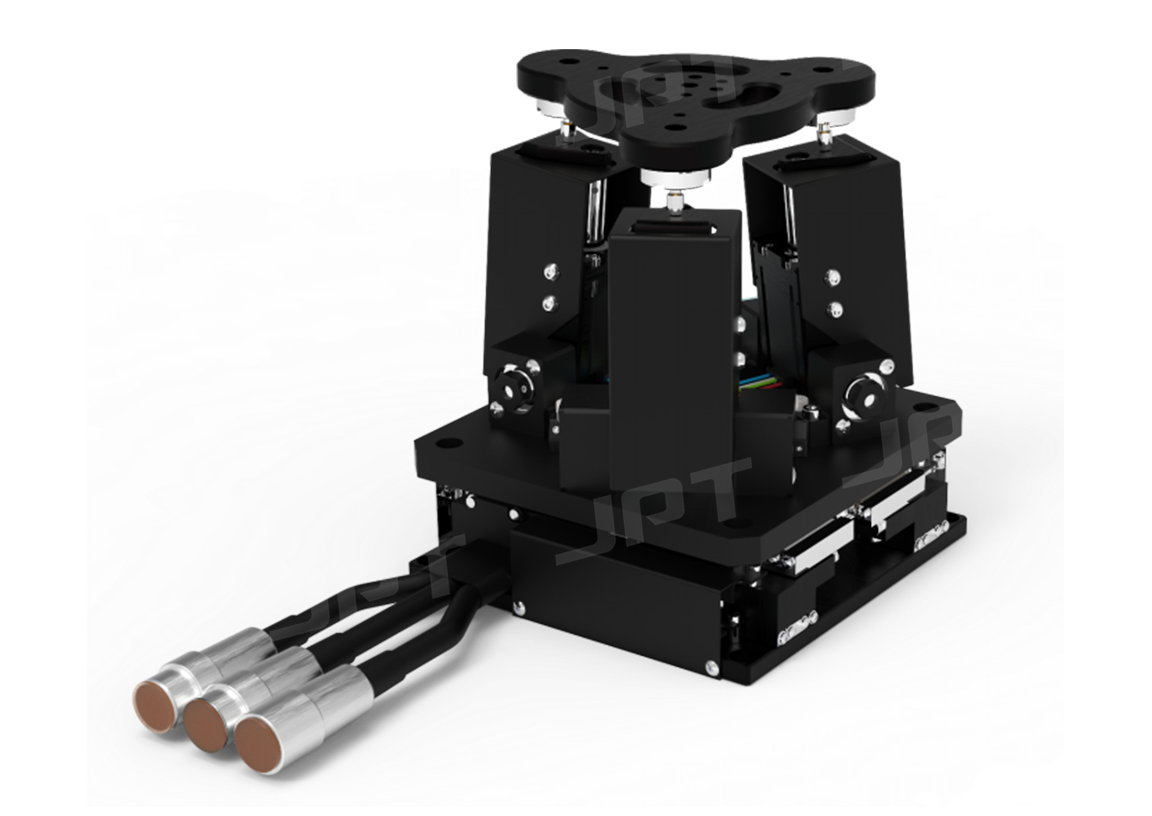

Electric Six Axis Sliding Table
The electric hexapod is a multi-axis parallel kinematic mechanism that eliminates mechanical stacking errors. Featuring micron-level precision and high dynamic response, it enables precise 6-DOF control—combining linear travel (X/Y/Z) and rotational movement (about X/Y/Z axes)—within 3D space. This system is ideal for precision spatial positioning and alignment calibration in demanding applications.
-
Quick Response, Dynamic Response Time<10ms
-
Micron Level Positioning Accuracy
-
Support Non-standard Customization
-
Product Advantages
-
Specifications
-
Application Solutions
Product Advantages
-
Modular & Flexible Platform
Supports independent joint replacement and modular integration, adaptable to diverse applications while minimizing maintenance downtime.
-
High-Speed & Multi-Degree Control
Delivers rapid response with <10 ms dynamic time, enabling flexible multi-axis motion control to simulate complex trajectories.
-
Precision & Stability
Micron-level positioning accuracy ensured by high-precision machining and calibration, guaranteeing smooth and reliable operation.
-
Compact & Integrated Design
Highly integrated structure with low center of gravity, vibration-resistant build, and streamlined cable management for simplified setup.
-
Industrial-Grade Durability
Engineered for long service life with low maintenance costs, ensuring robust performance under demanding conditions.
Specifications
-
Electric Six Axis Sliding Table
-
X-axis Travel / Accuracy
-
Y-axis Travel / Accuracy
-
Z-axis Travel / Accuracy
-
Tx-axis Travel / Accuracy
-
Ty-axis Travel / Accuracy
-
Rz-axis Travel / Accuracy
-
Drive Type
-
Speed
-
Main Material
-
Surface Treatment
-
Horizontal Load Capacity
-
Installation Method
-
Weight
-
Dimensions
-
Electric Six Axis Sliding Table
-
X-axis Travel / Accuracy±2.0mm /±5μm
-
Y-axis Travel / Accuracy±2.0mm /±5μm
-
Z-axis Travel / Accuracy±5mm /±5μm
-
Tx-axis Travel / Accuracy±2.5°/ ±0.01°
-
Ty-axis Travel / Accuracy±2.5°/ ±0.01°
-
Rz-axis Travel / Accuracy±2°/ ±0.01°
-
Drive TypeLead Screw
-
Speed5mm/s; 1°/s
-
Main MaterialAL7075 + Cast Iron
-
Surface TreatmentBlack Hard Anodizing
-
Horizontal Load Capacity60 N
-
Installation MethodHorizontal Mount
-
Weight3.6kg
-
Dimensions130 × 130 × 150 mm
-
Application Solutions
-
Consumer ElectronicsWith deep expertise in lasers, JPT provides advanced optical calibration and inspection systems for electronics. Combining optical design, vision algorithms, and motion control, we deliver intelligent, high-precision solutions that empower the industry.
Learn More -
Pan-SemiconductorJPT integrates core laser and automation technologies for wafer trimming, ceramic cutting, glass drilling, and marking. Our high-performance lasers and intelligent equipment enhance precision, yield, and process consistency across MLCC, LTCC, and IC substrates.
Learn More -
New EnergyFor batteries, JPT offers one-stop laser solutions from cell processing to PACK assembly. In photovoltaics, our applications span glass drilling, cell cleaving, PERC hole drilling, PL inspection, and perovskite patterning—driving efficient green energy manufacturing.
Learn More
