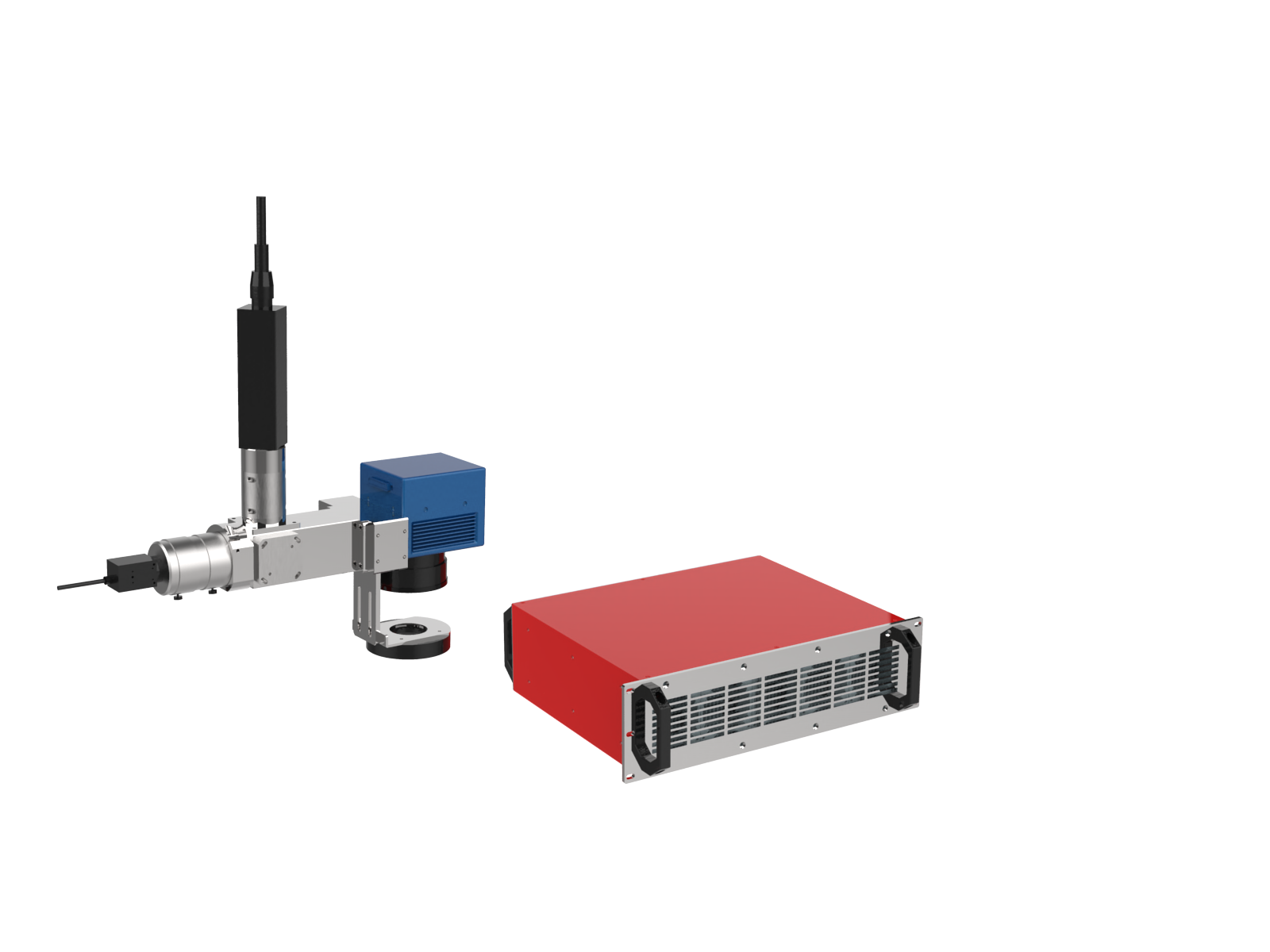

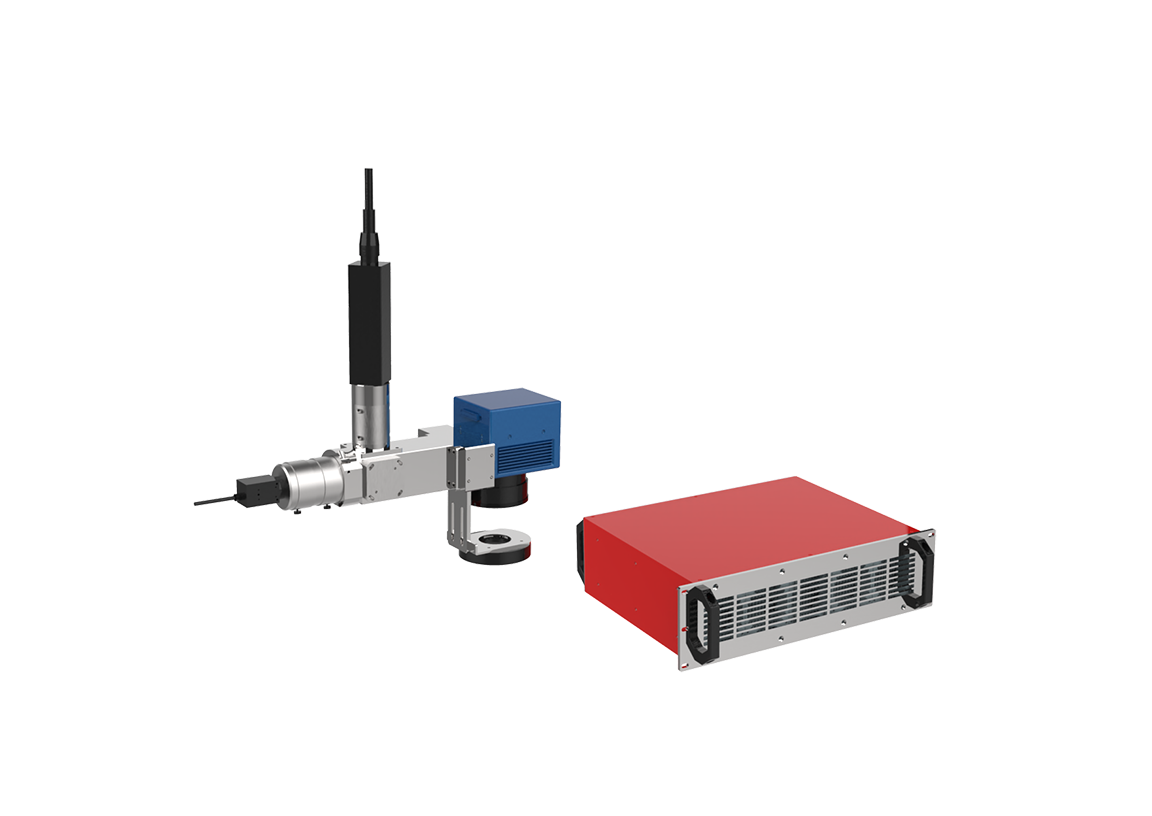

Multi-mode Laser Cleaning Module

Multi-mode Laser Cleaning Module is mainly used for: cleaning blue films on battery cells, cleaning rollers used in electrode sheet rolling, cleaning gravure rollers used in pre-coating, etc.

  • 12.5mJ
    ​​Maximum Single Pulse Energy
  • 100~500w
    Power
  • 20us
    Response Time
  • Product Advantages

  • Specifications

  • Application Solutions

Product Advantages

  • Exceptional Cleaning Purity

    Achieves a bright and clean surface with no residual contaminants, ensuring consistent quality and reliability in subsequent manufacturing processes.

  • ​​Power Real-Time Feedback Monitoring​​

    Equipped with real-time output power feedback systems to stabilize cleaning performance and enhance operational intelligence.

  • ​​High-Efficiency Cleaning Capability

    Maximum cleaning efficiency exceeds ​​>5000 mm²/s​​, meeting high-speed production line requirements for precision cleaning.

Specifications

Product Model
  • Multi-mode Laser Cleaning Module
    Multi-mode Laser Cleaning Module.png
  • Laser Wavelength
  • Average Output Power
  • Maximum Pulse Energy
  • Power Stability
  • Fiber Length
  • Multi-mode Laser Cleaning Module

    Multi-mode Laser Cleaning Module.png
    • Laser Wavelength
      1064nm
    • Average Output Power
      200W~1000W (Optional)
    • Maximum Pulse Energy
      12.5mJ, 15mJ, 50mJ, 100mJ
    • Power Stability
      <3%
    • Fiber Length
      5m (20m Customizable)
