Laser metal engraving

Laser metal engraving is a common application in laser processing, where the material is instantly melted or vaporized by a high-power density laser beam to achieve precise and intricate engraving. Compared to traditional metal etching processes, laser metal engraving has advantages such as pollution-free operation, high precision, and flexible engraving capabilities, making it widely used in the field of metal processing.

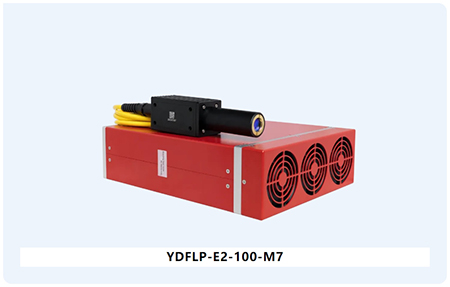

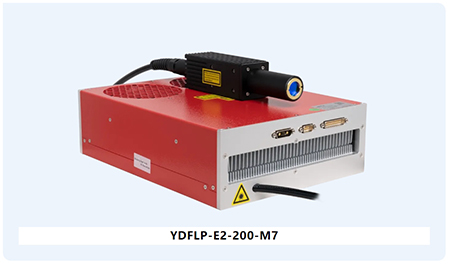

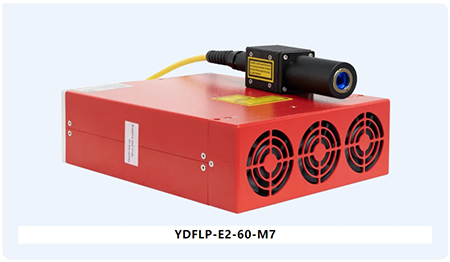

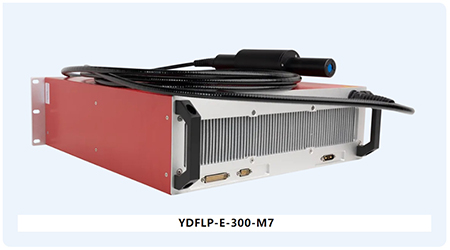

JPT's MOPA pulsed fiber laser covers a range of power options for metal engraving, allowing users to choose the appropriate laser based on their specific material and processing efficiency requirements. The following information is for reference purposes only.

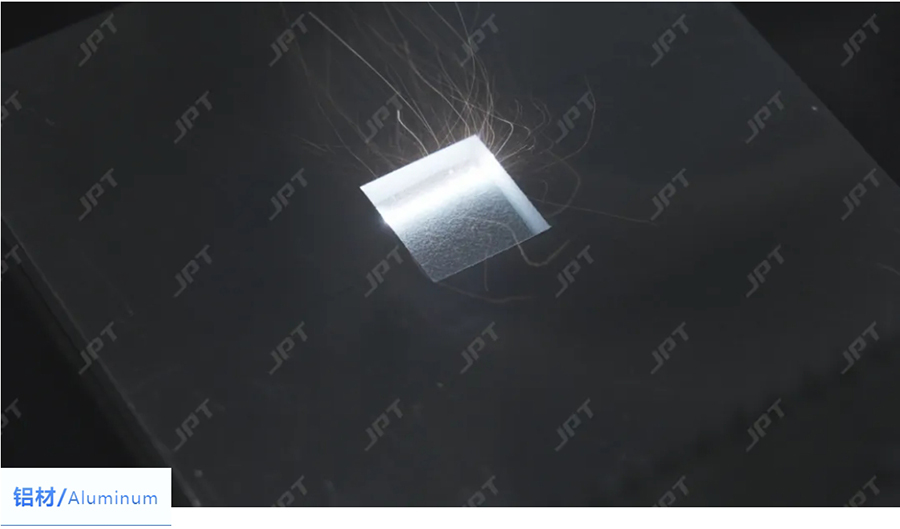

Aluminum, brass, and stainless steel are three common types of metals, each with unique physical and chemical properties. Aluminum is widely used in multiple industries due to its lightweight nature, excellent conductivity and thermal properties, high reflectivity, and resistance to oxidation. Aluminum has a higher efficiency in laser deep engraving mainly due to its good thermal conductivity and lower melting point. Aluminum can quickly dissipate heat under laser irradiation, reducing the heat-affected zone and thus improving processing accuracy and efficiency.

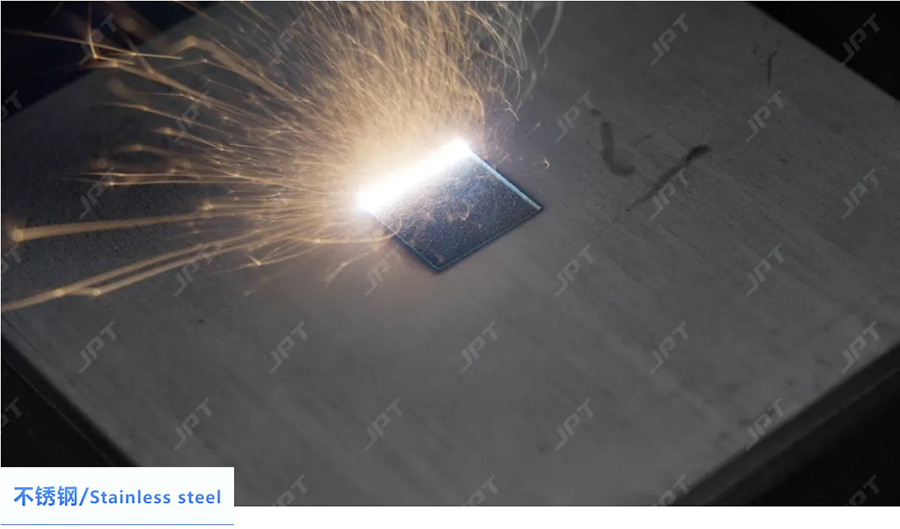

Stainless steel is widely used for its exceptional corrosion resistance and strength in various fields. Due to its higher melting point and hardness, laser deep engraving on stainless steel requires higher laser power and longer processing time.

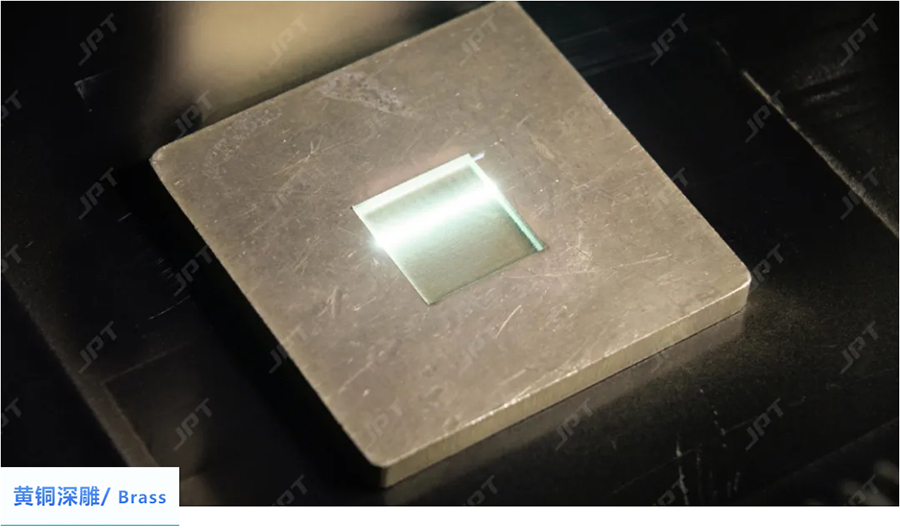

Brass is highly regarded for its excellent wear resistance, ductility, and malleability. However, the high reflectivity of brass to infrared light (nearly 97%) and its higher melting point significantly increase the processing time.


Therefore, selecting the appropriate laser is crucial for metal engraving. The diagram below shows the processing efficiency reference of different power lasers on various materials.

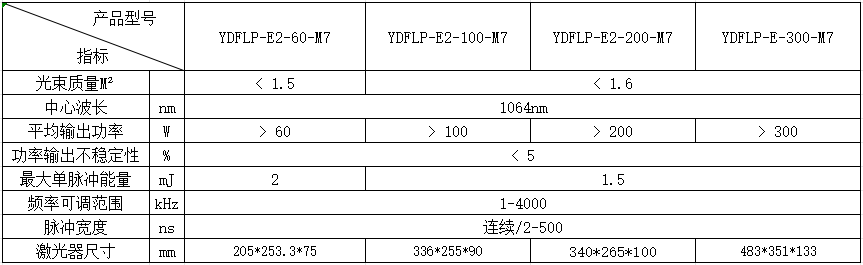

JPT's MOPA fiber lasers offer adjustable power, pulse width, and frequency features that allow users to adjust the processing parameters according to different materials. This ensures that the laser maintains optimum performance at all times.

Laser deep engraving technology has broad applications prospects in the field of metal processing. For different metal materials, it is essential to choose an appropriate laser based on specific application requirements and processing conditions to achieve optimal processing efficiency and results.

As a leader in China's commercial pulse width adjustable high-power fiber lasers industry,JPT will continue driving advancements in metal laser processing technology by leveraging core laser technologies while engaging in open communication with customers-EOM.
